Bme Caden Queen Bed Frame with Adjustable Headboard Instruction Manual

1. Émbaran Kasalametan

Mangga baca sagala parentah taliti saméméh assembly sarta pamakéan. Simpen manual ieu pikeun rujukan ka hareup.

• Two-person assembly is recommended to ensure safety and ease of installation.
• Gloves are advised during assembly for smooth handling and protection.
• Pastikeun yén sadaya bagian aya sareng henteu ruksak sateuacan ngamimitian ngarakit. Entong dianggo upami aya bagian anu leungit atanapi rusak.
• Place the bed frame on a tingkat sarta permukaan stabil during and after assembly.
• Do not overtighten screws, as this may damage the wood or hardware.
• Jauhkeun bagian leutik sareng bahan bungkusan tina murangkalih sareng piaraan pikeun nyegah bahaya choking.
• The Bme Caden Queen Bed Frame has a maximum weight capacity of 800 pon. Ulah ngaleuwihan wates ieu.
• This bed frame is designed for use with a Queen-sized mattress and does not require a box spring.

2. Eusi Paket

Pastikeun yén sadaya komponén anu didaptarkeun di handap kalebet kana pakét anjeun. Lamun aya bagian nu leungit atawa ruksak, mangga ngahubungan rojongan customer.

Image: All components of the Bme Caden Queen Bed Frame laid out, including the headboard, side rails, footboard, center support, slats, and hardware.

Daptar komponén:

• Headboard Panels (3 pieces)
• Headboard Support Brackets (2 pieces)
• Side Rails (2 pieces)
• Footboard (1 piece)
• Center Support Beam (1 piece)
• Adjustable Support Legs for Center Beam (2 pieces)
• Wood Slats (12 pieces)

Daptar Hardware:

• Bolts (various sizes for different connections)
• Tukang cuci
• Allen Wrench (for assembly)

3. Setup & Majelis

The Bme Caden Bed Frame is designed for easy assembly, typically requiring two people and approximately 45 minutes. Follow the steps below for a smooth setup.

Assembly Video Guides:

Léngkah Majelis Umum:

1. Nyiapkeun wewengkon: Kosongkeun tempat anu lega pikeun dirakit. Tata sadaya komponén sareng perangkat kerasna.
2. Pasang Headboard: Attach the headboard panels to the headboard support brackets using the provided bolts and Allen wrench.
3. Sambungkeun Rel Sisi ka Headboard: Secure the side rails to the assembled headboard using the appropriate hardware.
4. Pasangkeun Footboard: Connect the footboard to the other end of the side rails. Ensure all connections are snug but do not overtighten.
5. Pasang Center Support Beam: Attach the center support beam to the designated points on the headboard and footboard. Secure the adjustable support legs to the center beam.
6. Pasangkeun bilah kai: Lay the wood slats across the bed frame. The slats feature soundproof velcro for quicker installation and to prevent movement and noise. Ensure they are evenly spaced and securely seated.
7. Panyegelan ahir: Once all components are in place, go back and gently tighten all bolts to ensure a sturdy and stable frame.

The bed frame is designed to be used without a box spring, providing direct support for your mattress.

4. Pamakéan

Headboard adjustable:

The Bme Caden Bed Frame features an adjustable headboard that can be set to heights ranging from 39 inci nepi ka 45 inci. This allows for an ideal fit with various mattress thicknesses. Refer to the table below for recommended headboard settings based on mattress height:

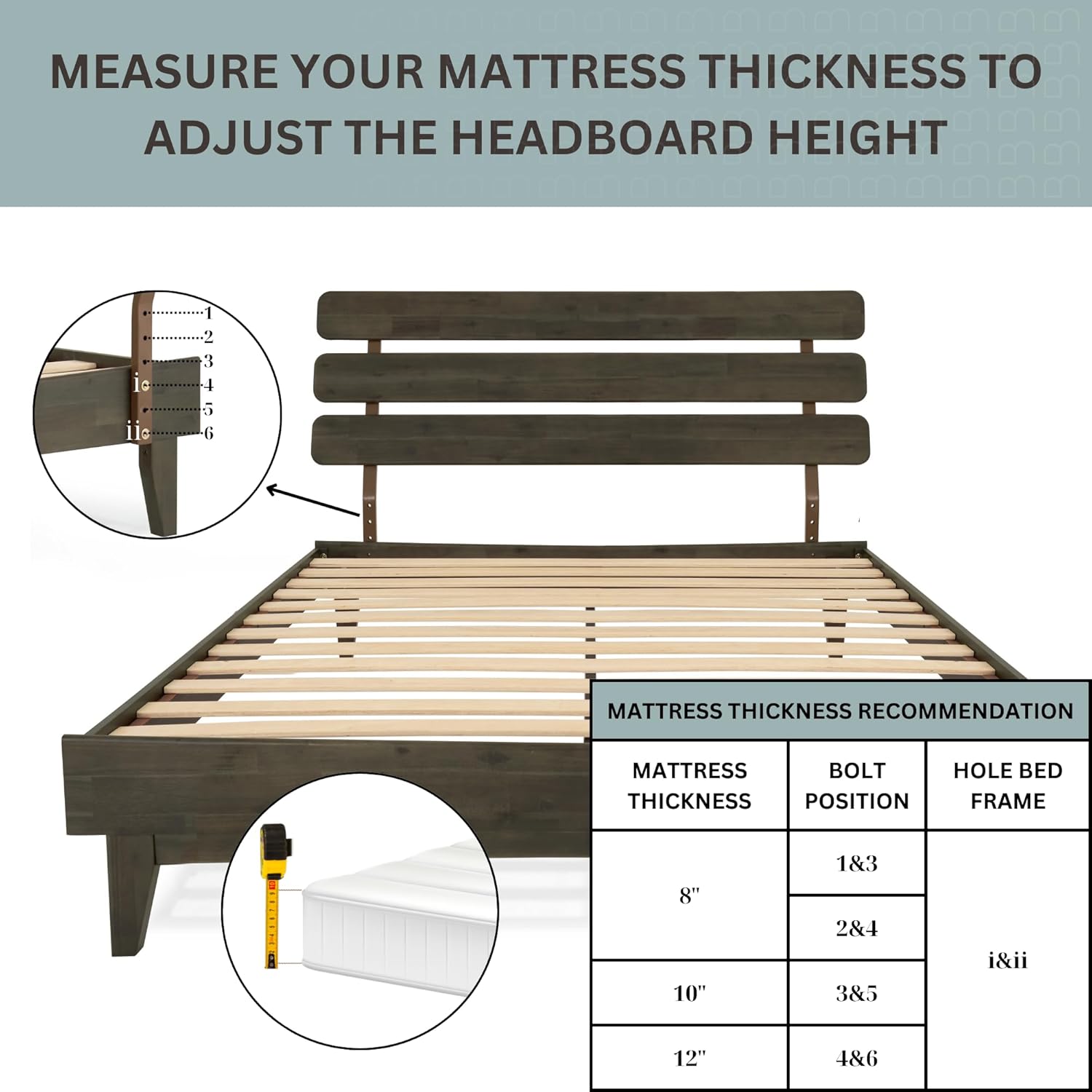

Image: A visual guide illustrating how to adjust the headboard height to accommodate 8-inch, 10-inch, and 12-inch mattresses, ensuring optimal fit and comfort.

The headboard also offers a gentle 15-degree recline, providing comfortable back support for activities like reading or watching television in bed.

Gambar: A sisi profile of the bed frame highlighting the 15-degree angle of the headboard, designed for ergonomic comfort.

Stability and Noise Reduction:

The bed frame is constructed with 12 strong wood slats and two metal center legs, designed to be noiseless and non-slip, ensuring optimal support and a peaceful night's sleep.

5. Pangropéa

To maintain the quality and appearance of your Bme Caden Bed Frame, follow these simple care instructions:

• beberesih: Wipe the bed frame with a lawon garing regularly to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which can damage the wood finish.
• Tumpahan: In case of spills, immediately blot the area with a clean, dry cloth.
• Pamariksaan: Periodically check all bolts and connections to ensure they remain tight. Retighten if necessary to maintain stability.
• Hindarkeun sinar panonpoé langsung: Prolonged exposure to direct sunlight can cause wood to fade or crack. Position your bed frame away from direct sunlight or use curtains/blinds.
• Kontrol kalembaban: Maintain a consistent humidity level in your room to prevent wood from expanding or contracting, which can lead to warping or cracking.

6. Cara ngungkulan

If you encounter any issues with your Bme Caden Bed Frame, please refer to the following common solutions:

• Suara ngik-ngik: If the bed frame makes squeaking noises, check all bolts and connections. Tighten any loose hardware. Ensure the slats are properly seated and the soundproof velcro is intact.
• Ketidakstabilan / goyah: Verify that the bed frame is on a level surface. Check all leg connections and the center support beam for tightness. Ensure all components are correctly assembled according to the instructions.
• Headboard Adjustment Issues: If the headboard is difficult to adjust, ensure the bolts are loosened sufficiently before attempting to change the height. Do not force the adjustment.
• Bagian anu Leungit atanapi Rusak: Upami anjeun mendakan aya bagian anu leungit atanapi ruksak nalika muka kotakna, tong teraskeun ngarakitna. Hubungi dukungan palanggan langsung pikeun kéngingkeun bantosan.

For issues not covered here, please contact Bme customer support for further assistance.

7. Spésifikasi

Image: Detailed diagram illustrating the length, width, and height of the Bme Caden Queen Bed Frame, including the adjustable headboard range and under-bed clearance.

Image: A table comparing the standard mattress sizes, mattress fit, and bed frame dimensions for both King and Queen sizes of the Caden Bed Frame.

8. Garansi sarta Rojongan Palanggan

Inpormasi Garansi:

For detailed warranty information regarding your Bme Caden Bed Frame, please refer to the product packaging or contact Bme customer support directly. Warranty terms and conditions may vary.

Rojongan Palanggan:

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Bme customer support. Contact information can typically be found on the product packaging or the official Bme websitus.
