sygonix SY-5491840 Door Chime Instruction Manual

1. Bubuka

This manual provides comprehensive instructions for the safe installation, proper operation, and routine maintenance of your sygonix SY-5491840 Door Chime. Please read this manual thoroughly before attempting to install or operate the device to ensure correct usage and to prevent damage.

Eusi pakét

• sygonix SY-5491840 Door Chime Unit
• Pamasangan screws
• Paku Tembok
• Manual pangguna (dokumén ieu)

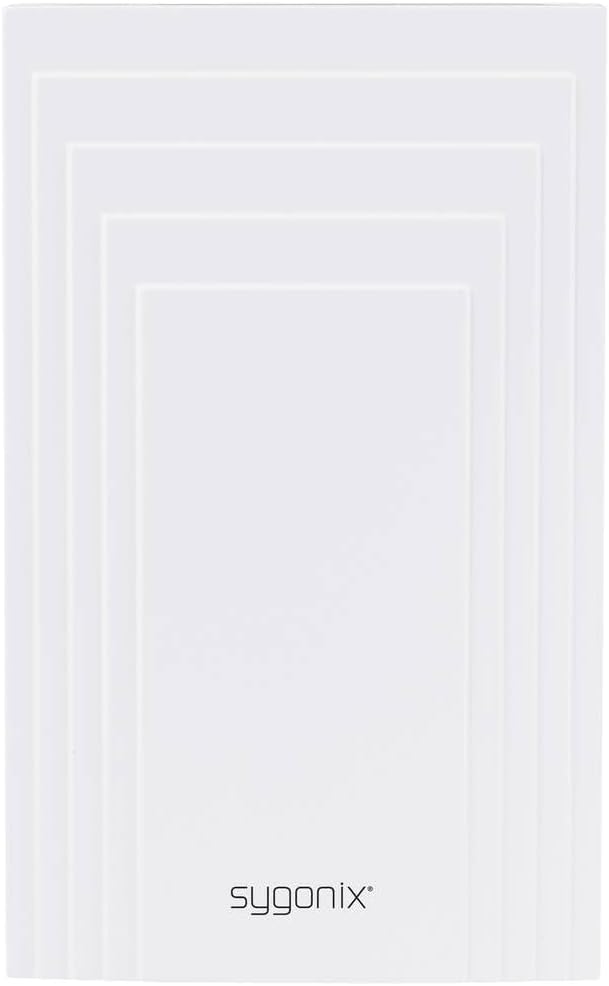

Gambar 1: Hareupeun view of the sygonix SY-5491840 Door Chime, showing its white rectangular casing and the 'sygonix' logo at the bottom.

2. Parentah Kasalametan

• Baca sagala parentah taliti saméméh instalasi tur pamakéan.
• Ensure the power supply is disconnected before performing any wiring or installation procedures.
• Ngan nganggo vol nu dieusiantage range of 8-12V AC or DC for operation. Using incorrect voltage may damage the device or pose a safety risk.
• Do not expose the unit to moisture, rain, or extreme temperatures. This device is intended for indoor use only.
• Jauhkeun alat tina jangkauan barudak.
• Ulah nyobian muka atawa ngalereskeun unit sorangan. Rujuk sadayana jasa ka tanaga anu mumpuni.

3. Setup jeung Instalasi

3.1 Mounting the Chime Unit

1. Choose a suitable indoor location for the door chime unit, typically near the entrance or in a central area of your home.
2. Carefully open the chime unit to access the mounting holes on the back plate.
3. Hold the back plate against the desired wall location and mark the positions for drilling.
4. Drill holes at the marked positions and insert the supplied wall dowels.
5. Secure the chime unit's back plate to the wall using the supplied screws.

Gambar 2: Balik view of the sygonix SY-5491840 Door Chime, illustrating the mounting points and internal structure for installation.

3.2 Power Supply and Wiring

The sygonix SY-5491840 Door Chime requires an 8-12V AC or DC power source and a compatible push button (not included).

• Option 1: External Transformer (8-12V AC/DC)
  Connect an external 8-12V transformer (not included) to the designated terminals inside the chime unit. Ensure the transformer's output matches the chime's voltage syarat.
• Pilihan 2: Daya Batré
  Insert 4 x 1.5V LR14 (C-cell) batteries (not included) into the battery compartment. Pay close attention to the polarity markings (+/-) inside the compartment.

Connect the wires from your 8-12V push button (not included) to the appropriate terminals within the chime unit. Refer to the internal diagram for correct wiring. If using DC power, ensure correct polarity for the power input.

Gambar 3: Internal view of the sygonix SY-5491840 Door Chime, detailing the wiring terminals for power and push button connections, as well as the battery compartment.

4. Parentah Operasi

Once the sygonix SY-5491840 Door Chime is correctly installed and powered, its operation is straightforward. Pressing the connected 8-12V push button will activate the chime, producing a clear, single-tone sound to alert you of a visitor.

5. Pangropéa

• beberesih: Clean the exterior of the chime unit with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the surface.
• Ngagantian Batré (upami aya): If you are using battery power and the chime sound becomes weak or stops functioning, replace all four LR14 batteries with new ones. Ensure correct polarity when inserting new batteries.
• Pamariksaan: Pariksa sambungan kabel sacara berkala pikeun mastikeun éta aman sareng bébas tina korosi.

6. Cara ngungkulan

• Henteu aya sora:
  • Check the power supply: Ensure batteries are fresh and correctly inserted, or that the external transformer is providing power.
  • Verify wiring: Confirm all connections to the chime unit and push button are secure and correctly wired.
  • Test the push button: Ensure the push button itself is functioning correctly.
  • Konfirmasi voltage: Make sure the power supply is within the specified 8-12V range.
• Sora lemah:
  • Upami nganggo batré, ganti ku anu énggal.
  • Check for any loose wiring connections that might be causing a poor electrical contact.

7. Spésifikasi

8. Garansi jeung Rojongan

The sygonix SY-5491840 Door Chime comes with a spare parts availability period of 1 year from the date of purchase.

For technical support, warranty claims, or further assistance, please contact your retailer or the manufacturer, sygonix, directly. Please retain your proof of purchase for warranty purposes.
