NJOY Echo Pro 2000 UPS Server User Manual

1. Bubuka

The NJOY Echo Pro 2000 is an advanced Uninterruptible Power Supply (UPS) designed to provide reliable power protection for critical equipment such as servers, workstations, and networking devices. Featuring double conversion online technology, it delivers a pure sine wave output, ensuring the highest degree of compatibility and protection for sensitive electronics. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Echo Pro 2000 UPS.

Gambar 1.1: Hareupeun view of the NJOY Echo Pro 2000 UPS. This image shows the main unit with its front panel display and control buttons.

2. Émbaran Kasalametan

Please read and follow all safety instructions carefully before installing, operating, or servicing the UPS. Failure to comply with these instructions may result in electric shock, fire, or serious injury.

• Kasalametan listrik: The UPS contains hazardous voltages. Ulah nyobian ngabongkar unit. Servis ngan kedah dilakukeun ku tanaga anu mumpuni.
• Kasalametan batré: Batteries can present a risk of electrical shock and high short-circuit current. Observe proper polarity when connecting batteries. Do not dispose of batteries in a fire.
• Lingkungan: Install the UPS in a well-ventilated area, free from excessive dust, humidity, and corrosive substances. Avoid direct sunlight and heat sources.
• Grounding: Ensure the UPS is properly grounded to prevent electrical shock.
• Pareum Darurat (EPO): Familiarize yourself with the EPO function for immediate shutdown in emergencies.

3. Produk Langkungview

3.1 Fitur konci

• Double Conversion Online Technology: Provides continuous, clean power by converting incoming AC to DC and then back to AC, isolating connected equipment from utility power fluctuations.
• Kaluaran Gelombang Sinus Murni: Ensures compatibility with all types of electronic loads, preventing distortion and electrical noise.
• Tingkat Noise Lemah: Operates at less than 40 dB, suitable for office environments.
• Manajemén parangkat lunak: Includes specialized software for remote monitoring, scheduled power on/off, battery tests, and complete UPS configuration.
• Palabuhan Komunikasi: Equipped with RS232, HID USB, and EPO ports. An optional SNMP card slot is available for advanced network monitoring.
• Batré internal: Features 4 x 12V7Ah sealed lead-acid batteries for reliable backup power.

3.2 Sambungan Panel Rear

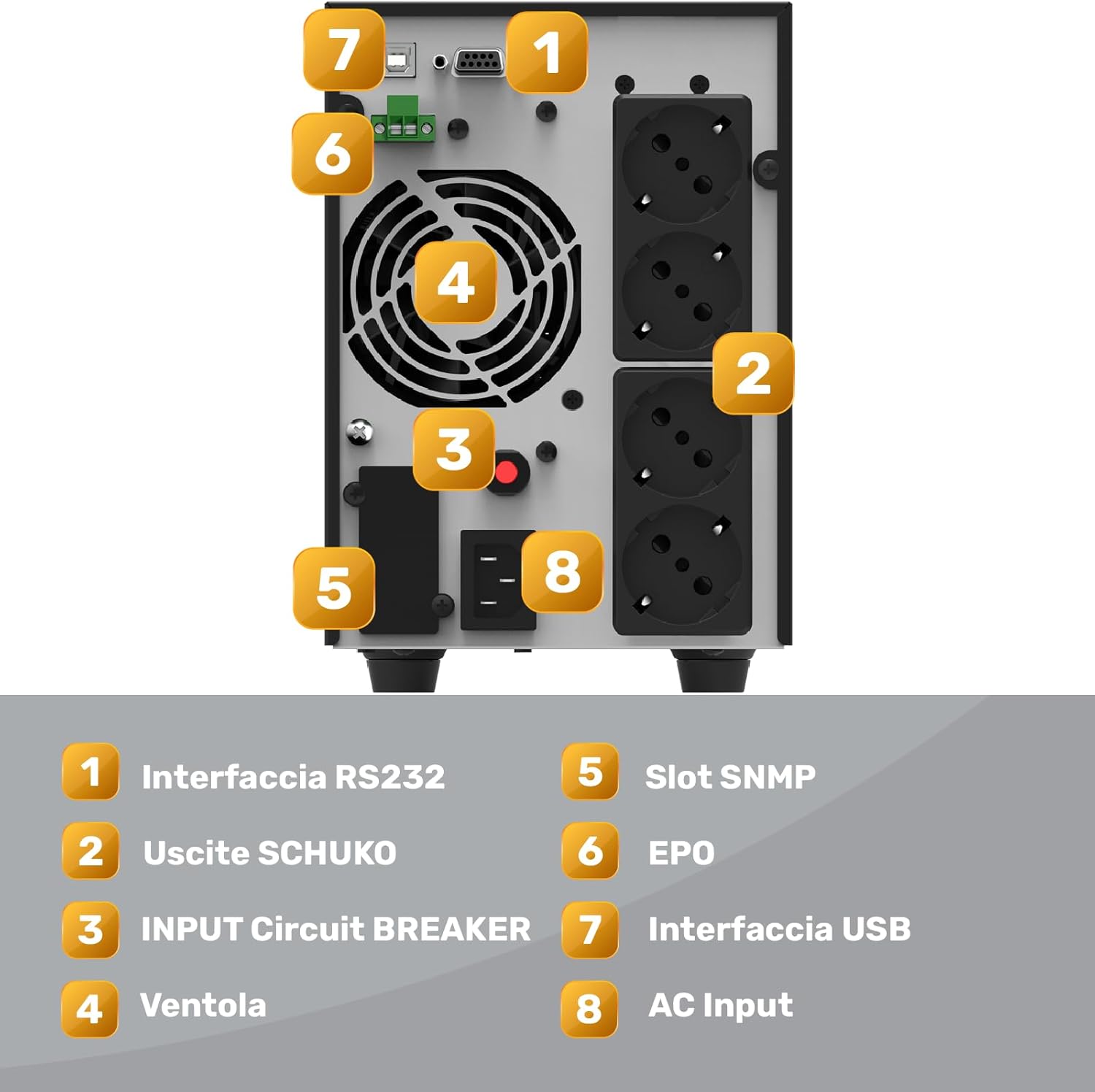

Figure 3.1: Rear panel of the NJOY Echo Pro 2000 UPS, showing various connection ports.

1. Antarmuka RS232: Pikeun komunikasi serial sareng komputer atanapi alat jaringan.
2. Gerai Schuko (x4): Output receptacles for connecting protected equipment.
3. Input circuit breaker: Overcurrent protection for the UPS input.
4. Kipas: Cooling fan for internal components.
5. SNMP Slot: Expansion slot for an optional SNMP card (not included) for network management.
6. EPO (Emergency Power Off): Connector for remote emergency shutdown.
7. Antarmuka USB: For USB communication with a computer.
8. Input AC: Power input connector for the UPS.

4. Setélan

Follow these steps to properly set up your NJOY Echo Pro 2000 UPS:

1. Ngabongkar bungkusan: Carefully unpack the UPS and inspect it for any shipping damage. Report any damage to your dealer.
2. panempatan: Place the UPS in a clean, dry, and well-ventilated indoor environment. Ensure adequate clearance around the unit for proper airflow. Avoid placing it near heat sources or in direct sunlight.
3. Ngecas awal: Connect the UPS to a grounded AC power outlet using the provided power cord. Allow the UPS to charge for at least 8 hours before connecting any equipment to ensure optimal battery performance. The LCD display will indicate charging status.
4. Alat Nyambungkeun: Once the UPS is fully charged, connect your critical equipment (servers, computers, monitors, etc.) to the Schuko output receptacles on the rear panel. Do not connect surge suppressors or power strips to the UPS output.
5. Setup komunikasi: For monitoring and management, connect the UPS to your computer using the provided USB or RS232 cable. Install the specialized management software (refer to Section 5.2).
6. EPO Connection (Optional): If using the Emergency Power Off function, connect the EPO cable to the designated port.

5. Parentah Operasi

5.1 Powering on / Pareum

• Pikeun Ngahurungkeun: Press and hold the 'ON' button on the front panel for approximately 2 seconds until the UPS powers on and the LCD display illuminates.
• Pikeun mareuman: Press and hold the 'OFF' button for approximately 2 seconds. The UPS will shut down, and the display will turn off.

5.2 Layar LCD sareng Tombol Kontrol

The front panel LCD provides real-time status information. Use the 'ENTER' and 'ESC' buttons to navigate through the display menus and view various parameters such as input/output voltage, battery level, load level, and operating mode.

5.3 Manajemén parangkat lunak

The included software allows for comprehensive monitoring and control of the UPS. Install the software on a connected computer to:

• Monitor real-time UPS status and parameters.
• Schedule automatic power on/off and battery tests.
• Configure UPS settings and alarm thresholds.
• Receive notifications for power events.
• Perform safe shutdown of connected computer systems during extended power outages.

Gambar 5.1: Kelample of the UPS management software interface, showing status and configuration options.

6. Pangropéa

Regular maintenance ensures the longevity and optimal performance of your UPS.

• Perawatan batré: The UPS contains sealed lead-acid batteries. These batteries typically last 3-5 years under normal operating conditions. Replace batteries when their runtime significantly decreases. Only use replacement batteries of the same type and rating (4 x 12V7Ah). Battery replacement should be performed by qualified service personnel.
• beberesih: Keep the UPS clean and free of dust. Use a dry cloth to wipe the exterior. Do not use liquid cleaners or solvents. Ensure ventilation openings are clear of obstructions.
• Kaayaan Lingkungan: Maintain the UPS within the recommended operating temperature and humidity ranges to prolong its lifespan.
• Uji diri: Periodically perform a battery self-test using the management software or front panel controls to assess battery health.

7. Cara ngungkulan

This section provides solutions to common issues you might encounter with your UPS. If the problem persists, contact technical support.

8. Spésifikasi

Figure 8.1: Runtime autonomy chart for the NJOY Echo Pro 2000 UPS. This chart illustrates the approximate backup duration at different load levels. For example, at 1600W (100% load), the runtime is approximately 1 minute, while at 400W (25% load), it is approximately 17 minutes.

9. Émbaran jaminan

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official NJOY websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

10. Rojongan

If you require technical assistance or have questions regarding your NJOY Echo Pro 2000 UPS, please contact NJOY customer support through their official websitus atanapi inpormasi kontak anu disayogikeun dina dokuméntasi produk anjeun.
