PDP 049-015-JGR

PDP AIRLITE GLOW Wired Headset User Manual

Model: 049-015-JGR

1. Produk Langkungview

Thank you for choosing the PDP AIRLITE GLOW Wired Headset. This headset is designed to provide an immersive audio experience and clear communication for gaming on Xbox Series X|S, Xbox One, and Windows 10/11 PC. Its lightweight design and comfortable earcups ensure extended use without discomfort.

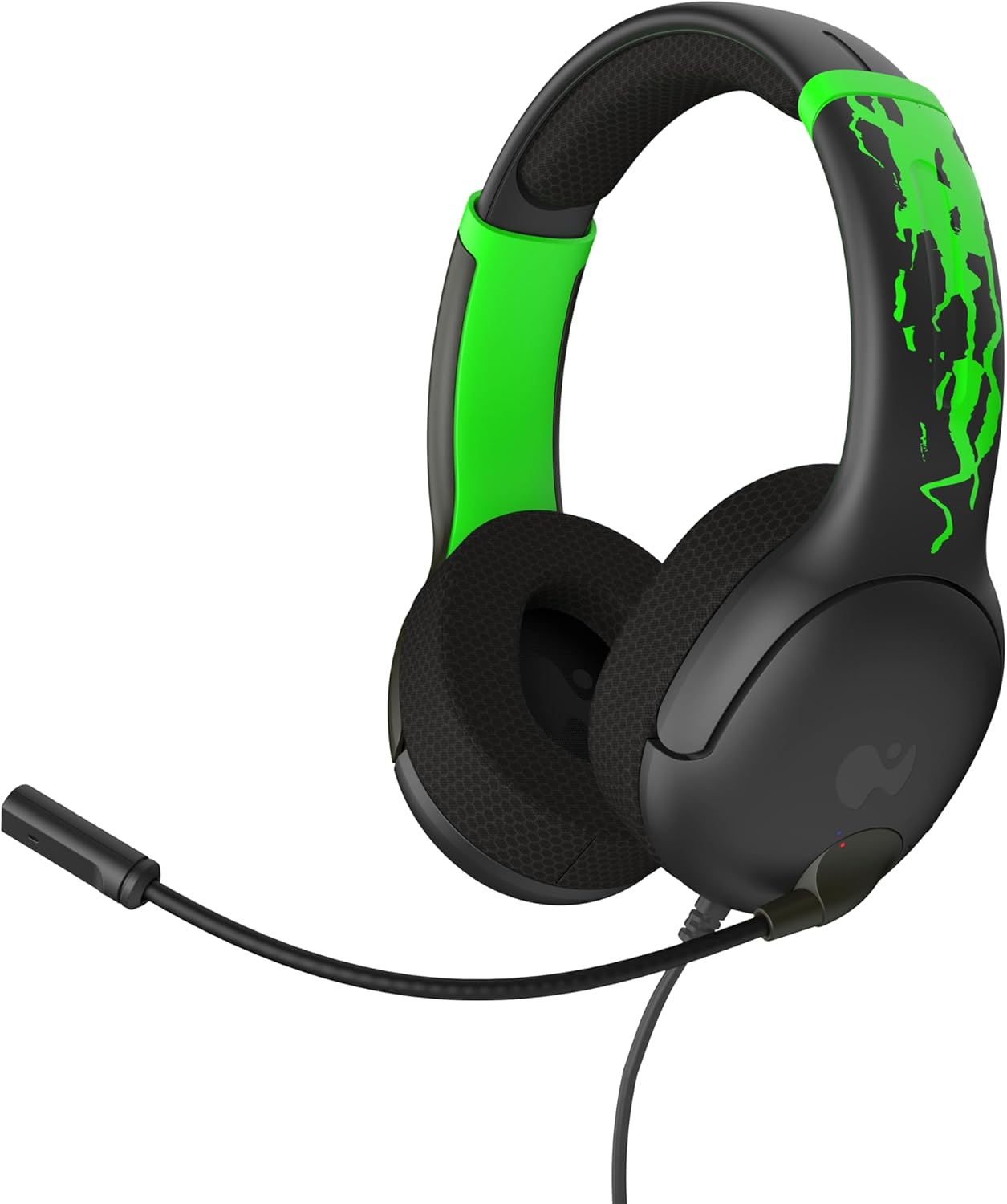

PDP AIRLITE GLOW Wired Headset, front view

Gambar 1: Hareupeun view of the PDP AIRLITE GLOW Wired Headset.

Fitur konci:

2. Parentah Setup

The PDP AIRLITE GLOW Wired Headset connects directly to your gaming controller or compatible device via a 3.5mm audio jack.

Connecting to an Xbox Controller:

  1. Ensure your Xbox console and controller are powered on.
  2. Locate the 3.5mm audio jack port on the bottom of your Xbox controller.
  3. Insert the 3.5mm audio plug from the headset firmly into the controller's audio jack.
  4. The headset should now be connected and ready for use. You may need to adjust audio settings on your Xbox console or controller for optimal sound and microphone levels.

Connecting to PC (Windows 10/11):

  1. Locate the 3.5mm audio jack on your PC. If your PC has separate ports for microphone and headphones, you may need a 3.5mm splitter (not included).
  2. Insert the 3.5mm audio plug from the headset into the combined audio jack or the appropriate headphone/microphone jacks.
  3. Access your PC's sound settings to ensure the headset is selected as the default input and output device. Adjust volume and microphone levels as needed.
PDP AIRLITE GLOW Wired Headset, showing 3.5mm jack connection

Figure 2: The 3.5mm audio jack for connecting the headset.

3. Parentah Operasi

Fungsi Mikropon:

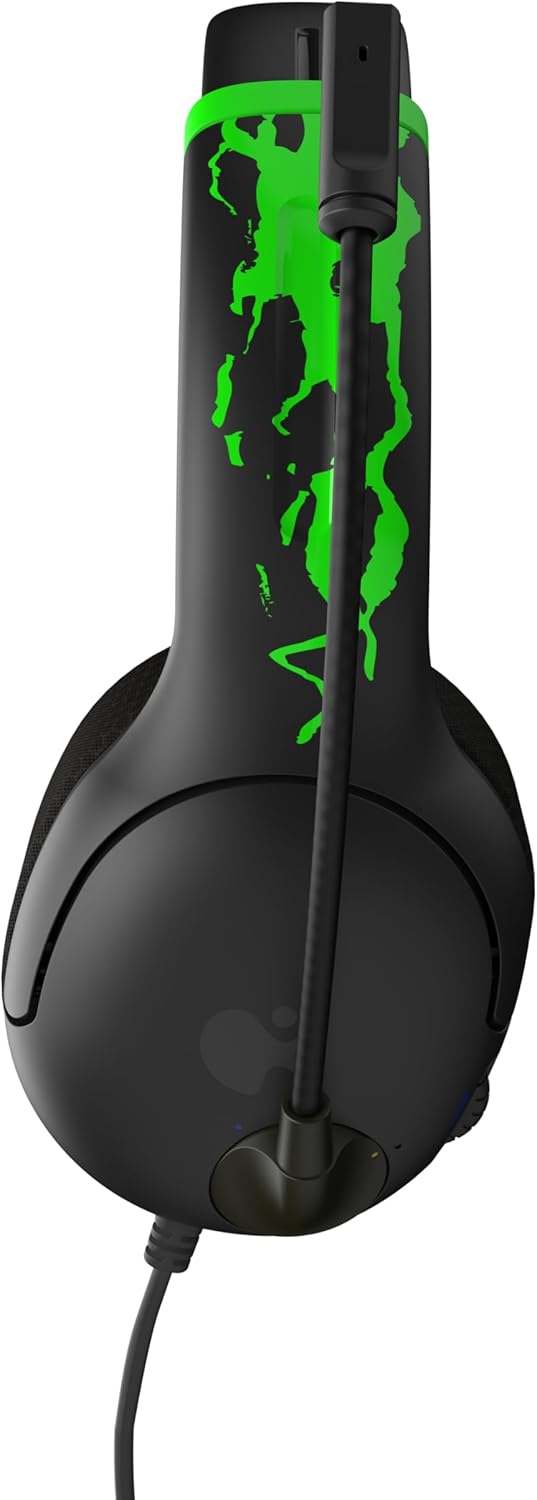

PDP AIRLITE GLOW Wired Headset, showing microphone in upright (muted) position

Figure 3: Microphone in the muted (upright) position.

Kontrol volume:

PDP AIRLITE GLOW Wired Headset, showing volume control dial on earcup

Figure 4: Volume control dial located on the earcup.

Adjusting Headset Fit:

PDP AIRLITE GLOW Wired Headset, showing adjustable headband

Figure 5: Adjustable headband for a personalized fit.

4. Perawatan sareng Pangropéa

5. Cara ngungkulan

MasalahSolusi
Taya sora tina headset.
  • Ensure the 3.5mm audio jack is fully inserted into the controller/device.
  • Check the volume control dial on the headset and increase the volume.
  • Verify audio settings on your console/PC to ensure the headset is selected as the output device and volume is not muted.
  • Uji headset nganggo alat anu sanés pikeun ngaluarkeun masalah khusus alat.
Mikropon teu jalan.
  • Ensure the microphone boom arm is flipped down to the speaking position (unmuted).
  • Check microphone settings on your console/PC to ensure the headset is selected as the input device and microphone volume is not muted or too low.
  • Uji headset nganggo alat anu sanés pikeun ngaluarkeun masalah khusus alat.
Headset feels uncomfortable.
  • Adjust the headband by sliding the earcups up or down to find a better fit.
  • Ensure earcups are properly positioned over your ears.

6. Spésifikasi produk

FiturRincian
Ngaran modélAIRLITE GLOW
Nomer modél049-015-JGR
merekPDP
Téhnologi konektipitasKabel (Jack 3.5 mm)
Alat nu cocogXbox Series X|S, Xbox One, Windows 10/11 PC, Gaming Consoles, Desktops, Laptops
Tipe Supir AudioSupir dinamis (40mm)
MikroponNoise-canceling, Flip-to-mute
Tipe KontrolVolume Control (on-ear dial)
Item Beurat0.018 ounces (approximately 7 oz as per feature bullet)
Bahanpalastik
Fitur hususLightweight, Glow-in-the-dark design

7. Garansi jeung Rojongan

Kanggo inpormasi garansi sareng dukungan palanggan, mangga tingali PDP resmi websitus atanapi ngahubungan layanan palanggan maranéhanana langsung. Simpen bukti pameseran anjeun pikeun klaim garansi.

Dukungan Online: Nganjang ka Toko PDP di Amazon pikeun émbaran leuwih produk jeung sumber rojongan.
