usogood TC30 48MP 4K HD Trail Camera Instruction Manual

1. Bubuka

The usogood TC30 Trail Camera is designed for capturing high-quality images and videos of wildlife and for outdoor surveillance. Featuring 48-megapixel photos and 4K HD video recording at 30 frames per second, this camera provides clear and detailed footage both day and night. Its robust, waterproof design ensures reliable performance in various outdoor environments.

Figure 1: usogood TC30 Trail Camera

2. Eusi Paket

Sateuacan dipasang, mangga pastikeun sadaya barang aya dina pakét:

• 1x usogood TC30 Trail Camera
• 8x AA Batteries (1.5V)
• 1x 32GB Kartu SD
• 1x Tali Pemasangan
• 1 x Kabel USB
• 1 x Manual Pamaké

Figure 2: Package contents including camera, batteries, SD card, strap, and cable.

3. Setup Guide

3.1 Pamasangan batré

The camera requires 8 AA batteries for operation. Ensure correct polarity when inserting the batteries.

1. Buka kaméra casing.
2. Panggihan kompartemen batré.
3. Pasangkeun 8 batré AA, cocogkeun terminal positif (+) sareng négatif (-) sakumaha anu dituduhkeun.

Figure 3: Proper battery installation.

3.2 SD Card sisipan

A 32GB SD card is included for storing photos and videos.

1. Bari kaméra dibuka, pilari slot kartu SD-na.
2. Lebetkeun kartu SD kana slotna dugi ka ngaklik kana tempatna. Pastikeun kartu parantos dipasang dina orientasi anu leres.

Figure 4: SD card insertion.

3.3 Powering On jeung Pamilihan Mode

The camera has an ON/TEST/OFF switch to select the operating mode.

1. Slide the switch to the 'TEST' position to access the menu and configure settings. The screen will activate.
2. After configuring settings, slide the switch to the 'ON' position for automatic operation. The screen will turn off, and the camera will enter surveillance mode.
3. Slide the switch to 'OFF' to power down the camera.

Figure 5: ON/TEST/OFF switch.

3.4 Masang kaméra

The camera is designed for outdoor use and can be mounted using the provided strap.

1. Securely attach the camera to a tree or pole using the mounting strap.
2. Saluyukeun sudut kaméra pikeun nutupan wewengkon panjagaan nu dipikahoyong.

Figure 6: Camera mounted on a tree, demonstrating its IP66 waterproof rating.

4. Ngoperasikeun kaméra

4.1 Night Vision Capabilities

The camera features 36 850nm infrared LEDs for clear night vision without startling animals. The 4K version uses red PIR indicator lights.

Gambar 7: Kelample of night vision capture.

4.2 Video and Image Quality

The TC30 captures 4K HD video at 30fps and 48-megapixel still images, ensuring high-quality recordings.

Gambar 8: Kelample of 4K video quality.

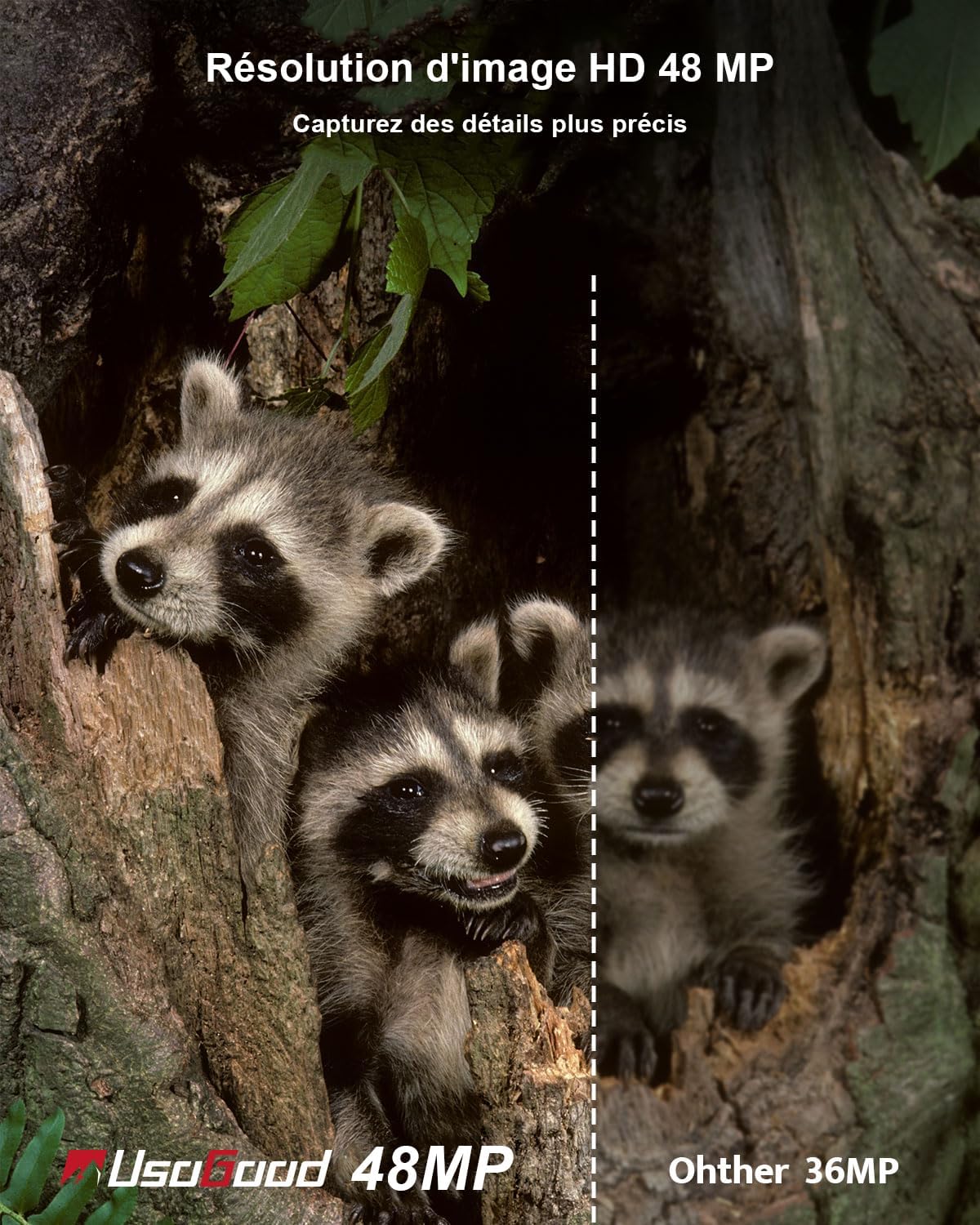

Figure 9: Comparison of 48MP image resolution.

4.3 Deteksi Gerakan sareng Kecepatan Pemicu

Equipped with a 120° wide-angle PIR sensor, the camera detects motion and triggers recording within 0.3 seconds.

Figure 10: 120° wide-angle PIR detection.

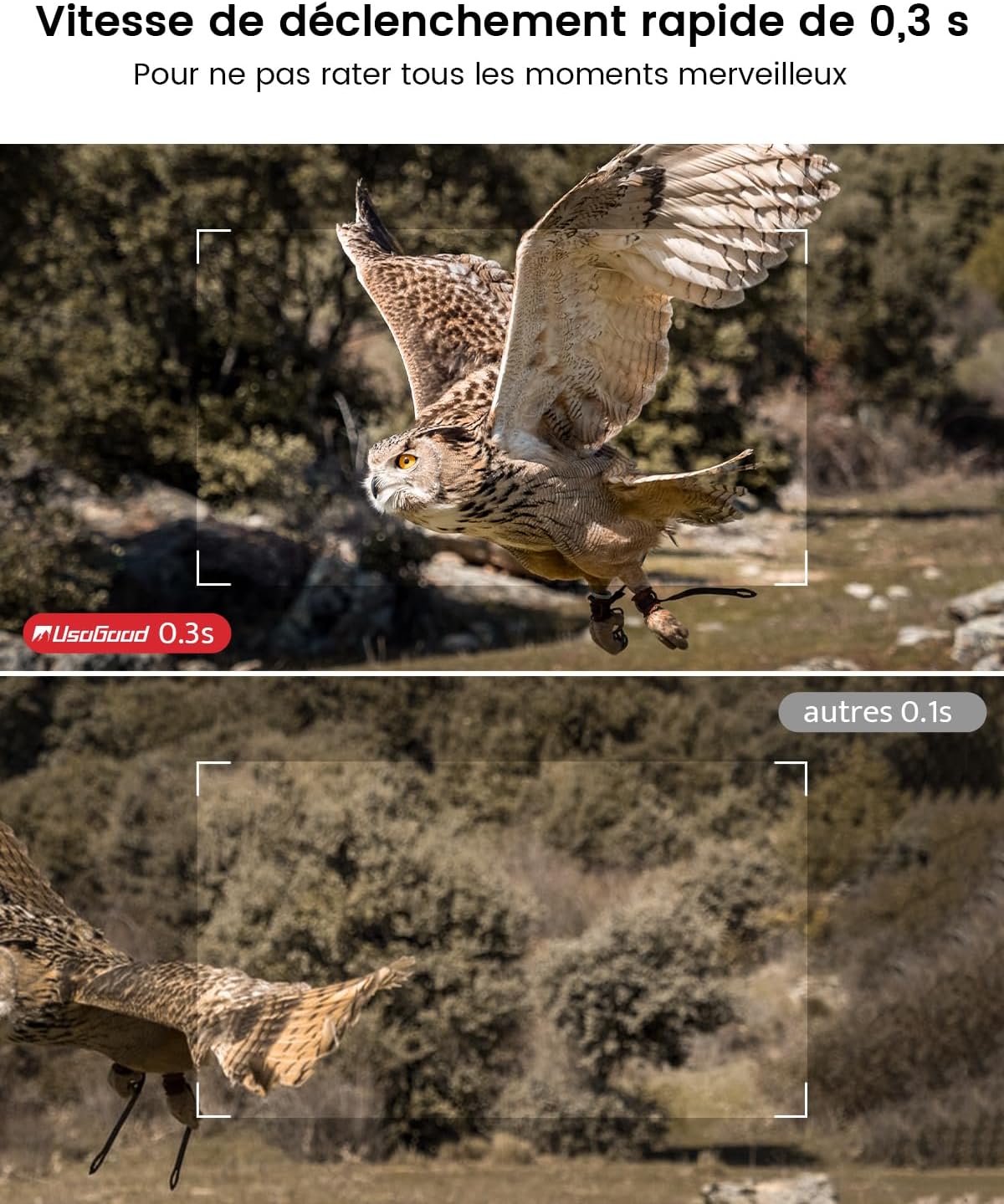

Figure 11: Fast 0.3-second trigger speed.

4.4 Time Lapse Function

The camera supports time-lapse recording, allowing observation of gradual changes over time.

Figure 12: Time-lapse recording of plant growth.

5. Media Management

5.1 Viewing sareng Mupus Files

Ka view or delete recorded videos and pictures:

1. Slide the camera switch to the 'TEST' position.
2. Press the 'MODE' button twice to enter the viewpanganteur dina.
3. Use the 'UP' and 'DOWN' buttons to navigate through videos and pictures.
4. Press the 'OK' button to play a selected video or view hiji gambar.
5. To delete, press 'MENU', select 'Delete', then choose 'Delete Current' or 'Delete All', and confirm.

6. Aplikasi

The usogood TC30 Trail Camera is suitable for various outdoor applications:

• Observasi Satwa: Capture images and videos of animals in their natural habitat.
• Moro: Monitor game trails and animal activity.
• Property Surveillance: Enhance security for homes, farms, or backyards.
• Garden Monitoring: Observe garden visitors or plant growth.

Figure 13: Diverse applications of the TC30 camera.

Gambar 14: Sample images captured by the camera.

7. Cara ngungkulan

If you encounter issues with your usogood TC30 Trail Camera, consider the following:

• Kaméra teu hurung: Pariksa pamasangan batré sareng pastikeun batréna parantos dicas pinuh.
• No recordings: Verify the SD card is correctly inserted and has sufficient space. Check motion detection settings.
• Poor night vision: Ensure the camera is positioned correctly and there are no obstructions blocking the IR LEDs.
• hirup batré pondok: Reduce the frequency of recordings or video length in settings. Consider using high-quality alkaline batteries.

For further assistance, please contact usogood customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

The usogood TC30 Trail Camera comes with a 2-year manufacturer's warranty.

For product support, warranty claims, or any questions, please refer to the contact information provided in your package or visit the official usogood websitus.

You can also scan the QR codes below for official usogood resources:
