TouchWo 65-inch 4K Interactive Touchscreen Monitor Smart Board

1. Setélan

1.1 Unboxing sareng Persiapan Awal

Carefully remove the TouchWo 65-inch Smart Board from its packaging. Ensure all components listed below are present.

Naon anu aya dina Kotak:

• 1 x Smart Whiteboard
• 1 x Power Line
• 1 x Presenter pen
• 1 x Portabel Nangtung
• 1 x Wifi Antenna
• 1 x Stylus for touchscreen operations
• 1 x Screen mirroring device

Image: The TouchWo 65-inch Smart Board with its various accessories laid out, including the power cable, stylus, screen mirroring device, and remote controls.

1.2 Pilihan pamasangan

The TouchWo Smart Board offers two primary mounting options: a mobile stand for portability and a wall mount bracket for fixed installations. Choose the option that best suits your environment.

Image: Visual representation of the two available mounting methods: a mobile stand with wheels for flexible placement and a wall mounting bracket for secure, permanent installation.

2. Parentah Operasi

2.1 Operasi Dasar

The TouchWo Smart Board features a highly responsive 20-point touch screen, allowing for intuitive interaction using multiple fingers or the included stylus. The response time is within 5ms, ensuring a smooth user experience.

Image: This image illustrates the 20-point touch technology, demonstrating various gestures such as single tap, double tap, press and hold, two-finger tap, and two-finger press for interactive use.

2.2 Dual System Functionality

The smart board is equipped with both Android 13 and Windows 10 dual operating systems. You can switch between these systems as needed to access different applications and functionalities. The Android configuration includes RAM 4GB + ROM 32GB, while the Windows system features Core i7, RAM 8GB + SSD 512GB.

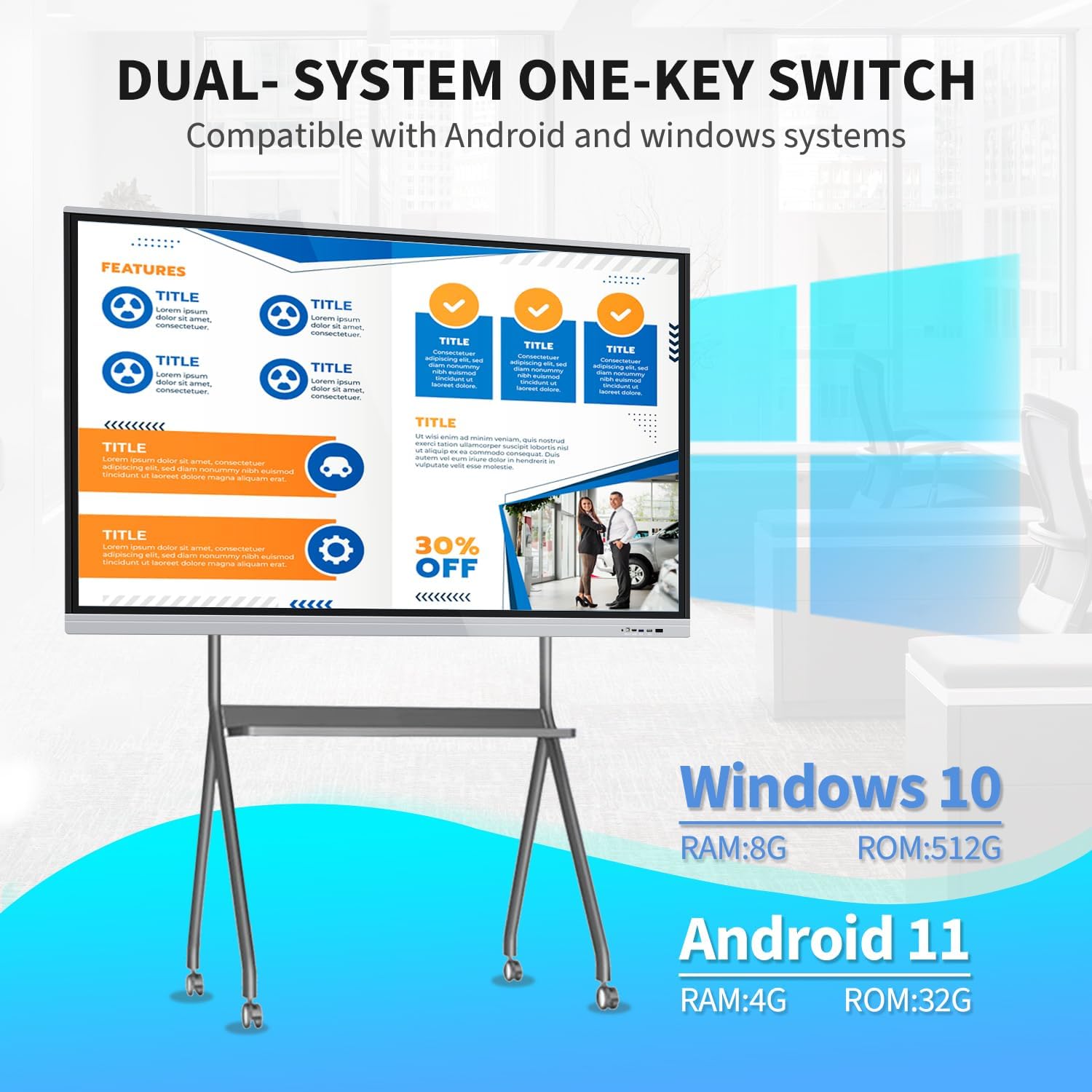

Image: A visual representation of the dual-system functionality, highlighting the one-key switch between Android and Windows operating systems, along with their respective RAM and ROM specifications.

2.3 Connectivity and Interfaces

The smart board supports a variety of interfaces for seamless integration with other devices. These include HD-MI, USB, VGA, RJ45, Wi-Fi, and BT5.0. Built-in speakers are also included. HD-MI IN and USB OTG ports allow for screen casting from external devices with touch functionality.

Gambar: A lengkep view of the smart board's side panel, illustrating the available ports such as USB, HDMI, and a dedicated Touch port for external device connectivity.

2.4 Screen Mirroring and Digital Signage

The device supports screen mirroring from phones, laptops, or tablets, enabling content sharing and interactive presentations. It also functions as a digital signage display, supporting both horizontal and vertical placement for various applications. Connect an external camera and microphone for video conferencing capabilities.

Image: This image displays four different usage scenarios for the smart board: as a whiteboard for meetings, a whiteboard for classrooms, for video conferencing, and for screen mirroring from a mobile device.

3. Pangropéa

3.1 Perawatan sareng Ngabersihan

• To clean the screen, use a soft, lint-free cloth. For stubborn marks, lightly dampBilas lawon ku cai atanapi larutan beberesih anu aman pikeun layar. Hindarkeun bahan kimia anu keras atanapi bahan anu abrasif.
• Keep the device free from dust and debris. Regularly wipe down the frame and vents.
• Pastikeun ventilasi ditangtoskeun sabudeureun alat pikeun nyegah overheating.

3.2 Apdet parangkat lunak

Periodically check for software updates for both Android and Windows operating systems to ensure optimal performance, security, and access to new features. Follow the on-screen prompts for installation.

4. Cara ngungkulan

4.1 Isu umum

• Henteu aya kakuatan: Ensure the power cable is securely connected to both the smart board and a working power outlet. Check the power switch on the device.
• Layar rampa teu ngaréspon: Restart the device. Ensure no foreign objects are on the screen surface. If using a stylus, check its battery if applicable.
• Masalah tampilan: Verify all video cables (HDMI, VGA) are properly connected. Try switching input sources.
• Screen Mirroring Failure: Ensure both devices are connected to the same Wi-Fi network. Check the screen mirroring application settings on both devices.
• Masalah Audio: Check volume settings on the smart board and any connected external devices. Ensure external speakers are properly connected if used.

For persistent issues, refer to the detailed troubleshooting guide available on the manufacturer's websitus atanapi ngahubungan rojongan customer.

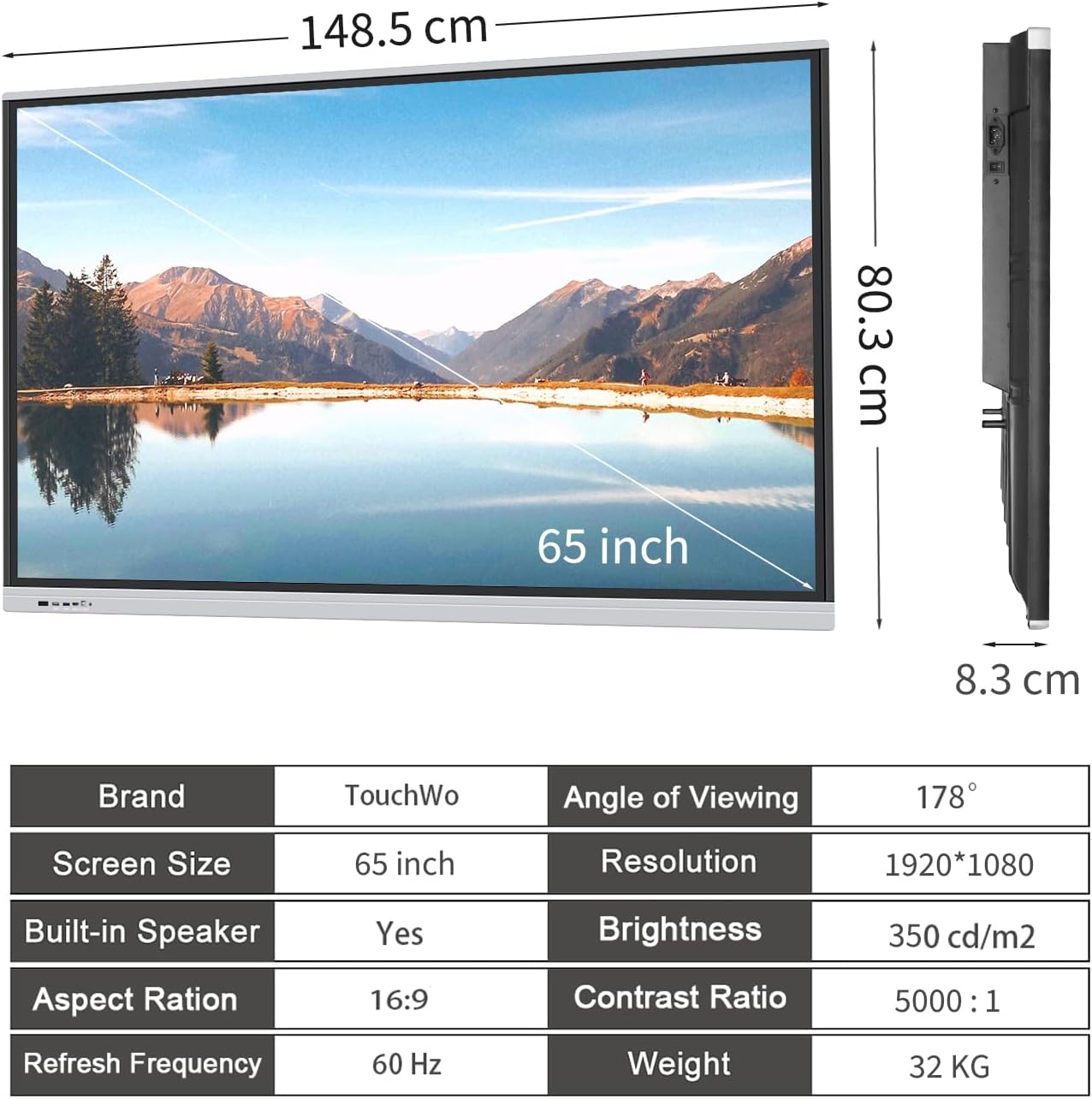

5. Spésifikasi

6. Garansi jeung Rojongan

6.1 Émbaran jaminan

This product is covered by a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. Protection plans are also available for extended coverage.

6.2 Rojongan Palanggan

For any assistance, technical support, or inquiries regarding your TouchWo Smart Board, please contact our customer service team. You can reach us via the official email provided below or visit our Amazon store for more information.

Image: Contact information for TouchWo customer support, including an official email address and a QR code for quick access to support resources.

• Surélék Resmi: touchwoamz@outlook.com
• Toko Amazon: Visit TouchWo Store on Amazon
