Bubuka
This manual provides essential instructions for the proper use and maintenance of your JIARUIXIN CST-1A 2.4G Bluetooth Remote Control, designed for children's electric ride-on cars equipped with CSR-12T series receivers. Please read this manual thoroughly before operation to ensure safe and correct usage.
Image: The CST-1A remote control shown alongside examples of compatible children's electric ride-on cars.
Émbaran Kasalametan
- Pikeun pamakéan éksternal wungkul.
- Jauhkeun tina seuneu anu teu kakeunaan cahaya atanapi sumber panas langsung.
- All batteries must be inserted with correct polarity.
- To avoid injury, keep batteries away from children.
- Dispose of dead batteries properly and keep them away from children.
- Avoid direct contact between positive and negative terminals to prevent fire or explosion.
- Ulah campur accu heubeul jeung anyar. Ulah gaul batré basa, standar (karbon-séng), atawa rechargeable (nikel-kadmium).
- Only an adult who has read and understood the safety warnings can recharge the battery (if applicable to the car's battery, not the remote's AAA batteries).
Image: Important safety warnings regarding battery usage and handling.
Kasaluyuan
The CST-1A remote control is specifically designed for children's electric ride-on cars that utilize a CSR-12T series receiver. To ensure compatibility, please follow these steps:
- Open the control box of your electric ride-on car.
- Check the model number on the receiver. It must start with CSR-12T (e.g., CSR-12T-1A, CSR-12T-1B, CSR-12T-2A, CSR-12T-2B, CSR-12T-3A, CSR-12T-3B).
- The appearance of the control box should match the compatible models shown in the images below.
Catetan penting: The CST-1A remote control is teu cocog with JR white remotes or receivers, nor with older CSG4A receiver versions. Products from different manufacturers are generally not interchangeable.
Image: The CST-1A remote control is compatible with controllers starting with CSR-12T, such as CSR-12T-1A, CSR-12T-1B, and CSR-12T-2A.
Image: Visual distinction between the compatible CST-1A remote (top) and an incompatible JR remote (bottom).
Image: The CST-1A remote control is not compatible with JR receivers or the older CSG4A receiver model.
Parentah Setup
1. Pamasangan batré
The remote control requires two AAA 1.5V batteries (not included). Ensure correct polarity during installation.
- Locate the battery cover on the back of the remote control.
- Loosen the screw on the battery cover and remove it.
- Insert two AAA 1.5V batteries, paying close attention to the positive (+) and negative (-) polarity markings inside the battery compartment.
- Ganti tutup batréna sareng kencengkeun sekrup.
- The indicator lights on the remote will flash three times, confirming correct battery installation.

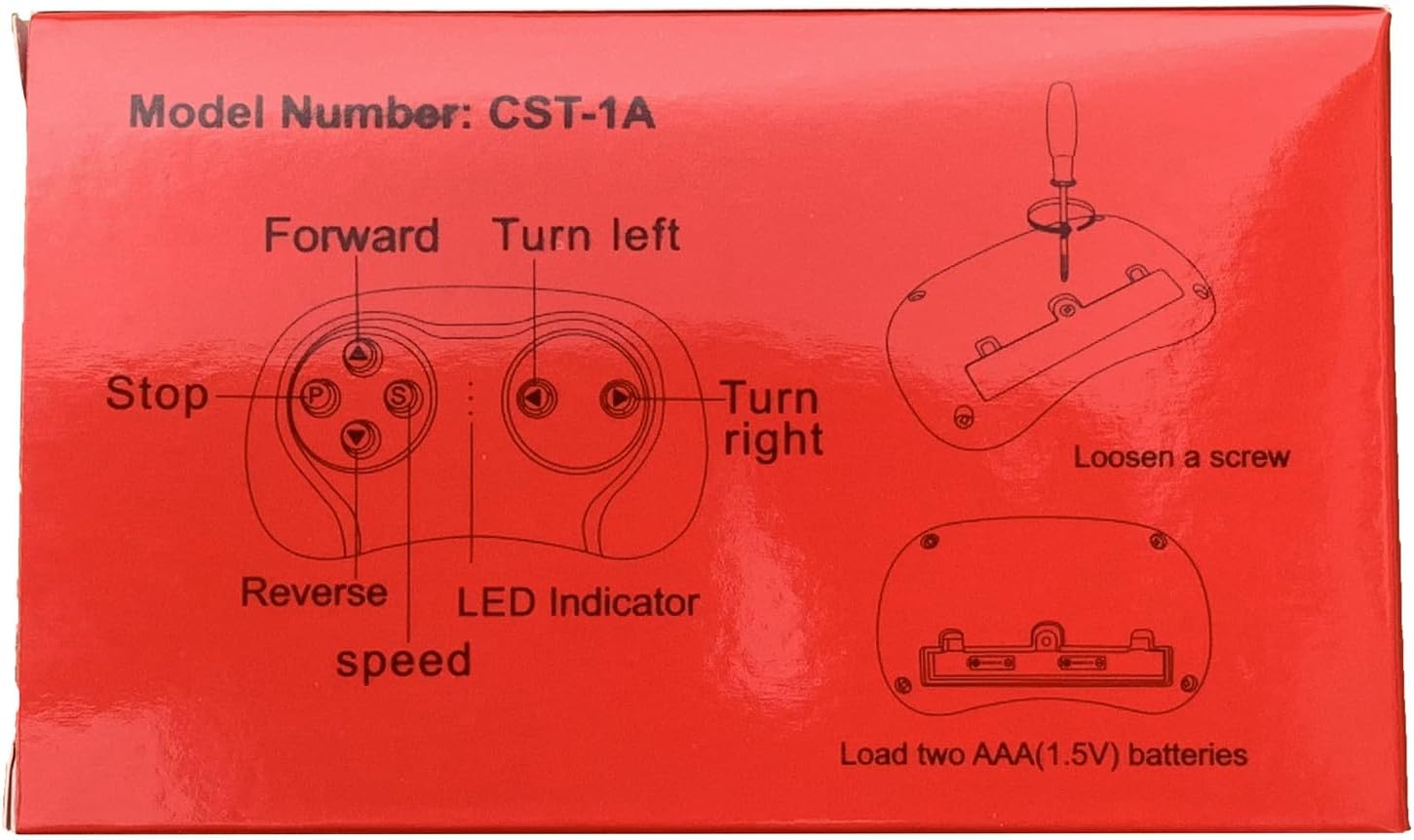

Image: Instructions for battery installation, showing the battery compartment and screw.
2. Frequency Matching (Pairing)
The remote control needs to be paired with the car's receiver for the first use or after replacing the batteries. Follow these steps:
- Ensure the car's power switch is OFF.
- Install two AAA 1.5V batteries into the remote control (as described above). The indicator will flash three times.
- Press and hold the frequency key (often labeled "car select" or similar, or the 'S' button for speed selection) on the remote control for approximately 2 seconds. The indicator lights on the remote will begin to flash.
- While the remote's indicator lights are flashing, turn ON the power supply of the electric ride-on car.
- The indicator lights on the remote control should turn OFF, indicating successful pairing.
- If the matching is unsuccessful (indicator lights do not turn off), turn off the car's power supply and repeat steps 3 and 4.
Once successfully matched, there is no need to repeat this process unless the batteries are replaced or the connection is lost.
Image: The back of the remote control with printed instructions for frequency matching.
Parentah Operasi
Familiarize yourself with the buttons on your CST-1A remote control:

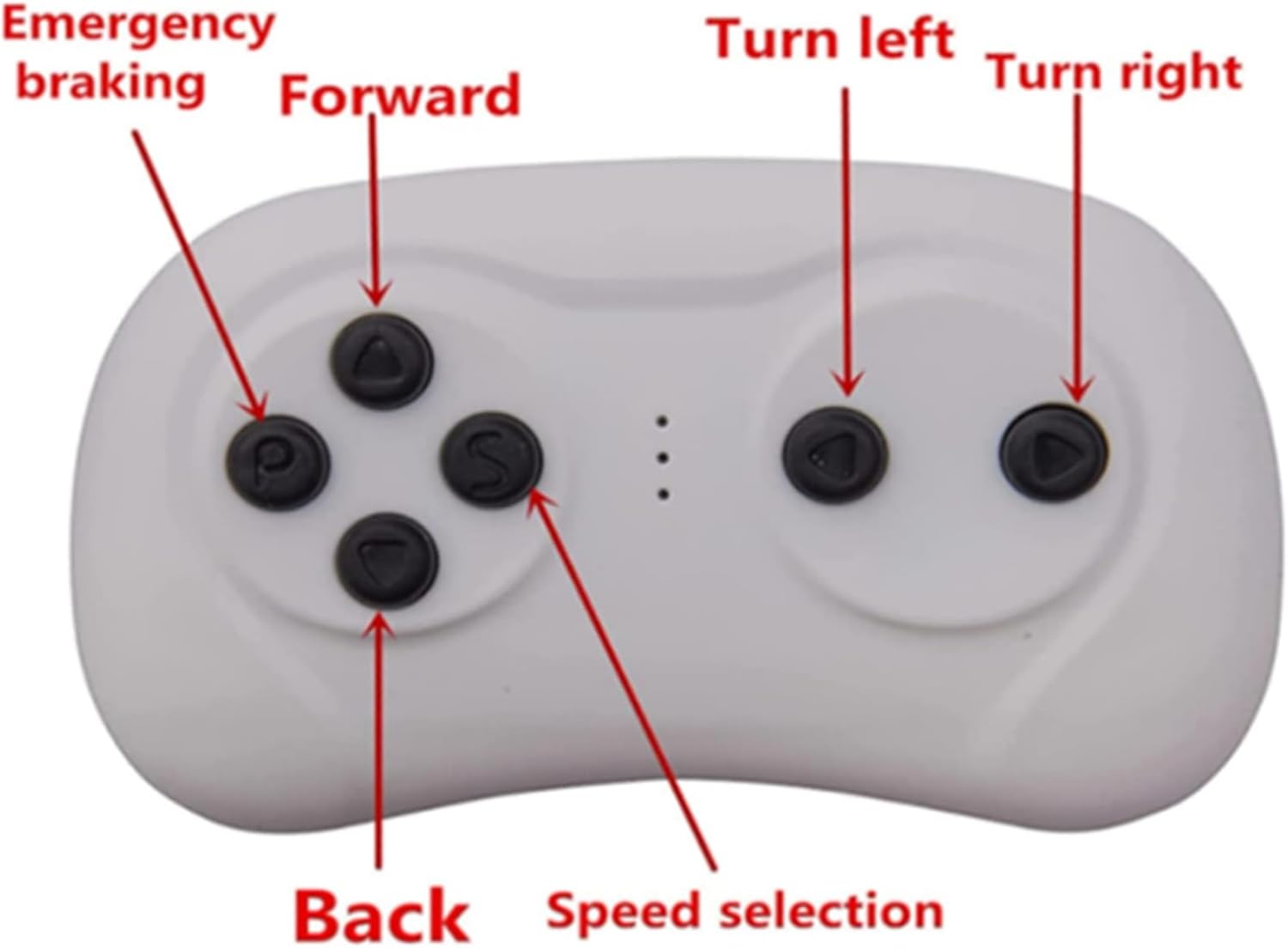

Image: Layout of the CST-1A remote control buttons and their functions.
- Teraskeun: Press the top button of the directional pad to move the car forward.
- Back (Reverse): Press the bottom button of the directional pad to move the car backward.
- Bélok kénca: Press the left button of the directional pad to turn the car left.
- Bélok katuhu: Press the right button of the directional pad to turn the car right.
- Emergency Braking (P): Press the 'P' button to stop the car immediately.
- Speed Selection (S): Press the 'S' button to cycle through available speed settings (e.g., low, medium, high).
The remote control will enter a sleep mode if not used for a long time. Press any button to wake up the remote control, and it can be used normally.
Pangropéa
- Keep the remote control clean and dry. Avoid exposure to moisture or extreme temperatures.
- Bersihkeun remot nganggo lawon anu lemes sareng garing. Entong nganggo bahan kimia anu keras atanapi pembersih anu kasar.
- Upami remot kontrol moal dianggo dina waktos anu lami, cabut batréna pikeun nyegah bocor sareng karusakan.
- Regularly check the car's battery and ensure it is in good working condition, as a low car battery can affect remote control performance.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kadali jauh teu ngabales. |
|
|
| Remote indicator lights flash continuously after pairing attempt. | Pairing was unsuccessful. | Turn off the car's power, then repeat the frequency matching steps carefully. Ensure the remote's indicator lights turn off. |
| Remote control works intermittently. |
|
|
spésifikasi
- Jumlah modél: CST-1A
- Compatible Receiver Models: CSR-12T-1A, CSR-12T-1B, CSR-12T-2A, CSR-12T-2B, CSR-12T-3A, CSR-12T-3B
- Konektipitas: 2.4G Bluetooth
- Sumber Daya: 2 x Batré AAA 1.5V (teu kalebet)
- Ukuran produk: 4.7 x 3 x 1.5 inci
- Beurat barang: 2.39 ons
- Fitur husus: Desain ergonomis
- Jumlah Max Alat anu Dirojong: 1
- merek: JIARUIXIN
- Manufacturer (of compatible receiver series): CSR-12T
Garansi sareng Rojongan
Specific warranty information for the JIARUIXIN CST-1A remote control is not provided in the product details. For any support inquiries or warranty claims, please contact the seller directly through your purchase platform.
Ensure to check your car's original manual for details regarding its receiver and compatibility with replacement parts.
