Flama 1317FL Dehumidifier User Manual

1. Parentah Kasalametan penting

Please read all instructions carefully before using the Flama 1317FL Dehumidifier. Keep this manual for future reference.

• Pastikeun catu daya voltage cocog sareng labél rating dina alat.
• Do not operate the dehumidifier with a damaged cord or plug. If damaged, contact qualified service personnel.
• Always place the unit on a firm, level surface to prevent water spillage.
• Jaga jarak sahenteuna 20 cm (8 inci) di sabudeureun unit pikeun aliran hawa anu leres.
• Ulah selapkeun objék kana inlet hawa atawa outlet.
• Cabut colokan unit sateuacan ngabersihkeun atanapi ngalakukeun perawatan naon waé.
• Perkakas ieu kanggo panggunaan domestik wungkul.
• Do not use in bathrooms or other excessively humid environments where water contact is possible.
• Jauhkeun tina jangkauan barudak.

2. Produk Langkungview

The Flama 1317FL Dehumidifier is designed to reduce humidity levels in your home, improving air quality and comfort. It features an integrated display for easy monitoring and control, a light indicator, and an automatic shut-off function for safety.

2.1 Komponén

• Main Unit (Dehumidifier)
• Tangki Cai (kapasitas 2 Liter)
• Filter hawa bisa diumbah
• Kabel listrik

2.2 Fitur

• Témbongkeun terpadu: For clear display of settings and current humidity.
• Indikator Lampu: Provides visual status of operation.
• Suhu adjustable: Allows for customized operation.
• Saringan anu tiasa dicuci: Easy to clean and maintain for optimal performance.
• Pareuman otomatis: Unit automatically turns off when the water tank is full or when desired humidity is reached.
• Desain kompak: Dimensions approximately 39.26 x 37.56 x 40.8 cm.

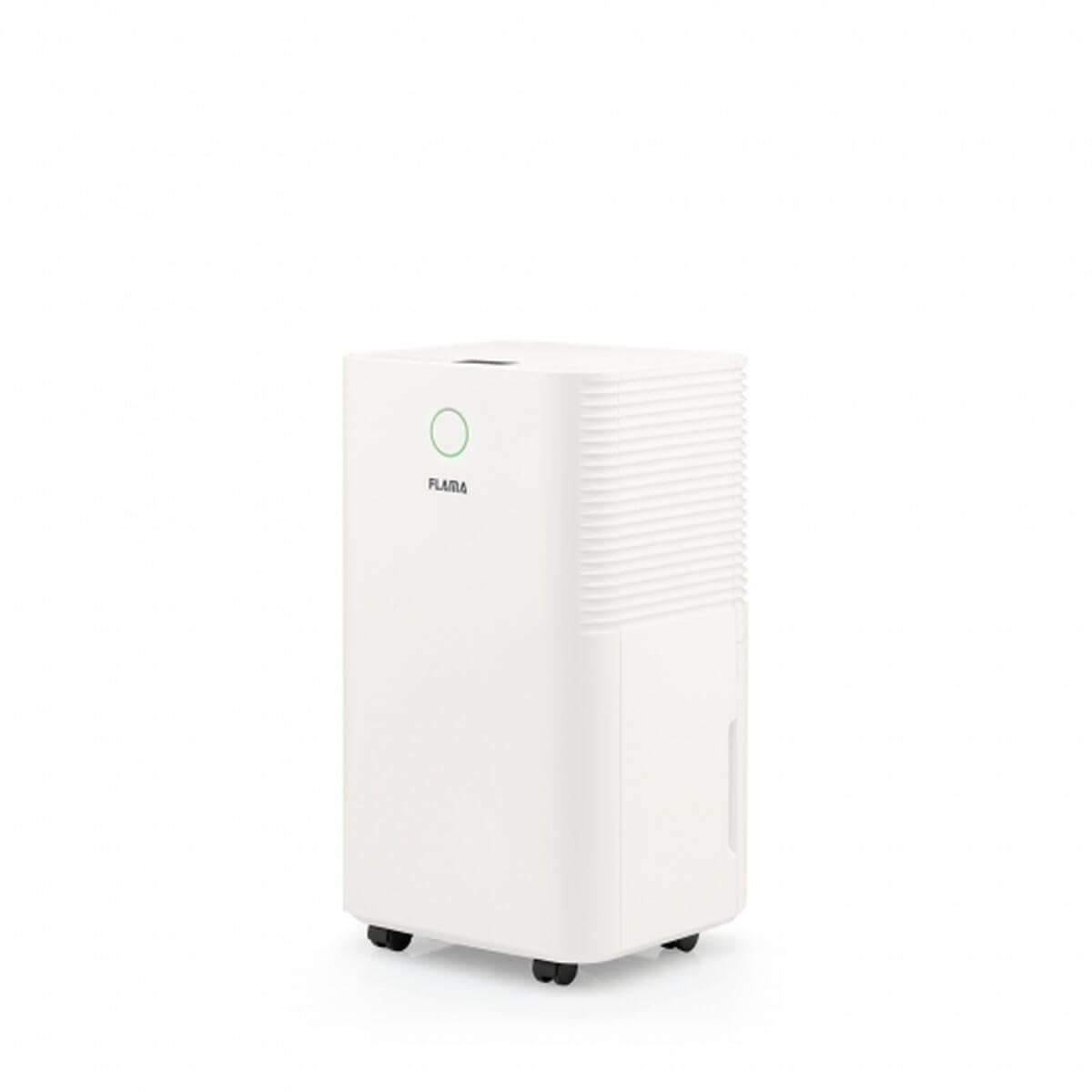

Gambar 1: Hareupeun view of the Flama 1317FL Dehumidifier, showing its compact design and control panel.

3. Setélan

1. Ngabongkar bungkusan: Sacara saksama piceun dehumidifier tina bungkusanna. Nyimpen bahan bungkusan pikeun neundeun atanapi transportasi ka hareup.
2. panempatan: Place the unit on a stable, level surface in the room where dehumidification is desired. Ensure there is at least 20 cm (8 inches) of clear space around all sides for adequate air circulation. Do not block the air inlet or outlet.
3. Sambungan Daya: Ensure the water tank is correctly inserted. Plug the power cord into a grounded electrical outlet.
4. Pamakéan awal: Allow the unit to stand upright for at least 1 hour before plugging it in if it has been transported horizontally. This allows the refrigerant to settle.

4. Parentah Operasi

4.1 Panel kontrol

The control panel features an integrated display and various buttons for setting the desired humidity level, fan speed, and timer functions. Refer to the display for current settings and status indicators.

4.2 Hurungkeun / Pareum

• Pencét éta Kakuatan button to turn the unit on. The display will illuminate, and the fan will start.
• Pencét éta Kakuatan tombol deui pikeun mareuman unit.

4.3 Nyetel kalembaban anu dipikahoyong

• Ngagunakeun éta Kalembaban button (or up/down arrows) to select your desired humidity level. The display will show the target humidity.
• The unit will operate until the room humidity reaches the set level, then it will cycle on and off to maintain it.

4.4 Water Tank Full Indicator and Automatic Shut-off

When the 2-liter water tank is full, the unit will automatically shut off, and a light indicator (often labeled "Full" or "Tank") will illuminate. Empty the water tank and reinsert it correctly for the unit to resume operation.

1. Carefully pull out the water tank from the front or side of the unit.
2. Kosongkeun cai anu dikumpulkeun kana tilelep.
3. Slide the empty water tank back into its position until it clicks securely.
4. The unit will restart automatically if it was in operation mode.

5. Pangropéa

Pangropéa rutin ngajamin kinerja optimal sareng manjangkeun umur dehumidifier anjeun.

5.1 Ngabersihan Saringan Udara

The Flama 1317FL features a washable air filter. Clean the filter every two weeks or more frequently if the unit is used in a dusty environment.

1. Cabut dehumidifier tina stop kontak listrik.
2. Panggihan tur cabut saringan hawa (biasana di tukang atanapi sisi unit).
3. Wash the filter gently under running tap water. For heavy dirt, use a mild detergent and rinse thoroughly.
4. Ngidinan saringan ka hawa garing lengkep sateuacan nyelapkeun deui kana unit. Ulah make dryer atawa panas langsung.
5. Pasang deui saringan garing teras colokkeun deui unitna.

5.2 Ngabersihan Unit Exterior

• Cabut colokan unit sateuacan beberesih.
• Ngusap luar ku hipu, damp lawon. Ulah make cleaners abrasive, pangleyur, atawa bahan kimia kasar.
• Pastikeun euweuh cai asup kana komponén internal.

5.3 Panyimpenan

Upami nyimpen unit kanggo waktos anu panjang:

• Kosongkeun tank cai lengkep sareng bersihkeun.
• Ngabersihan saringan hawa.
• Simpen unit dina posisi nangtung di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung.

6. Cara ngungkulan

Before contacting customer support, please refer to the following troubleshooting guide.

7. Spésifikasi

8. Garansi jeung Rojongan

Information regarding warranty coverage and duration is typically provided with your purchase documentation or on the manufacturer's official websitus. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

For technical support, spare parts, or service inquiries, please contact Flama customer service. Contact details can usually be found on the product packaging or the official Flama websitus.

Note: Availability of spare parts and software updates is not specified in the product information provided.
