1. Produk Langkungview
This manual provides instructions for the safe and efficient operation, installation, and maintenance of your AERMEC 12000 BTU Inverter Heat Pump Air Conditioner, model MONO-12-E (SPG350). This split-system unit is designed for both cooling and heating residential environments.

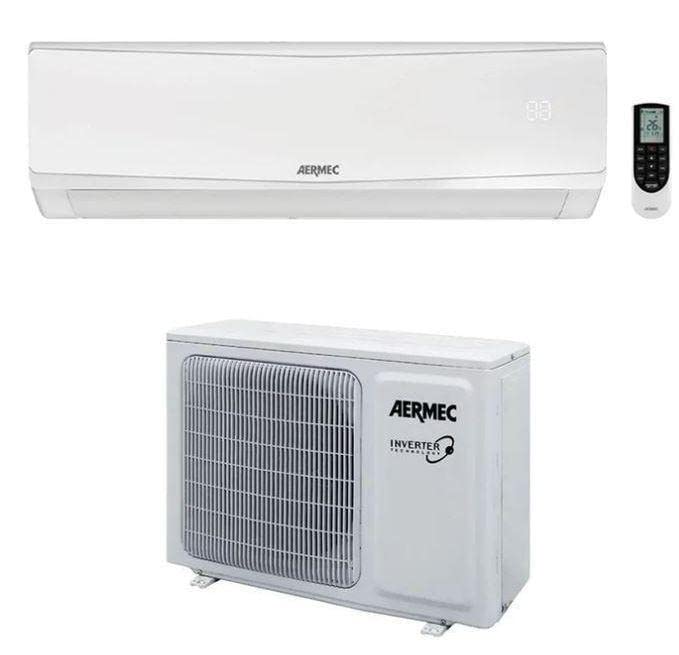

Gambar 1.1: The AERMEC 12000 BTU Inverter Heat Pump Air Conditioner, showing both the indoor wall-mounted unit and the outdoor compressor unit.
Émbaran Kasalametan
Read all safety warnings and instructions carefully before installing or operating the appliance. Keep this manual for future reference. Only qualified personnel should perform installation and servicing. Ensure the power supply matches the unit's specifications (230 Volts).
2. Setup jeung Instalasi
The AERMEC SPG350 is a split-system air conditioner consisting of an indoor unit and an outdoor unit. Professional installation is highly recommended to ensure proper function and safety.
Pertimbangan instalasi konci:
- lokasi: Select appropriate locations for both the indoor wall-mounted unit and the outdoor compressor unit, ensuring adequate airflow and clearance.
- Sambungan listrik: The unit requires a 230 Volt power supply. All electrical work must comply with local codes and regulations.
- Kulkas: This system uses R32 refrigerant. Handling of refrigerant should only be performed by certified technicians.
- Drainase: Pastikeun drainase anu leres pikeun kondensat tina unit jero ruangan.
- Pamasangan: Securely mount the indoor unit to a wall and the outdoor unit on a stable surface, following manufacturer guidelines.
3. Parentah Operasi
The AERMEC SPG350 offers multiple operating modes and features for optimal comfort.
Modeu Operasi:
- Cooling: Reduces room temperature.
- Pemanasan: Increases room temperature (heat pump function).
- Dehumidification: Ngaleungitkeun kaleuwihan Uap tina hawa.
- Ventilation Only: Sirkulasi hawa tanpa cooling atawa pemanasan.
- otomatis: Automatically selects the appropriate mode based on the set temperature and ambient conditions.
Fungsi husus:
- Timer: Programkeun unit pikeun hurung atanapi pareum dina waktos anu ditangtukeun.
- Fungsi Turbo: Provides rapid cooling or heating to quickly reach the desired temperature.
- Fungsi Saré: Adjusts temperature and fan speed for comfortable nighttime operation.
- Fungsi Kipas X: Prolonged ventilation after shutdown to dry the indoor coil, helping to prevent mold formation.
- Auto Function: Continuously varies fan speeds for optimal comfort.
- Smart APP Control (Optional): The indoor unit is pre-arranged for remote control via the Smart APP Ewpe, requiring a separate WiFi accessory (not included).
4. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng efisiensi AC anjeun.
Key Maintenance Tasks:
- Pembersih Saringan Udara: The indoor unit features a regenerable and easily accessible air filter. Clean the filter regularly (e.g., every two weeks or as needed) to maintain airflow and efficiency. Refer to the specific instructions for filter removal and cleaning.
- Fungsi Kipas X: Utilize the X-Fan function to prevent mold and mildew growth within the indoor unit.
- Bersihan Luar: Wipe the exterior surfaces of both units with a soft, damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
- Palayanan profésional: Annual professional inspection and cleaning are recommended to check refrigerant levels, electrical connections, and overall system performance.
5. Cara ngungkulan
Before contacting service personnel, review masalah sareng solusi umum di handap ieu.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Unit teu hurung. | Teu aya daya, pemutus sirkuit pareum, batré remot kontrol lemah. | Pariksa catu daya, setel deui pemutus sirkuit, gentos batré remot kontrol. |
| Cooling / pemanasan teu cukup. | Dirty air filter, blocked outdoor unit, incorrect mode setting, room too large. | Clean air filter, clear obstructions from outdoor unit, select correct mode, ensure unit capacity matches room size. |
| Sora teu biasa. | Bagian anu leupas, barang asing, sora operasi normal (contona, aliran refrigeran). | Inspect for loose parts or objects. If noise persists or is unusual, contact service. |
| Bocoran cai tina unit jero ruangan. | Blocked drain pipe, improper installation. | Check and clear drain pipe. If issue persists, professional inspection is required. |
If problems persist after attempting these solutions, contact qualified service personnel for assistance. Do not attempt to repair the unit yourself.
6. Spésifikasi
Technical details for the AERMEC MONO-12-E (SPG350) air conditioner.
Indoor Unit (SPG350W):
- kakuatan: 12000 BTU
- Pamasangan: Dipasang témbok
- Ukuran (PxLxT): 275 x 790 x 200 mm
- beurat: 9 kg
- Wifi: Pre-arranged (accessory not included)
- Fitur: Regenerable air filter, Timer, Turbo function, Sleep function, X-Fan function, LED display.
Outdoor Unit (SPG350):
- Daya cooling: 3.2 kW
- Daya pemanasan: 3.5 kW
- Gas réfrigerant: R32
- Tingkat Noise: 52 dBA
- Ukuran (PxLxT): 596 x 848 x 320 mm
- beurat: 31 kg
- Connectable Indoor Units: 1
spésifikasi umum:
- merek: AERMEC
- model: MONO-12-E
- Voltage: 230 volt
- Wattage: 7500 watt
- Kapasitas: 1 Tonne (equivalent to 12000 BTU)
- Total Dimensi Paket: 90 x 90 x 60 cm
- Total Paket Berat: 51 kg
7. Garansi jeung Rojongan
For warranty information, please refer to your purchase documentation or contact your retailer. This product is eligible for returns within 14 days of delivery, as per standard policy.
For specialized customer assistance, please contact your point of purchase or the AERMEC support channels provided with your product.
