BAOFENG UV-17 Tri-Band Two-Way Radio User Manual

1. Bubuka

The BAOFENG UV-17 is a versatile 5W tri-band two-way radio designed for amateur and general communication. It features 999 channels, FM radio, NOAA weather alerts, and a durable IP54 waterproof rating. With its 1800mAh battery and convenient USB-C charging, it offers reliable long-range communication. This manual provides essential information for the proper setup, operation, and maintenance of your UV-17 radio.

2. Eusi Paket

Mangga parios pakét sacara saksama pikeun mastikeun yén sadaya barang aya:

• BAOFENG UV-17 Tri-Band Portable Radio
• Batré 1800 mAh
• Anten Gain Tinggi
• Base carjer
• Klip sabuk
• Tali Leungeun
• Manual pamaké
• Kabel Tipe-C
• Kabel Pemrograman
• 771 anteneu
• Mikropon
• Headsét

3. Produk Langkungview

Familiarize yourself with the main components of your BAOFENG UV-17 radio:

This diagram illustrates the various parts of the BAOFENG UV-17 radio, including the antenna, power/volume knob, LED indicator, flashlight button, LED screen, PTT button, menu and FM buttons, keypad, 2-pin K jack, microphone, exit button, speaker, and flashlight.

4. Setélan

4.1 Pamasangan batré

To install the 1800mAh Lithium Ion battery:

1. Sejajarkeun batréna jeung alur di tukang radio.
2. Geser batréna ka luhur nepi ka ngaklik kana tempatna.
3. Ensure the added fixing screw is tightened to secure the battery firmly and prevent accidental detachment.

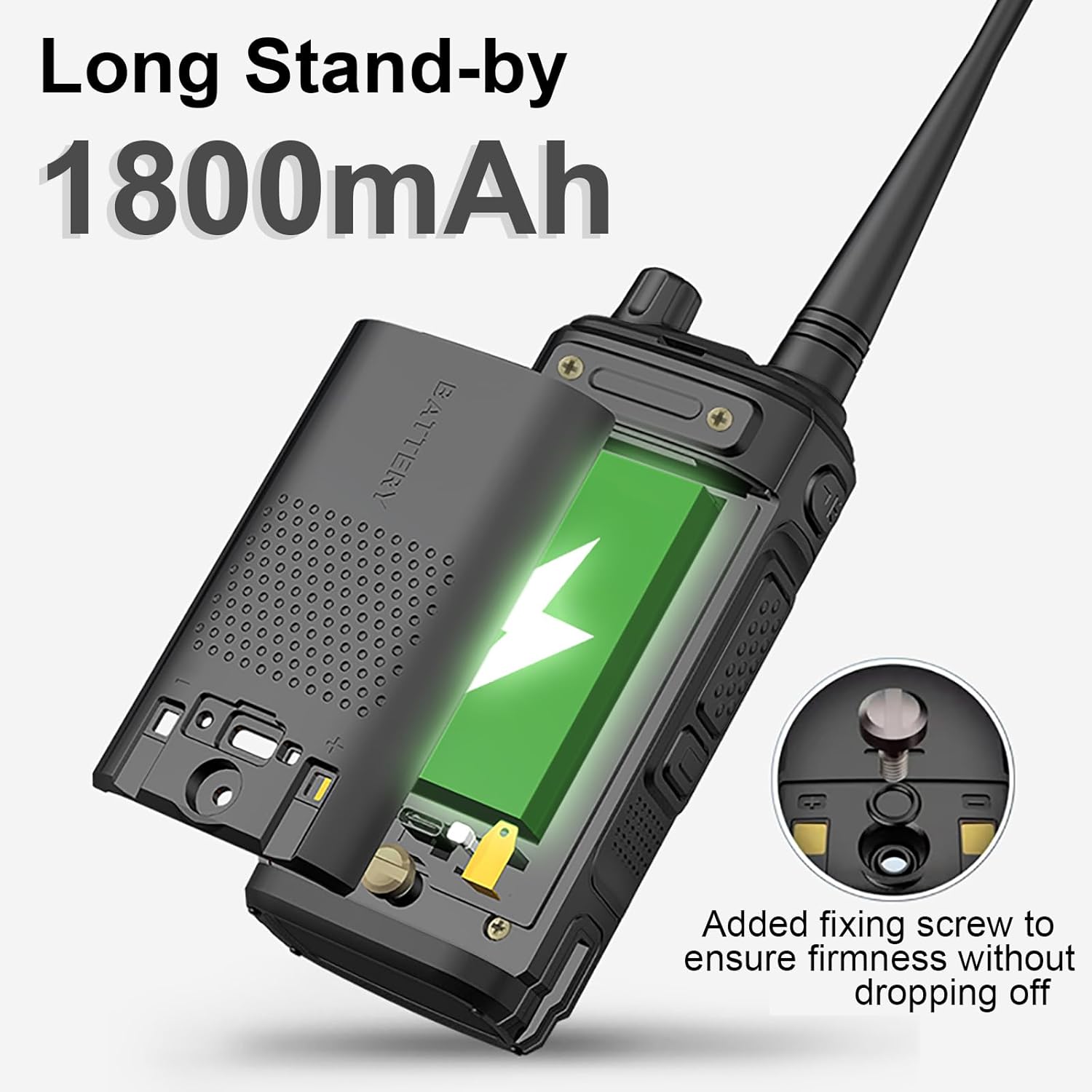

The image shows the 1800mAh battery being installed into the BAOFENG UV-17 radio, highlighting the secure fixing screw mechanism.

4.2 Ngecas Batré

The UV-17 supports convenient USB-C charging:

• Using the Type-C Cable: Connect the provided Type-C cable directly to the radio's USB-C port. You can charge it from various sources such as a power bank, PC, car charger, or laptop.
• Using the Charger Base: Place the radio in the provided charger base. Ensure the charging contacts align properly.

A full charge typically takes approximately 3 hours. The radio offers an approximate battery life of 5 days and a stand-by time of 10 days.

This image demonstrates the USB-C charging capability of the BAOFENG UV-17, compatible with various power sources like car chargers, PCs, and power banks. It also indicates the battery life, stand-by time, and charging duration.

4.3 Kantétan Antena

Screw the high-gain antenna clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

5. Parentah Operasi

5.1 Daya Hurung / Pareum sareng Kontrol Volume

Puterkeun kenop Daya/Volume searah jarum jam pikeun ngahurungkeun radio sareng ningkatkeun volume. Puterkeun ngalawan arah jarum jam pikeun ngirangan volume sareng mareuman radio.

5.2 Fungsi Dasar

• Saluran: The UV-17 supports 999 channels. Use the keypad or up/down arrows to navigate through channels.
• Operasi Tri-Band: The radio operates on UHF (420-450MHz), VHF (144-148MHz), and Amateur bands.
• CTCSS/DCS: Utilize CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digital Coded Squelch) for selective calling and to filter out unwanted signals.
• Modeu VOX: Voice Operated Exchange (VOX) allows hands-free transmission. Refer to the menu for VOX sensitivity settings.

This image highlights the BAOFENG UV-17's tri-band frequency ranges: UHF (420-450MHz), VHF (144-148MHz), and FM Amateur, along with its anti-interference and noise cancelling features.

5.3 Fungsi Salin Frékuénsi

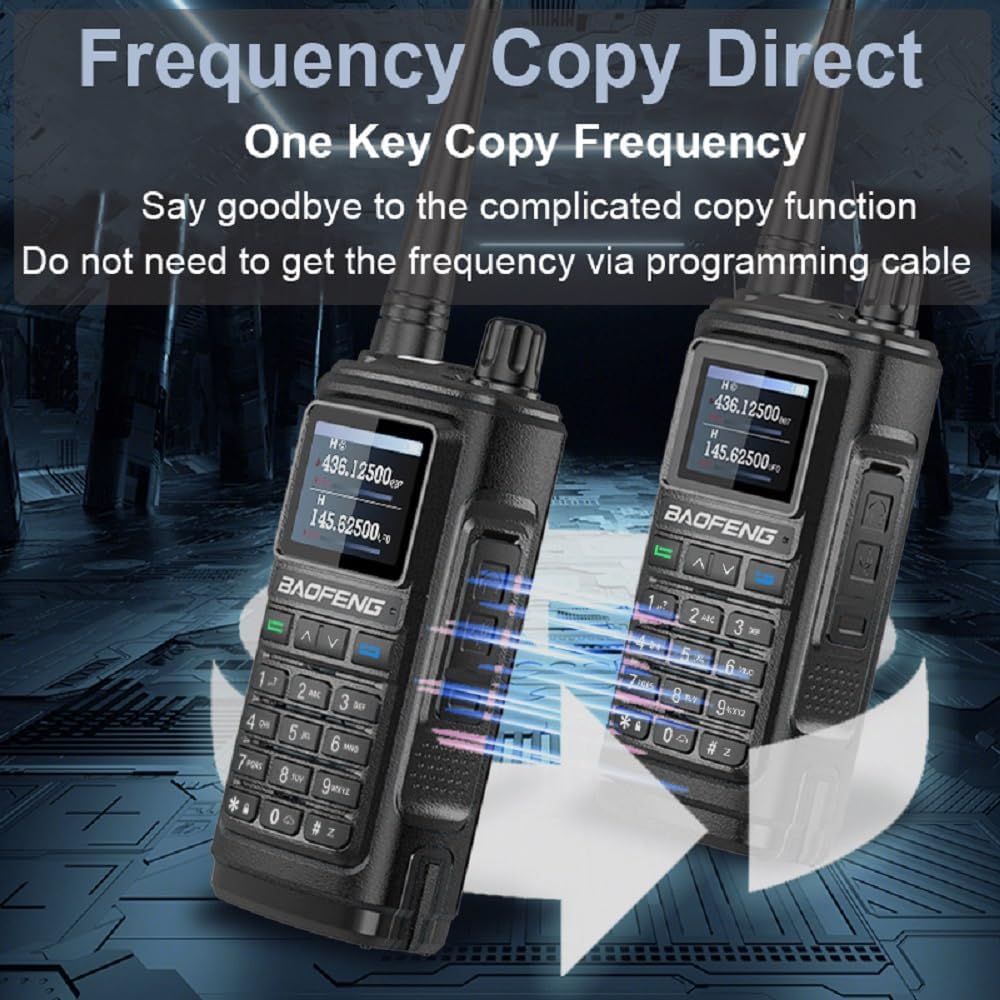

The UV-17 features a wireless frequency copy function, allowing direct programming between two radios without a computer or programming cable. This simplifies setup for multiple units.

The image shows two BAOFENG UV-17 radios wirelessly copying frequencies from one to another, illustrating the direct frequency copy feature.

5.4 NOAA Cuaca Siaga

The radio includes a NOAA function, providing access to 10 NOAA weather forecast channels. This feature is useful for receiving weather warnings, especially for outdoor activities.

5.5 Diwangun-di Senter

The UV-17 is equipped with a strong light flashlight, providing ample illumination for night use or in low-light conditions. Activate it using the dedicated flashlight button.

This image depicts the BAOFENG UV-17's powerful built-in flashlight, shown illuminating a dark outdoor environment, highlighting its utility for night-time use.

6. Pangropéa

6.1 beberesih

Lap beungeut radio ku kaén nu lemes,amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the USB-C port cover is closed to maintain IP54 water resistance.

6.2 Perawatan Batré

• Hindarkeun sering-sering ngeusi batre.
• Simpen radio sareng batréna di tempat anu tiis sareng garing upami henteu dianggo salami lami.
• Ulah ngalaan batré ka suhu ekstrim.

7. Cara ngungkulan

• Radio teu hurung: Ensure the battery is correctly installed and fully charged. Check the power/volume knob.
• Teu tiasa ngirim atanapi nampi: Verify the antenna is securely attached. Check the selected frequency/channel. Ensure the battery has sufficient charge.
• Kualitas audio goréng: Adjust the volume. Check for obstructions around the microphone and speaker. Ensure the antenna is properly connected.
• Masalah ngecas: Ensure the USB-C cable or charger base is properly connected. Try a different power source.

8. Spésifikasi

9. Jaminan & Dukungan

The BAOFENG UV-17 radio comes with a 1-year warranty. This warranty is provided exclusively through "Shiqun Electronics Co., Ltd". For warranty claims or technical support, please contact the seller directly through your purchase platform.
