1. Bubuka
Thank you for choosing the INGCO ING-MMA2506 250 Amp Modern Welding Tool. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new welding machine. Please read this manual thoroughly before operating the device and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your tool.
2. Parentah Kasalametan
Welding operations involve significant risks. Always adhere to the following safety precautions to prevent injury or damage to property.
- Alat Pelindung Diri (APD): Always wear a welding helmet with appropriate shade, flame-resistant clothing, welding gloves, and safety shoes.
- Ventilasi: Ensure adequate ventilation in the work area to disperse welding fumes, which can be hazardous.
- Bahaya seuneu: Jauhkeun bahan anu gampang kaduruk tina daérah las. Siapkeun alat pemadam kebakaran anu gampang disayagikeun.
- Kasalametan listrik: Ensure the welding machine is properly grounded. Do not operate in wet conditions. Inspect cables for damage before each use.
- Arc Rays: Welding arcs produce intense visible and invisible (UV and IR) rays that can burn eyes and skin. Protect yourself and bystanders.
- Hot Materials: Welded materials remain hot for a significant period after welding. Handle with care to avoid burns.
- Wewengkon Gawé: Jaga tempat damel tetep bersih sareng bébas tina runtah. Pastikeun pijakanana stabil.
3. Produk Langkungview
The INGCO ING-MMA2506 is a robust 250 Amp welding machine designed for various welding tasks. Its modern design ensures efficient and reliable performance.

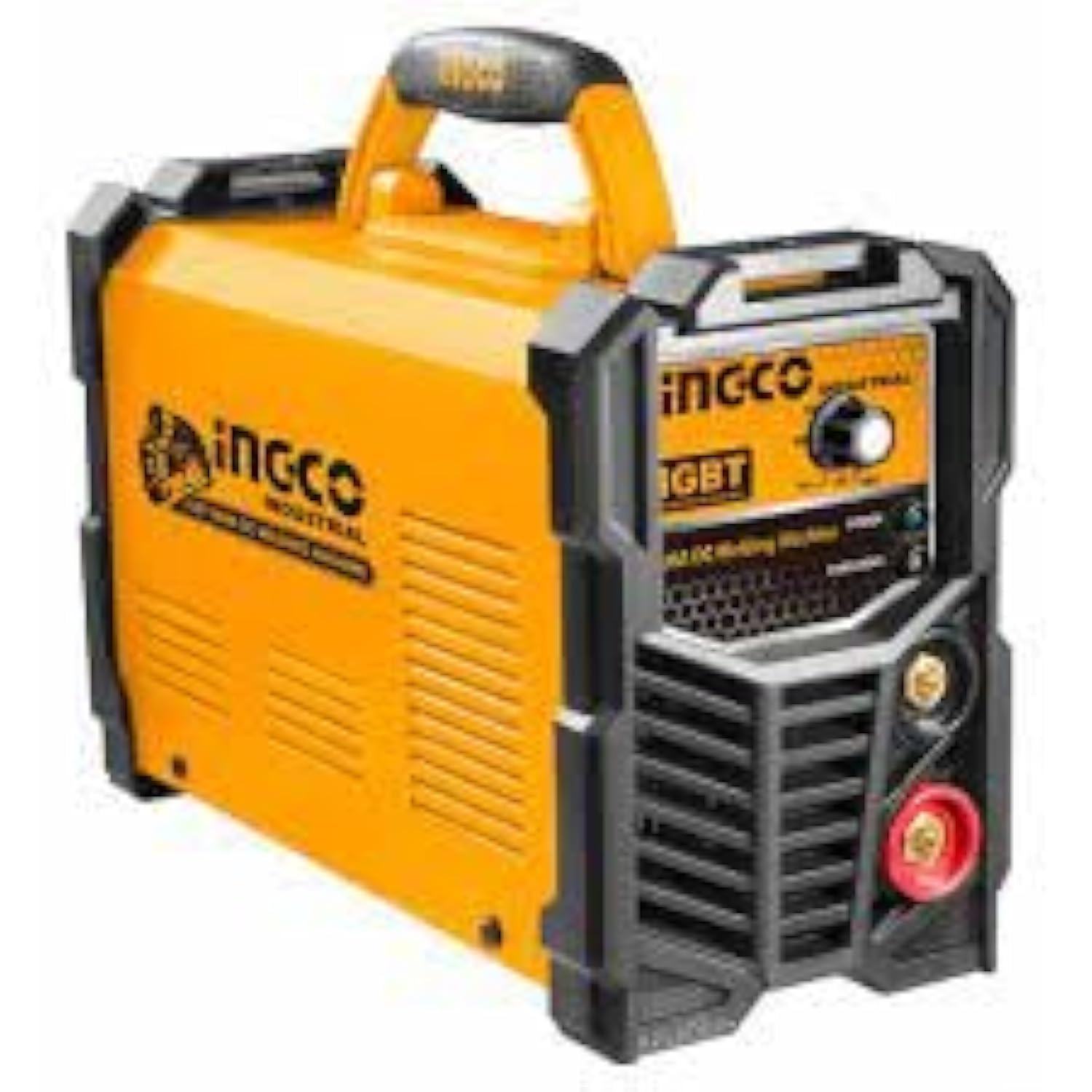

Gambar 1: INGCO ING-MMA2506 250 Amp Modern Welding Tool. This image displays the front panel of the welding machine, showing the control knobs, display, and connection ports for welding cables.
Fitur konci:
- 250 Amp output for versatile welding applications.
- Compact and modern design.
- Electric power source for consistent performance.
4. Setélan
Follow these steps to set up your INGCO ING-MMA2506 welding machine:
- Ngabongkar bungkusan: Taliti miceun mesin las sareng sadaya asesoris tina bungkusan. Pariksa karusakan pengiriman barang.
- panempatan: Place the welding machine on a stable, level surface in a well-ventilated area, away from moisture and flammable materials.
- Taneuh Clamp Sambungan: Nyambungkeun taneuh clamp kabel ka terminal anu pas dina mesin las. Amankeun ground clamp to the workpiece or a sturdy metal workbench that is electrically connected to the workpiece.
- Sambungan Panyekel Éléktroda: Connect the electrode holder cable to the other terminal on the welding machine. Insert the welding electrode into the holder.
- Sambungan Daya: Ensure the welding machine's power switch is in the OFF position. Connect the power cord to a suitable electrical outlet that matches the machine's voltage syarat.
5. Parentah Operasi
Before operating, ensure all safety precautions are followed and the machine is properly set up.
- Daya Hurung: Turn the power switch to the ON position. The machine's display should illuminate.
- Atur Arus Las: Use the current adjustment knob to set the desired amperage for your welding task. Refer to electrode manufacturer guidelines for recommended settings.
- Nyiapkeun workpiece: Clean the workpiece thoroughly to remove rust, paint, or grease, which can affect weld quality.
- Ngarobah Lengkungan: With the welding helmet on, gently tap or scratch the electrode against the workpiece to strike an arc. Maintain a consistent arc length.
- Téhnik Las: Move the electrode steadily along the joint, maintaining the correct travel speed and angle to create a uniform weld bead.
- Pareum listrik: After completing the weld, turn the power switch to the OFF position. Allow the machine to cool down.
6. Pangropéa
pangropéa biasa ensures umur panjang tur operasi aman tina mesin las Anjeun.
- beberesih: Periodically clean the exterior of the machine with a dry cloth. Use compressed air to blow out dust from ventilation openings. Ensure the machine is unplugged before cleaning.
- Pamariksaan kabel: Pariksa kabel las, wadah éléktroda, sareng ground cl sacara rutinamp pikeun sambungan anu potong, ruksak, atanapi leupas. Ganti komponén anu ruksak langsung.
- Panyimpenan: Store the welding machine in a dry, clean environment, away from direct sunlight and extreme temperatures.
- Pangropéa kipas: Ensure the cooling fan is free from obstructions to prevent overheating.
7. Cara ngungkulan
This section addresses common issues you might encounter. For problems not listed here, contact qualified service personnel.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu hurung | Taya catu daya; Pareum listrik; Kabel listrik lepat | Check power outlet and circuit breaker; Ensure power switch is ON; Inspect and replace power cord if damaged |
| Teu aya busur las | Loose cable connections; Incorrect current setting; Poor ground connection; Wet electrode | Check all cable connections; Adjust current; Ensure good ground contact; Use dry electrodes |
| Kualitas las anu goréng | Incorrect current; Improper arc length; Fast travel speed; Dirty workpiece | Adjust current; Maintain proper arc length; Reduce travel speed; Clean workpiece thoroughly |
| Perlindungan overheating diaktipkeun | Excessive use; Blocked ventilation | Allow machine to cool down; Ensure clear ventilation paths |
8. Spésifikasi
The following are the technical specifications for the INGCO ING-MMA2506 welding tool:
- Pabrikan: INGCO
- model: ING-MMA2506
- Beurat barang: 10 grams (Note: This weight seems unusually low for a welding machine and may be a data entry error. Please refer to product packaging for accurate weight.)
- Ukuran produk: 10 x 20 x 37 cm
- Tipe Sumber Daya: Listrik
- Number of Sub-Units: 1
- Komponén Kaasup: 1 (Specific components not detailed in provided data)
- Batré diperlukeun: No
- Tanggal munggaran sayogi: 31 Oktober 2023
9. Garansi jeung Rojongan
For warranty information, please refer to the warranty card included with your product or contact the authorized INGCO dealer or customer service where you purchased the tool. Keep your purchase receipt as proof of purchase for any warranty claims.
For technical support or service inquiries, please contact INGCO customer support or your local service center. Contact details can typically be found on the manufacturer's official websitus atanapi dina bungkusan produk.
