Bubuka
Hatur nuhun pikeun meuliasing the Volkano X VKX-3003-BK Portable Bluetooth Speaker. This manual provides important information regarding the setup, operation, maintenance, and troubleshooting of your device. Please read it carefully to ensure optimal performance and longevity of your speaker.

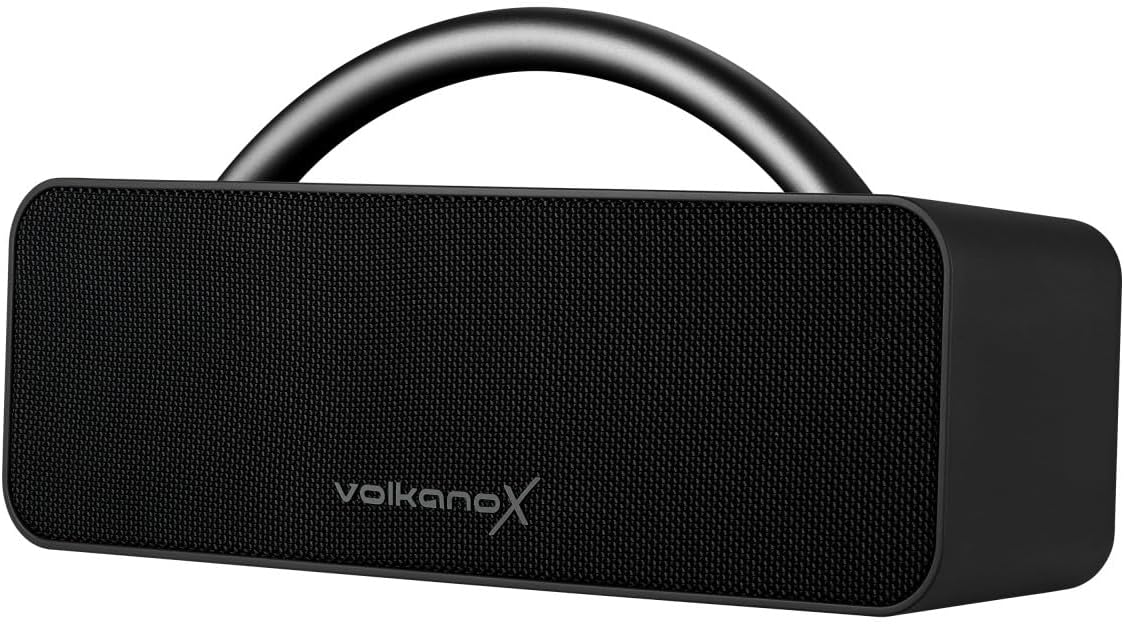

Gambar: Hareupeun view of the Volkano X VKX-3003-BK Portable Bluetooth Speaker, showcasing its black finish and integrated handle.
Disetél
1. Unboxing sareng Inspeksi Awal
Carefully remove all components from the packaging. Verify that all items listed in the "Included Components" section are present and undamaged. If any items are missing or damaged, please contact customer support.
2. Ngecas Speaker
Before first use, fully charge the speaker. Connect the provided charging cable to the speaker's charging port and the other end to a compatible USB power source (e.g., a 5V DC USB adapter or computer USB port). The charging indicator light will illuminate during charging and turn off or change color once fully charged. A full charge provides up to 6 hours of playtime.
3. Ngagantelkeun Tali Taktak
For enhanced portability, attach the removable shoulder strap to the designated attachment points on the speaker. Ensure the strap is securely fastened before carrying the speaker.
Gambar: Angled view of the Volkano X VKX-3003-BK Portable Bluetooth Speaker, showing the side profile and strap attachment points.
Operasi
1. Daya Hurung / Pareum
Press and hold the Power button for approximately 3 seconds to turn the speaker on or off. A sound indicator will confirm the action.
2. Papasangan Bluetooth
- Ensure the speaker is powered on and in Bluetooth pairing mode. The Bluetooth indicator light will typically flash.
- Dina alat anjeun (smartphone, tablet, jsb.), aktipkeun Bluetooth sareng milarian alat anu sayogi.
- Select "VKX-3003-BK" from the list of found devices.
- Once paired, the Bluetooth indicator light will become solid, and a confirmation sound may play.
The speaker has a maximum Bluetooth range of 10 meters (33 feet).
3. Puterkeun Audio
After successful pairing, you can play audio from your connected device. Use your device's controls to manage playback (play, pause, skip tracks). The speaker delivers stereo audio output.
4. True Wireless Pairing (TWS)
If you have two Volkano X VKX-3003-BK speakers, you can pair them together for a true wireless stereo experience. Refer to the specific TWS pairing instructions provided with your speaker for detailed steps. This feature allows both speakers to play audio simultaneously from a single source.
5. Volume Control
Adjust the volume using the dedicated volume buttons on the speaker or directly from your connected device.
6. Télépon Nanganan
If your speaker has an integrated microphone, you can answer or end calls by pressing the Play/Pause button. Press and hold to reject an incoming call.
7. Tahan cai (IPX5)
The speaker is IPX5 water-resistant, meaning it can withstand splashes and light rain. It is not designed to be submerged in water. Ensure all port covers are securely closed before exposure to moisture.
Gambar: Sisi view of the Volkano X VKX-3003-BK Portable Bluetooth Speaker, highlighting its compact design and control panel.
Pangropéa
1. beberesih
Wipe the speaker with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the surface or internal components. Ensure the speaker is powered off and disconnected from any power source before cleaning.
2. Panyimpenan
When not in use for extended periods, store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
3. Kaperawatan batré
To maximize battery lifespan, avoid fully discharging the speaker frequently. Charge the speaker using only the provided cable and a compatible 5V DC power source. Do not attempt to replace the battery yourself.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Speaker teu hurung. | Batré béak. | Ngecas spéker sapinuhna nganggo kabel anu disayogikeun. |
| Teu tiasa dipasangkeun sareng alat Bluetooth. | Speaker is not in pairing mode; device Bluetooth is off; speaker is already paired to another device; device is out of range. | Ensure speaker is in pairing mode. Turn Bluetooth on your device. Disconnect from other devices. Move device closer to speaker (within 10 meters). |
| Taya sora atawa volume low. | Volume on speaker or device is too low; speaker is not properly paired; audio source issue. | Increase volume on both speaker and device. Re-pair the speaker. Check audio source on your device. |
| Distorsi sora. | Volume too high; device too far from speaker; interference. | Reduce volume. Move device closer to speaker. Avoid sources of strong electromagnetic interference. |
spésifikasi
| Nomer modél | VKX-3003-BK |
| merek | Volkano |
| Téhnologi konektipitas | Bluetooth 5.1 |
| Rentang maksimum | 10 méter |
| Speaker Maksimum Kaluaran Power | 24 Watt |
| Mode Kaluaran Audio | Stereo |
| Réspon Frékuénsi | 4 KHz |
| Sumber Daya | Batré Powered |
| Masukan Voltage | 5 Volt (DC) |
| Waktu maén | Nepi ka 6 jam |
| Tahan cai | IPX5 |
| Dimensi produk | 18D x 5W x 13H séntiméter |
| Item Beurat | 350 gram |
| Bahan | palastik |
| Komponén Kaasup | 1 x Volkano X VXS200 Portable Bluetooth Speaker, Black (Note: Model number in description may vary from primary model VKX-3003-BK) |
Garansi sareng Rojongan
Garansi Produsén
This Volkano product is covered by a 1-taun jaminan kawates from the date of purchase. Volkano also offers lifetime customer support for its products.
Perpanjangan Garansi
You can register your product to receive an additional 12-bulan perpanjangan jaminan, totaling 24 months of coverage. Please visit the official Volkano websitus pikeun detil pendaptaran.
Rojongan Palanggan
For any questions, assistance, or support regarding your Volkano X VKX-3003-BK speaker, please contact Volkano customer service. You can message us via the official Volkano Page atanapi tingal inpormasi kontak anu disayogikeun dina bungkusan produk anjeun.
