Sharmeal 150PSI 4500A Car Jump Starter with Air Compressor (Model TM16E) User Manual

Bubuka

This manual provides comprehensive instructions for the safe and effective use of your Sharmeal 150PSI 4500A Car Jump Starter with Air Compressor. This versatile device combines a powerful jump starter, a high-pressure air compressor, a portable power bank, and an emergency LED flashlight, designed to assist you in various automotive and outdoor situations.

Émbaran Kasalametan

Mangga baca sakabeh warnings kaamanan jeung parentah taliti saméméh ngagunakeun produk ieu. Paranti nuturkeun parentah ieu bisa ngakibatkeun shock listrik, seuneu, jeung/atawa tatu serius.

• Sok sambungkeun cl beureumamp ka terminal positif (+) jeung cl hideungamp ka terminal négatip (-).
• Entong némpél cl beureum sareng hideungamps babarengan.
• Pastikeun jump starter geus dicas pinuh sateuacan dianggo pikeun kinerja anu optimal.
• Ulah ngalaan unit ka hujan atawa kaayaan baseuh.
• Jauhkeun tina jangkauan barudak.
• Anggo di daérah anu berventilasi saé.
• If the unit becomes excessively hot during use, discontinue operation immediately.

Eusi pakét

Pastikeun yén sadaya item aya dina pakét anjeun:

• 1x Sharmeal Jump Starter with Air Compressor
• 1x Smart Jumper Cables
• 1x Air Pump Hose
• 3x Gas Nozzles (for various inflatables)
• 1x Kabel Ngecas Tipe-C
• 1x Charger Block
• 1x Manual Pamaké (dokumén ieu)
• 1x Portable Carrying Case
• 1x Velvet Bag

Image: Sharmeal Jump Starter unit with all included accessories, neatly arranged.

Produk Leuwihview

Familiarize yourself with the main components and interfaces of your Sharmeal jump starter:

Gambar: Hareup jeung samping view of the Sharmeal jump starter with key components labeled: Parameter Display, Operation Buttons, USB Output, Type-C Input, DO Startup Interface, LED Lighting, and Inflation Connection Port.

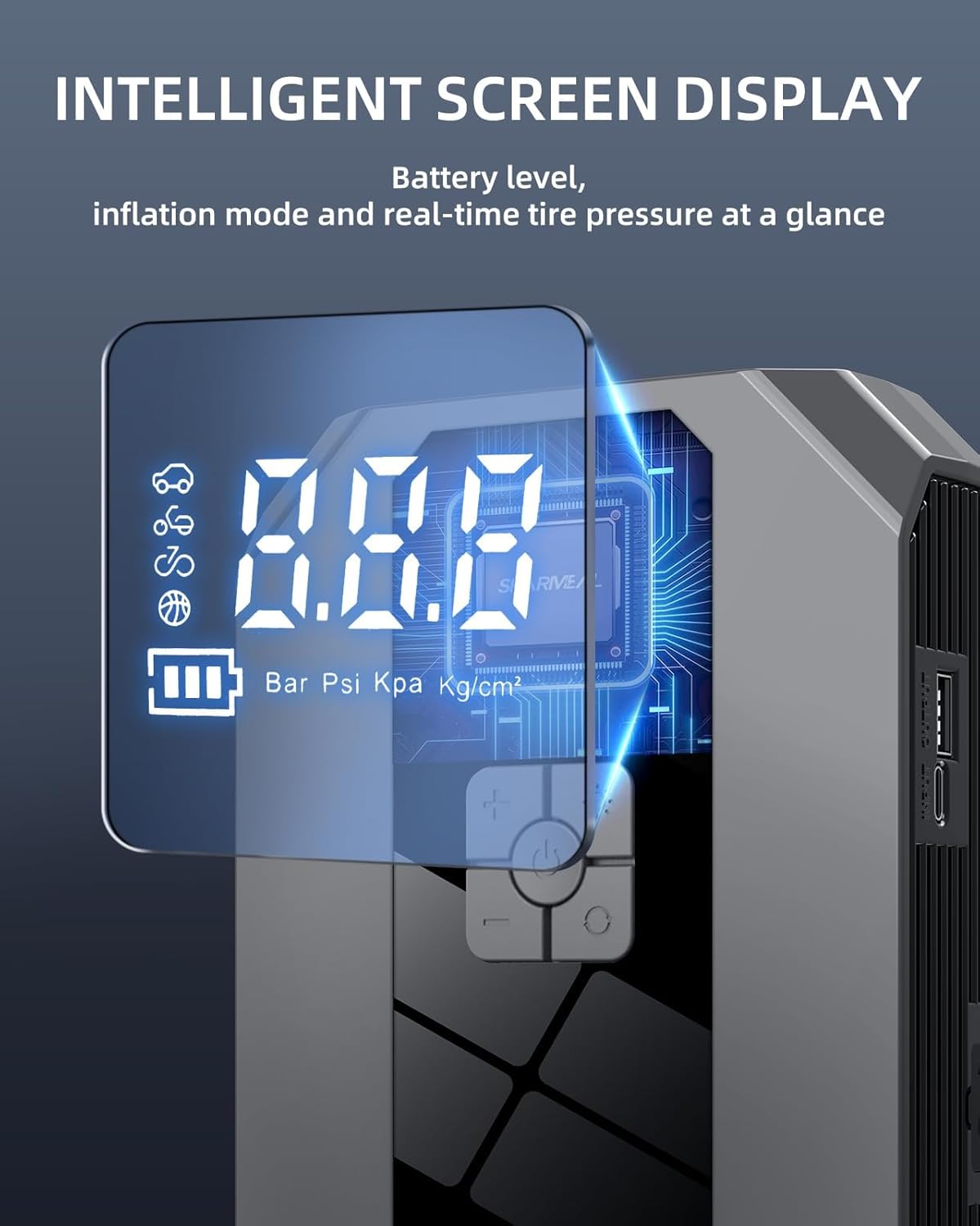

• Parameter tampilan: Shows battery level, inflation mode, and real-time tire pressure.
• Tombol Operasi: Control power, lighting, and air compressor settings.
• Kaluaran USB: Pikeun ngecas alat éksternal.
• Input Tipe-C: Pikeun ngecas unit jump starter.
• DO Startup Interface: Connects to the smart jumper cables for jump-starting.
• Lampu LED: Nyayogikeun katerangan kalayan sababaraha modeu.
• Inflation Connection Port: Connects to the air pump hose for inflation.

Disetél

Ngecas Starter Luncat

Before first use, fully charge the jump starter. Use the provided Type-C charging cable and charger block.

1. Connect the Type-C charging cable to the Type-C input port on the jump starter.
2. Colokkeun blok carjer kana stop kontak témbok standar.
3. The display will indicate the charging status. Charge until the battery indicator shows full.

Parentah Operasi

1. Luncat Mimitian Fungsi

This unit is designed to jump-start 12V vehicles with up to 9.0L gas or 8.0L diesel engines.

1. Pastikeun jump starter dicas kalayan cekap.
2. Connect the smart jumper cables to the DO Startup Interface on the jump starter. Ensure a secure connection.
3. Gantelkeun beureum (+) clamp ka terminal positif batré kendaraan.
4. Gantelkeun hideung (-) clamp ka terminal négatif batré kandaraan.
5. Once connected, the smart jumper cables will indicate readiness (e.g., a solid green light).
6. Hurungkeun mesin kendaraan anjeun.
7. Once the vehicle starts, immediately remove the jumper cables from the jump starter, then from the vehicle battery (black first, then red).

Image: Visual guide showing the three steps to jump start a vehicle: insert jumper cable into booster, connect clamps to car battery, and start car engine.

2. Air Compressor Function

The built-in air compressor can inflate tires and various other items with a maximum pressure of 150 PSI.

1. Screw the air pump hose into the Inflation Connection Port on the jump starter.
2. Select the appropriate gas nozzle for the item you wish to inflate and attach it to the other end of the air pump hose.
3. Connect the nozzle to the item's valve.
4. Press the power button to turn on the unit. The display will show the current pressure.
5. Use the '+' and '-' buttons to set the desired inflation pressure.
6. Pencét tombol start pikeun ngamimitian inflasi. Kompresor bakal eureun sacara otomatis nalika tekanan anu tos disetel parantos kahontal.
7. Remove the nozzle and hose once inflation is complete.

Image: The Sharmeal jump starter connected to a car tire, demonstrating its air compressor function with the digital display showing pressure.

3. Fungsi Power Bank

The unit can serve as a portable power bank to charge your electronic devices.

• Connect your device's USB charging cable to the USB Output port on the jump starter.
• Jump starter bakal otomatis mimiti ngecas alat anjeun.

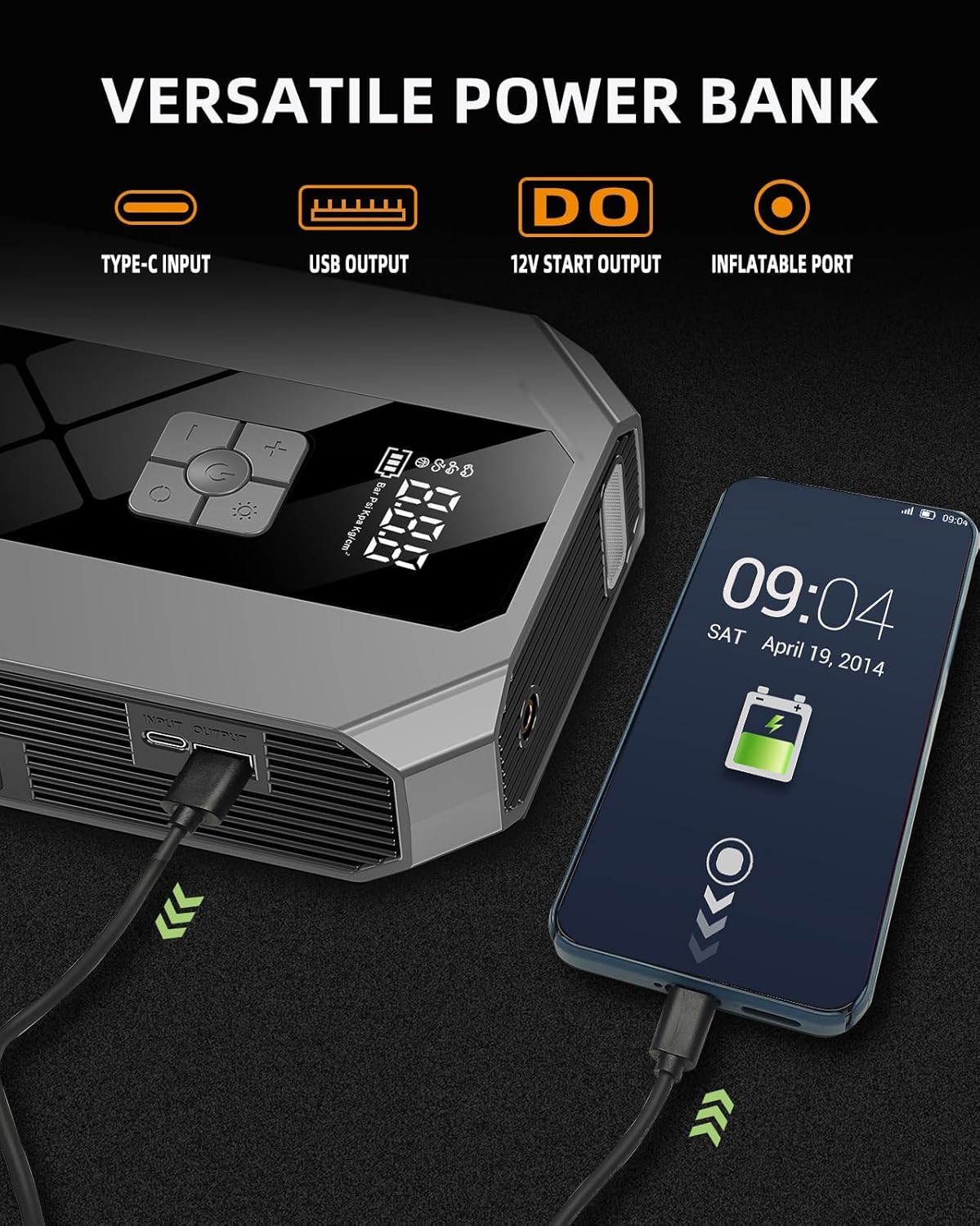

Image: The Sharmeal jump starter connected via USB to a smartphone, illustrating its power bank functionality.

4. Fungsi Senter LED

The integrated LED flashlight offers multiple lighting modes for emergencies or general use.

• Press the light button to cycle through the modes: constant light, strobe, and SOS.
• Pencét jeung tahan tombol pikeun mareuman lampu.

Image: The Sharmeal jump starter displaying its LED emergency light feature, showing options for lighting, SOS, and strobe modes.

Pangropéa

• Ngecas: Pikeun umur batre anu optimal, eusian deui unit unggal 3-6 bulan sakali, sanaos henteu dianggo.
• beberesih: Lap unitna ku lawon anu garing sareng lemes. Entong nganggo bahan kimia anu keras atanapi pembersih anu abrasif.
• Panyimpenan: Store the jump starter in its portable carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.

Pamérésan masalah

• Unit teu hurung: Ensure the unit is charged. If fully charged and still not turning on, contact customer support.
• Kagagalan Luncat Mimitian: Check that the jumper cables are securely connected to both the jump starter and the vehicle battery terminals. Ensure the clamps are on the correct polarity (+ to +, - to -). The vehicle battery might be severely discharged; allow a few minutes for the jump starter to provide some charge before attempting to start again.
• Air Compressor Not Inflating: Verify the air pump hose is securely attached to the unit and the item's valve. Check for any kinks or blockages in the hose. Ensure the desired pressure is set and the inflation process is initiated.
• Overheating: If the unit feels excessively hot, disconnect it and allow it to cool down before further use. Prolonged use of the air compressor may cause it to heat up; this is normal, but continuous overheating indicates an issue.

spésifikasi

Garansi sareng Rojongan

Sharmeal offers a 2-YEAR FREE Warranty for this product. We also provide Lifetime Technical Support and 7/24 Customer Service to assist you with any questions or issues you may encounter.

For support, please refer to the contact information provided with your product packaging or visit the official Sharmeal websitus.
