Bubuka
Thank you for choosing the DiGGiNGSOUND T015 Digital Bluetooth Rechargeable Hearing Aids. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new hearing aids. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.
Produk Leuwihview
The DiGGiNGSOUND T015 hearing aids are designed to amplify sound for individuals with mild to moderate-severe hearing loss. They feature Bluetooth connectivity, a rechargeable design, and digital 16-channel sound processing for clear audio. The compact and lightweight design ensures comfortable wear.
Image: The DiGGiNGSOUND T015 hearing aids shown in their white charging case. The left earbud is marked with 'L' and the right earbud has a red ring, indicating their respective sides.
Image: An illustration highlighting key features: Superior Sound, Digital 16-Channel processing, Hands-Free Calling, One-Touch Control, and an ultra-light weight of 0.15 oz per earphone.
Eusi pakét
Mangga parios pakét kanggo barang-barang ieu:
- DiGGiNGSOUND T015 Hearing Aids (Left and Right)
- Portabel Ngecas Case
- Kabel Ngecas USB Tipe-C
- Sikat beberesih
- Manual pangguna (dokumén ieu)
Guide Setup
1. Ngecas Awal
Before first use, fully charge the hearing aids and the charging case.
- Place both hearing aids into their respective slots in the charging case. Ensure the L (left) and R (right) indicators align.
- Connect the provided USB Type-C cable to the charging port on the case and plug the other end into a USB power adapter (not included) or a computer's USB port.
- The indicator lights on the charging case will show the charging status. A full charge typically takes approximately 2 hours.
- Once fully charged, disconnect the charging cable. The case can provide 2-3 full charges for both units, offering up to 24 hours of working time.
Image: Details on the portable wireless charging case, showing charging time (≤2 hours), hearing aid usage time (>7 hours), music time (>8 hours), call time (>5 hours), and total working time (24 hours).
2. Wearing the Hearing Aids
Identify the left (L) and right (R) hearing aids. Gently insert each hearing aid into your ear canal until it feels secure and comfortable. The devices are designed to automatically turn on when placed in the ear.
3. Papasangan Bluetooth
The hearing aids can be paired with your smartphone or other Bluetooth-enabled devices for calls and music.
- Ensure the hearing aids are charged and in your ears.
- Buka setélan Bluetooth dina alat Anjeun.
- Milarian pikeun available devices and select "DiGGiNGSOUND T015" (or similar name).
- Sakali disambungkeun, anjeun bakal ngadéngé sora konfirmasi.
Parentah Operasi
Volume Adjustment (Hearing Amppangajén)
The T015 hearing aids offer 3 levels of hearing amplification. You can adjust the level by a single touch on the earpiece.

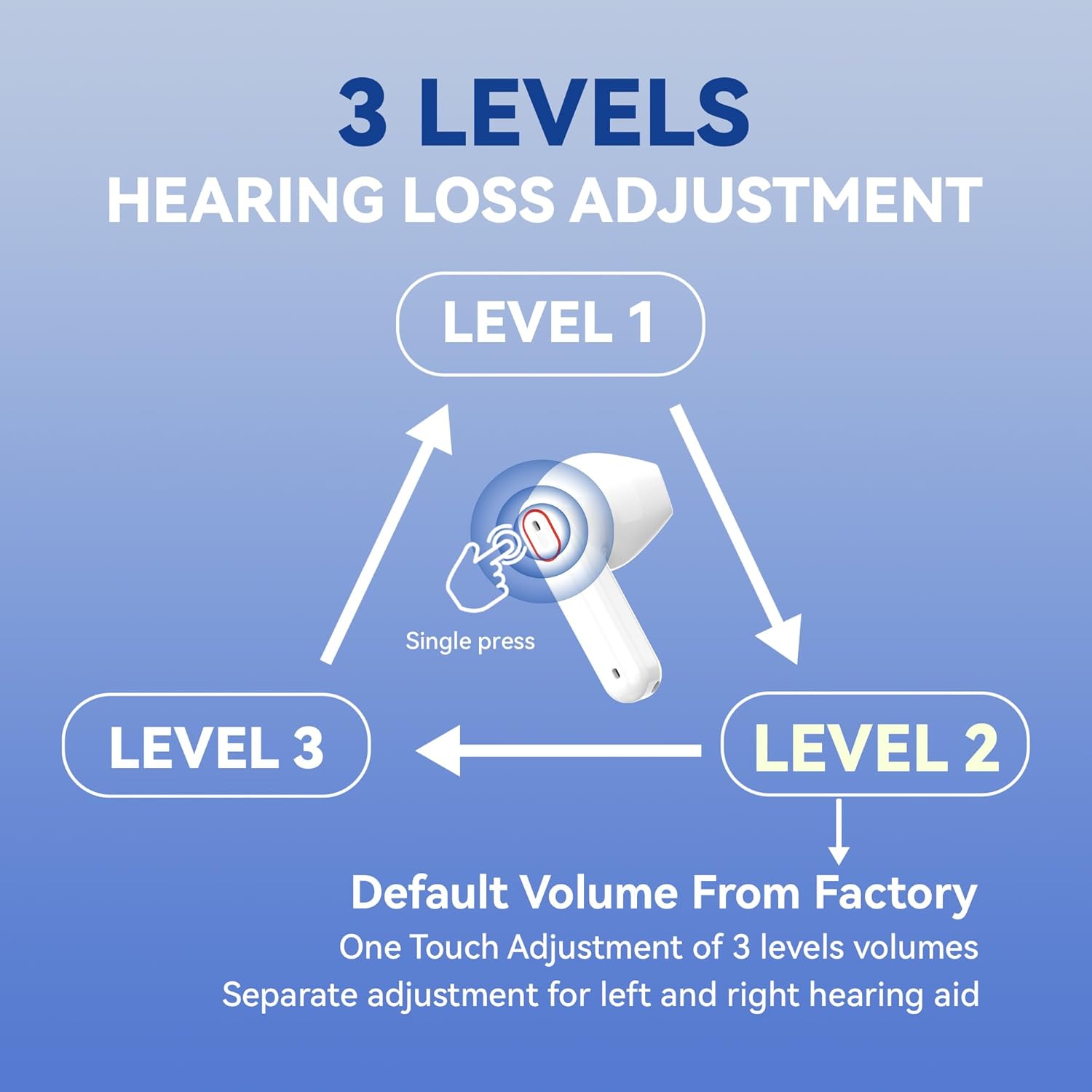

Image: A diagram illustrating the three volume levels (Level 1, Level 2, Level 3) and how to cycle through them with a single press on the earpiece. Separate adjustment is possible for each hearing aid.
- Pers Tunggal: Tap the touch control area on either hearing aid to cycle through Level 1, Level 2, and Level 3. A voice prompt will announce the current level.
- The default volume from the factory is Level 1.
- Each hearing aid can be adjusted independently.
Image: Visual representation of the hearing aids' ability to amplify clear sound up to 35dB, suitable for mild to moderate-severe hearing loss.
Gambar: Examples of the DiGGiNGSOUND T015 hearing aids being used in different environments, such as watching TV, during daily communication, at family gatherings, and while working.
Smart Touch Control (Bluetooth Functions)
The hearing aids feature smart touch controls for managing calls and other functions when connected via Bluetooth.

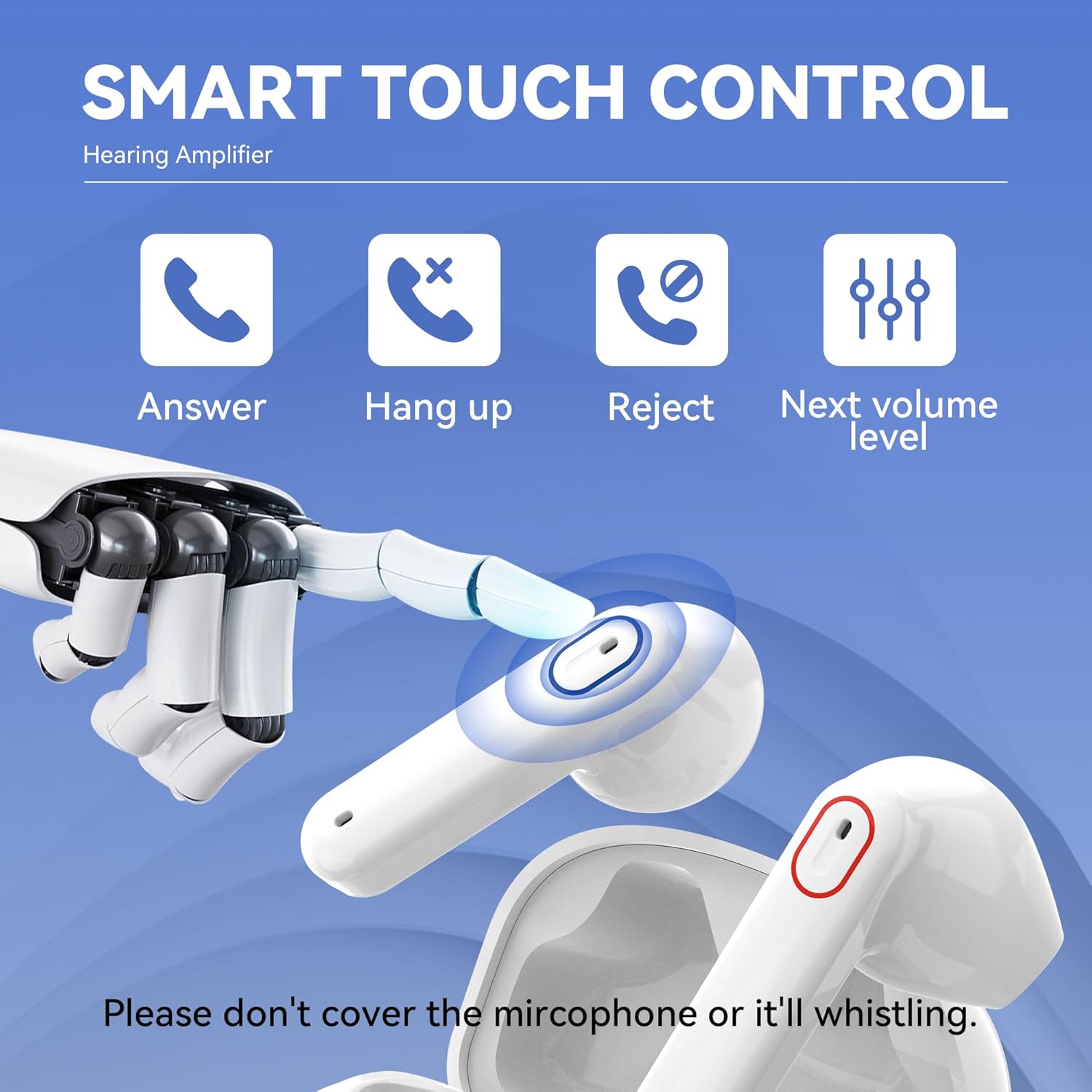

Image: An illustration demonstrating the smart touch control on the hearing aid, showing icons for Answer, Hang up, Reject calls, and adjusting to the Next volume level. It also warns not to cover the microphone.
- Ngajawab Telepon: Single press the touch control area.
- Ngagantung Telepon: Single press the touch control area during a call.
- Nolak Telepon: Press and hold the touch control area.
- Next Volume Level: Single press to cycle through amplification levels (as described above).
Important: Do not cover the microphone area on the hearing aid, as this may cause whistling or feedback.
Pangropéa sareng Perawatan
Pangropéa anu leres mastikeun umur panjang sareng kinerja anu optimal tina alat bantu déngé anjeun.
- beberesih: Use the provided cleaning brush to gently remove any earwax or debris from the earpieces and sound outlets. Wipe the hearing aids and charging case with a soft, dry cloth. Do not use water or cleaning solutions directly on the devices.
- Panyimpenan: When not in use, store the hearing aids in their charging case to protect them from dust and damage.
- Hindarkeun Uap: Keep the hearing aids and charging case dry. Avoid exposure to excessive moisture, humidity, or extreme temperatures.
- Perawatan batré: Recharge the hearing aids regularly, even if not used daily, to maintain battery health.
Pamérésan masalah
Upami anjeun mendakan masalah, mangga tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya sora atawa sora lemah | Low battery; Earwax blockage; Incorrect volume level. | Charge the hearing aids; Clean the earpiece and sound outlet; Adjust to a higher volume level. |
| Whistling or feedback noise | Improper fit; Microphone covered; Volume too high. | Re-insert the hearing aid for a snug fit; Ensure nothing is covering the microphone; Reduce the volume level. |
| Teu bisa nyambung via Bluetooth | Hearing aids not in pairing mode; Bluetooth off on device; Already connected to another device. | Ensure hearing aids are on; Turn Bluetooth off and on again on your device; Disconnect from other devices. |
| Kasus ngecas teu ngecas | Loose cable connection; Faulty cable/adapter. | Check USB-C cable connection; Try a different USB-C cable or power adapter. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.
spésifikasi
- model: T015
- merek: DiGGiNGSOUND
- warna: Bodas
- Bahan: Silikon
- Ukuran produk: 1.38 x 0.7 x 0.04 inci
- Weight (per earphone): Kira-kira 0.15 ons
- Amppangajén: Nepi ka 35dB
- Saluran: 16-channel digital sound processing
- Waktu Ngecas: Approximately 2 hours (for case and aids)
- Dédéngéan Amplification Time: Nepi ka 7 jam
- Waktos Puterkeun Musik: Nepi ka 8 jam
- Waktu Telepon: Nepi ka 5 jam
- Total Working Time (with charging case): Nepi ka 24 jam
- Konektipitas: Bluetooth
Garansi sareng Rojongan
DiGGiNGSOUND products come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official DiGGiNGSOUND websitus.
For technical support, troubleshooting assistance, or any questions regarding your DiGGiNGSOUND T015 hearing aids, please contact our customer service team:
- Surélék: support@diggingsound.com
- Websitus: www.diggingsound.com
Please have your model number (T015) and purchase information ready when contacting support.
