Bella Depot 52" Modern Reversible Crystal Ceiling Fan User Manual

1. Bubuka

Hatur nuhun pikeun meuliasing the Bella Depot 52" Modern Reversible Crystal Ceiling Fan. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

2. Émbaran Kasalametan

Pikeun ngurangan résiko shock listrik, seuneu, atawa tatu pribadi, salawasna turutan precautions kaamanan dasar ieu:

• Baca sagala parentah: Before installing or operating the fan, read all safety information and instructions.
• Kasalametan listrik: Ensure the power is turned off at the circuit breaker or fuse box before beginning installation. All electrical wiring must be performed by a qualified electrician and conform to local and national electrical codes.
• Pamasangan: The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting a minimum of 35 lbs (15.9 kg). Use only outlet boxes marked "Acceptable for Fan Support."
• Blade clearance: Ensure there is at least 7 feet (2.1 meters) of clearance from the floor to the bottom edge of the fan blades. Maintain at least 30 inches (76 cm) from the wall to the blade tips.
• Avoid contact: Ulah ngasupkeun barang kana jalur bilah kipas nalika kipas keur dioperasikeun.
• Bohlam lampu: Use only the type and wattage of light bulbs specified for the fan's light kit.

3. Eusi Paket

Verify that all components listed below are present in your package. If any parts are missing or damaged, contact Bella Depot customer service.

• Majelis Motor Fan
• Kipas Angin (5)
• Kurung sabeulah
• Downrod sareng Kanopi
• Ningkatna Kurung
• Majelis Kit Lampu
• Crystal Pendants and Fixture
• Kadali Jarak Jauh nganggo Tempelan dina Tembok sareng Batré
• Paket Hardware (screws, washers, mur kawat)
• Tarik Ranté

4. Setup jeung Instalasi

Turutan léngkah-léngkah ieu pikeun masang kipas siling anjeun kalayan leres. Disarankeun pikeun nyewa dua jalmi pikeun masangna.

4.1 Nyiapkeun pikeun Instalasi

• Pareuman kakuatan dina pemutus sirkuit utama.
• Clear the work area and gather necessary tools (screwdriver, wire strippers, ladder).

4.2 Pasang Bracket Pamasangan

• Secure the mounting bracket to the ceiling outlet box using the screws provided. Ensure the bracket is firmly attached to a ceiling joist or a fan-rated outlet box.

4.3 Assemble Downrod and Motor

• Feed the electrical wires from the fan motor through the downrod.
• Insert the downrod into the motor housing and secure it with the provided pin and screw.
• Angkat rakitan motor kipas kalayan ati-ati teras gantungkeun kana kait braket pemasangan.

4.4 Sambungan Wiring

Connect the fan wires to the household wires according to the wiring diagram in your specific instruction sheet. Typically:

• Kawat Tembaga Héjo / Bare (Ground) ka Kawat Tembaga Héjo / Bare (Ground)
• Kawat bodas (nétral) ka kawat bodas (nétral)
• Black wire (Live/Hot) to Black wire (Live/Hot)

Use the provided wire nuts and ensure all connections are secure.

4.5 Attach Fan Blades

Attach each fan blade to its blade bracket using the screws provided. Then, attach the blade brackets to the motor housing. Ensure all screws are tightened securely.

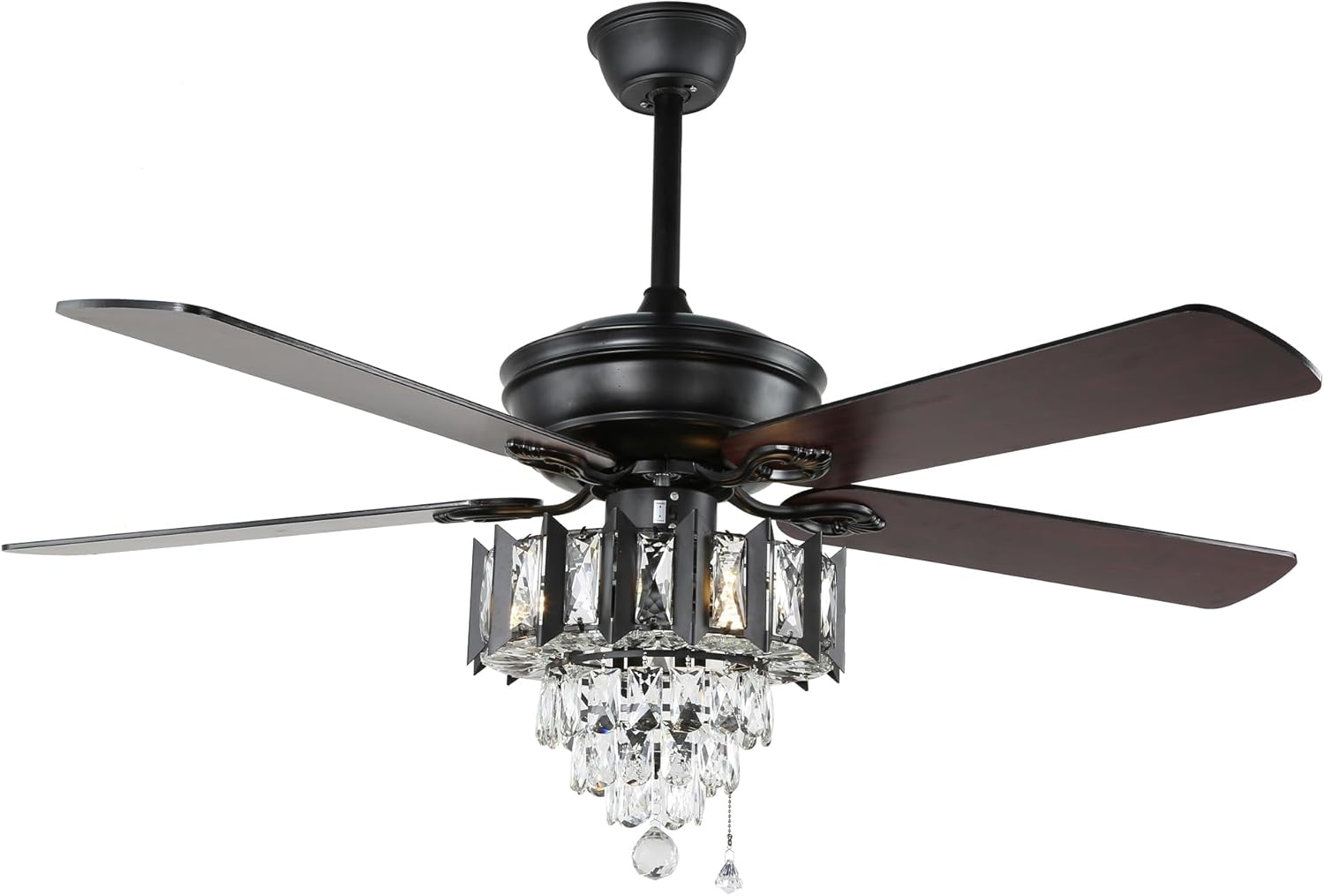

Image: The Bella Depot 52-inch ceiling fan showing its five reversible blades, with one side featuring a dark wood grain finish and the other a solid black finish, attached to the motor housing. This illustrates the blade assembly step.

4.6 Install Light Kit and Crystal Pendants

• Sambungkeun kawat kit lampu kana kabel motor kipas sakumaha anu diparentahkeun.
• Secure the light kit assembly to the bottom of the fan motor.
• Carefully attach the crystal pendants to the light kit fixture. Refer to the specific diagram for crystal placement.

Image: A detailed close-up of the Bella Depot ceiling fan's light kit, highlighting the intricate crystal pendants suspended from a black metal frame. This image is relevant for understanding the crystal attachment process.

4.7 Majelis ahir

• Install the canopy over the mounting bracket, securing it with screws.
• Install light bulbs (not included, typically E12 base).
• Balikkeun kakuatan dina circuit breaker.

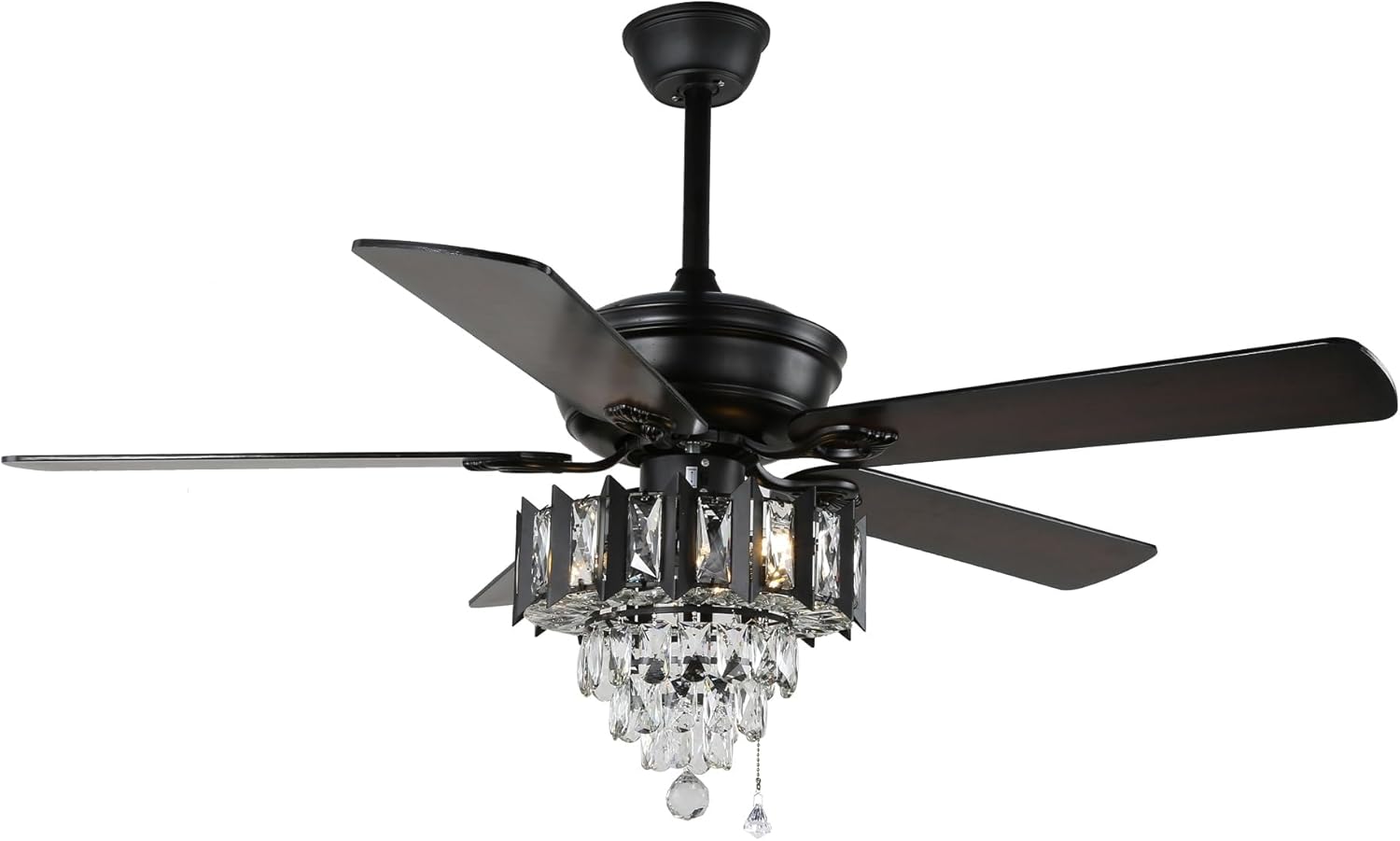

Gambar: A lengkep view of the Bella Depot 52-inch Modern Reversible Crystal Ceiling Fan, showcasing its black blades and the integrated crystal light kit, ready for operation.

5. Parentah Operasi

Your Bella Depot ceiling fan can be operated using the included remote control or the integrated pull chains.

5.1 Operasi kadali jauh

The remote control allows convenient operation of the fan and light functions from anywhere in the room.

• Kipas ON/OFF: Pencét tombol kipas pikeun ngaktipkeun atanapi mareuman kipas.
• Laju kipas: Use the speed buttons (e.g., 1, 2, 3) to cycle through low, medium, and high fan speeds.
• Lampu ON/OFF: Press the light button to turn the light kit on or off.
• Dimmer Cahaya: If your fan supports dimmable bulbs, press and hold the light button to adjust brightness.
• Kipas Balik: Pencét tombol mundur pikeun ngarobih arah bilah kipas (tingali bagian 5.3).

5.2 Operasi Rantai Tarik

Two pull chains are typically provided for manual control:

• Fan Speed Pull Chain: Pull to cycle through fan speeds (High, Medium, Low, Off).
• Light ON/OFF Pull Chain: Pull to turn the light kit on or off.

5.3 Fungsi Motor malik

The reversible motor allows you to change the direction of the fan blades for seasonal comfort.

• Modeu Usum Panas (Ngalawan arah jarum jam): Airflow creates a downward breeze, providing a cooling effect.
• Modeu Usum (saarah jarum jam): Airflow creates an upward draft, circulating warm air near the ceiling throughout the room.

To change direction, ensure the fan is off and completely stopped. Locate the reverse switch on the fan motor housing (often near the light kit) and slide it to the desired position. Then, turn the fan back on.

6. Pangropéa

Pangropéa rutin mastikeun kinerja anu optimal sareng manjangkeun umur kipas siling anjeun.

6.1 beberesih

• Bilah kipas: Dust the fan blades periodically with a soft, lint-free cloth. Do not use abrasive cleaners, as they may damage the finish.
• Perumahan motor: Lap wadah motor ku kaén nu lemes,amp lawon.
• Crystal Pendants: Gently wipe crystals with a soft, damp cloth. For stubborn spots, a mild glass cleaner can be used sparingly on the crystals, avoiding contact with metal parts.

Pareuman heula kipas dina pemutus sirkuit sateuacan diberesihan.

6.2 Light Bulb Replacement

• Pareuman kakuatan kana kipas di circuit breaker.
• Ngidinan bulbs pikeun niiskeun lengkep saméméh noel.
• Unscrew the old bulb and replace it with a new bulb of the same type and wattage. Refer to the fan's specifications for bulb requirements (e.g., E12 base).

7. Cara ngungkulan

If you experience issues with your fan, consult the following troubleshooting guide:

8. Spésifikasi

Key specifications for the Bella Depot 52" Modern Reversible Crystal Ceiling Fan:

9. Garansi jeung Rojongan

For warranty information or technical support, please contact Bella Depot customer service. Keep your purchase receipt as proof of purchase for any warranty claims.
