sygonix EV Charging Station User Manual

1. Bubuka jeung Leuwihview

Thank you for choosing the sygonix Traveler Mobile EV Charging Station. This versatile charging station is designed for universal use, featuring a comprehensive set of power adapters with various plug formats and a Type 2 male connector. The charger automatically detects the connected adapter and adjusts the corresponding current limit, ensuring safe and efficient charging.

With a maximum charging power of 11 kW, this station provides robust performance for your electric vehicle. It is operated via an intuitive LCD touchscreen, allowing you to monitor the current charging status and adjust settings. LED indicators provide additional visual feedback on the charging process.

2. Eusi Paket

Mangga parios pakét kanggo barang-barang ieu:

• Stasion Ngecas EV
• 3 Plug Adapters (various formats)
• Ningkatna Kurung
• Accessories for Mounting Bracket

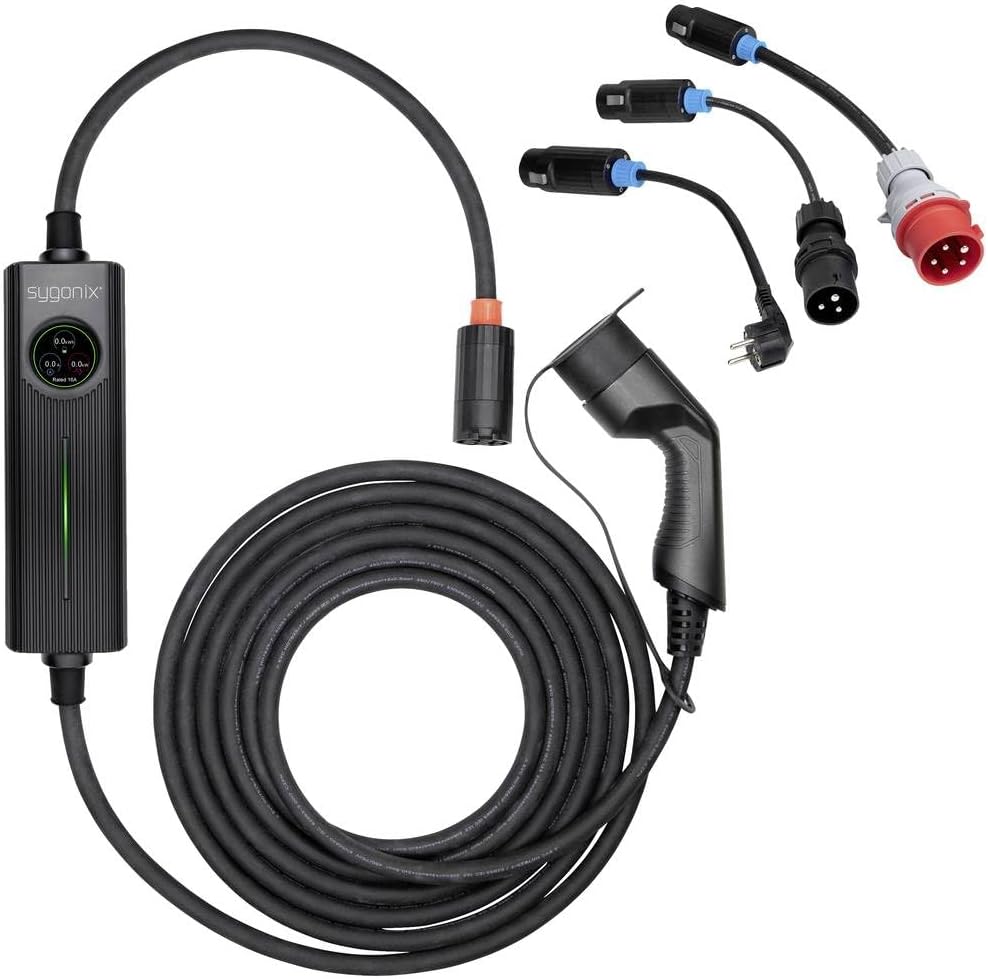

Gambar 2.1: Complete sygonix EV Charging Station package contents, including the main charging unit, Type 2 connector, coiled cable, three different power adapters, and the mounting bracket.

3. Parentah Kasalametan

Read all safety instructions carefully before using the charging station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Kasalametan listrik: Ensure the power outlet used is properly grounded and rated for the charging station's power requirements. Do not use extension cords or adapters that are not supplied with the product.
• Kaayaan Lingkungan: Do not expose the charging station to extreme temperatures, direct sunlight for prolonged periods, or moisture. Avoid using it in rain or wet conditions unless explicitly designed for such use.
• Pamariksaan kabel: Regularly inspect the charging cable and connectors for any signs of damage, wear, or corrosion. Do not use the station if any part is damaged.
• Barudak jeung Pets: Keep the charging station and cables out of reach of children and pets.
• Ventilasi: Ensure adequate ventilation around the charging station during operation to prevent overheating.
• Stopan Darurat: Familiarize yourself with the emergency stop procedure for your electric vehicle and the charging station.

4. Setélan

Follow these steps to set up your sygonix EV Charging Station:

1. Ngabongkar: Cabut sadaya komponén tina bungkusna kalayan ati-ati teras pariksa dumasar kana daptar eusi bungkusna.
2. Pamasangan (Opsional): If desired, use the provided mounting bracket and accessories to secure the charging station to a suitable wall or surface. Ensure the mounting location is dry, stable, and allows for easy access to the power outlet and vehicle.
3. Pilih adaptor: Choose the appropriate power adapter from the supplied set that matches your available power outlet.
4. Sambungkeun adaptor: Firmly connect the selected power adapter to the charging station's input cable. Ensure a secure connection.
5. Nyambung ka Daya: Plug the power adapter into a suitable, grounded electrical outlet. The charging station will power on, and the LCD screen will activate. The charger will automatically detect the connected adapter and set the appropriate current limit.

5. Parentah Operasi

Once the charging station is set up and powered on, follow these steps to charge your electric vehicle:

1. Nyambung ka Kendaraan: Take the Type 2 charging connector and firmly insert it into your electric vehicle's charging port. Ensure it clicks into place.

Gambar 5.1: The Type 2 charging connector, ready to be inserted into the vehicle's charging port.

2. Monitor LCD Screen: The LCD touchscreen on the charging station will display real-time charging information, including current, voltage, power, and charging duration.

Gambar 5.2: The control unit of the sygonix EV charging station, showing the LCD display and LED indicators.

3. Saluyukeun Setélan (upami tiasa dianggo): Use the touchscreen interface to adjust settings such as charging phase, current limit, charging time, or to set a delayed start, if these features are available and desired. The charger automatically detects the adapter and sets a default current limit, but manual adjustments may be possible within safe parameters.
4. Mimitian Ngecas: Charging will typically begin automatically once the Type 2 connector is securely plugged into the vehicle and the station is powered. Confirm the charging status on the LCD screen and via the LED indicators.
5. End Charging: To stop charging, either disconnect the Type 2 connector from your vehicle (following your vehicle's instructions) or stop the charging process via the charging station's interface if an option is available. Always disconnect from the vehicle first before unplugging the station from the power outlet.

6. Pangropéa

Proper maintenance ensures the longevity and safe operation of your charging station.

• beberesih: Clean the charging station and cables with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse any part in water. Ensure the station is unplugged before cleaning.
• Inspeksi Kabel sareng Konektor: Periodically inspect the charging cable, connectors, and adapters for any signs of damage, fraying, cracks, or discoloration. If any damage is found, discontinue use immediately and contact customer support.
• Panyimpenan: When not in use, store the charging station in a dry, cool place, away from direct sunlight and extreme temperatures. Coil the cable neatly to prevent kinks or damage.

7. Cara ngungkulan

Upami anjeun ngalaman masalah sareng stasiun ngecas anjeun, tingali masalah sareng solusi umum ieu:

• Ngecas Teu Dimimitian:
  • Ensure the charging station is properly plugged into a live power outlet.
  • Verify that the Type 2 connector is fully inserted into the vehicle's charging port.
  • Pariksa layar LCD pikeun sagala pesen kasalahan.
  • Ensure the vehicle's charging settings are correctly configured.
• No Power to Charging Station:
  • Check the power outlet with another device to confirm it is functional.
  • Ensure the selected power adapter is securely connected to the charging station and the wall outlet.
  • Pariksa pemutus sirkuit rumah tangga anjeun.
• Error Message on LCD:
  • Note down the error code or message.
  • Try disconnecting and reconnecting the charging station from both the power source and the vehicle.
  • If the error persists, consult the manufacturer's website or contact customer support with the error details.
• Ngecas Lambat:
  • Ensure the correct power adapter is used and fully connected.
  • Check the charging station's settings on the LCD screen to ensure the current limit is not set too low.
  • Verify that your vehicle is capable of accepting the full 11 kW charge.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, please refer to the documentation included with your purchase or visit the official sygonix website. If you require technical support, troubleshooting assistance beyond this manual, or have questions regarding your product, please contact sygonix customer service through their official channels.
