1. Bubuka
This manual provides essential information for the safe and efficient use of your Indesit DI9E 2B10 fully integrated dishwasher. Please read these instructions carefully before installation and operation, and keep them for future reference.
2. Émbaran Kasalametan
Salawasna turutan tindakan pencegahan kaamanan dasar nalika nganggo alat listrik pikeun ngirangan résiko kahuruan, sengatan listrik, sareng cilaka ka jalma. Alat ieu dimaksudkeun kanggo dianggo di rumah tangga waé.
- Pastikeun alat dibumikeun leres.
- Ulah noél unsur pemanasan salila atawa langsung saatos pamakéan.
- Jauhkeun barudak tina mesin pencuci piring, khususna nalika panto dibuka.
- Anggo ngan ukur detergent sareng bantosan bilas anu dirarancang khusus pikeun mesin pencuci piring otomatis.
- Do not operate the dishwasher if it is damaged. Contact qualified service personnel.
- The Aquastop security system is designed to prevent water leaks.
3. Setup jeung Instalasi
Proper installation is crucial for the performance and longevity of your dishwasher. This fully integrated model is designed to be installed within kitchen cabinetry.
3.1 Ngabongkar bungkusan
Taliti miceun sadaya bahan bungkusan. Mariksa mesin pencuci piring pikeun karusakan naon waé salami transit. Laporkeun karusakan naon waé pikeun pangecér anjeun langsung.
3.2 Positioning jeung Leveling
The dishwasher should be placed on a firm, level floor. Adjust the adjustable feet to ensure the appliance is stable and level. This prevents vibrations and ensures proper door alignment.
3.3 Sambungan cai
Connect the water inlet hose to a cold water supply tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks. The inlet hose length is 1.55 m.
Connect the drain hose to a suitable drain pipe. The drain hose length is 1.5 m. Ensure the drain hose is not kinked or obstructed.
3.4 Sambungan Listrik
Connect the dishwasher to a grounded electrical outlet. The appliance requires a 220-240V, 50Hz power supply. The cable length is 1.3 m. Do not use extension cords or multiple adapters.
3.5 Integrasi Kabinet
This model is designed for full integration. A custom door panel (not supplied) must be attached to the dishwasher door. Refer to the installation template provided with the appliance for precise measurements and instructions for attaching the panel.

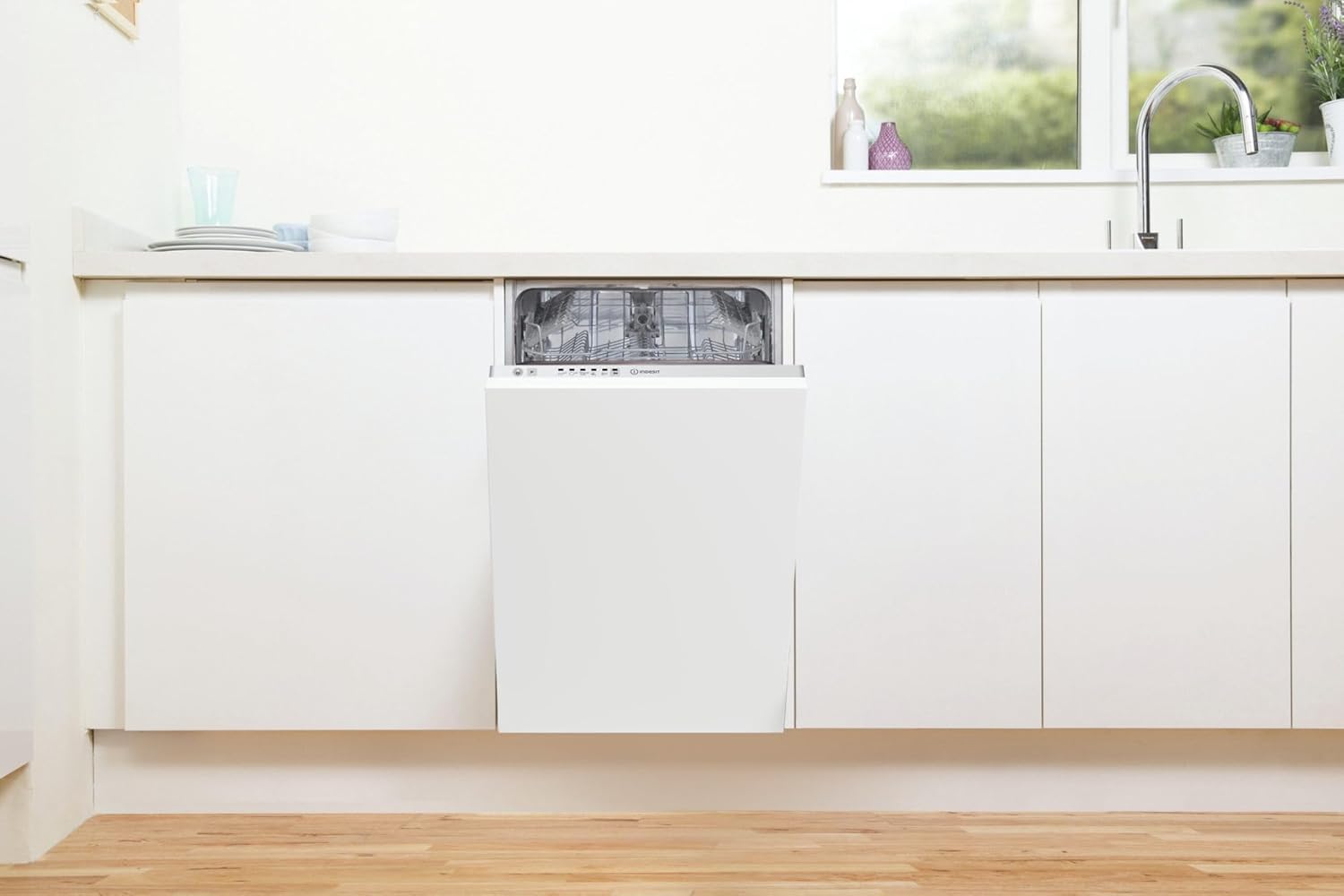

Image: The Indesit DI9E 2B10 dishwasher seamlessly integrated into a modern kitchen cabinet, with its door slightly open, revealing the control panel.
Image: The Indesit DI9E 2B10 dishwasher fully integrated into a modern kitchen, with its custom door panel closed, blending perfectly with the surrounding cabinetry.
4. Parentah Operasi
Familiarize yourself with the control panel and loading procedures for optimal washing results.
4.1 Control Panel Leuwihview
Gambar: A close-up view of the dishwasher's control panel, featuring push-buttons for program selection and LED indicators for cycle status. The Indesit logo is visible.
The dishwasher features push-button controls and an LED display. The LED display indicates the selected program and cycle status.
4.2 Ngamuat dishwasher nu
The dishwasher has two baskets and a cutlery basket, designed for 9 place settings. The upper basket is adjustable to accommodate larger items in the lower basket.
Image: The Indesit DI9E 2B10 dishwasher with both the upper and lower racks fully extended, showing the empty interior and the cutlery basket in the lower rack.
Image: Both the upper and lower racks of the Indesit DI9E 2B10 dishwasher are loaded with various dishes, including plates, bowls, glasses, and cutlery, demonstrating its capacity.
- Gorobag handap: Ideal for plates, serving dishes, pots, and pans.
- Karanjang luhur: Suitable for glasses, cups, small plates, and bowls. The upper basket is adjustable.
- Karanjang cutlery: Place forks, knives, and spoons in the designated sections, ensuring they do not nest together.
4.3 Nambahkeun deterjen jeung bilas bantuan
Fill the detergent dispenser with the appropriate amount of dishwasher detergent. If using rinse aid, fill the rinse aid dispenser. This model does not feature automatic salt or rinse aid indicators, so monitor levels manually.
4.4 Pamilihan Program
Select a wash program using the control buttons. Available programs include:
- Eco 50 ° C: Program standar pikeun piring anu biasana kotor, paling éfisién dina hal konsumsi énergi sareng cai.
- Intensif 65 ° C: Pikeun piring beurat sareng pot.
- campuran: A versatile program for mixed loads.
- gancang: A shorter cycle for lightly soiled dishes.
4.5 Ngamimitian Siklus
Close the dishwasher door firmly. Press the start button to begin the selected program. The LED display will show the program status.
5. Pangropéa sarta perawatan
Pangropéa rutin ngajamin kinerja optimal sareng manjangkeun umur mesin pencuci piring anjeun.
5.1 Ngabersihan Saringan
The filter system prevents food particles from recirculating and clogging the drain. Regularly check and clean the filters located at the bottom of the dishwasher tub. Remove any food debris and rinse under running water.
5.2 Ngabersihkeun Panangan Semprot
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clean the holes with a fine brush or toothpick.
5.3 Ngabersihan Interior jeung Exterior
Ngusap interior kalayan iklanamp cloth after each cycle to prevent odors. Clean the exterior surfaces with a soft, damp lawon jeung detergent hampang. Ngahindarkeun cleaners abrasive.
5.4 Uyah jeung Bilas Bantuan Refill
Since this model does not have indicators for salt and rinse aid, it is recommended to check and refill these compartments regularly based on your water hardness and usage frequency.
6. Cara ngungkulan
Sateuacan ngahubungan jasa, tingal masalah sareng solusi umum di handap ieu.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin pencuci piring henteu ngamimitian | Masalah catu daya, panto henteu ditutup leres, program henteu dipilih. | Pariksa sambungan kakuatan, pastikeun panto geus latched, pilih program tur pencét ngamimitian. |
| Piring henteu beresih | Incorrect loading, insufficient detergent, clogged spray arms, dirty filters. | Load dishes correctly, add more detergent, clean spray arms and filters. |
| Cai teu draining | Selang solokan tersumbat atanapi saringan, masalah pompa solokan. | Check and clean drain hose and filters. If problem persists, contact service. |
| Sora teu biasa | Dishes interfering with spray arms, foreign object in pump. | Susun deui piring, pariksa barang asing. |
| Bocor | Loose hose connections, damaged door seal. | Check hose connections, inspect door seal for damage. |
Upami masalahna tetep saatos nyobian solusi ieu, mangga ngahubungi tanaga jasa anu mumpuni.
7. Spésifikasi
Detailed technical specifications for the Indesit DI9E 2B10 dishwasher.
| Fitur | Spésifikasi |
|---|---|
| Modél | DI9E 2B10 |
| Tipe | Mesin cuci piring lengkep |
| Ukuran (H x W x D) | 82 x 45 x 55.5 cm |
| Beurat | 27.2 kg |
| Kapasitas | 9 Setélan Tempat |
| Kelas Énergi Énergi | F (dina skala A nepi ka G) |
| Konsumsi Cai per Siklus | 11.5 liter |
| Energy Consumption per 100 Cycles | 78 kWh |
| Tingkat Noise | 51 dB (Class D) |
| Tipe Kontrol | Pencét-tombol |
| Tipe tampilan | LED |
| Program | Eco 50°C, Intensive 65°C, Mixed, Quick |
| Bahan interior | Beusi sténless |
| Fitur husus | Adjustable Basket, Aquastop Security System |
| Panjang kabel | 1.3 m |
| Panjang Selang Inlet | 1.55 m |
| Panjang Selang Solokan | 1.5 m |
8. Garansi jeung Rojongan
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Indesit provides customer support for product inquiries and service requests.
For technical assistance or to schedule a service appointment, please contact Indesit customer service or your authorized service provider. Contact details can typically be found on the manufacturer's websitus atanapi dina dokuméntasi pameseran Anjeun.
