Buku Panduan Pangguna Mesin Pencuci Piring Semi-Terpadu Indesit I3B L634 X

1. Émbaran Kasalametan

Read these safety instructions carefully before using the appliance. Keep them nearby for future reference. This manual provides important information regarding the safe installation, use, and maintenance of your dishwasher.

Kasalametan Umum

• Perkakas ieu tiasa dianggo ku murangkalih umur 8 taun ka luhur sareng jalma anu kakurangan kamampuan fisik, indrawi atanapi mental atanapi kurang pangalaman sareng pangaweruh upami aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat dina cara anu aman sareng ngartos bahaya. aub.
• Barudak teu kedah maén sareng alat. Beberesih sareng pangropéa pangguna henteu kedah dilakukeun ku murangkalih tanpa pangawasan.
• Perkakas dimaksudkeun pikeun panggunaan domestik wungkul.
• Do not install the appliance outdoors or in damp kaayaan.
• Pastikeun alat dibumikeun leres.
• Ulah noél unsur pemanasan salila atawa langsung saatos siklus nyeuseuh.
• Jauhkeun detergents sarta bilas bantuan kaluar jangkauan sahiji barudak.

Kasalametan instalasi

• Pamasangan kedah dilaksanakeun ku teknisi anu mumpuni luyu sareng peraturan lokal.
• Pastikeun alat geus dipegatkeun tina catu daya salila instalasi.
• Do not damage the power cable or water hoses during installation.
• The appliance must be placed on a stable and level floor.

2. Produk Langkungview

The Indesit I3B L634 X is a semi-integrated dishwasher designed for efficient dish cleaning. It features an electronic control panel and a capacity for 14 place settings.

Panél kontrol

The control panel is located on the top edge of the dishwasher door and includes buttons for power, program selection, delayed start, and indicators for salt and rinse aid levels.

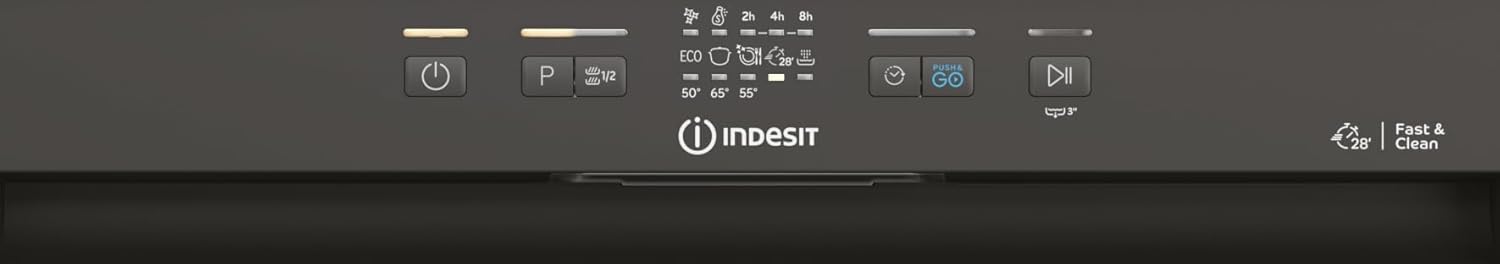

Gambar: Detil view of the electronic control panel, showing power button, program selector, delay start, and indicators for salt and rinse aid.

Image: Another detailed view of the electronic control panel, highlighting the Indesit logo and program options.

Komponén interior

The dishwasher features adjustable upper and lower baskets for flexible loading, along with a cutlery basket. It can accommodate up to 14 place settings.

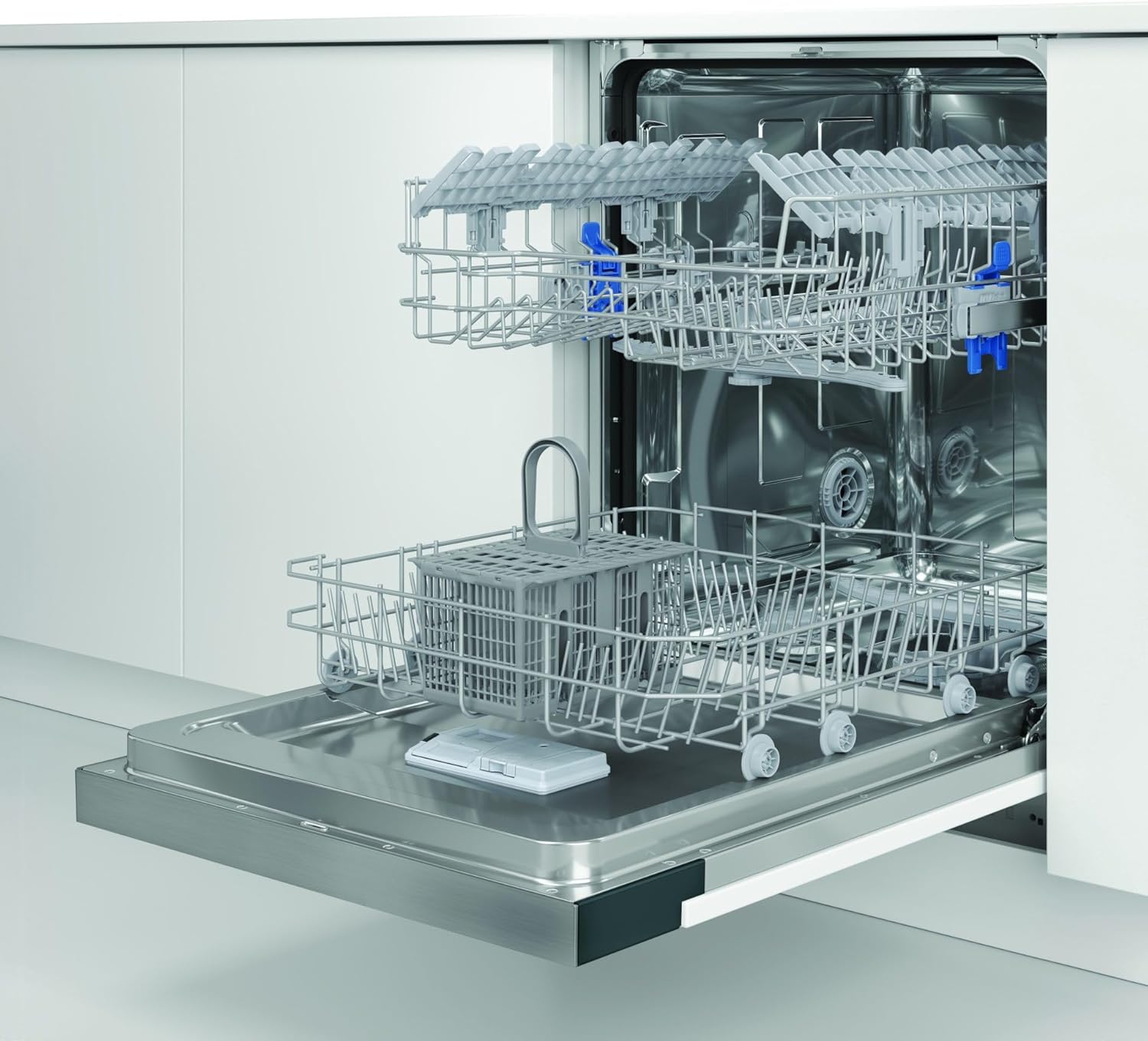

Image: The interior of the dishwasher with empty racks, illustrating the layout for loading dishes.

Image: The dishwasher interior with various dishes, glasses, and cutlery loaded, demonstrating its capacity.

3. Parentah instalasi

This Indesit dishwasher is a semi-integrated model, designed to be installed within kitchen cabinetry. Professional installation is recommended to ensure proper functioning and safety.

Panempatan sareng Diménsi

The appliance is designed for built-in installation. Ensure the niche dimensions are compatible with the dishwasher's measurements.

• Jangkungna produk: 820 mm
• Lebar produk: 598 mm
• Jerona produk: 555 mm
• Minimum Niche Height: 820 mm
• Maximum Niche Height: 900 mm
• Minimum Niche Width: 600 mm
• Maximum Niche Width: 600 mm
• Niche Depth: 560 mm

The dishwasher features adjustable feet, all accessible from the front, to ensure a level installation.

Image: The Indesit dishwasher seamlessly integrated into a modern kitchen setting, with its door closed.

Image: The Indesit dishwasher integrated into kitchen cabinetry, with its door open and racks loaded with dishes.

Sambungan Listrik

• Nominal Electrical Connection: 1900 W
• Ayeuna: 10 A
• Voltage: 220-240 V
• Frékuénsi: 50 Hz
• Panjang kabel kakuatan: 130 cm
• Tipe Colokkeun: Schuko
• Ensure the electrical outlet is easily accessible after installation.

Sambungan Cai

• Inlet Hose Length: 155 cm
• Outlet Hose Length: 150 cm
• Maximum Water Inlet Temperature: 60°C
• Sambungkeun selang asupan kana keran cai tiis.
• Pastikeun selang solokan disambungkeun leres ka sistem drainase merenah.

4. Parentah Operasi

Follow these steps for optimal performance of your Indesit dishwasher.

Setup Awal

1. Fill Salt Dispenser: If the salt indicator light is on, fill the salt dispenser with dishwasher salt. This helps soften hard water.
2. Eusian bilas bantuan Dispenser: If the rinse aid indicator light is on, fill the rinse aid dispenser. Rinse aid improves drying and prevents streaks.

Ngamuat dishwasher nu

• Kerok kaluar partikel dahareun badag tina piring saméméh loading.
• Teundeun gelas, cangkir, sareng barang-barang anu langkung alit dina karanjang luhur.
• Teundeun piring, mangkok, jeung item nu leuwih gede dina karanjang handap.
• Pastikeun item teu ngahalangan leungeun semprot.
• Place cutlery in the cutlery basket with handles down for most items, but knives with handles up for safety.

Nambahkeun Detergent

Tambahkeun deterjen mesin cuci piring jumlah anu pas kana dispenser sateuacan unggal siklus nyeuseuh.

Pamilihan program sareng ngamimitian

1. Daya Hurung: Pencét tombol daya pikeun ngaktipkeun mesin pencuci piring.
2. Pilih Program: Use the program selection button to choose the desired wash cycle. Refer to the program table in the full manual for details on each program.
3. Delay Start (Optional): If desired, press the delay start button to set a delayed start time (up to 8 hours).
4. Mimitian siklus: Pencét tombol ngamimitian/reureuh pikeun ngamimitian siklus nyeuseuh.

5. Pangropéa jeung beberesih

Pangropéa rutin ngajamin umur panjang sareng efisiensi mesin pencuci piring anjeun.

Ngabersihan Saringan

The filter system should be checked and cleaned regularly to prevent blockages and ensure optimal washing results.

1. Pareuman teras cabut cuci piring.
2. Leupaskeun karanjang handap.
3. Twist and lift out the filter assembly from the bottom of the wash tub.
4. Separate the coarse filter, fine filter, and microfilter.
5. Rinse all filter components under running water to remove food particles. Use a soft brush if necessary.
6. Pasang deui saringan teras lebetkeun deui kana mesin cuci piring, pastikeun saringanna terkunci pageuh dina tempatna.

Ngabersihkeun Panangan Semprot

Pariksa nozzles panangan semprot pikeun sumbatan. Upami diperlukeun, cabut leungeun semprot tur bersihkeun liang ku objék ipis kawas colok huntu a.

Beberesih Exterior

Ngusap permukaan luar mesin pencuci piring kalayan lembut, damp lawon. Ulah make cleaners abrasive atawa pangleyur.

Salt and Rinse Aid Indicators

• The salt indicator light will illuminate when the salt reservoir needs refilling.
• The rinse aid indicator light will illuminate when the rinse aid dispenser needs refilling.

6. Cara ngungkulan

Sateuacan ngahubungan palayanan palanggan, tingal bagian ieu kanggo solusi pikeun masalah umum.

7. Spésifikasi Téknis

Detailed technical information for the Indesit I3B L634 X Dishwasher.

• model: I3B L634 X
• Tipe: Semi-integrated Dishwasher
• Tipe Kontrol: Éléktronik
• Kapasitas: 14 Setélan Tempat
• Energy Efficiency Class (EU 2017/1369): D
• Energy Consumption per 100 cycles (Eco program): 85 kWh
• Water Consumption per cycle (Eco program): 9.5 ltr
• Émisi Noise Akustik Udara (EU 2017/1369): 44 dB(A)
• Kelas Émisi Noise Akustik Udara (EU 2017/1369): B
• Program Duration (Eco program): 3:10 jam
• Ukuran (L x W x H): 820 mm x 598 mm x 555 mm
• Beurat bersih: 35.5 kg
• Beurat kotor: 37.5 kg
• Sambungan listrik: 220-240 V, 50 Hz, 1900 W, 10 A
• Bahan: Stainless Steel (main color Inox)
• Suku anu tiasa disaluyukeun: Yes, all from the front
• Maximum Delay Start Time: 8 jam
• Indikator uyah: Sumuhun
• Indikator Bantuan Bilas: Sumuhun

8. Garansi jeung Rojongan

This product is covered by a manufacturer's warranty. For specific details regarding warranty terms, conditions, and duration, please refer to the warranty card included with your appliance or visit the official Indesit websitus.

For technical assistance, spare parts, or to report a fault, please contact Indesit customer service. Have your appliance model number (I3B L634 X) and serial number ready when contacting support.

General return policies for products purchased online typically allow returns within 30 days if you change your mind. For defective or damaged products, specific return policies apply. Consult the retailer's return policy for more information.
