Buku Panduan Pangguna Osiloskop Genggam Hantek DSO8072E 6-in-1

1. Bubuka

This manual provides comprehensive instructions for the safe and effective operation of your Hantek DSO8000E Series Handheld Oscilloscope. This device integrates multiple functions including an Oscilloscope, Recorder, Digital Multimeter (DMM), Spectrum Analyzer, Frequency Counter, and Arbitrary Waveform Generator. Please read this manual thoroughly before using the instrument and retain it for future reference.

2. Produk Langkungview

2.1 Fitur konci

• Six-in-one Functionality: Oscilloscope, Recorder, DMM, Spectrum Analyzer, Frequency Counter, Arbitrary Waveform Generator.
• Daya tahan lingkungan: IP-51 rated for dust, drip, and shake resistance.
• Kasalametan: Large fuse conforms to European Safety Standards.
• Manajemén kakuatan: Battery indicator, easy-change connect points, and selectable 18650 battery box.
• Kaamanan fisik: Anti-theft lock hole, tripod fixed hole, hang rope, and built-in flashlight.
• Konektipitas: Replaceable BNC safety joints, USB Host/Device 2.0, optional WIFI/LAN.
• Oscilloscope Specifications: 70MHz-200MHz bandwidth, 1GSa/s sample rate, 2M memory depth.
• Generator Gelombang Sawenang: 25MHz, 200MSa/s DDS, 12-bit vertical resolution.
• Multimeter digital: 6000 counts, AC/DC voltage, AC/DC current, resistance, continuity, capacitance, diode function.
• Analysis Capabilities: FFT spectral analysis, waveform math (add, subtract, multiply, divide), X-Y mode, over 20 automatic measurements.
• tampilan: Large 5.6-inch TFT Color LCD (640x480 resolution).
• Kaluaran Data: Waveform data can be exported in WORD, EXCEL, BMP, JPG formats.

2.2 Tata Tata Alat

Familiarize yourself with the physical components and controls of the Hantek DSO8072E.

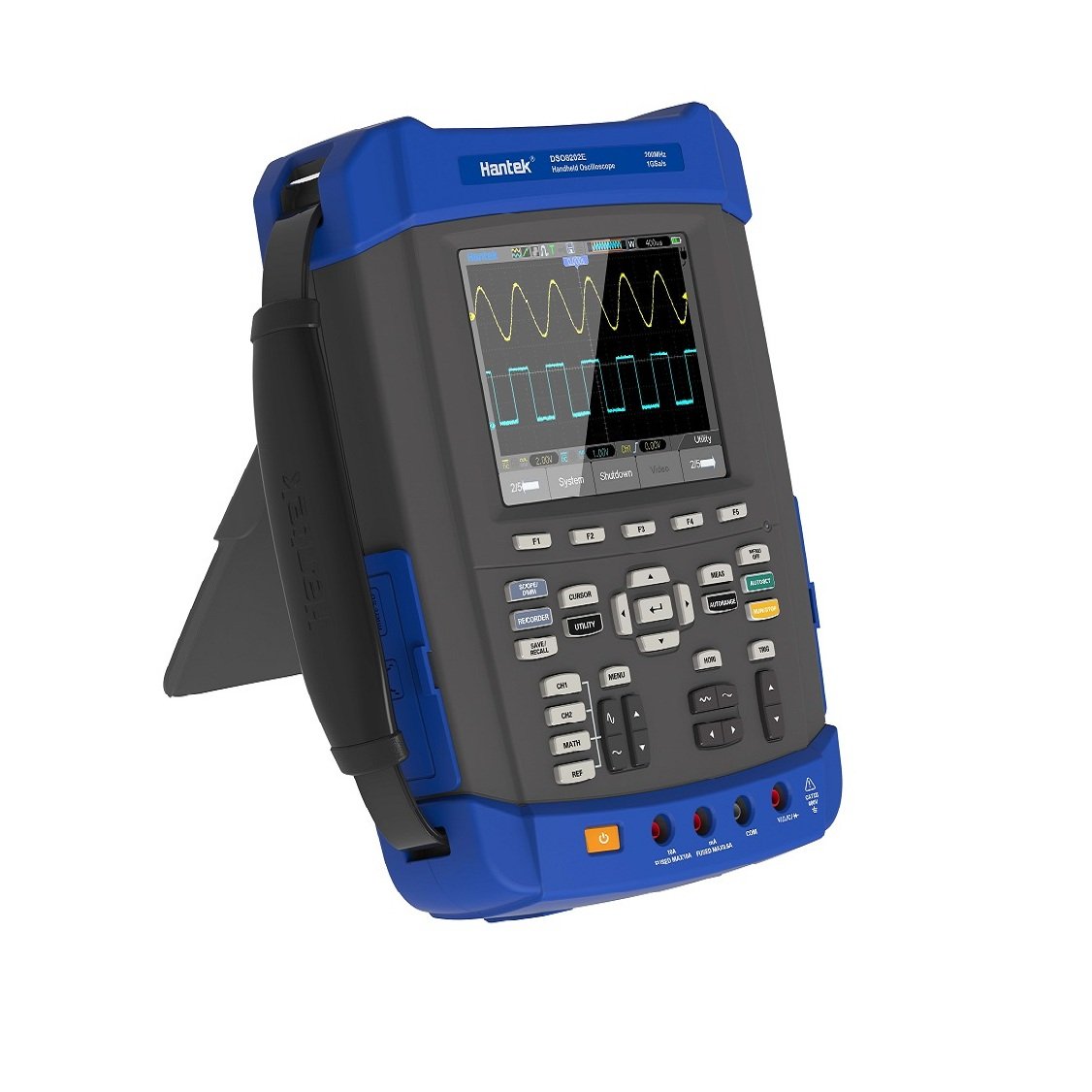

Gambar 2.2.1: Angled view of the Hantek DSO8072E Handheld Oscilloscope. This image shows the device from a side angle, highlighting its robust casing, integrated kickstand, and the main display screen with various control buttons.

Gambar 2.2.2: Hareupeun view of the Hantek DSO8072E Handheld Oscilloscope. The screen displays a sine wave and a square wave, illustrating its multi-channel measurement capability. Various function buttons and input ports are visible below the screen.

Gambar 2.2.3: Samping view of the Hantek DSO8072E Handheld Oscilloscope with its kickstand extended, allowing for desktop use. This view emphasizes the ergonomic design and portability of the device.

2.3 Asesoris Anu Kalebet

Verify that all the following accessories are included in your package:

Gambar 2.3.1: A grid displaying the various accessories included with the Hantek DSO8072E. These typically include oscilloscope probes, DMM test leads, a power adapter, a USB cable, a carrying bag, and a software CD.

• Oscilloscope Probes (2)
• DMM Test Leads
• Adaptor kakuatan
• Kabel USB
• Mawa Kantong
• CD parangkat lunak
• Manual pangguna (dokumén ieu)

3. Setélan

3.1 Powering on / Pareum

1. Ngeusi batre: Connect the power adapter to the device and a power outlet. The battery indicator will show charging status. Ensure the battery is sufficiently charged before portable use.
2. Daya Hurung: Pencét jeung tahan tombol POWER button located on the side or front panel until the screen illuminates.
3. Pareum listrik: Pencét jeung tahan tombol POWER button until the shutdown prompt appears, then confirm.

3.2 Konfigurasi Awal

Upon first power-on or after a factory reset, you may need to configure basic settings such as language, date, and time. Navigate through the menus using the directional buttons and confirm selections with the Asupkeun kancing.

4. Parentah Operasi

The Hantek DSO8072E offers multiple operational modes. Use the dedicated function buttons (e.g., SCOPE/RECORDER, DMM, SPECTRUM) to switch between modes.

4.1 Modeu Osiloskop

This mode is used for observing and analyzing electrical signals. Connect probes to the BNC inputs (CH1, CH2).

1. Pencét éta SCOPE/RECORDER button to enter Oscilloscope mode.
2. Adjust vertical sensitivity (Volts/Div) using the CH1/CH2 knobs or corresponding menu options.
3. Adjust horizontal time base (Sec/Div) using the HORI kenop.
4. Configure trigger settings (Type, Source, Level) using the TRIG button and menu.
5. Paké AUTORANGE for automatic scaling or Lumpat / STOP to pause/resume waveform acquisition.
6. Access measurement functions (e.g., Vpp, Freq, RMS) via the MEAS kancing.

Gambar 4.1.1: A collage of various waveform displays on the Hantek DSO8072E screen, demonstrating its capability to visualize different signal types, including sine waves, square waves, modulated signals, and FFT analysis results.

4.2 Recorder Mode

Record long-term signal changes. Press SCOPE/RECORDER and select Recorder from the menu.

4.3 Modeu Multimeter Digital (DMM)

Pikeun ngukur voltage, current, resistance, capacitance, and performing diode/continuity tests. Connect test leads to the DMM input jacks (VΩmA, COM).

1. Pencét éta DMM kancing.
2. Select the desired measurement function (e.g., DCV, ACV, Resistance) using the menu buttons.
3. Sambungkeun tés nuju kana sirkuit dina tés.

4.4 Spectrum Analyzer Mode

Analyze the frequency components of a signal. Press the SPEKTRUM kancing.

4.5 Frequency Counter Mode

Measure the frequency of input signals. This function is often integrated within the oscilloscope or DMM modes, or accessible via a dedicated menu option.

4.6 Arbitrary Waveform Generator (AWG) Mode

Generate various standard and custom waveforms. Connect the AWG output to the circuit requiring a signal input.

1. Pencét éta AWG button (if available) or navigate through the Utility menu.
2. Select waveform type (Sine, Square, Triangle, etc.) and adjust parameters (Frequency, Amplitude, Offset).
3. Enable output.

5. Pangropéa

5.1 beberesih

Ngusap alat ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur. Pastikeun alat dipareuman sareng dipegatkeun tina sadaya sumber listrik sateuacan beberesih.

5.2 Perawatan Batré

To prolong battery life, avoid fully discharging the battery frequently. Store the device in a cool, dry place when not in use for extended periods. If using 18650 batteries, ensure they are of good quality and correctly inserted.

5.3 Apdet firmware

Periodically check the Hantek official website for firmware updates to ensure optimal performance and access to new features. Follow the instructions provided with the firmware update package carefully.

6. Cara ngungkulan

7. Spésifikasi

8. Garansi jeung Rojongan

Hantek products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official Hantek website. For technical support, troubleshooting assistance, or service inquiries, please contact Hantek customer service through their official channels.

Pabrikan: Hantek Qingdao
