1. Émbaran Kasalametan
Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to do so could lead to electric shock, fire, or other injuries.
- Pastikeun sadaya sambungan listrik sasuai sareng kode sareng peraturan lokal, ogé Kode Listrik Nasional (NEC).
- Taroskeun ka tukang listrik anu mumpuni upami anjeun teu wawuh sareng kabel listrik.
- Sateuacan dipasang, pegatkeun daya ku cara mareuman pemutus sirkuit dina kotak sekering utama.
- The fan must be mounted with a minimum of 7 feet (2.1 meters) clearance from the trailing edge of the blades to the floor.
- Ulah beroperasi kipas lamun bagian mana wae nu ruksak.
- Produk ieu dirancang pikeun pamakéan jero rohangan wungkul.
2. Eusi Paket
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Bella Depot customer service.
- Ceiling Fan Unit with Integrated LED Light
- Kadali jauh
- Pamasangan Hardware Kit
- Instruksi Manual
Image: The Bella Depot 24-inch low profile flower ceiling fan with integrated LED light, showcasing its modern design and airflow.
3. Pitunjuk Instalasi
This ceiling fan is designed for flush mount installation. Professional installation is recommended if you are not experienced with electrical wiring.
3.1 Sateuacan Anjeun Ngawitan
- Pareuman kakuatan dina circuit breaker.
- Ensure the mounting location can support the weight of the fan.
- Gather necessary tools (screwdriver, wire strippers, electrical tape, ladder).
3.2 Masang kipas
- Pasangkeun braket pemasangan kana kotak sambungan plafon nganggo sekrup anu disayogikeun. Pastikeun éta dipasang pageuh.
- Sambungkeun kabel listrik:
- Nyambungkeun hideung kawat ti kipas ka hideung (live) wire from the ceiling.
- Nyambungkeun bodas kawat ti kipas ka bodas (neutral) wire from the ceiling.
- Nyambungkeun hejo or tambaga bulistir kawat ti kipas ka hejo or tambaga bulistir (ground) wire from the ceiling.
Use wire nuts to secure all connections and wrap with electrical tape for added safety.
- Carefully lift the fan unit and attach it to the mounting bracket, ensuring all wires are tucked safely into the junction box.
- Secure the fan unit to the mounting bracket with the designated screws.
Image: The Bella Depot ceiling fan seamlessly integrated into a living room setting, demonstrating its flush mount design.
4. Parentah Operasi
The Bella Depot ceiling fan is controlled via the included remote control. Ensure batteries are installed correctly in the remote.
4.1 Fungsi Remote Control

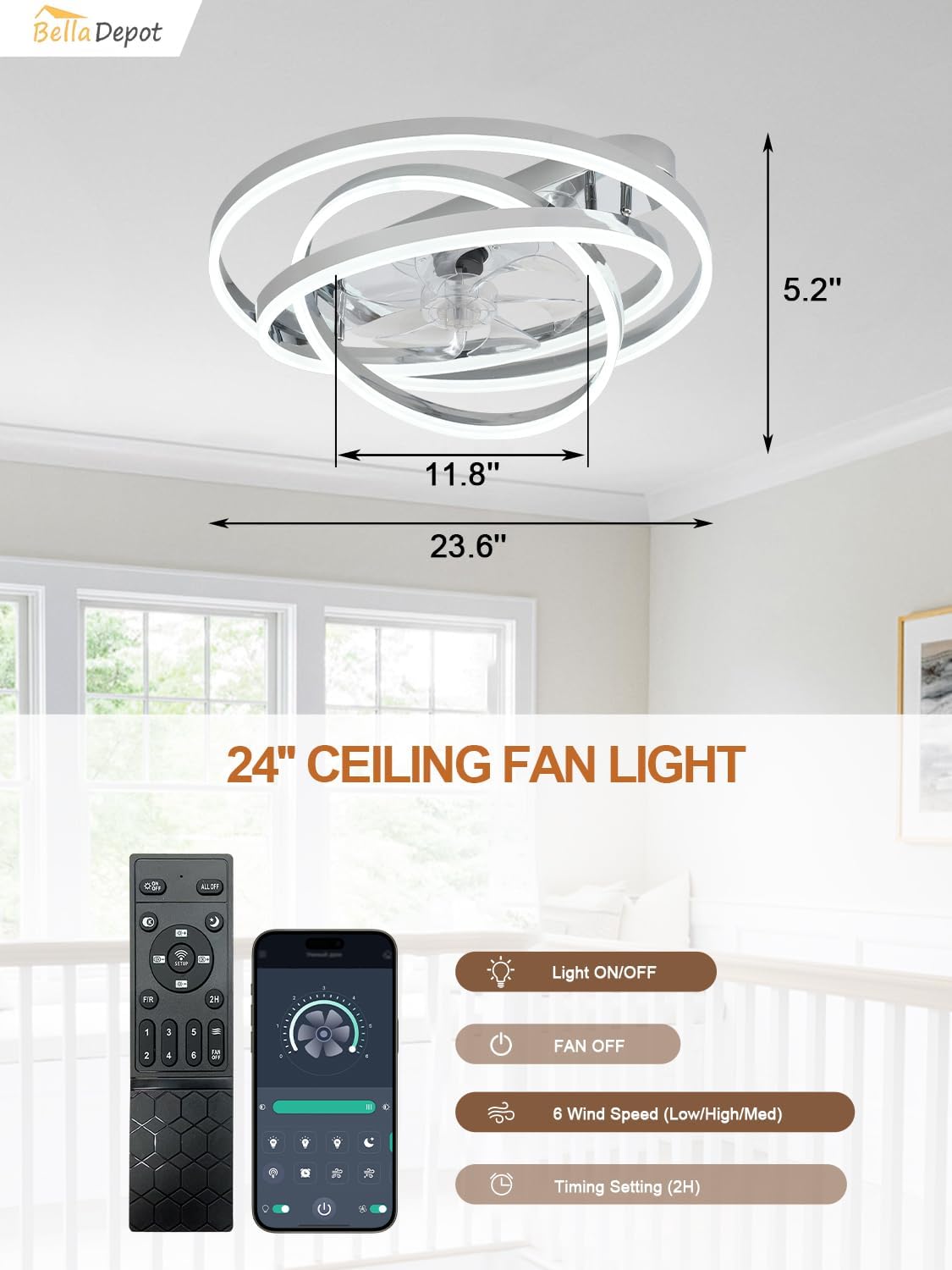

Image: The remote control unit and a visual representation of the smartphone application interface, showing controls for light, fan speed, and timer settings.
- Lampu ON/OFF: Pencét tombol lampu pikeun ngahurungkeun atanapi mareuman lampu LED.
- Kipas ON/OFF: Press the fan button to start or stop the fan.
- Kontrol Laju Kipas: Adjust fan speed through 6 levels (Low, Medium, High) using the designated speed buttons.
- Setélan Timer: Setel kipas supados pareum sacara otomatis saatos 2 atanapi 4 jam.
- Penyesuaian Suhu Warna: Cycle through 3000K (Warm White), 4500K (Natural White), and 6000K (Cool White) settings.
- Dimming: Adjust the brightness of the LED light from 10% to 100%.
4.2 Reversible DC Motor Function
Kipasna gaduh motor DC anu tiasa dibalikkeun pikeun kanyamanan sapanjang taun.
- Modeu Usum Panas (Maju): Bilahna muter ka arah sabalikna jarum jam, ngadorong hawa ka handap pikeun nyiptakeun angin anu niiskeun.
- Modeu Usum tiis (Balik): Bilahna muter searah jarum jam, narik hawa ka luhur pikeun ngiderkeun hawa haneut anu kajebak di deukeut lalangit.

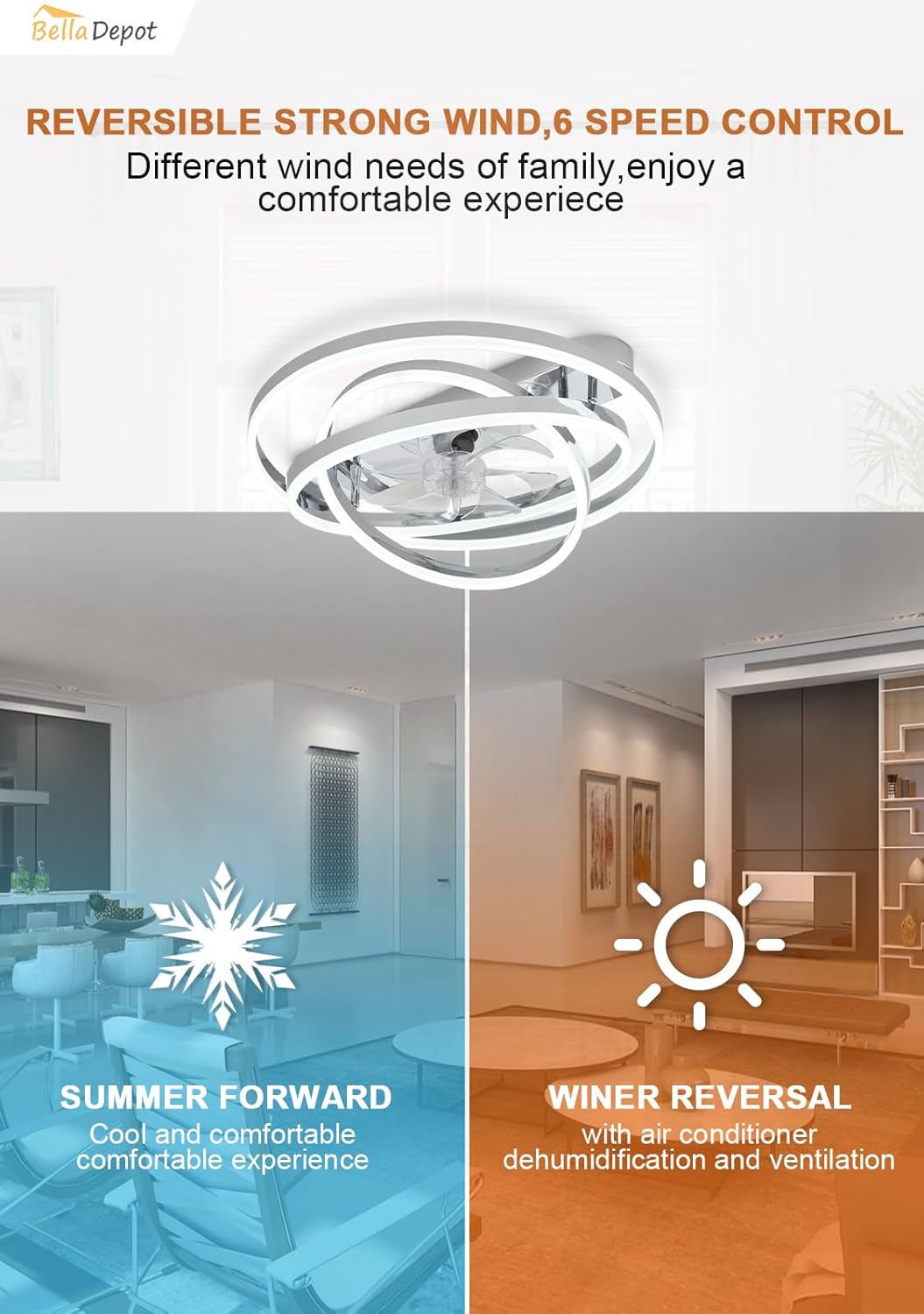

Image: A visual explanation of the fan's reversible function, illustrating how summer forward mode creates a cooling effect and winter reversal mode aids in air circulation for warmth.
4.3 Light Color and Brightness Adjustment
The integrated LED light offers customizable illumination.

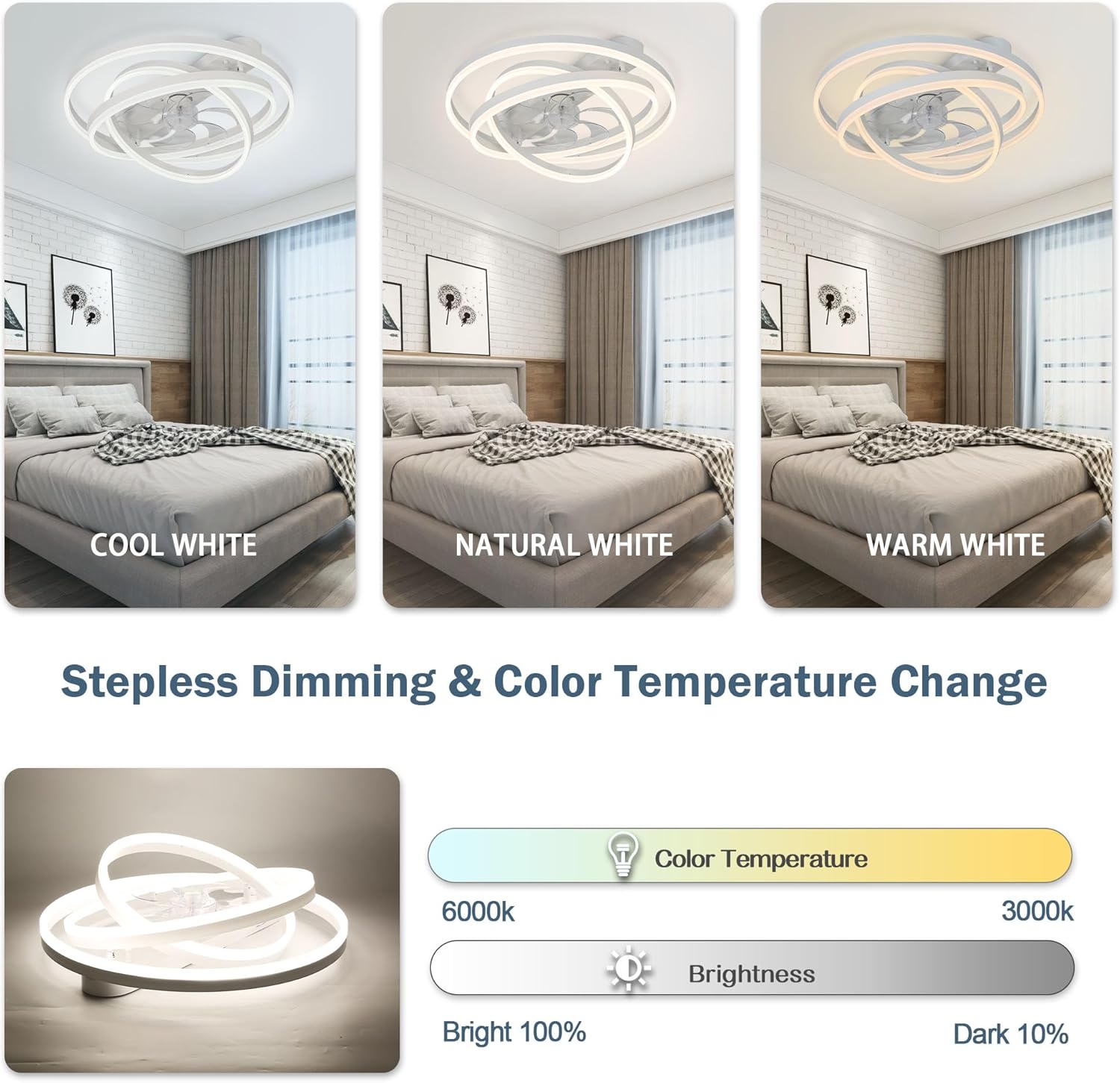

Image: A comparison of the fan's LED light at different color temperatures: Cool White (6000K), Natural White (4500K), and Warm White (3000K), along with a dimming scale.
- Press the color temperature button on the remote to switch between 3000K, 4500K, and 6000K.
- Use the dimming buttons to increase or decrease the light brightness.
5. Perawatan sareng Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang kipas siling anjeun.
- beberesih: Ngagunakeun lemes, damp cloth to clean the fan and light fixture. Do not use abrasive cleaners or solvents.
- Pembersih sabeulah: Gently wipe the fan blades to remove dust. Ensure the fan is off and stationary before cleaning.
- Keketatan: Périodik pariksa sagala screws sareng sambungan pikeun tightness. Retighten sakumaha perlu.
- Sumber cahaya: The LED light source is integrated and not user-replaceable. If the light fails, contact customer support.
Always turn off the power at the circuit breaker before performing any cleaning or maintenance.
6. Cara ngungkulan
Upami anjeun ngalaman masalah sareng kipas anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | No power to the fan; Remote control batteries are dead; Incorrect wiring. | Pariksa circuit breaker; Ganti batré jauh; Pariksa sambungan kabel. |
| Lampu teu jalan | No power to the light; Remote control batteries are dead; Integrated LED failure. | Check circuit breaker; Replace remote batteries; Contact customer support for LED issues. |
| Kipas angin ngagelebug | Sekrup pemasanganna leupas; Mata pisauna teu saimbang. | Ensure mounting bracket and fan screws are tight; Check for any obstructions. |
| Kadali jauh teu ngabales | Dead batteries; Remote not paired (if applicable). | Replace remote batteries; Refer to remote pairing instructions (if provided separately). |
7. Spésifikasi produk
- model: Bella Depot2401
- merek: Bella Depot
- Tipe: Pro lowfile Flower Ceiling Fan with Light
- ukuran: 24 inci
- Ukuran (D x W x H): 23.6" x 23.6" x 5.2"
- Jenis pamasangan: siram Gunung
- Sumber Daya: DC
- Motor: Energy-Efficient Reversible DC Motor
- Laju kipas: 6
- Sumber cahaya: LED Terpadu anu Tiasa Diredupkeun
- Suhu Warna: 3000K (Bodas Haneut), 4500K (Bodas Alami), 6000K (Bodas Tiis)
- Métode kontrol: Kadali jauh
- Fungsi Timer: 2-hour, 4-hour
- Tingkat Noise: ≤ 35dB
- Pamakéan Indoor/Outdoor: jero rohangan
Image: The Bella Depot ceiling fan providing illumination and air circulation in a bedroom environment.
8. Garansi sarta Rojongan Palanggan
Bella Depot is committed to providing quality products and customer satisfaction. For any questions, issues, or warranty claims, please contact our customer support team.
8.1 Contacting Customer Support
If you purchased your product through Amazon, you can contact the seller directly:
- Asup ka akun Amazon Anjeun.
- Go to your orders and locate the Bella Depot ceiling fan purchase.
- Click on the "Bella Depot" seller name or "Ask a question" to initiate contact.
Image: A visual guide demonstrating how to access customer support for after-sales issues through the Amazon platform, by signing in, asking a question, and starting a conversation with the seller.
Bella Depot provides 24-hour question service for customer inquiries.
8.2 Émbaran jaminan
Specific warranty details may vary. Please refer to the product packaging or contact customer support for comprehensive warranty terms and conditions.
