Jectse HD Door Peephole Camera Instruction Manual

1. Bubuka

Thank you for choosing the Jectse HD Door Peephole Camera. This device is designed to enhance your home security by providing a clear, wide-angle view of your doorstep, along with advanced features such as night vision, two-way audio, and motion detection. Please read this manual carefully before installation and operation to ensure proper use and optimal performance.

2. Produk Langkungview

2.1 Fitur konci

• Desain Anti Maling: Can be installed in the security door peephole, preventing tampering and unwanted postings.
• Lensa Sudut Lebar: Features a 1.6mm fisheye lens with approximately 170-degree viewing angle for unobstructed doorway visibility.
• Kontrol APP: Supports TUYA mobile APP for remote viewing and control, connecting via home Wi-Fi router.
• Multi-fungsi: Includes motion detection alarm, built-in speaker and microphone for two-way talk, and infrared night vision for enhanced security.
• Pilihan Panyimpenan: Supports up to 128GB memory card (not included) and cloud storage. Compatible with Open Network Video Interface Forum protocol for NVR storage.

2.2 Eusi pakét

• 1 x Door Eye Hole Camera Unit
• 1 x Kabel USB
• 1 x Kabel Koneksi
• 1 x Adaptor Daya (Colokkeun AS)

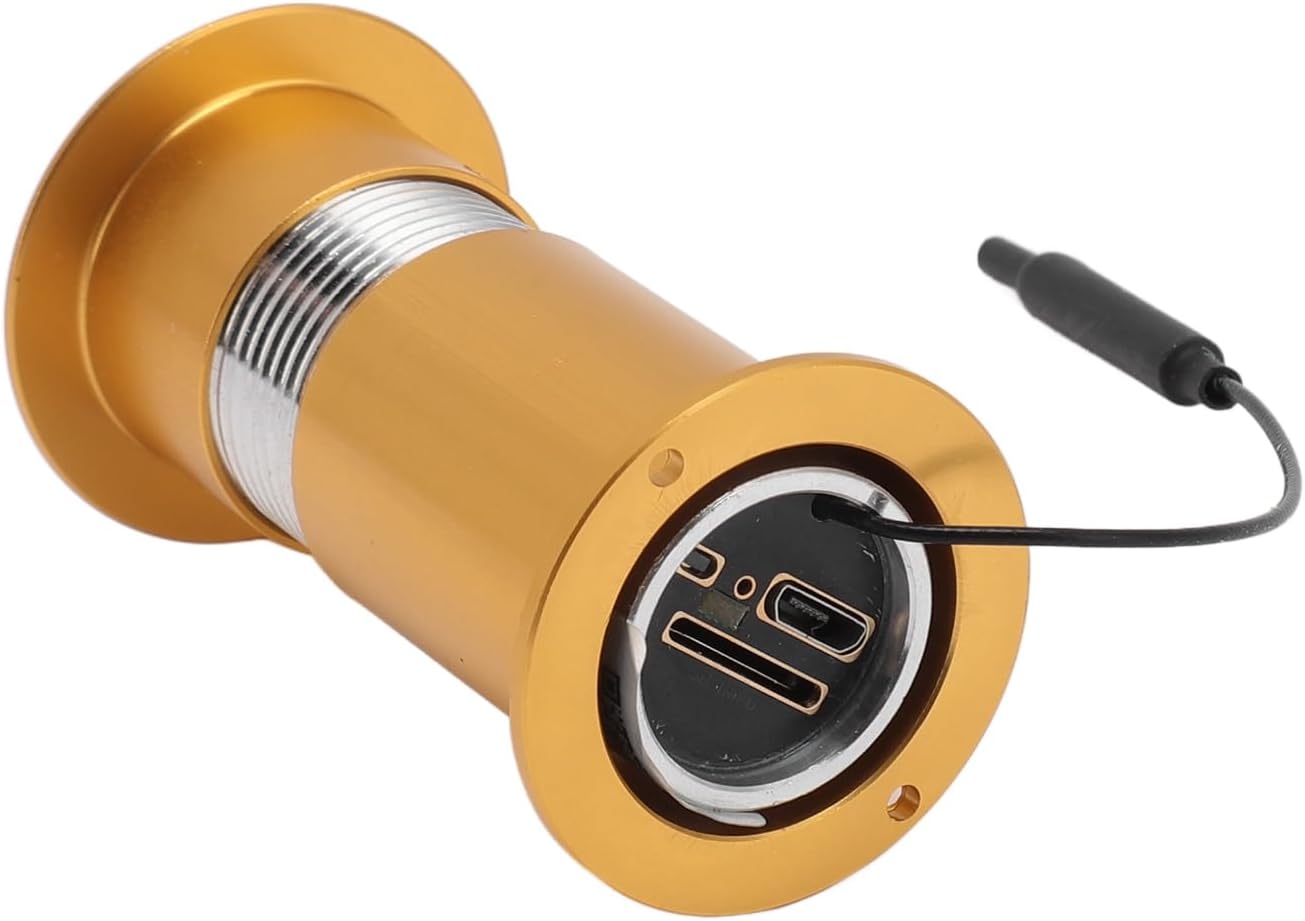

Figure 1: Main unit of the Jectse Door Peephole Camera, featuring the camera lens and connection cable.

Gambar 2: Témbongkeun gambarcasing the Jectse Door Peephole Camera's HD 1080P resolution, Wi-Fi connectivity, SD card support, and Open Network Video Interface Forum compatibility.

3. Spésifikasi

4. Setup jeung Instalasi

Follow these steps to install your Jectse Door Peephole Camera:

1. Measure Door Dimensions: Ensure your door's thickness and the existing peephole diameter are compatible with the camera. Refer to the product dimensions.
2. Prepare the Peephole: If replacing an existing peephole, remove it. If drilling a new hole, ensure it matches the camera's diameter.
3. Insert Outdoor Unit: Push the outdoor camera unit through the door hole from the outside. Ensure the camera is oriented correctly.
4. Sambungkeun kabel: From the inside, connect the camera's cable to the indoor display unit.
5. Pasang Unit Jero Ruangan: Secure the mounting bracket to the inside of the door, aligning it with the camera cable. Then, attach the indoor display unit to the bracket.
6. Daya Hurung: Insert the required batteries (4pcs AAA, not included) into the indoor unit or connect the power adapter.

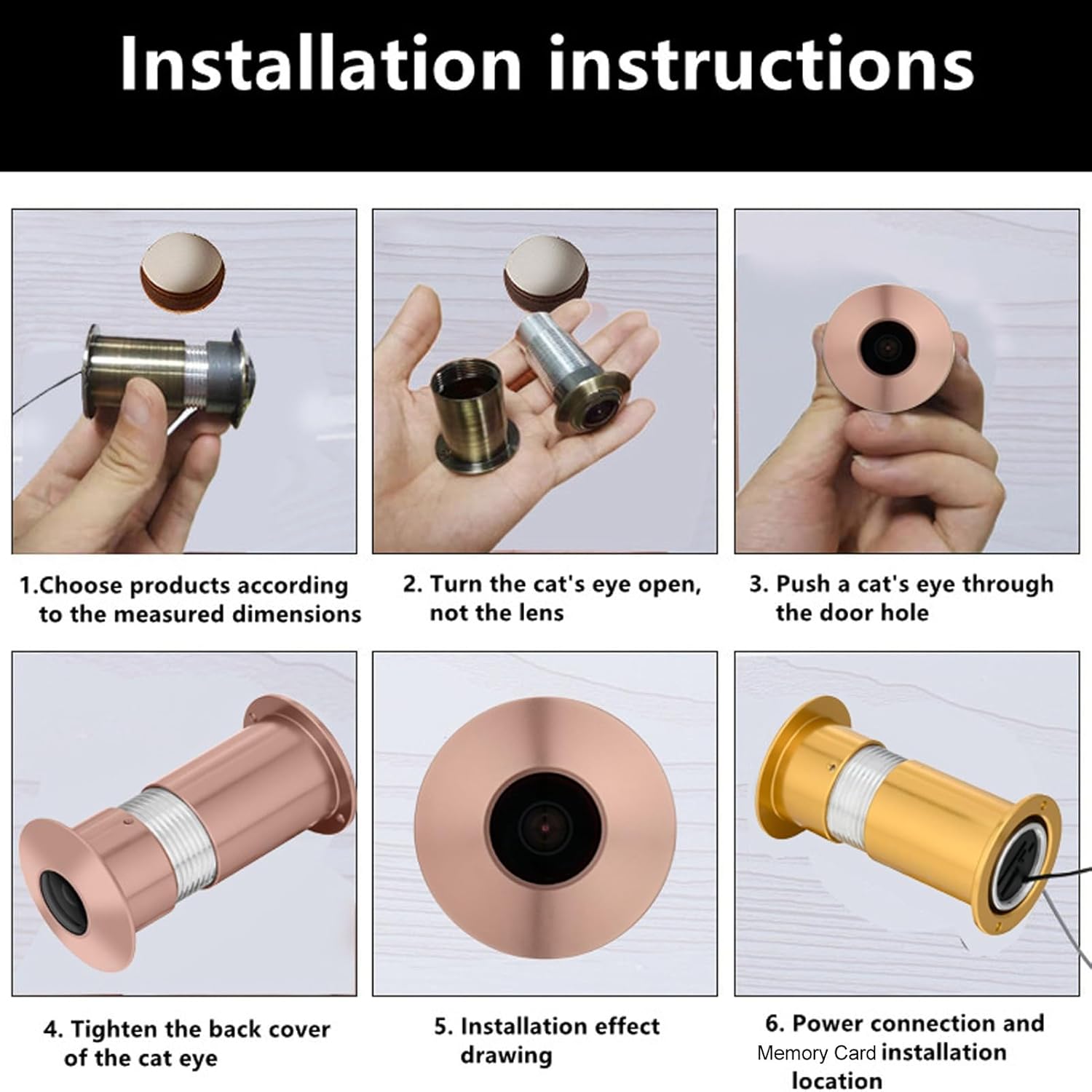

Figure 3: Visual guide detailing the installation process, from choosing the correct product dimensions to power connection and memory card installation.

Figure 4: Demonstrating how to accurately measure door thickness and door hole diameter to ensure proper installation of the peephole camera.

Figure 5: Diagram showing the physical dimensions of the peephole camera, including its length and diameter, and suitable door thickness.

4.1 Pidéo Pamasangan

5. Parentah Operasi

5.1 Daya Hurung/Pareuman

Press and hold the power button on the indoor display unit to turn the device on or off. The screen will activate, displaying the live view tina kaméra luar.

5.2 Kontrol APLIKASI Jarak Jauh

Download the TUYA mobile application from your device's app store (e.g., Google Play Store). Follow the in-app instructions to connect your Jectse Door Peephole Camera to your home Wi-Fi network. Once connected, you can view hirup footage, receive alerts, and control features remotely.

Figure 6: This image emphasizes the camera's Wi-Fi capability, allowing connection to a home wireless router and control via the Tuya mobile app, available on Google Play and other application stores.

5.3 Deteksi Gerak

The camera is equipped with motion detection capabilities. When motion is detected, the device can trigger an alarm and send notifications to your connected mobile app. Adjust motion sensitivity settings within the TUYA app to suit your environment.

5.4 Obrolan Dua Arah

Utilize the built-in speaker and microphone for two-way communication with visitors at your door. This feature can be accessed via the indoor display unit or remotely through the TUYA mobile app.

Figure 7: This image illustrates the remote viewing capabilities via a mobile app and the two-way audio function, showing a user interacting with a delivery person through the camera.

5.5 Visi Peuting

The integrated infrared night vision ensures clear visibility even in low-light conditions or complete darkness, with an effective range of approximately 1-3 meters.

5.6 Panyimpenan

Insert a compatible memory card (up to 128GB, not included) into the designated slot on the indoor unit for local video storage. Alternatively, configure cloud storage options through the TUYA app. The camera also supports Open Network Video Interface Forum protocol for integration with NVR systems.

Figure 8: The camera installed in a door peephole, highlighting its anti-theft design and the ability to view potential threats or unwanted visitors remotely on a smartphone.

6. Pangropéa

• beberesih: Gently wipe the camera lens and display screen with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Ngagantian batré: Upami nganggo batré AAA, gentos heula nalika indikator batré lemah némbongan dina layar.
• Pembaruan firmware: Periodically check the TUYA app for any available firmware updates to ensure optimal performance and security.

7. Cara ngungkulan

• Henteu aya gambar anu ditingalikeun:
  • Ensure the camera unit is properly connected to the indoor display unit.
  • Check if the device is powered on and batteries are charged/power adapter is connected.
• Teu Bisa Nyambung ka Wi-Fi:
  • Verify your Wi-Fi network is 2.4GHz (dual-band routers often support both 2.4GHz and 5GHz).
  • Pastikeun kaméra aya dina jangkauan router Wi-Fi anjeun.
  • Restart your router and the camera, then try connecting again.
• Deteksi gerak teu jalan:
  • Check motion detection settings in the TUYA app.
  • Pastikeun lénsa kaméra beresih jeung teu kahalangan.
• Panglihatan Peuting Anu Goréng:
  • Ensure there are no obstructions blocking the infrared sensors on the outdoor unit.
  • Ngabersihan lénsa kaméra.

8. Garansi jeung Rojongan

For warranty information and technical support, please refer to the product packaging or contact Jectse customer service directly. Keep your purchase receipt as proof of purchase.
