SOAR 24V Ride On UTV for Kids Instruction Manual

1. Bubuka

The SOAR 24V Ride On UTV for Kids is designed to provide a realistic and exciting driving experience for children. Featuring dual driving modes, robust power, and a multi-functional dashboard, this UTV ensures hours of fun while prioritizing safety. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal performance of your new ride-on toy.

Fitur konci:

• Modeu Nyetir Ganda: Manual operation for children and remote control for parental supervision.
• 2WD/4WD Switchable: Adaptable driving modes for various terrains.
• Motor anu kuat: Equipped with four 200W motors for strong performance.
• Batré Awét: 24V7AH battery for extended playtime.
• Fitur kaamanan: LED headlights, adjustable seatbelt, emergency brake, and slow start technology.
• Multi-Functional Dashboard: MP3 player, USB port, one-button start, headlight adjustment, music control, and horn.

2. Setup jeung Majelis

Follow these steps carefully to assemble your SOAR 24V Ride On UTV. It is recommended to watch the assembly video for visual guidance.

2.1. Unboxing jeung Idéntifikasi komponén

This video provides a detailed guide on unboxing and assembling the UTV. It covers all major steps from unpacking to final checks.

Ensure all components are present and undamaged before beginning assembly. Refer to the parts list in your packaging.

2.2. Léngkah Majelis

1. Install Rear Suspension: Attach the yellow shock absorbers to the rear of the UTV chassis. Ensure they are securely fastened with the provided screws. (Refer to video: 0:28)
2. Attach Rear Axle and Wheels: Slide the rear axle through the designated slots. Connect the motor wires if not pre-connected. Secure the rear wheels using the washers and nuts, then attach the hubcaps. (Refer to video: 0:58)
3. Install Front Axle and Wheels: Insert the front axle. Secure the front wheels with washers and nuts, then attach the hubcaps. (Refer to video: 2:00)
4. Attach Front Bumper: Secure the front bumper to the chassis using the provided screws. (Refer to video: 2:21)
5. Install Rear Storage/Seat Support: Attach the rear storage compartment, which also serves as seat support, to the back of the UTV. Secure it with screws. (Refer to video: 2:40)
6. Sambungkeun Batré: Locate the battery compartment, usually under the seat. Connect the battery terminals (red to red, black to black). Ensure a secure connection. (Refer to video: 4:47)
7. Pasang korsi: Place the seat onto the UTV and secure it with the appropriate screws. Ensure the seatbelt is accessible and functional. (Refer to video: 5:34)
8. Install Dashboard Display: Carefully place the dashboard display unit into its slot and connect any necessary wiring. Secure it with screws. (Refer to video: 5:50)
9. Pasangkeun Setir: Connect the steering wheel's wiring to the UTV's main wiring harness. Slide the steering wheel onto the steering column and secure it with the provided screw and nut. (Refer to video: 6:08)
10. Install Roll Bar: Attach the roll bar to the top of the UTV, ensuring it clicks into place or is secured with screws. (Refer to video: 6:42)

3. Parentah Operasi

Familiarize yourself with the UTV's controls and features for a safe and enjoyable experience.

3.1. Starting the UTV

• Pastikeun batréna geus dicas pinuh tur disambungkeun bener.
• Pencét éta Hiji-Tombol Mimitian on the dashboard to power on the UTV. You will hear an engine start-up sound.

3.2. Modeu nyetir

The UTV offers two primary driving modes:

• Manual Operate Mode: For older children, the UTV is controlled directly by the child using the foot pedal for acceleration and the steering wheel for direction.
• Parental Remote Control Mode: For younger children or for parental supervision, the UTV can be fully controlled by an adult using the included remote control. This mode allows parents to steer, accelerate, brake, and switch between speeds.

This video demonstrates the UTV's driving capabilities and the transition between manual and remote control modes.

3.3. Multi-Functional Dashboard

The dashboard provides various controls for an immersive experience:

• MP3 Player & USB Port: Sambungkeun alat éksternal pikeun muterkeun musik.
• Headlight Adjustment: Control the LED headlights for visibility.
• Music Control & Horn: Play pre-loaded tunes or use the horn for added realism.
• 2WD/4WD Switch: Select between two-wheel drive and four-wheel drive for optimal performance on different surfaces.

This video showcases the UTV in various outdoor settings, highlighting its performance and features.

4. Pangropéa

Proper maintenance ensures the longevity and safe operation of your UTV.

4.1. Ngecas Batré

• Always use the original charging adapter provided.
• Charge the battery for 8-12 hours before first use, and for 8-12 hours after each use. Do not charge for more than 20 hours to prevent battery damage.
• Do not exhaust the battery completely. Recharge when power is low.
• The charging port is typically located near the battery compartment or on the dashboard.

4.2. beberesih sarta Panyimpenan

• Clean the UTV with a damp lawon. Hindarkeun ngagunakeun bahan kimia anu kasar atanapi pembersih abrasive.
• Store the UTV in a dry, cool place away from direct sunlight and moisture.
• If storing for an extended period, disconnect the battery and charge it periodically (once a month) to maintain its health.

5. Cara ngungkulan

Ieu sababaraha masalah umum sareng solusi poténsialna:

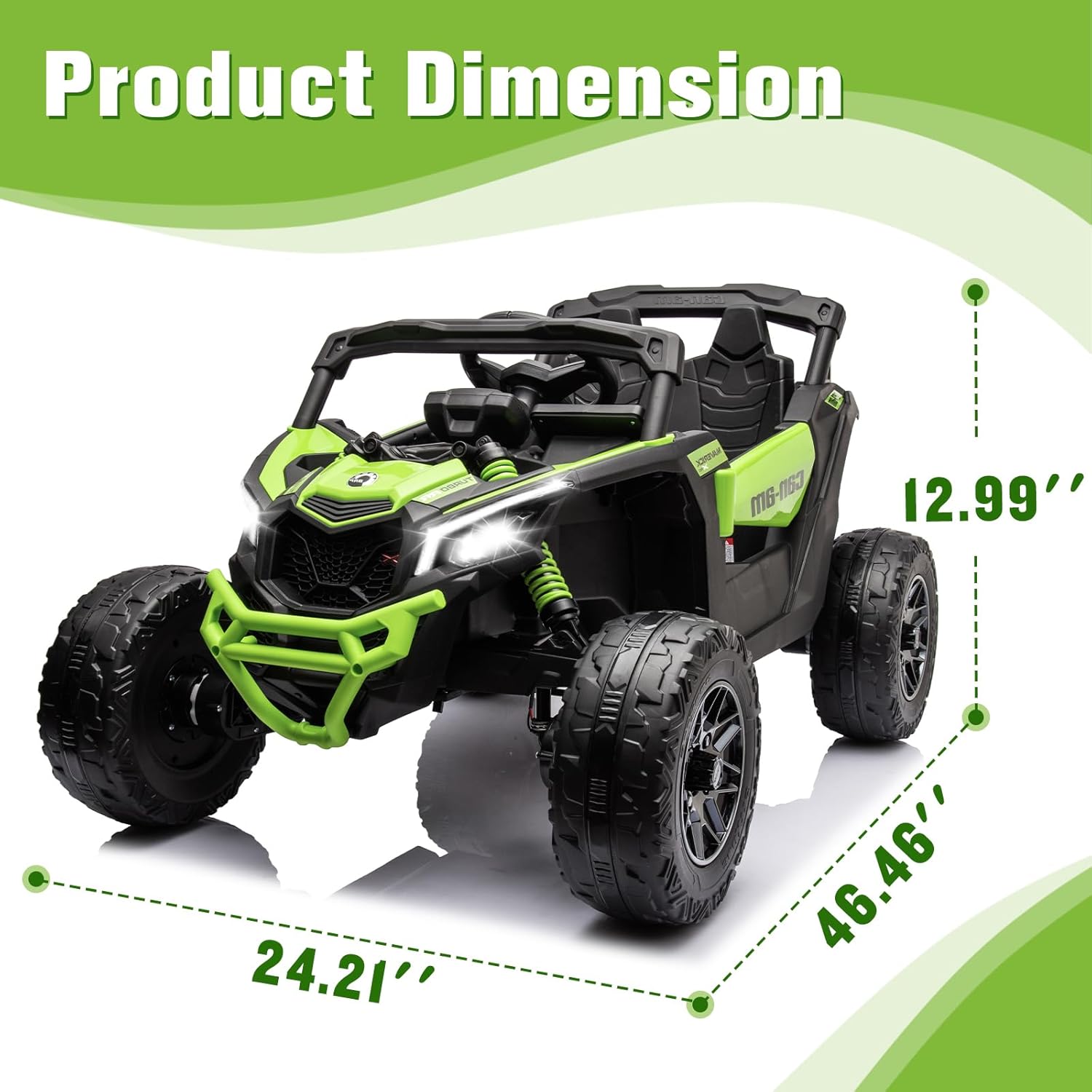

6. Spésifikasi

7. Garansi jeung Rojongan

SOAR is committed to providing high-quality products and excellent customer service. For any questions, concerns, or issues regarding your SOAR 24V Ride On UTV, please contact SOAR DIRECT customer support. Please retain your proof of purchase for warranty claims.

Pikeun pitulung salajengna, mangga buka di SOAR Store on Amazon atanapi tingal inpormasi kontak anu disayogikeun sareng bungkusan produk anjeun.
