1. Émbaran Kasalametan penting
Please read and understand all instructions before beginning installation. Failure to follow these instructions could result in electric shock, fire, or serious personal injury.
- Pastikeun daya dina pemutus sirkuit dipareuman sateuacan dipasang atanapi diropéa.
- Sadaya kabel kedah saluyu sareng kode listrik nasional sareng lokal.
- Kipas kudu dipasang kana balok lalangit atawa struktur pangrojong anu sanggup nahan sahenteuna 35 lbs (15.9 kg).
- Ulah ngoperasikeun kipas upami kabelna rusak atanapi upami kipasna katingali ruksak.
- Jaga leungeun, pakean, sareng barang-barang sanés tina bilah kipas nalika kipas dioperasikeun.
- Kipas angin ieu dirarancang pikeun panggunaan jero rohangan wungkul.
2. Eusi Paket
Pastikeun sadaya komponén parantos aya sateuacan neraskeun pamasangan.
- DC Motor Assembly
- 3 agul ABS
- Kadali jauh
- Pemasangan Hardware (screws, mur kawat, dll.)
- Instruksi Manual
3. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Carro |
| Ngaran modél | CFR523N4N-FM |
| Warna | Bodas |
| Desain kipas listrik | Kipas Ceuli |
| Sumber Daya | DC |
| Dimensi produk | 10 "D x 52" W x 52" H |
| Tipe Kamar | Pangkeng, Kamar Makan, Dapur, Ruang Tamu, Ruang Belajar |
| Fitur husus | Laju Laras |
| Tingkat Noise | 55 desibel (maks) |
| Wattage | 17 watt |
| Jumlah wilah | 3 |
| Kapasitas Aliran Udara | 3955 suku kubik per Menit |
| Voltage | 120 volt |
| Métode kontrol | Jauh |
| Jumlah Tingkat Daya | 10 |
| Pamakéan jero rohangan / outdoor | jero rohangan |
| Tipe Pamasangan | Pemasangan di Langit-langit (Pemasangan di Siram) |

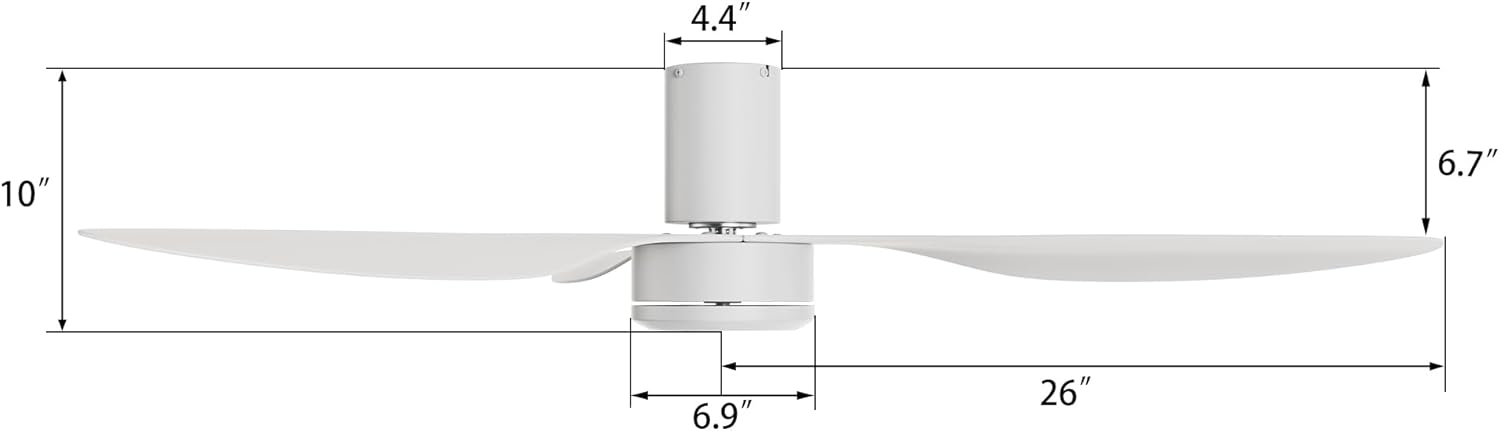

Figure 3.1: Fan Dimensions. Total height is 10 inches, motor housing is 4.4 inches wide, and blades extend 26 inches from the center.
4. Pitunjuk Instalasi
4.1 Cék Pra-Pamasangan
- Ensure the ceiling is flat and capable of supporting the fan's weight. This fan is not adaptable for sloped ceilings.
- Confirm that the electrical box is securely mounted and rated for ceiling fan support.
- Pareuman daya dina pemutus sirkuit utama sateuacan ngamimitian padamelan listrik naon waé.
4.2 Parentah Wiring
Connect the fan's wiring to your household electrical system as follows:
- Nyambungkeun Bodas (Nétral) wire from the fan to the neutral wire from the ceiling.
- Nyambungkeun Black/Red (Hot/Live) wire from the fan to the hot/live wire from the ceiling.
- Ensure all connections are secure using wire nuts.
Figure 4.1: Wiring Diagram and Flush Mount Compatibility. This fan is suitable for flat ceilings and requires connection of neutral and live wires.
4.3 Gagantél agul
Attach the three ABS blades to the motor housing using the provided screws. Ensure they are securely fastened.
Figure 4.2: Fan Blade and Motor Details. Illustrates the robust structure and ABS blade material.
5. Parentah Operasi
5.1 Fungsi Remote Control
The fan is controlled via the included remote. Familiarize yourself with its buttons:
- ON/OFF: Ngahurungkeun atanapi mareuman kipas.
- F/R (Forward/Reverse): Changes the direction of blade rotation for summer or winter mode.
- Speed Buttons (+/-): Adjusts fan speed across 10 levels.
- Mode alam: Activates a varying speed setting to simulate natural breezes.
Figure 5.1: 10 Adjustable Fan Speeds. The fan offers a range of speeds from soft to cool wind.
Figure 5.2: Recommended Speed Settings for various activities.
5.2 Reversible DC Motor Function
The fan features a reversible DC motor, allowing for year-round use:
- Modeu Usum Panas (Dowdraft): Press the "F/R" button to set blades to rotate counter-clockwise, creating a cooling breeze.
- Modeu Usum (Updraft): Press the "F/R" button to set blades to rotate clockwise, circulating warm air trapped near the ceiling.
Figure 5.3: Reversible DC Motor Operation for Summer and Winter modes.
6. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang kipas siling anjeun.
- beberesih: Périodik usap wilah kipas jeung perumahan motor ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Kasaimbangan Blade: If the fan wobbles, check that all blade screws are tight and that blades are not bent or damaged.
- Pelumasan Motor: Motor DC dilumasi permanén sareng henteu meryogikeun minyak tambahan.
- Pareum listrik: Always turn off power at the circuit breaker before cleaning or performing any maintenance.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | Kipasna teu aya daya; Kabel sambungan kendor; Batré remot kontrol lemah atanapi teu dipasangkeun. | Pariksa pemutus sirkuit; Pastikeun sadaya sambungan kabel aman; Ganti batré remot atanapi pasang deui remot. |
| Kipas nyieun noise kaleuleuwihan | Loose screws on blades or mounting bracket; Unbalanced blades. | Tighten all screws; Check blade balance and adjust if necessary. |
| Kadali jauh teu jalan | Low or dead battery; Remote not paired with fan; Obstruction between remote and receiver. | Replace battery; Follow pairing instructions (if applicable, typically power cycle fan and press remote button); Ensure clear line of sight. |
| Kipas angin ngagelebug | Loose mounting bracket; Unbalanced blades; Blades not securely attached. | Ensure mounting bracket is tight; Use a balancing kit (not included) if needed; Tighten blade screws. |
Figure 7.1: Fan Noise Level Comparison. The Carro fan operates quietly, below 55dB.
8. Garansi jeung Rojongan
8.1 Émbaran jaminan
This Carro ceiling fan comes with a 12-garansi sasih ti tanggal beuli. Garansi ieu nyertakeun cacad manufaktur sareng cacad bahan dina panggunaan normal.
The warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized repairs.
8.2 Rojongan Palanggan
For any questions, technical assistance, or warranty claims, please contact Carro customer support. When contacting support, please have your order details and model number (CFR523N4N-FM) available.
Sadaya surelek bakal diwaler dina 24 jam.
For more information, visit the official Carro websitus atanapi tingal dokuméntasi pameseran Anjeun.
