Anykit Visual Ear Wax Removal Camera (Model AKE390i) User Manual

1. Bubuka

This manual provides instructions for the safe and effective use of your Anykit Visual Ear Wax Removal Camera, Model AKE390i. This device is a digital otoscope designed to visualize the ear canal and assist in earwax removal. It features a camera with LED illumination and connects to compatible mobile devices for real-time viewing.

Punten baca manual ieu sacara saksama sateuacan ngoperasikeun alat sareng tahan pikeun rujukan ka hareup.

Figure 1: Anykit Visual Ear Wax Removal Camera with accessories.

2. Perhatosan Kaamanan Penting

• WARNING: THIS IS NOT A TOY. Jauhkeun produkna jauh ti barudak di handapeun umur 12 taun.
• This otoscope camera is not intended to diagnose, treat, cure, or prevent any disease or health condition. Consult a medical professional for any health concerns.
• Do not insert the device too deeply into the ear canal. Excessive force or improper use can cause injury.
• Always use the provided specula and protective covers to prevent direct contact of the camera tip with the ear canal walls.
• Clean the device and accessories thoroughly before and after each use as described in the Maintenance section.
• If you experience pain, discomfort, or bleeding during use, discontinue immediately and seek medical advice.

3. Eusi Paket

Pastikeun yén sadaya item aya dina pakét anjeun:

• Anykit Visual Ear Wax Removal Camera (Otoscope)
• USB Type-C Cable (integrated)
• Soft Silicone Earpicks
• Adjustable Protection Covers
• Replacement Specula
• Manual pamaké
• Kantong Panyimpen (tiasa bénten-bénten gumantung kana bungkusna)

Figure 2: Included components in the product package.

4. Setup jeung pamakéan munggaran

4.1 Kasaluyuan

The Anykit Visual Ear Wax Removal Camera is compatible with:

• Android 8.0+ devices (must support OTG functionality).
• iPhone 15/15 Pro/15 Plus/15 Pro Max.
• iPad (12th generation and newer).

Henteu cocog sareng: PCs, iPad Pro (4th generation), iPad 4, or iPad 2. This otoscope does not include a Type-C to Lightning adapter. If using your own adapter, ensure it supports OTG.

4.2 Pamasangan Aplikasi

1. Download "Xscope" App: Milarian pikeun "Xscope" in the Google Play Store (for Android) or Apple App Store (for iOS) and download the application.
2. Pasihan Idin: After installation, open the app. When prompted, click "Allow" to grant necessary permissions for the device to function.

Figure 3: App download and connection steps.

4.3 Sambungan Alat

3. Connect Otoscope: Plug the USB Type-C connector of the otoscope into your compatible smartphone or tablet.
4. Jalankeun Aplikasi: Open the "Xscope" application. The device should automatically connect, and you will see a live view ti kaméra.

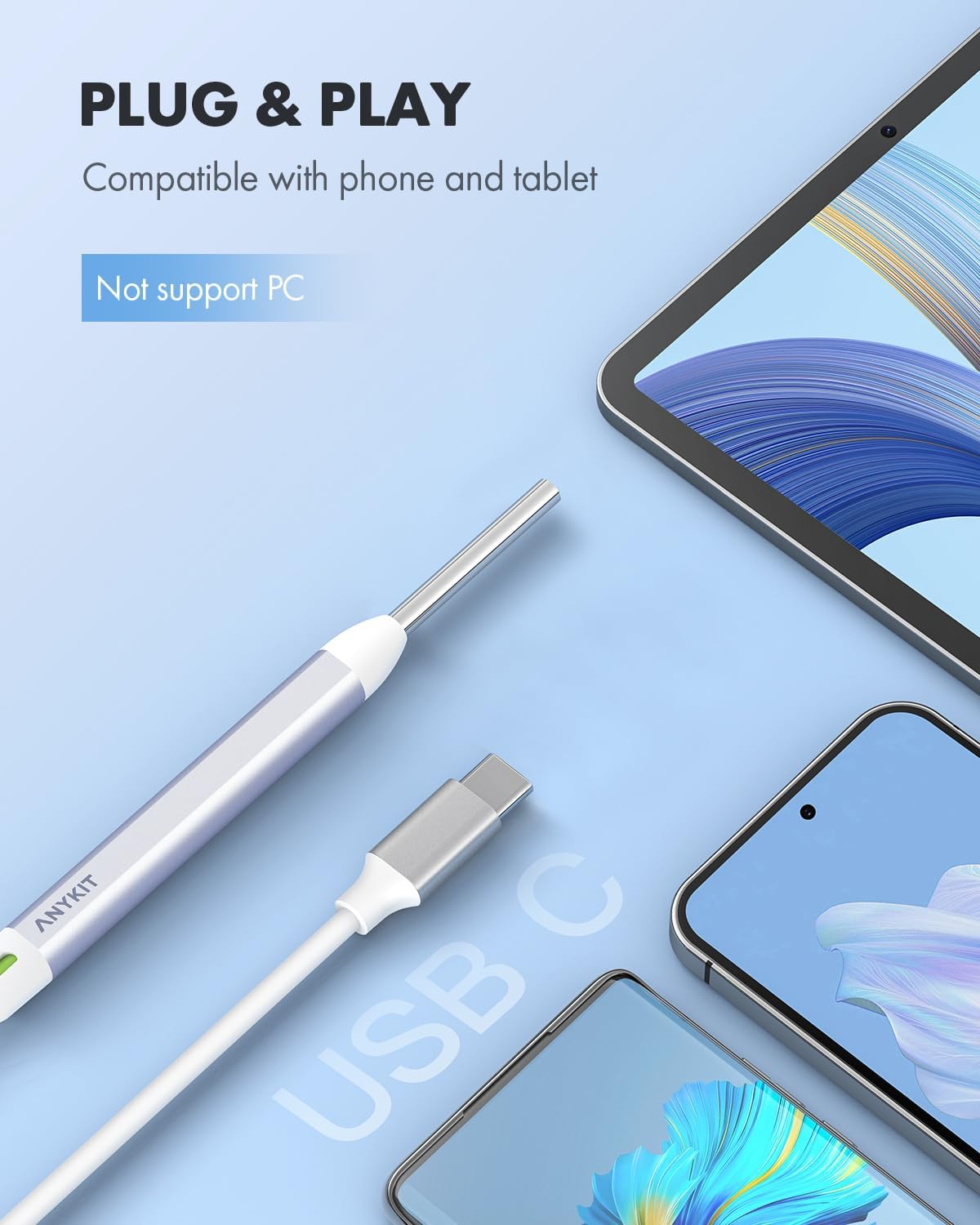

Figure 4: Connecting the otoscope to a mobile device.

5. Parentah Operasi

5.1 Ngalampirkeun Asesoris

Before use, attach a clean speculum and an adjustable protection cover to the tip of the otoscope. These accessories ensure safe insertion and prevent over-insertion into the ear canal.

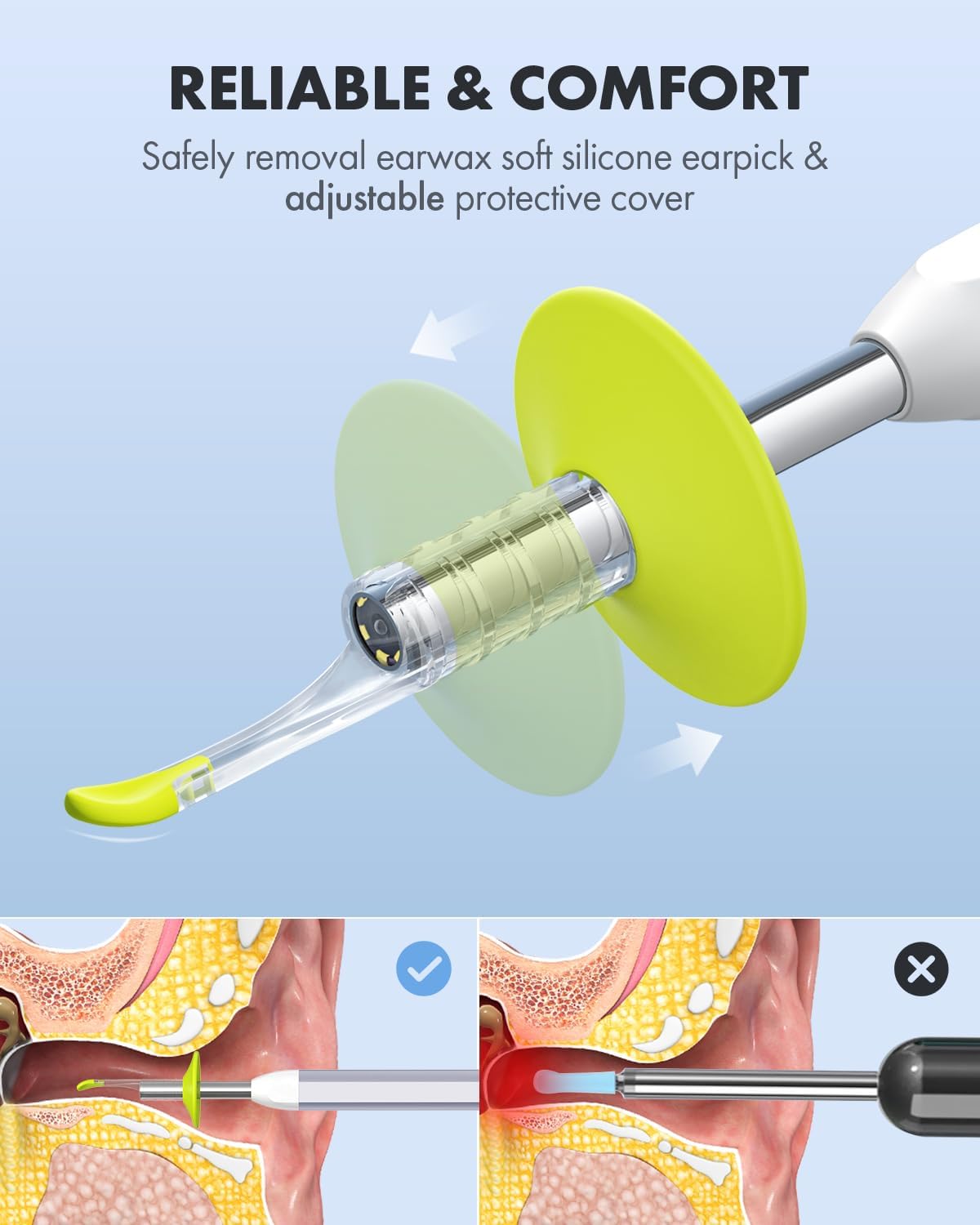

Figure 5: Attaching the protective cover and earpick.

Figure 6: Importance of using specula for safe operation.

5.2 Viewing and Navigation

Once connected and the app is running, you will see a live feed from the otoscope camera on your device screen. The device features a 1080p HD camera lens with 6 illumination LED lights for clear visualization.

Figure 7: High-definition camera lens and LED illumination.

5.3 View Modeu

The "Xscope" app offers different view modes for enhanced monitoring:

• Modeu layar pinuh: Displays the real-time image from the otoscope across the entire screen.
• Modeu Pisah-layar: Allows for a clear comparison between a previously captured image and the real-time view. This is useful for tracking changes or progress.

Figure 8: Split-screen mode for ear health tracking.

5.4 Ngarekam Gambar sareng Pidéo

The app allows you to capture still images and record videos of your ear canal. These can be saved to your device's gallery.

• Nyokot poto: Tap the camera icon within the app to capture a still image.
• Rékam pidéo: Tap the video icon to start and stop video recording.

Captured media can be shared with healthcare professionals for remote consultation, saving time and facilitating quick advice.

Figure 9: Sharing images and videos for remote consultation.

6. Pangropéa sarta perawatan

6.1 Cleaning the Otoscope

• Lensa kaméra: Gently wipe the camera lens with a soft, dry cloth or a cotton swab lightly dampened with rubbing alcohol. Ensure no liquid enters the device.
• Awak alat: Wipe the main body of the otoscope with a clean, damp cloth. Do not submerge the device in water or any cleaning solutions.

6.2 Asesoris beberesih

• Earpicks and Specula: Wash reusable earpicks and specula with mild soap and water. Rinse thoroughly and allow them to air dry completely before storage or next use. Disposable accessories should be discarded after a single use.

6.3 Panyimpenan

Store the otoscope and its accessories in the provided storage bag in a clean, dry place, away from direct sunlight and extreme temperatures.

Figure 10: Storage bag for organizing the otoscope and accessories.

7. Cara ngungkulan

8. Spésifikasi produk

9. Garansi jeung Rojongan

Specific warranty information is not provided in this manual. For details regarding warranty coverage, please refer to the product packaging or contact Anykit customer support directly.

For technical support, troubleshooting assistance, or inquiries about your Anykit Visual Ear Wax Removal Camera, please visit the official Anykit websitus atanapi ngahubungan departemén layanan palanggan maranéhna. Inpormasi kontak biasana tiasa dipendakan dina bungkusan produk atanapi produsén websitus.

10. Bantahan Hukum

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is not a medical device intended for diagnosis or treatment of medical conditions.
