Jebao Jecob EP6500 DC Aquarium Return Pump Instruction Manual

Bubuka

The Jebao Jecob EP6500 DC Aquarium Return Pump is designed for efficient and quiet water circulation in various aquatic environments. Featuring an LCD controller for adjustable speed and multiple operational modes, this pump is suitable for aquariums, ponds, fountains, sumps, and hydroponic systems. Its robust construction with a wear-resistant ceramic shaft ensures long-lasting performance in both fresh and saltwater applications.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your EP6500 pump.

Fitur konci

• Manual Control System: Intuitive LCD display for easy operation.
• Pamakéan serbaguna: Supports bottom blowing, side draught, and dry use configurations.
• SINE Wave Technology: Ensures ultra-quiet operation for minimal disturbance.
• Perlindungan canggih: IC electronic detection for dry run and locked rotor protection, with automatic power-off upon no water detection.
• Konstruksi awét: Equipped with a wear-resistant ceramic shaft for extended operational life.
• Aplikasi lega: Suitable for both salt water and fresh water environments.

spésifikasi

Eusi pakét

Pariksa yén sadaya komponén aya sareng dina kaayaan anu saé:

• Jebao Jecob EP6500 DC Aquarium Return Pump
• LCD Controller
• Adaptor kakuatan
• Various Hose Adapters (for different hose diameters)
• Intake Screens (for debris filtration)
• Instruksi Manual

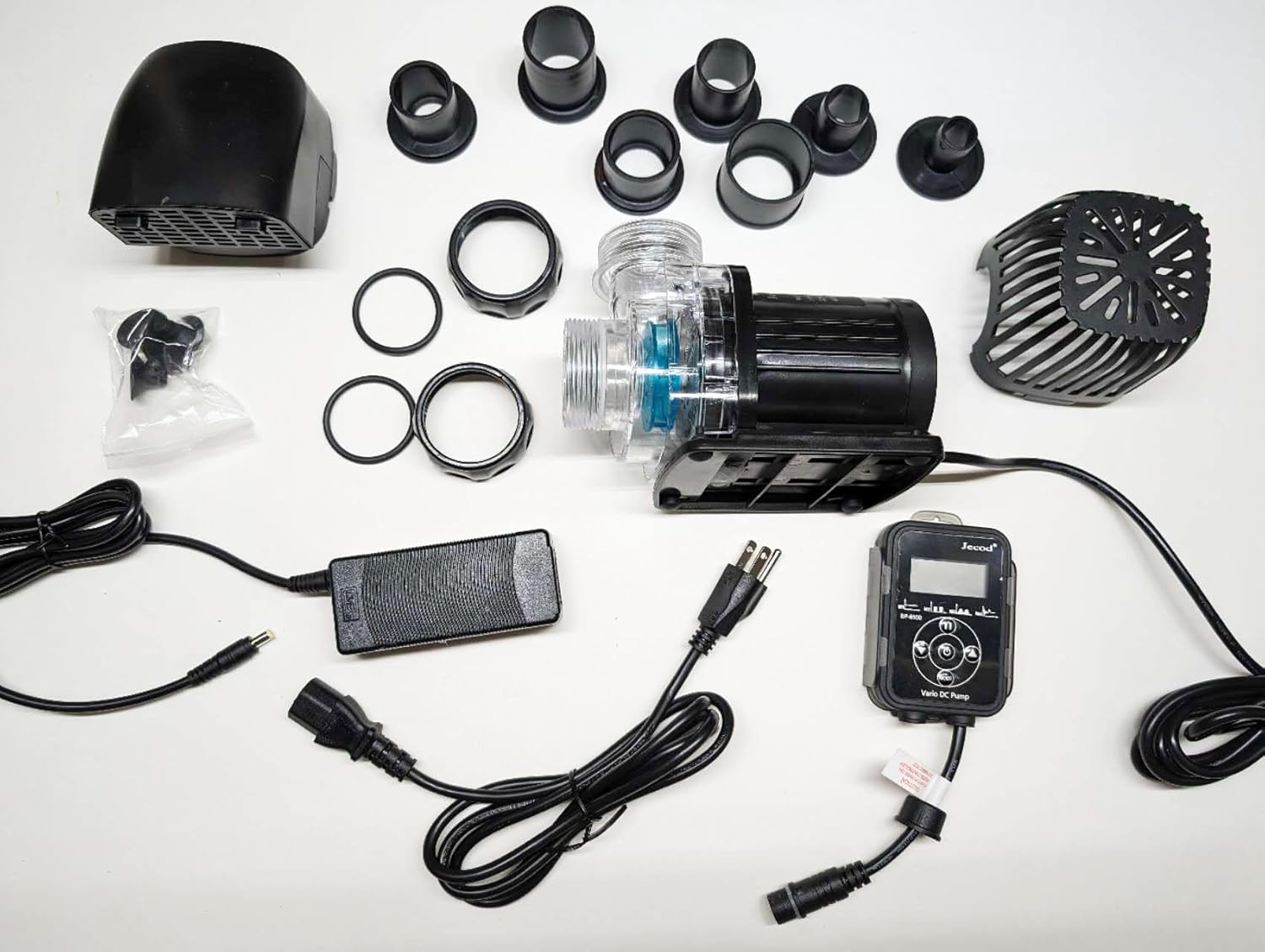

Image: All components of the Jebao Jecob EP6500 DC Aquarium Return Pump package, including the pump, controller, power supply, various hose adapters, and intake screens.

Setup sareng Instalasi

1. Attaching Hose Adapters

1. Select the appropriate hose adapter for your tubing diameter.
2. Thread the chosen adapter onto the pump's outlet. Ensure a secure, watertight connection.
3. Connect your water tubing to the adapter. Use a hose clamp (not included) for extra security if needed.

Image: Close-up of the pump's water outlet, showing the threaded connection for hose adapters.

Gambar: Sisi view of the pump's water outlet, illustrating the secure attachment of a hose adapter.

2. Attaching Intake Screens

The pump comes with different intake screens to prevent debris from entering the impeller. Choose the screen suitable for your application (e.g., fine mesh for small debris, wider slots for larger debris).

1. Attach the desired intake screen to the pump's inlet. Ensure it clicks securely into place.

Image: The Jebao Jecob EP6500 pump with a standard intake screen, designed for general debris filtration.

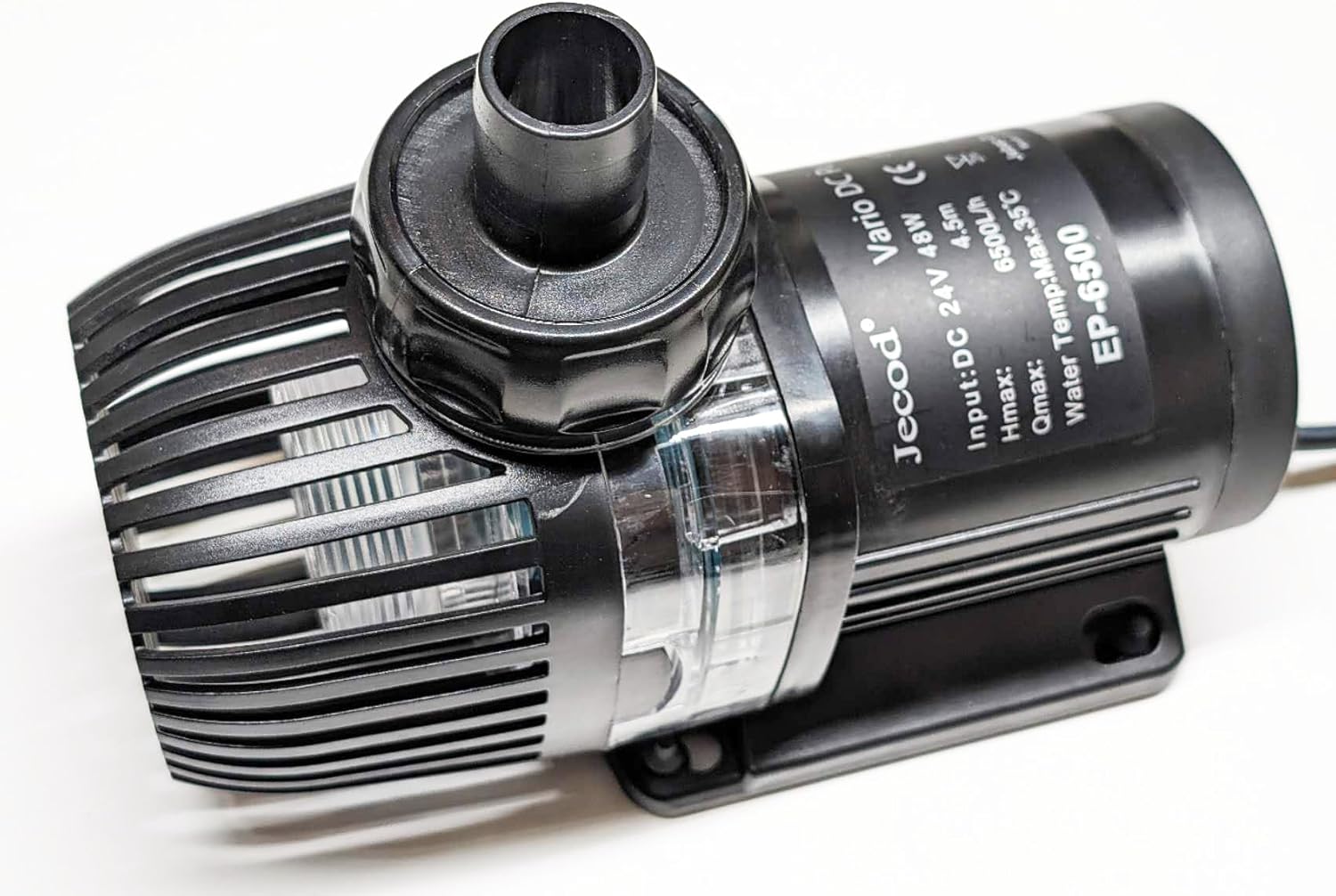

Image: The Jebao Jecob EP6500 pump featuring a side draught intake screen, suitable for low water level applications.

3. Nyambungkeun Kontroler sareng Daya

1. Connect the pump cable to the LCD controller.
2. Connect the power adapter to the LCD controller.
3. Plug the power adapter into a properly grounded electrical outlet.

Image: The Jebao Jecob EP6500 pump and its LCD controller, showing the connection points.

4. Panempatan

• For submersible use, ensure the pump is fully submerged in water before plugging it in to prevent dry running.
• For dry use (external installation), ensure the pump is primed with water before starting.
• Position the pump on a stable, flat surface.

Parentah Operasi

LCD Controller Functions

The LCD controller allows for precise control over the pump's operation:

• Tombol Daya: Ngahurungkeun/mareuman pompa.
• Tombol MODE: Cycles through different operating modes (Constant Flow, Feed Mode, Wave Maker Mode).
• +/- Tombol: Adjust the flow rate or duration depending on the selected mode.
• Layar LCD: Shows current mode, flow rate, or timer settings.

Modeu Operasi

1. Constant Flow Mode: Adjust the flow rate from minimum to maximum using the +/- buttons. The display will show the current power level.
2. Modeu eupan: Activates a temporary pause in pump operation for feeding fish or other aquatic life. Press the MODE button to enter Feed Mode, and use +/- to set the duration of the pause (e.g., 10, 20, or 30 minutes). The pump will resume normal operation automatically after the set time.
3. Wave Maker Mode: Creates oscillating water flow to simulate natural wave patterns. Use the +/- buttons to adjust the intensity or frequency of the waves.

Pangropéa

Pangropéa rutin ngajamin kinerja optimal sareng umur panjang pompa anjeun.

1. Cleaning the Impeller and Intake Screens

1. Cabut pompa tina sumber listrik.
2. Remove the intake screen by gently twisting or unclipping it.
3. Carefully remove the impeller cover and then the impeller itself.
4. Clean the impeller and its housing with a soft brush and fresh water to remove any debris or mineral buildup.
5. Clean the intake screen.
6. Reassemble all parts in reverse order, ensuring they are securely fitted.

2. Preventing Dry Running

The pump features IC electronic detection to prevent dry running. However, always ensure the pump is fully submerged or properly primed before operation to avoid unnecessary wear and tear.

Pamérésan masalah

Garansi sareng Rojongan

For warranty information, technical support, or replacement parts, please refer to the contact information provided with your purchase or visit the official Jebao websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
