AC Infinity AIRBLAZE T10 Universal Fireplace Blower Fan Kit 10-inch Instruction Manual

1. Bubuka

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your AC Infinity AIRBLAZE T10 Universal Fireplace Blower Fan Kit. Please read this manual thoroughly before installation and use to ensure proper function and safety. Retain this manual for future reference.

2. Produk Langkungview

The AC Infinity AIRBLAZE T10 is a universal fireplace blower fan kit designed to enhance heat circulation from your fireplace into your living space. It effectively draws cool air from lower vents, heats it within the fireplace cavity, and then expels the warmed air into the room. This system is compatible with various fireplace brands, including Lennox, Hearth Glo, Majestic, and Rotom, and can serve as a replacement for existing blower units. The kit includes a smart controller with temperature and speed adjustments for optimized performance.

Image 2.1: The AC Infinity AIRBLAZE T10 blower fan and its digital controller.

Image 2.2: Diagram illustrating how the fireplace blower kit circulates warm air into a room.

3. Fitur konci

• Enhanced Heat Circulation: Designed to boost warm air distribution from your fireplace.
• Kasaluyuan Universal: Suitable for various fireplace models, including Lennox, Hearth Glo, Majestic, and Rotom.
• Smart Controller: Features an LCD display with active temperature and humidity monitoring.
• Setélan anu tiasa diprogram: Fan speeds can be set to automatically adjust based on temperature and humidity thresholds. Manual control, timer functions, and alarm warnings are also available.
• Operasi sepi: Utilizes a PWM-controlled DC motor and dual-ball bearings for efficient, low-noise performance.
• Konstruksi awét: Enclosed in heavy-duty steel with a cold-rolled steel mounting frame and aluminum impeller.
• Pamasangan Gampang: Includes all necessary components for securing the unit and connecting to a standard power outlet.

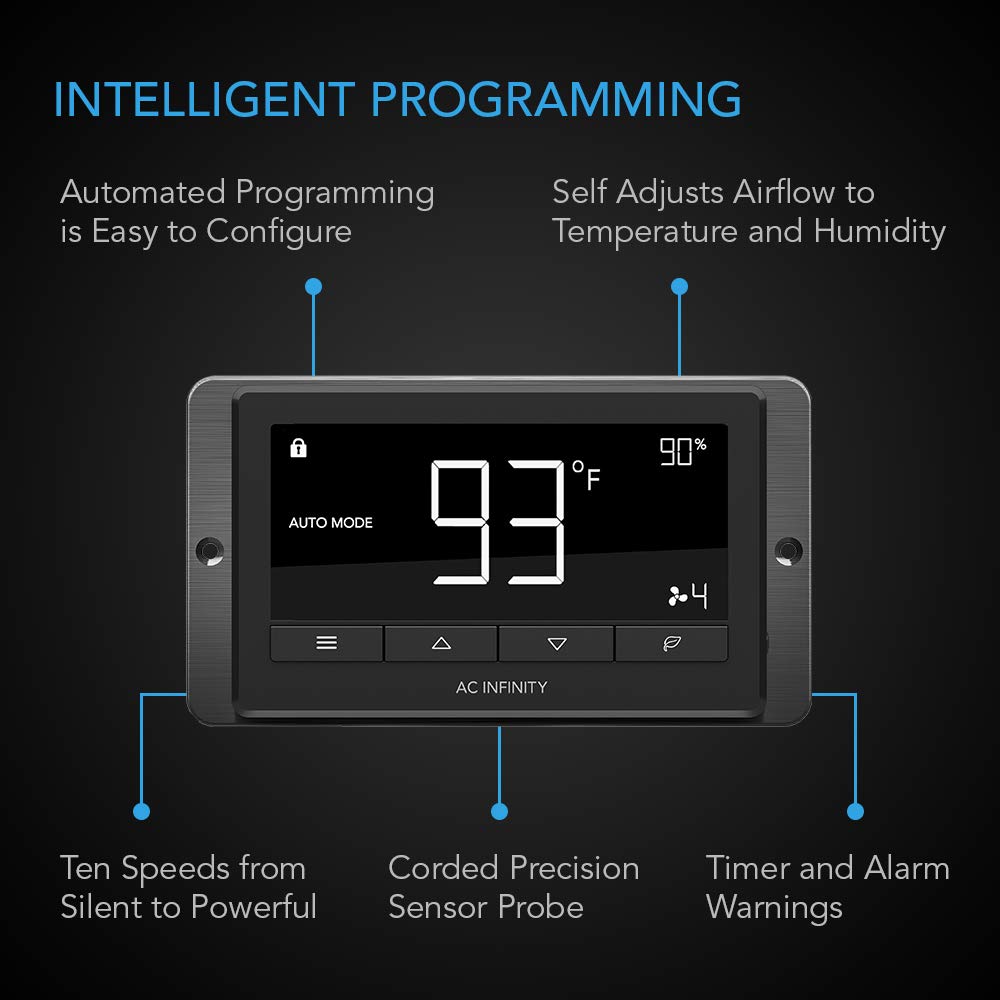

Gambar 3.1: Detil view of the intelligent controller, highlighting its display, buttons, and sensor probe connection.

Image 3.2: Cross-section diagram illustrating the ultra-quiet dual-ball bearing PWM-controlled DC motor design.

4. Eusi Paket

Pariksa yén sadaya komponén aya sateuacan neraskeun pamasangan:

• AC Infinity AIRBLAZE T10 Blower Fan Unit
• Digital Controller (U-Controller 2)
• 12-foot Corded Temperature and Humidity Sensor Probe
• Adaptor kakuatan
• Mounting Hardware (screws, anchors, or Velcro pads)
• Manual pangguna (dokumén ieu)

Image 4.1: The main components of the AIRBLAZE T10 kit, including the controller, sensor probe, and power adapter.

5. Émbaran Kasalametan

Salawasna perhatikeun pancegahan kaamanan di handap ieu:

• Ensure the fireplace is completely cool before attempting installation or maintenance.
• Disconnect power to the fireplace and the blower kit before any installation, cleaning, or service.
• Do not operate the blower if any part is damaged or if the power cord is frayed.
• Keep all wiring clear of hot surfaces within the fireplace.
• Produk ieu dirancang pikeun pamakéan jero rohangan wungkul.
• Do not block the air intake or exhaust vents of the blower.

6. Pitunjuk Instalasi

The AIRBLAZE T10 is designed for straightforward installation in fireplaces with an accessible cavity beneath the firebox. Installation typically involves placing the blower unit, routing the sensor probe, and connecting the controller.

6.1. Pamariksaan Pra-Pamasangan

1. Confirm your fireplace has adequate space for the blower unit (refer to specifications for dimensions).
2. Ensure a standard electrical outlet is available nearby for the power adapter.
3. Gather necessary tools: screwdriver, measuring tape, and potentially a drill if mounting with screws.

6.2. Blower Placement

1. Carefully slide the blower unit into the designated compartment beneath your fireplace.
2. Position the blower to maximize airflow into the fireplace cavity.
3. Secure the blower using the provided mounting hardware. Velcro pads can be used for non-permanent installation, or screws for a more secure fit.

6.3. Pamasangan Sensor Probe

1. Route the 12-foot corded sensor probe into the fireplace cavity.
2. Place the sensor tip in an area that accurately reflects the temperature of the fireplace, typically near the heat exchanger or where warm air exits. Avoid direct flame contact.

6.4. Controller and Power Connection

1. Connect the blower unit cable to the controller.
2. Connect the sensor probe to the controller.
3. Plug the power adapter into the controller, then into a standard electrical outlet.
4. Position the controller in a convenient location. It can be mounted on a wall or placed discreetly near the fireplace.

Gambar 6.1: Hiji example of a fireplace blower installed within a fireplace cavity, with the controller mounted externally.

7. Parentah Operasi

The digital controller provides various modes and settings to optimize your fireplace blower's performance.

7.1. Controller Interface

The controller features an LCD display showing current temperature, humidity, fan speed, and mode. Buttons allow for navigation and setting adjustments.

7.2. Modeu Operasi

• Mode otomatis: The fan automatically adjusts speed based on programmed temperature and humidity thresholds. Set a desired high temperature for activation and a low temperature for deactivation.
• Mode ON: The fan runs continuously at a manually selected speed (1-10).
• Mode OFF: The fan remains off.
• TIMER Mode: Set the fan to run for a specific duration at a chosen speed.
• Mode Eco: Optimizes fan operation for energy efficiency.

7.3. Nyaluyukeun Setélan

1. Use the menu button to navigate through settings.
2. Use the up/down arrows to adjust values (e.g., fan speed, temperature thresholds).
3. Confirm selections to save changes.

Refer to the controller's on-screen prompts for specific programming steps for temperature triggers, fan speeds, and timer settings. The controller also features alarm warnings for fan failure or out-of-range conditions, and backup memory to retain settings during power outages.

8. Pangropéa

Regular maintenance ensures optimal performance and longevity of your AIRBLAZE T10 fan kit.

8.1. Cleaning the Blower Unit

1. Pegatkeun Daya: Salawasna cabut unit tina stop kontak sateuacan beberesih.
2. Ngidinan pikeun niiskeun: Ensure the fireplace and blower are completely cool.
3. Leupaskeun lebu: Use a soft brush or vacuum cleaner with a brush attachment to gently remove dust and debris from the fan blades and housing.
4. Ngusap permukaan: Make garing atawa rada damp cloth to wipe the exterior surfaces of the blower and controller. Do not use harsh chemicals or abrasive cleaners.

8.2. Sensor Probe Care

Keep the sensor probe clean and free from obstructions to ensure accurate readings. Do not bend or damage the probe cable.

9. Cara ngungkulan

If you encounter issues with your AIRBLAZE T10, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact AC Infinity customer support.

10. Spésifikasi

Image 10.1: Detailed dimensions of the AIRBLAZE T10 blower unit, controller, and cable lengths.

Image 10.2: Detailed dimensions of the U-Controller 2.

11. Garansi jeung Rojongan

AC Infinity products are designed with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your product or visit the official AC Infinity website. If you require technical assistance or have questions regarding your AIRBLAZE T10, please contact AC Infinity customer support through their official channels.

Pabrikan: AC Infinity Nyarita.

Titimangsa munggaran sadia: 3 Januari 2019
