WELOCK WiFi Smart Door Lock Instruction Manual

Bubuka

The WELOCK WiFi Smart Door Lock provides advanced security and convenience with multiple unlocking methods. This manual will guide you through the installation, operation, and maintenance of your new smart lock.

Gambar: Leuwihview of the WELOCK WiFi Smart Door Lock components.

Image: Key features of the WELOCK Keyless Entry Door Lock.

Setup sareng Instalasi

The WELOCK Smart Door Lock is designed for easy installation, typically taking less than 10 minutes with just a screwdriver. It fits all standard doors with thicknesses between 1.37"- 2.17" (35-55mm) and a distance between the cylinder hole and door frame of 2.4" or 2.7".

Kasaluyuan panto

Image: Door dimension requirements for installation.

Léngkah-léngkah Instalasi

1. Install the lock latch into the door edge.
2. Tighten the latch screws to secure the latch.
3. Insert the exterior assembly of the lock into the door hole.
4. Insert the interior assembly, aligning it with the exterior part.
5. Tighten the main screws to secure both assemblies.
6. Tighten the handle screws to complete the installation.

Image: Step-by-step installation guide.

Operating the Smart Lock

Your WELOCK Smart Door Lock offers multiple convenient ways to unlock and manage access.

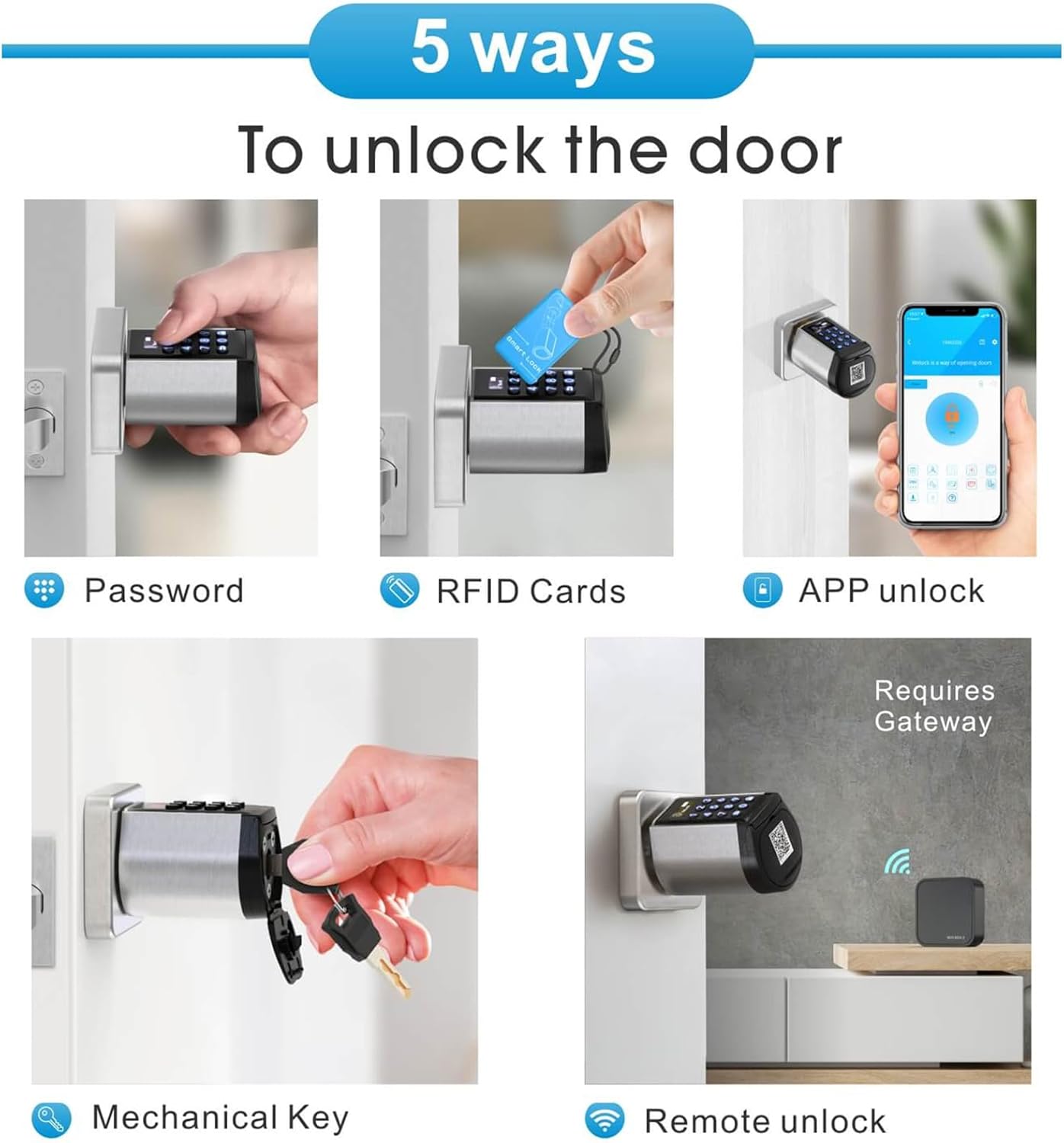

Métode Muka konci

• Sandi: Lebetkeun kodeu aksés anu tos diprogram dina keypad.
• Kartu RFID: Use the provided IC cards by tapping them on the lock.
• Kontrol Aplikasi Bluetooth: Unlock the door directly from your smartphone via the dedicated app when within Bluetooth range.
• Konci mékanis: For traditional access or emergencies, use the physical key.
• Remote Unlock (with Gateway): With a separately sold WiFi gateway, you can remotely lock/unlock and manage the lock from anywhere.

Image: Five ways to unlock your smart door lock.

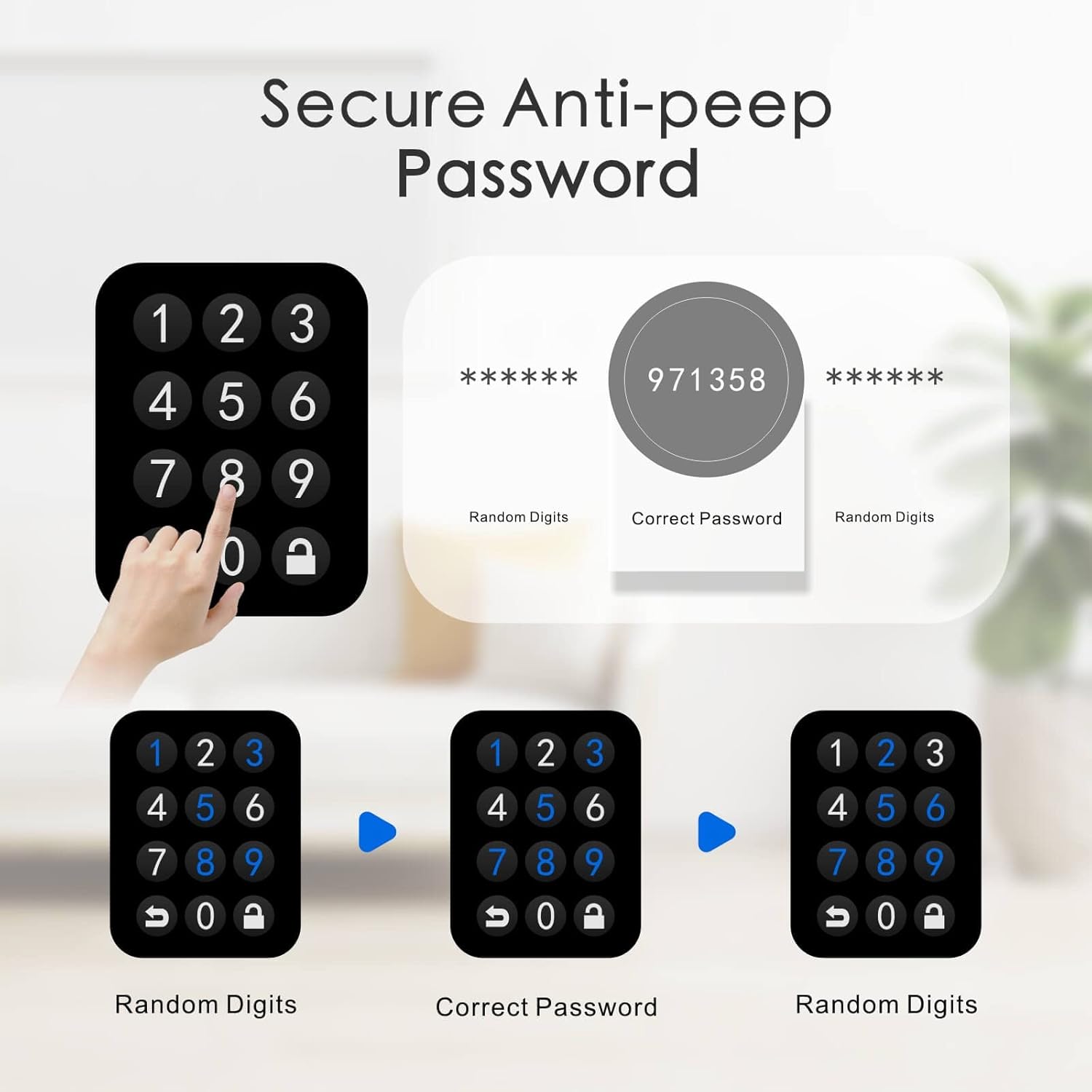

Secure Anti-Peep Password

Enhance your security by entering random digits before or after your correct password. This anti-peep feature prevents others from guessing your code by observing your input.

Image: Anti-peep password entry example.

App Features and Remote Access

The convenient and easy-to-use app allows you to unlock the door, add/delete long-time passwords, temporary passwords, and IC cards, check unlock records, and authorize managers. With an optional WiFi gateway, you can enjoy remote access, receive real-time notifications, remotely share or modify passcodes for visitors, and view lock history.

Image: App interface for generating temporary passwords.

Image: App interface displaying unlock history.

Kontrol sora sareng Alexa

Link your WELOCK Smart Lock with Alexa through the WiFi gateway (sold separately) to achieve voice-activated unlocking and remote control.

Image: Remote control and voice control setup.

Image: Alexa integration for voice control.

Pangropéa

Daya Batré sareng Daya Darurat

The electronic door lock is powered by 4 AAA batteries (not included) that can last up to 6 months. A low battery alert will appear when the battery power is below 20%. In emergencies, you can use a USB power bank to plug into the lock for backup power if the batteries have run out.

Image: Battery life indicator.

Image: Emergency backup key and USB power option.

Auto-Lock and Silent Mode

The lock features an auto-lock function that can be set for 5-14 seconds. It also includes a silent mode for quiet operation.

Image: Auto-lock feature.

Image: Silent mode for quiet operation.

Pamérésan masalah

If you encounter any issues with your WELOCK Smart Door Lock, please refer to the detailed troubleshooting section in the full user manual or contact customer support for assistance.

spésifikasi

Garansi sareng Rojongan

The WELOCK Smart Door Lock comes with a 2-year product warranty. For any questions regarding installation, setup, missing parts, technical assistance, or other inquiries, please contact our customer service team.

Palayanan palanggan: Available 7 days a week, 24 hours a day.

Surélék: service@welockglobal.com

Image: Warranty and customer support information.
