Buku Panduan Pangguna Sistem PA Portabel LD Systems ANNY 10 BPH 2

1. Bubuka

The LD Systems ANNY 10 BPH 2 is a portable, battery-powered PA system designed for versatile audio applications. It features a 10-inch woofer, 1-inch tweeter, integrated 6-channel mixer, Bluetooth 5.0 connectivity, and includes two headset microphones with bodypack transmitters. This manual provides essential information for the safe and efficient operation of your ANNY 10 BPH 2 system.

fitur konci ngawengku:

• Integrated 6-channel mixer with 3-band EQ, reverb, and delay effects.
• Long battery life: up to 25 hours in ECO mode, 5 hours at maximum volume.
• Two headset microphones with bodypack transmitters (B47 470-490 MHz frequency band).
• Bluetooth 5.0 with AAC codec for wireless audio streaming.
• True Wireless Stereo (TWS) functionality for linking two ANNY 10 units.
• DynX® DSP (Gen. 2) for clear, distortion-free sound.
• Versatile inputs: 2x microphone/line combo, 1x stereo (3.5mm jack/RCA).
• Priority/ducking mode for microphone announcements.
• Integrated wheels and telescopic handle for easy transport.
• USB-C port for charging external devices and integrated tablet/smartphone holder.
• Footswitch input for hands-free effect control.

2. Parentah Kasalametan

Please read and follow all safety instructions to prevent damage to the device or personal injury. Keep this manual for future reference.

• Sumber Daya: Only use the specified power adapter and ensure the voltage cocog sarat alat.
• Batré: Use only the specified battery types for bodypacks (AA) and ensure correct polarity. Do not expose batteries to excessive heat or direct sunlight.
• Cai sareng Uap: Do not expose the device to rain, moisture, or liquids. Do not place objects filled with liquids on the device.
• Panas: Jauhkeun alat ieu tina sumber panas sapertos radiator, pancatat panas, kompor, atanapi alat-alat penghasil panas anu sanésna.
• Ventilasi: Pastikeun ventilasi nyukupan. Ulah meungpeuk sagala bukaan ventilasi.
• beberesih: Disconnect the device from the power supply before cleaning. Use a dry, soft cloth. Do not use liquid cleaners or aerosols.
• Palayanan: Entong nyobian ngalayanan produk ieu nyalira. Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni.
• panempatan: Place the device on a stable, level surface. Avoid placing it in locations where it could fall or be knocked over.
• Perlindungan dédéngéan: Paparan volume anu luhur dina jangka waktu anu lila tiasa nyababkeun karusakan dédéngéan permanén. Atur volume ka tingkat anu nyaman.
• Frékuénsi Radio: The wireless microphones operate within specific frequency bands. Ensure compliance with local regulations for wireless device usage.

3. Eusi Paket

Carefully unpack your ANNY 10 BPH 2 system and verify that all items are present and in good condition:

• 1x ANNY 10 Portable PA System
• 2x Wireless Receiver Modules (integrated)
• 2x Pemancar Bodypack
• 2x Mikropon Headset
• AA Batteries (for bodypacks)
• Kabel Daya
• Manual pangguna (dokumén ieu)

4. Produk Langkungview

Familiarize yourself with the main components and controls of your ANNY 10 BPH 2 system.

4.1 Panels hareup jeung pungkur

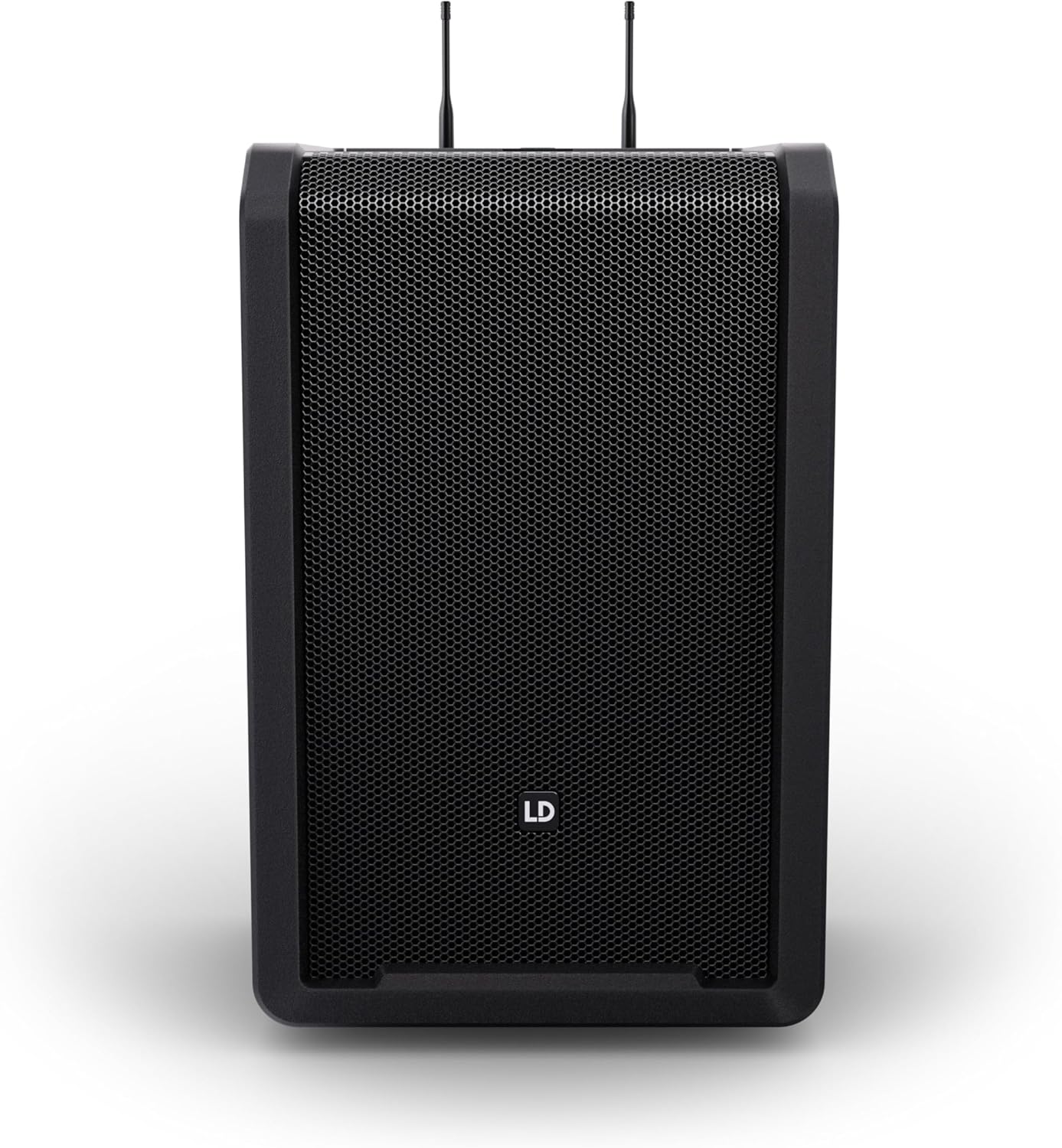

The front panel features the main speaker grille, protecting the 10-inch woofer and 1-inch tweeter.

The rear panel houses the integrated 6-channel mixer, input/output connections, wireless receiver modules, and power controls.

4.2 Transport Features

The ANNY 10 is equipped with integrated wheels and a telescopic handle, allowing it to be easily pulled like a trolley. Two sturdy handles are also provided for lifting.

4.3 Wireless Components

The BPH 2 variant includes two headset microphones and two bodypack transmitters, which wirelessly connect to the integrated receivers on the ANNY 10 unit.

5. Setélan

5.1 Initial Power-Up and Charging

1. Connect the supplied power cable to the ANNY 10's power input and a suitable AC outlet.
2. The internal battery will begin charging. A full charge is recommended before first use for optimal battery life.
3. The ANNY 10 can be operated while charging.

5.2 Setelan Mikropon Headset sareng Bodypack

1. Open the battery compartment of each bodypack transmitter.
2. Pasangkeun batré AA anu kalebet, bari merhatikeun polaritasna anu leres.
3. Connect the headset microphone to the bodypack transmitter's input.
4. Power on the bodypack transmitter. The integrated receiver modules on the ANNY 10's rear panel will automatically detect and pair with the transmitters.
5. Adjust the volume for each wireless microphone using the dedicated controls on the ANNY 10's rear panel.

5.3 Nyambungkeun Sumber Audio

• Microphone/Line Inputs (Channels 1 & 2): Use XLR or 1/4-inch TRS cables to connect wired microphones or line-level instruments/devices. Adjust input gain as needed.
• Stereo Input (Channel 3/4): Connect devices like smartphones, laptops, or media players using a 3.5mm stereo jack or RCA cables.
• Masangkeun Bluetooth:
  1. Aktipkeun Bluetooth dina alat sumber anjeun (contona, smartphone, tablet).
  2. On the ANNY 10, select the Bluetooth input. The display will indicate pairing mode.
  3. Milarian pikeun "ANNY 10" in your device's Bluetooth settings and select it to pair.
  4. Once paired, audio from your device will stream wirelessly to the ANNY 10.

5.4 True Wireless Stereo (TWS) Setup

To link two ANNY 10 units for stereo sound:

1. Ensure both ANNY 10 units are powered on and not currently paired with any Bluetooth device.
2. On one ANNY 10 (this will be the master unit), activate TWS pairing mode (refer to the unit's display or specific button if available).
3. On the second ANNY 10 (slave unit), activate TWS pairing mode.
4. The units will automatically connect. Once connected, pair your Bluetooth source device to the master ANNY 10.
5. Audio will now play in stereo across both units.

6. Parentah Operasi

6.1 Kontrol Mixer

The ANNY 10 features an intuitive 6-channel mixer on its rear panel:

• Keuntungan Input: Adjust the input sensitivity for each channel (Mic/Line 1, Mic/Line 2, Stereo 3/4, Wireless 1, Wireless 2, Bluetooth).
• 3-Band EQ: Use the HIGH, MID, and LOW controls to shape the tone of your overall mix.
• Reverb & Reureuh: Apply spatial effects to your audio. Adjust the effect level for individual channels and the overall effect send.
• Jilid Master: Ngontrol tingkat kaluaran sakabéhna sistem PA.

6.2 Application Presets

The ANNY 10 offers 5 DSP presets to optimize sound for different scenarios:

• MUSIK: Optimized for general music playback, providing a balanced and full sound.
• LIVE: Suitable for live performances, enhancing vocal and instrument clarity.
• VOKAL: Specifically tuned to make vocals stand out, ideal for speeches or singing.
• ECO: Energy-saving mode, extending battery life for background music or voice-only applications (up to 25 hours).
• datar: Provides a neutral frequency response, useful for precise sound engineering or when using external processors.

Select the desired preset via the dedicated button or menu option on the control panel.

6.3 Fungsi Prioritas (Ngaleos)

The "Priority" function automatically attenuates background music when a selected microphone input is active. This ensures clear announcements.

1. Access the priority settings on the ANNY 10's control panel.
2. Select the microphone input(s) you wish to prioritize.
3. When audio is detected on the prioritized microphone, other audio sources will be automatically lowered.

6.4 Footswitch Control

Connect an external footswitch (not included) to the footswitch input to toggle reverb and delay effects hands-free during performances.

6.5 Port Ngecas USB-C

An integrated USB-C port is available on the rear panel for charging smartphones or tablets. Place your device in the integrated holder for convenience.

7. Pangropéa

7.1 beberesih

• Always disconnect the ANNY 10 from the power supply before cleaning.
• Anggo lawon anu lemes, garing, sareng henteu buluan pikeun ngusap permukaan luar.
• Pikeun kokotor nekad, a rada damp lawon jeung sabun hampang bisa dipaké, dituturkeun ku lawon garing.
• Ulah make cleaners abrasive, pangleyur, atawa sprays kimiawi, sabab ieu bisa ngaruksak finish.
• Keep the speaker grille free of dust and debris. Use a soft brush or vacuum cleaner with a brush attachment if necessary.

7.2 Perawatan Batré

• For the main ANNY 10 unit, fully charge the internal battery regularly, especially if storing the unit for extended periods.
• If the unit will not be used for a long time, store it with a partial charge (around 50%) in a cool, dry place.
• For the bodypack transmitters, remove AA batteries if they will not be used for an extended period to prevent leakage.
• Replace bodypack batteries promptly when the low battery indicator appears.

7.3 Panyimpenan

When not in use, store the ANNY 10 BPH 2 system in a dry, dust-free environment, away from extreme temperatures and direct sunlight. Consider using an optional transport bag for added protection.

8. Cara ngungkulan

If you encounter issues with your ANNY 10 BPH 2 system, refer to the following common problems and solutions:

9. Spésifikasi

10. Garansi jeung Rojongan

10.1 Émbaran jaminan

LD Systems products are designed for reliability and performance. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Specific warranty terms and duration may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please refer to the warranty card included with your product or visit the official LD Systems websitus.

10.2 Rojongan Palanggan

Should you require technical assistance, troubleshooting, or have questions regarding your ANNY 10 BPH 2 system, please contact LD Systems customer support or your authorized dealer.

You can typically find support contact information on the official LD Systems websitus: www.ld-systems.com

When contacting support, please have your product model number (ANNY 10 BPH 2) and serial number ready.
