1. Parentah Kasalametan penting
Mangga baca sareng ngartos sadaya parentah kaamanan sateuacan nganggo alat ieu. Gagalna nuturkeun parentah ieu bisa ngakibatkeun shock listrik, seuneu, atawa tatu serius.
- panempatan: Salawasna nempatkeun manaskeun dina teguh, permukaan datar. Ulah nempatkeun dina surfaces lemes kawas ranjang atawa rugs dimana bukaan bisa diblokir.
- Clearance: Maintain a minimum distance of 3 feet (0.9 meters) from the front, sides, and rear of the heater to any combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains.
- Sumber Daya: Connect the heater directly into a 120V AC, 60Hz wall outlet. Do not use with extension cords or power strips.
- Cai sareng Uap: Do not use the heater in wet or moist locations such as bathrooms, laundry areas, or near a swimming pool.
- Ventilasi: Ensure proper ventilation. Do not block air intakes or exhaust openings.
- pangawasan: Pangawasan anu raket diperyogikeun nalika alat-alat dianggo ku atanapi caket kana murangkalih atanapi jalmi anu gaduh kamampuan fisik, indrawi, atanapi méntal anu kirang.
- Perlindungan overheat: The heater is equipped with an automatic overheat protection system that will shut off the unit if it overheats. If this occurs, unplug the heater, wait 30 minutes, and then plug it back in.
- Perlindungan Tip-Over: The heater features an innovative tilt-detection sensor for tip-over protection. If the heater is accidentally knocked over, it will automatically shut off. Place the heater upright on a stable surface to resume operation.
- Bahan: Constructed with V0 flame retardant materials for enhanced safety.
- Colokkeun kaamanan: Equipped with a safety plug to prevent electrical hazards.
2. Produk Langkungview
The DREO DR-HSH006 Space Heater combines advanced PTC ceramic heating technology with a sleek, portable design to provide efficient and comfortable warmth. Its Hyperamics 1500W system and heat funnel design ensure rapid heating and wide air circulation.

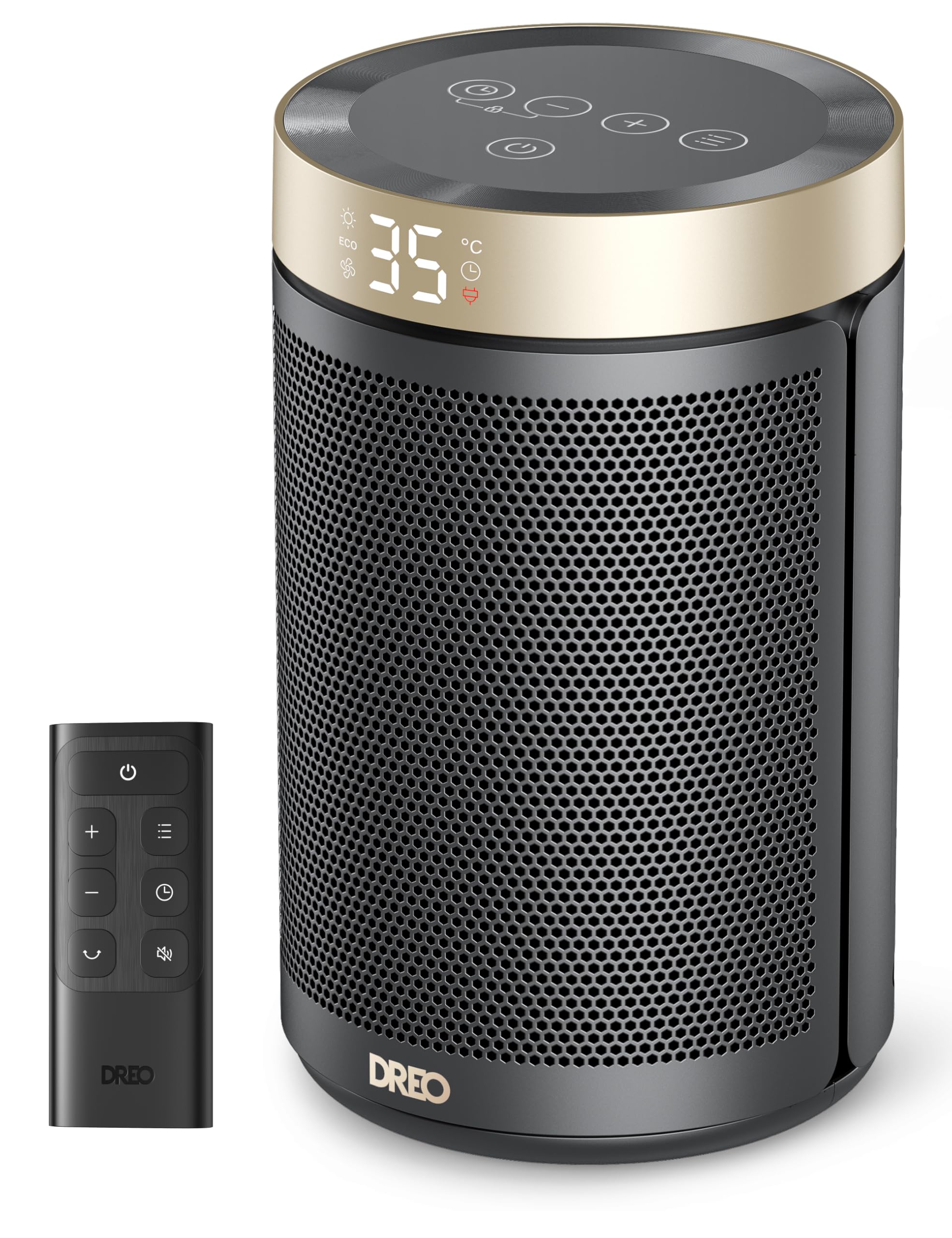

Figure 2.1: DREO DR-HSH006 Space Heater in Light Gold. This image shows the compact and modern design of the heater, suitable for various indoor settings.
Fitur konci:
- Sistem PTC Hyperamics 1500W: Delivers powerful and rapid heating.
- Heat Funnel Design: Enhances warm air circulation for broader reach.
- Kontrol Suhu anu tepat: Enhanced NTC chipset allows setting temperatures from 5-35°C with ±0.5°C increments.
- Operasi sepi: Features a brushless DC motor and winglet fan design, reducing noise to 34dB for undisturbed use.
- Sababaraha Modeu Pemanasan: Includes Power Heat, ECO, and Fan Only modes.
- 70° Osilasi: Nyebarkeun kahaneutan sacara merata di sakuliah ruangan.
- Kadali jauh: Merenah nyaluyukeun setelan ti kajauhan.
- Timer 12 Jam: Program the heater to turn off automatically.
- Konci Budak: Nyegah parobahan teu kahaja kana setélan.
- Fungsi mute: Silence operational beeps for quiet environments.
- Fungsi mémori: Retains previous settings after power off.
- Desain portabel: cecekelan terpadu pikeun transportasi gampang.
3. Setélan
Follow these steps to set up your DREO DR-HSH006 Space Heater:
- Ngabongkar: Carefully remove the heater from its packaging and ensure all components are present (heater unit, remote control, quick start guide).
- panempatan: Place the heater on a firm, level, and heat-resistant surface. Ensure it is at least 3 feet (0.9 meters) away from walls, furniture, and other objects.
- Sambungan Daya: Plug the power cord directly into a 120V AC, 60Hz grounded wall outlet. Do not use extension cords or power strips.
- Batré Kadali Jauh: The remote control comes with a Lithium Metal battery included. Ensure it is properly inserted.
4. Parentah Operasi
The DREO DR-HSH006 can be operated using the touch controls on the top panel or the included remote control.
4.1 Daya Hurung/Pareuman
- Pencét éta Tombol daya (
) dina panel kontrol atanapi remot pikeun ngahurungkeun atanapi mareuman pemanas.
4.2 Pamilihan Mode
Pencét éta Tombol modeu (
) pikeun ngaliwat modeu anu sayogi:
- Power Heat: Provides maximum heating output (1500W).
- Mode Eco: Automatically adjusts heating power to maintain the set temperature, optimizing energy consumption.
- Ngan kipas: Berfungsi salaku kipas tanpa dipanaskeun.
4.3 Kontrol Suhu
In Power Heat or ECO Mode, adjust the desired temperature:
- Pencét éta tambah (+) or Minus (-) kancing (
/
) to set the temperature between 5-35°C (41-95°F) in 0.5°C increments.
Figure 4.1: Precise temperature control on the DREO DR-HSH006 heater, showing a digital display for setting the desired temperature.
4.4 Osilasi
- Pencét éta Tombol osilasi (
) to activate or deactivate the 70° oscillation feature, distributing heat evenly.
Video 4.1: This video demonstrates the DREO 1500W Space Heater's features, including its powerful airflow, tip-over protection, precise temperature control, ECO mode, remote functionality, 70° oscillation, and quiet operation. It highlights how the heater efficiently warms a room and its safety mechanisms.
4.5 Fungsi Timer
- Pencét éta Tombol timer (
) to set the auto-off timer for up to 12 hours. Each press increases the timer by 1 hour.
4.6 Konci budak
- To activate/deactivate the Child Lock, press and hold the Tombol Konci Budak (
) salami 3 detik. Ieu nyegah parobahan setélan anu teu dihaja.
4.7 Fungsi Jempé
- Pencét jeung tahan tombol Tombol jempé (
) for 3 seconds to turn off or on the operational beeps.
4.8 Fungsi Mémori
- The heater will remember your last used settings (mode, temperature, oscillation, timer) when turned off and on again.
5. Pangropéa
Beberesih rutin sareng panyimpenan anu leres bakal mastikeun umur panjang sareng operasi anu efisien tina pemanas anjeun.
5.1 beberesih
- Pareum sareng Cabut colokan: Always turn off the heater and unplug it from the power outlet before cleaning. Allow it to cool down completely.
- Bersihan Luar: Ngagunakeun lemes, damp lawon pikeun ngusap surfaces exterior manaskeun. Ulah make cleaners abrasive atawa pangleyur.
- Asupan Udara / Knalpot: Use a vacuum cleaner with a brush attachment to remove dust and debris from the air intake and exhaust grilles.
- Ulah Lebetkeun: Entong neuleumkeun manaskeun dina cai atanapi cairan anu sanés.
5.2 Panyimpenan
- Nalika henteu dianggo, simpen pamanas di tempat anu tiis sareng garing.
- Disarankeun pikeun nyimpen pemanas dina bungkus aslina pikeun ngajagaan tina lebu sareng karusakan.
6. Cara ngungkulan
If you experience issues with your DREO DR-HSH006 Space Heater, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Pemanas teu hurung. | Not plugged in, power outlet issue, tip-over switch activated, overheat protection activated. | Ensure plug is firmly in outlet. Check circuit breaker. Place heater on a flat, stable surface. Unplug for 30 minutes, then plug back in. |
| Pemanas eureun dadakan. | Panangtayungan tina panas teuing diaktipkeun, panangtayungan tina tibalik diaktipkeun, pangatur waktu kadaluwarsa. | Unplug and allow to cool for 30 minutes. Ensure heater is upright on a stable surface. Check timer settings. |
| Taya kaluaran panas. | Heater is in Fan Only mode, temperature setting is too low. | Switch to Power Heat or ECO mode. Increase the desired temperature setting. |
| Heater is too noisy. | Dust buildup, unstable surface. | Clean air intakes/exhaust. Ensure heater is on a flat, stable surface. |
If the problem persists after trying these solutions, please contact DREO Customer Support.
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | DR-HSH006 |
| Sumber Daya | Kabel Listrik |
| Voltage | 120 volt |
| Métode pemanasan | Forced Air (PTC Ceramic) |
| Wattage | 1500W |
| Dimensi produk | 18.59 x 18.59 x 27.99 cm (7.32 x 7.32 x 11.02 inci) |
| Item Beurat | 1.41 kg (3.11 lbs) |
| Fitur husus | Adjustable Temperature, Child Lock, Flame Resistant, Overheat Protection, Tip-Over Protection, 12H Timer, Remote Control |
| Komponén Kaasup | 1 × Quick Start Guide, 1 × Remote Control (Battery included), Space Heater |
| Jinis Batré (Jauh) | 1 batré Litium Metal (kaasup) |
| Tipe Pamasangan | Bébas Nangtung |
| Pamakéan jero rohangan / outdoor | jero rohangan |
| Negara asal | Cina |
8. Garansi jeung Rojongan
DREO provides a standard 1-year warranty for this product. Customers may be eligible for an extended 30-month warranty upon product registration.
For technical support, warranty claims, or any questions regarding your DREO DR-HSH006 Space Heater, please contact DREO Customer Support through their official websitus atanapi inpormasi kontak anu disayogikeun dina Panduan Mimitian Gancang anjeun.
Please have your model number (DR-HSH006) and purchase details ready when contacting support.
