Ovsuqu JPT MOPA 200W Fiber Laser Engraving and Cutting Machine User Manual

1. Bubuka

Thank you for choosing the Ovsuqu JPT MOPA 200W Fiber Laser Engraving and Cutting Machine. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new laser system. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.

This machine is designed for high-precision engraving and cutting on various materials, particularly metals, utilizing a JPT MOPA M7 200W fiber laser source. It offers capabilities for deep engraving, fine marking, and color marking on stainless steel.

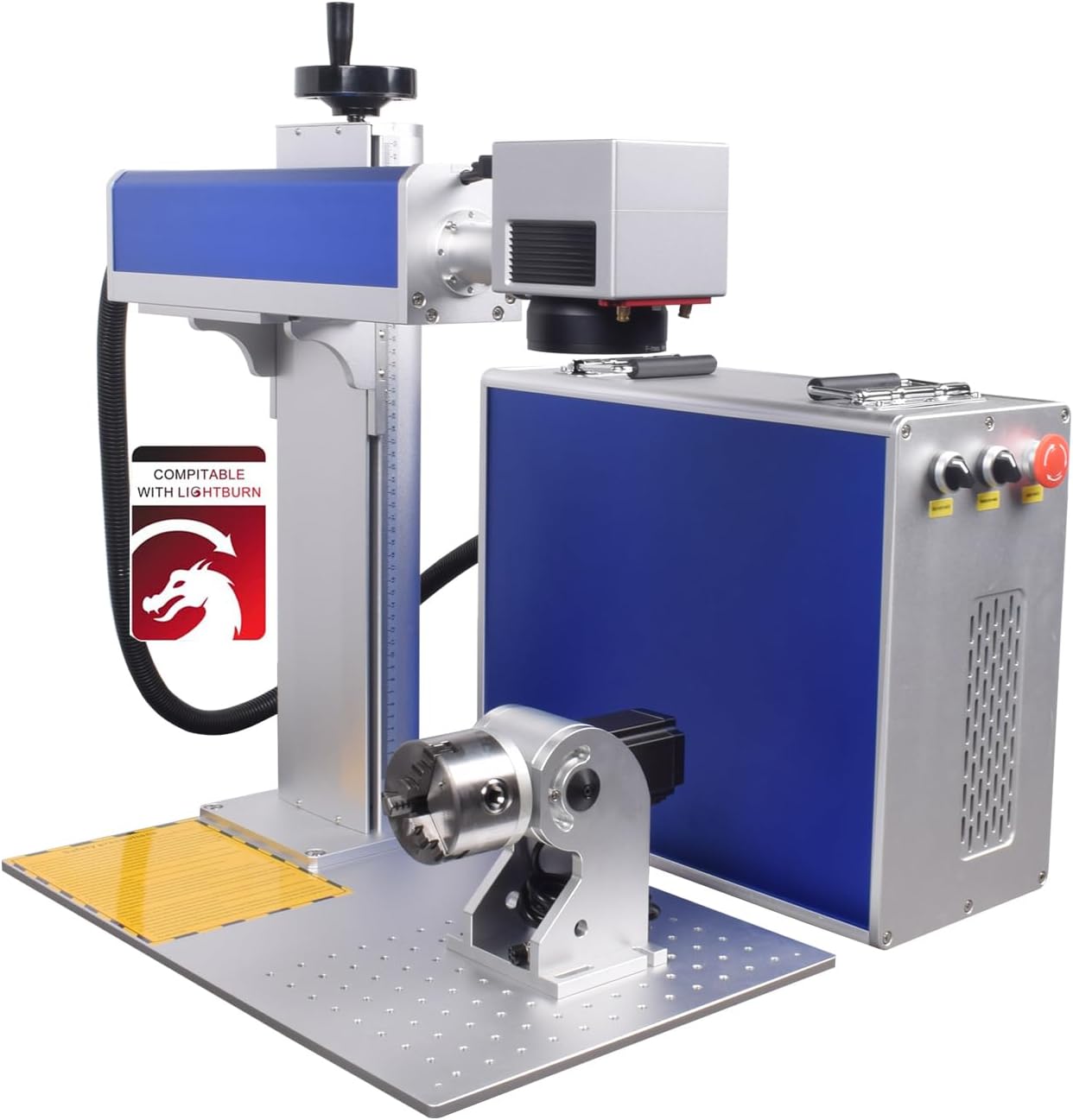

Figure 1: Ovsuqu JPT MOPA 200W Fiber Laser Engraving and Cutting Machine with rotary axis.

2. Émbaran Kasalametan

WARNING: This product contains a Class II laser. Avoid direct exposure to the laser beam. Always wear appropriate laser safety goggles during operation.

• Kelas laser: Class II, 0.874mW Output Power. FDA Accession Number: 2420799-000.
• Perlindungan panon: Always wear OD7+ laser safety goggles to protect your eyes from laser radiation. Never look directly into the laser beam or at reflections.
• Ventilasi: Ensure adequate ventilation in the work area to dissipate fumes and particles generated during engraving and cutting.
• Kasalametan Bahan: Only engrave or cut materials approved for laser processing. Some materials can produce toxic fumes or catch fire.
• Stopan Darurat: Biasakeun diri anjeun sareng lokasi sareng operasi tombol eureun darurat.
• Sasayogian tanaga: Connect the machine to a properly grounded power outlet. Do not operate with damaged power cords.
• pangawasan: Pernah ninggalkeun mesin unattended salila operasi.

3. Eusi Paket

Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun. Lamun aya item nu leungit atawa ruksak, mangga ngahubungan rojongan customer.

Gambar 2: Gambaran visual tina komponén anu kalebet.

• JPT Fiber Laser Machine (Main Unit)
• JPT Laser Source (YDFLP-E2-200-M7-M-R)
• D80 Rotary Axis
• OD7+ Goggles (Laser Safety Glasses)
• Ngalih Kaki
• Kabel Daya
• USB Flash Drive (with Software & Manual)
• Wrench & Position Strip Set
• Jalur Data (Kabel USB)

4. Komponén produk

Understanding the main components of your laser machine is crucial for proper setup and operation.

4.1 JPT MOPA M7 200W Laser Source

The heart of the system, providing a high-quality fiber output for deep engraving and marking.

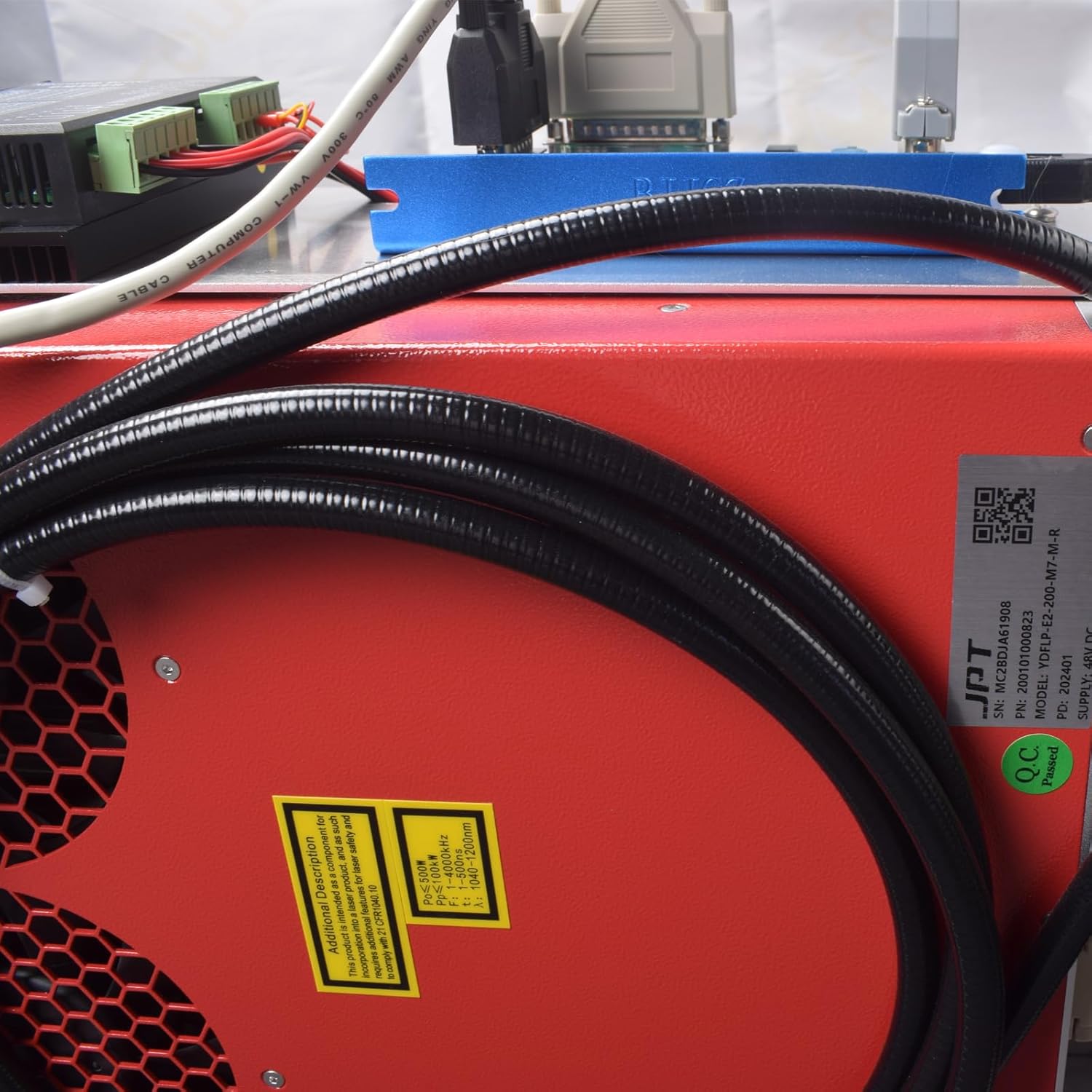

Figure 3: JPT MOPA M7 200W Laser Source (Model YDFLP-E2-200-M7-M-R).

4.2 Galvo Scanner Head

Responsible for directing the laser beam with high precision and speed.

angka 4: Tutup-up view of the laser galvo scanner head.

4.3 Control Board (BJJCZ)

The main control unit, compatible with EZCAD Lite software.

Figure 5: The BJJCZ main control board, compatible with EZCAD Lite.

4.4 D80 Rotary Axis

An optional accessory for engraving cylindrical or curved objects.

Figure 6: The D80 Rotary Axis for engraving curved surfaces.

5. Parentah Setup

Follow these steps for initial setup of your laser engraving machine.

1. Ngabongkar bungkusan: Sacara saksama miceun sadaya komponén tina bungkusan. Simpen bungkusan pikeun transportasi atanapi neundeun ka hareup.
2. Majelis: Place the main laser unit on a stable, level surface. Connect the laser source to the main unit using the provided cables. Ensure all connections are secure.
3. Rotary Axis (Optional): If using the D80 Rotary Axis, connect it to the designated port on the machine. Refer to the rotary axis specific manual for detailed setup.
4. Sambungan Daya: Connect the power cable to the machine and then to a grounded electrical outlet.
5. Sambungan Komputer: Connect the machine to your computer using the supplied USB data cable.
6. Pamasangan parangkat lunak: Insert the USB flash drive into your computer and install the EZCAD Lite software. Drivers may also be included and require installation.

6. Software and Operation

The machine is compatible with EZCAD Lite and LightBurn software for design and control.

6.1 EZCAD Lite Software

EZCAD Lite is the primary software for controlling the laser machine. It supports various graphic formats and allows for text, barcode, and QR code marking.

Figure 7: EZCAD Lite software working page showing design and parameter settings.

• Sistem Operasi anu Dirojong: Windows XP/Vista/7/8/10/11.
• Format anu Dirojong: Coreldraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc.
• Fitur: Supports SHX, TTF fonts, automatic encoding, serial number printing, batch number, date, barcode, QR code, automatic jump number.

6.2 LightBurn Compatibility

The machine is compatible with LightBurn software, offering advanced features for vector graphics and image processing.

Figure 8: LightBurn software interface demonstrating design capabilities.

• Sistem Operasi anu Dirojong: Apple macOS, Linux, Windows.
• Fitur: Import artwork in various common vector graphic and image formats. Arrange, edit, and create new vector shapes. Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode.

6.3 Léngkah Operasi Dasar

1. Desain: Create or import your design in EZCAD Lite or LightBurn.
2. Penempatan Bahan: Place the material to be engraved on the work platform. Use the positioning strips for accurate placement.
3. Penyesuaian fokus: Adjust the laser head height to achieve proper focus on the material surface.
4. Setélan Parameter: Set appropriate laser parameters (power, speed, frequency, pulse duration) based on the material and desired effect.
5. Praview: Anggo prasarat perangkat lunakview function to ensure the design is correctly positioned.
6. Mimitian ukiran: Initiate the engraving process. Always wear safety goggles.

Gambar 9: Kelamples of engraving on stainless steel, copper, silver, metal, mirror, stone, leather, wood, and rock.

7. Pangropéa

Pangropéa rutin mastikeun kinerja optimal sareng manjangkeun umur mesin anjeun.

• Ngabersihan lensa: Periodically clean the F-theta lens with a specialized lens cleaning solution and lint-free wipes. Avoid touching the lens surface with bare hands.
• Ngaleungitkeun lebu: Keep the machine free from dust and debris, especially around the laser source and galvo scanner. Use compressed air or a soft brush.
• Pamariksaan kabel: Pariksa sadaya kabel sacara rutin pikeun tanda-tanda karusakan atanapi karusakan. Ganti kabel anu ruksak langsung.
• Wewengkon Gawé: Maintain a clean and organized work area to prevent accidents and ensure efficient operation.

8. Cara ngungkulan

Bagian ieu ngabahas masalah umum anu anjeun tingali.

• Taya Kaluaran Laser:
  • Check power connections to the machine and laser source.
  • Pastikeun tombol eureun darurat teu aktip.
  • Verify software settings and laser parameters.
• Kualitas ukiran goréng:
  • Check laser focus. Adjust the Z-axis height.
  • Clean the F-theta lens.
  • Adjust laser power, speed, and frequency settings for the material.
  • Ensure the material is flat and securely positioned.
• Masalah Sambungan Parangkat Lunak:
  • Pariksa sambungan kabel USB.
  • Reinstall software drivers from the provided USB drive.
  • Restart the computer and the laser machine.

9. Spésifikasi

10. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation included on the USB flash drive or contact Ovsuqu customer service directly. Ensure you have your product model number (FL-100W) and purchase details available when seeking support.

For additional resources and updates, you may visit the Ovsuqu Store on Amazon.
