Gitar Laney LFSUPER60-112 Lionheart 60-Watt 1x12 inci Amplifier Combo Instruksi Manual

Bubuka

This manual provides essential information for the safe and efficient operation of your Laney LFSUPER60-112 Lionheart 60-Watt 1x12in Guitar Amplifier Combo. Please read this manual thoroughly before using the amplifier to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

The LFSUPER60-112 is a dual-channel, all-analog 60-Watt guitar combo amplifier designed to deliver a wide range of tones, from pristine cleans to warm overdrive. It features built-in effects and incorporates Laney Advance Impulse Response (LA:IR) technology for versatile recording and performance options.

Parentah Kasalametan penting

Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun ngirangan résiko kejutan listrik, seuneu, atanapi tatu:

• Sumber Daya: Nyambungkeun amplifier only to a power supply of the type specified on the unit.
• Grounding: Pastikeun amplifier is properly grounded. Do not defeat the safety purpose of the polarized or grounding-type plug.
• Ventilasi: Ulah meungpeuk sagala bukaan ventilasi. Pasang saluyu sareng parentah produsén.
• Cai sareng Uap: Ulah make alat ieu deukeut cai atawa ngalaan eta kana netes atawa splashing.
• Panas: Entong dipasang di deukeut sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
• beberesih: Ngabersihan ngan ku kaén garing.
• Palayanan: Rujuk sadayana jasa ka tanaga jasa anu mumpuni. Diperlukeun ngalayanan nalika aparatur ruksak ku cara naon waé, sapertos kabel catu daya atanapi colokan rusak, cairan tumpah atanapi barang murag kana aparatur, aparatur parantos kakeunaan hujan atanapi lembab, henteu beroperasi normal. , atawa geus turun.
• Perlindungan kabel listrik: Nangtayungan kabel listrik tina leumpang atawa diciwit, utamana dina colokan, wadah merenah, jeung titik dimana aranjeunna kaluar tina aparat.
• Unpluging: Cabut colokan alat ieu nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.

Produk Leuwihview

The Laney LFSUPER60-112 Lionheart amplifier combines classic tone with modern features. Below is an overview tina komponén sareng fitur utama na.

Fitur konci:

• Dual-channel all-analog 60-Watt amppangagung.
• Integrated Tremolo effect, inspired by mid-1960s circuits.
• Versatile Reverb effect for spatial depth.
• Low Power Mode for reduced volume operation without tone degradation.
• Footswitch input for remote channel and effects switching.
• Laney Advance Impulse Response (LA:IR) technology for cabinet emulation via DI output.

Kontrol Panel hareup:

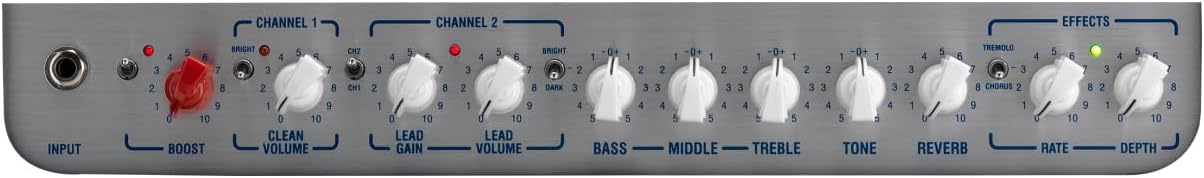

Gambar 1: Leuwihview tina amplifier's front control panel.

The front panel provides access to all primary controls for shaping your sound:

• Jack Input: Sambungkeun gitar anjeun didieu.
• Kontrol naekeun: Adjusts the level of the boost function.
• Channel 1 (Clean) Controls:
  • Clean Volume: Controls the output level of the clean channel.
  • Saklar caang: Engages a bright tone characteristic for Channel 1.
• Channel 2 (Lead) Controls:
  • Keuntungan Lead: Controls the amount of overdrive/distortion for the lead channel.
  • Volume kalungguhan: Controls the output level of the lead channel.
  • Dark Switch: Engages a darker tone characteristic for Channel 2.
• Equalization (EQ) Controls:
  • Bass: Nyaluyukeun réspon frékuénsi handap.
  • Tengah: Nyaluyukeun réspon frékuénsi tengah.
  • Treble: Nyaluyukeun réspon frékuénsi luhur.
  • Nada: Provides overall tonal shaping.
• Kontrol épék:
  • Reverb: Controls the level of the Reverb effect.
  • Tremolo/Chorus Switch: Selects between Tremolo and Chorus effects.
  • Ongkos: Adjusts the speed of the selected modulation effect (Tremolo or Chorus).
  • jerona: Adjusts the intensity of the selected modulation effect (Tremolo or Chorus).

Sambungan Panel Belakang:

Gambar 2: Leuwihview tina ampsambungan panel pungkur lifier urang.

The rear panel provides connections for power, footswitch, effects loop, and DI output:

• Input kakuatan: Sambungkeun kabel listrik anu disayogikeun di dieu.
• Saklar kakuatan: Ngahurungkeun amplifier atawa mareuman.
• Remote Jacks: Inputs for connecting an external footswitch to control channels, boost, and effects.
• Effects Loop (Send/Return): For connecting external effects pedals or processors.
• Saklar Mode Daya: Selects between full power (Max) and low power (<1W) operation.
• LA:IR DI Out (XLR): Balanced output with cabinet emulation for direct recording or PA connection.
• LA:IR Switch: Selects cabinet emulation (Off, 1x12, 4x12).

Disetél

Follow these steps to set up your Laney LFSUPER60-112 amppanguat:

1. panempatan: Tempatna amplifier on a stable, level surface. Ensure adequate ventilation around the unit.
2. Sambungan Daya: Pastikeun amplifier's power switch is in the OFF position. Connect the supplied power cord to the power input on the rear panel and then to a grounded electrical outlet.
3. Sambungan Gitar: Sambungkeun gitar anjeun ka Input Jack on the front panel using a high-quality instrument cable.
4. Saklar Suku (Opsional): If using a footswitch, connect it to the appropriate Remote Jacks dina panel pungkur.
5. External Effects (Optional): If using an external effects loop, connect the Ngirimkeun output to the input of your effects unit and the output of your effects unit to the Balik deui input dina amppanel tukang lifier.
6. Kaluaran DI (Opsional): For direct recording or PA connection, connect an XLR cable from the LA:IR DI Out to your audio interface or mixing console. Select the desired cabinet emulation using the LA:IR Switch.

Parentah Operasi

This section details how to operate your Laney LFSUPER60-112 amplifier and utilize its various features.

Ngahurungkeun sareng mareuman:

1. Pastikeun sadaya kadali volume disetel ka minimum sateuacan diaktipkeun.
2. Balikkeun Pindah kakuatan on the rear panel to the ON position. The power indicator light on the front panel will illuminate.
3. To power off, set all volume controls to minimum and then flip the Pindah kakuatan kana posisi OFF.

Pilihan Saluran:

The amplifier features two channels: Clean (Channel 1) and Lead (Channel 2).

• Use the channel switch on the front panel or a connected footswitch to toggle between Channel 1 and Channel 2.
• Channel 1 (Clean): Provides a clear, uncolored tone. Adjust its volume with the Volume beresih control. The Pindah caang adds high-end sparkle.


Figure 3: Detail of Channel 1 controls including Boost, Clean Volume, and Bright switch.

• Channel 2 (Lead): Offers a range of overdrive and distortion. Adjust the amount of drive with Lead Gain and its output level with Volume kalungguhan. The Dark Switch provides a warmer, less bright tone.


Figure 4: Detail of Channel 2 controls including Lead Gain, Lead Volume, and Dark switch.

Tone Shaping (EQ):

Ngagunakeun éta Bass, Tengah, Treble, jeung Nada controls to fine-tune your amplifier's sound. These controls are active for both channels.

Figure 5: Detail of Bass, Middle, Treble, and Tone equalization controls.

Pangaruh Diwangun-di:

The LFSUPER60-112 includes Reverb and a selectable Tremolo/Chorus effect.

• Reverb: Adjust the amount of reverb with the Reverb kadali.
• Tremolo/Chorus: Use the toggle switch to select between Tremolo and Chorus. Adjust the speed of the effect with Ongkoh and its intensity with Jerona.


Figure 6: Detail of Reverb, Tremolo/Chorus switch, Rate, and Depth controls.

Fungsi Boost:

The naekeun control provides an additional gain stage for increased volume or saturation. Activate and adjust its level as desired.

Figure 7: Detail of the Boost control knob.

Mode Daya Lemah:

The Ngalihkeun Mode Kakuatan on the rear panel allows you to reduce the amplifier's output power to less than 1 Watt. This is useful for practicing at lower volumes while retaining the amplifier's tonal characteristics.

Figure 8: Detail of the Power Mode switch on the rear panel.

LA:IR DI Output:

The Laney Advance Impulse Response (LA:IR) DI output provides a balanced XLR output with selectable cabinet emulation. This is ideal for direct recording or sending a signal to a PA system without needing to mic the speaker.

• Connect an XLR cable from the LA:IR DI Out to your desired destination.
• Ngagunakeun éta LA:IR Switch to select between "Off" (no emulation), "1x12" (single 12-inch speaker emulation), or "4x12" (four 12-inch speaker emulation).


Figure 9: Detail of the LA:IR DI Out and cabinet emulation switch.

Pangropéa

Proper maintenance will ensure the longevity and optimal performance of your amppangagung.

• beberesih: Pegatkeun sambungan nu amplifier from power before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners, solvents, or waxes.
• Panyimpenan: Nalika henteu dianggo, simpen amplifier in a dry, temperate environment, away from direct sunlight and extreme temperatures.
• Angkutan: Nalika mindahkeun amplifier, ensure it is powered off and unplugged. Use the integrated handle for carrying.

Pamérésan masalah

If you encounter issues with your Laney LFSUPER60-112, refer to the following common problems and solutions:

spésifikasi

The following are the technical specifications for the Laney LFSUPER60-112 Lionheart amppanguat:

Garansi sareng Rojongan

For warranty information and technical support, please refer to the official Laney website or contact your authorized Laney dealer. Keep your proof of purchase for warranty claims.
