Eridanus 21-inch Ceramic Utility Sink Instruction Manual

1. Bubuka

This manual provides instructions for the installation, operation, and maintenance of your Eridanus 21-inch ceramic utility sink. This sink is designed for various applications including laundry rooms, kitchens, bathrooms, and garages.

The Eridanus utility sink features a durable vitreous ceramic construction with a white enamel glaze, offering a smooth, non-porous surface resistant to tarnishing, fading, scratches, chips, and burns.

Image 1.1: Eridanus 21-inch ceramic utility sink with included components.

2. Émbaran Kasalametan

• Salawasna nganggo alat pelindung diri (APD) anu merenah sapertos kacamata kaamanan sareng sarung tangan nalika pamasangan.
• Ensure all water supply lines are shut off before beginning any plumbing work.
• The sink is heavy (approximately 59.9 lbs). Use proper lifting techniques or seek assistance to prevent injury.
• Verify that the wall structure is capable of supporting the weight of the sink and its contents if performing a wall-mounted installation.
• Taroskeun ka tukang ledeng anu mumpuni upami anjeun henteu yakin ngeunaan léngkah-léngkah pamasangan.

3. Eusi Paket

Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:

• Eridanus 21-inch Ceramic Utility Sink
• Saringan Basket
• Mounting Brackets (two hanger brackets)
• Installation Instruction Guide (this manual)

Image 3.1: Package contents for the Eridanus utility sink.

4. Setup jeung Instalasi

The Eridanus utility sink supports dual installation methods: wall-mounted or top-mounted on a support base/cabinetry.

4.1. Tembok-Dipasang Instalasi

The high back of the sink facilitates wall mounting. Two hanger brackets are included for this purpose. Note that screws and wall anchors are not included and must be sourced separately based on your wall material.

1. Determine the desired height and location for the sink.
2. Mark the positions for the mounting brackets on the wall, ensuring they are level and spaced correctly to support the sink. Refer to the sink's dimensions for accurate placement.
3. Install the mounting brackets securely into the wall using appropriate screws and anchors for your wall type. Ensure the brackets are firmly attached and can support the sink's weight.
4. Carefully lift the sink and position it onto the installed mounting brackets. Ensure the sink is stable and level.
5. Connect the plumbing for the faucet (not included) and drain.

Image 4.1: Wall-mounted installation with mounting brackets.

4.2. Top-Mounted Installation

The sink can also be installed above counter, as a farmhouse apron sink, or as a drop-in sink into existing cabinetry or a support base. Ensure the cabinetry or base is robust enough to support the sink's weight.

1. Prepare the countertop or cabinet opening according to the sink's dimensions.
2. Place the sink into the prepared opening or onto the support base.
3. Secure the sink using appropriate fasteners or silicone sealant as required for your specific installation type.
4. Connect the plumbing for the faucet (not included) and drain.

Image 4.2: Various installation styles for the Eridanus utility sink.

5. Parentah Operasi

The Eridanus utility sink is designed for general washing tasks. Its deep basin and 7.5-gallon capacity make it suitable for cleaning items, repotting plants, bathing small pets, and laundry pre-treatment.

• Ensure the drain stopper (if using) is properly seated before filling the sink with water.
• Adjust water temperature and flow using your installed faucet.
• The sink's bottom is designed to tilt towards the center for quick drainage, preventing water stagbangsa.

Image 5.1: Deep sink design with 7.5-gallon capacity.

Image 5.2: Sink suitable for small pet care.

6. Pangropéa jeung beberesih

The ceramic surface of your Eridanus sink is designed for easy cleaning and durability.

• For routine cleaning, simply wipe the surface of the sink with a damp lawon.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the enamel glaze.
• The smooth, non-porous surface resists stains and is easy to maintain.
• The basket strainer helps capture debris, preventing pipe clogging. Regularly clean the strainer.

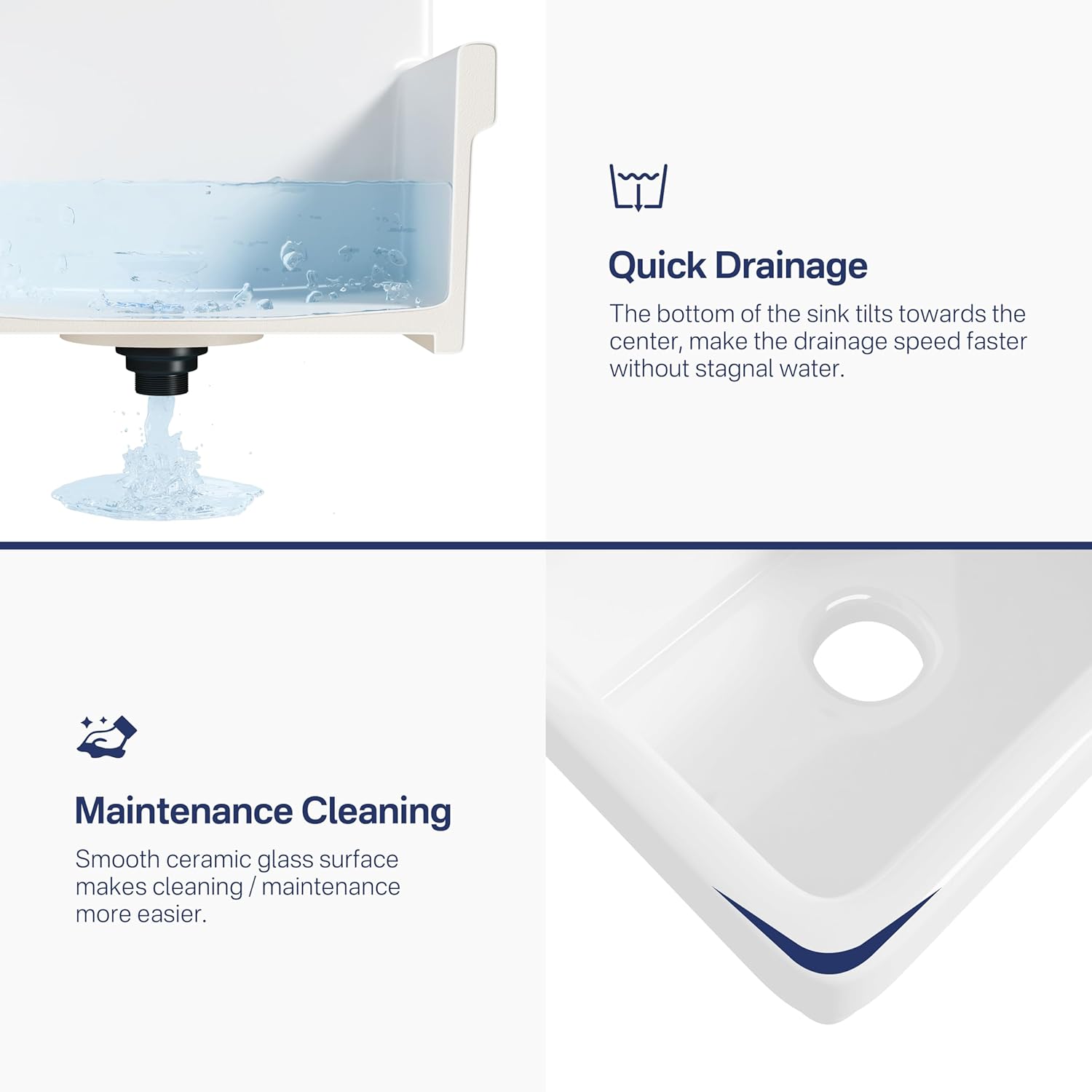

Image 6.1: Quick drainage and easy maintenance features.

7. Cara ngungkulan

This section addresses common issues you might encounter with your utility sink.

7.1. Drainase Lambat

• Check Basket Strainer: Remove and clean any debris accumulated in the basket strainer.
• Inspect P-Trap: A clog may be present in the P-trap beneath the sink. Carefully remove and clean it.
• Ventilasi: Ensure your plumbing system's vent pipe is not blocked.

7.2. Leaks Around Drain or Faucet

• Kencangkeun sambungan: Ensure all nuts and connections on the drain assembly and faucet are securely tightened. Do not overtighten.
• Check Gaskets/Washers: Inspect rubber gaskets and washers for proper seating and damage. Replace if necessary.
• Sealant: Ensure plumber's putty or silicone sealant was properly applied during installation around the drain flange.

7.3. Water Splashing Out

• Kompatibilitas Kran: Ensure your chosen faucet's spout reach is appropriate for the sink's depth and width. A spout that extends too far or is too short can cause splashing.
• Tekanan cai: High water pressure can cause splashing. Consider installing a pressure reducer if this is a persistent issue.

8. Spésifikasi

Image 8.1: Detailed dimensions of the Eridanus utility sink.

9. Garansi jeung Rojongan

9.1. Émbaran jaminan

The Eridanus 21-inch Ceramic Utility Sink comes with a garansi 2 taun from the date of purchase, covering manufacturing defects and material flaws under normal use and service.

This warranty does not cover damage resulting from improper installation, misuse, abuse, accident, neglect, or unauthorized repairs or modifications.

9.2. Rojongan Palanggan

For any questions, technical assistance, or warranty claims, please contact Eridanus customer support. We offer 24/7 rojongan customer pikeun mantuan Anjeun.

Please refer to the contact information provided on the Eridanus official website or your purchase documentation for the most current support channels.
