Bubuka
This manual provides detailed instructions for the assembly, operation, and maintenance of your RoyalCraft Farmhouse TV Stand. Designed for TVs up to 65 inches, this entertainment center features a sturdy construction, ample storage with adjustable shelves, and smooth-sliding barn doors. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and operation.
Émbaran Kasalametan
- Alat Anti Tipping: Always secure the TV stand to the wall using the anti-tipping device provided to prevent tipping and potential injury.
- Kapasitas beurat: Do not overload the stand. The maximum weight capacity is 300 lbs. Exceeding this limit may cause the stand to tip over or collapse.
- Majelis: Ensure all parts are correctly assembled and tightened according to the instructions. Do not use power tools for assembly unless explicitly stated, as overtightening can damage components.
- panempatan: Place the TV stand on a flat, level surface to prevent instability. Keep children and pets away from the unit during assembly.
- Manajemén Kabel: Utilize the back cut-outs for electronic cables to prevent tangling and tripping hazards.
- Kasalametan Bahan: The product is made of high-graded-density engineered wood MDF and is certified CARB P2. Ensure proper ventilation during and after assembly.
Komponén jeung Hardware
Before beginning assembly, verify that all parts and hardware listed in the packaging are present and undamaged. Refer to the included assembly diagram for identification of each component.
Gambar: Ngabeledug view of the RoyalCraft Farmhouse TV Stand components and hardware, showing all individual pieces laid out for assembly.
Setup sareng Majelis
Assembly of the RoyalCraft Farmhouse TV Stand requires two people and basic tools (screwdriver, hammer). Follow the step-by-step instructions provided in the included manual. An assembly video is also available for visual guidance.
Majelis Video Guide
Video: Detailed installation manual for the TV stand, demonstrating each step of the assembly process with visual cues and text overlays. This video is provided by a seller and is relevant to the product's assembly.
Léngkah-léngkah Majelis Utama:
- Persiapan: Clear a spacious area for assembly. Lay out all components and hardware. Keep the instruction manual and tools readily accessible.
- Pangwangunan Dasar: Assemble the base frame first, ensuring all screws and dowels are securely fastened.
- Side and Center Panels: Attach the side and center divider panels to the base, using cam locks and dowels for stability.
- Pamasangan Panel Top: Pasangkeun panel luhur kana struktur anu parantos dirakit.
- Back Panels: Slide the back panels into their designated grooves.
- Sliding Door Mechanism: Install the sliding door tracks and hardware onto the doors.
- Panto Panto: Carefully attach the barn doors to the tracks. Adjust door height and leveling as needed, then tighten all screws.
- Alat Anti Tipping: Install the anti-tipping device to a wall stud using appropriate hardware. This is a critical safety step.
Image: The fully assembled RoyalCraft Farmhouse TV Stand, showcasing its rustic black finish and sliding barn doors, positioned in a living room with a television on top.
Operasi
Ngageser Panto Lumbung
The TV stand features smooth-sliding barn doors that allow flexible access to the storage compartments. Gently slide the doors along the top track to reveal or conceal the central shelves or side cabinets. The doors can be positioned to cover any section as desired.
Gambar: A close-up view of the RoyalCraft Farmhouse TV Stand's sliding barn doors, highlighting the X-shaped design and the smooth operation of the track system.
Rak adjustable
The central storage compartments include adjustable shelves. To adjust a shelf, remove any items, lift the shelf, and reposition the support pins into the desired holes. Ensure the shelf is level and securely seated on all four pins before placing items back on it.
Image: A diagram illustrating the adjustable shelves within the RoyalCraft Farmhouse TV Stand, showing how to change their height to accommodate various items.
Manajemén kabel
The back panel features pre-cut holes for cable management. Route all electronic device cables through these openings to maintain a tidy appearance and prevent cable clutter.
Pangropéa
- beberesih: Wipe the surface with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Tumpahan: Geuwat usap sagala spills pikeun nyegah karuksakan cai atawa staining.
- Pariksa Hardware: Périodik pariksa sagala screws na fasteners pikeun mastikeun aranjeunna tetep ketat. Retighten lamun perlu.
- Mékanisme Ngageser: Tetep lagu panto ngageser bébas tina lebu jeung lebu pikeun mastikeun operasi mulus.
- Hindarkeun sinar panonpoé langsung: Paparan berkepanjangan ka sinar panonpoé langsung bisa ngabalukarkeun fading atawa discoloration tina finish kai.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Nangtung téh goyah / teu stabil. | Loose fasteners; uneven floor; anti-tipping device not installed. | Check and tighten all screws. Move the stand to a level surface or use shims. Install the anti-tipping device as instructed. |
| Sliding doors are stiff or not moving smoothly. | Debris in track; misaligned doors; loose hardware. | Clean the track of any dust or obstructions. Check door alignment and adjust if necessary. Ensure all door hardware is securely tightened. |
| Leungit bagian atawa komponén ruksak kana datangna. | Kasalahan manufaktur atanapi karusakan transit. | Contact RoyalCraft customer support immediately with your purchase details and a description of the issue. |
spésifikasi
- model: Farmhouse TV Stand (Rustic Black)
- merek: RoyalCraft
- warna: Rustic Black
- Bahan: Engineered Wood (CARB P2 certified)
- Ukuran produk: 58"W x 16"D x 34"H (147.3W x 40.6D x 86.4H Centimetres)
- Beurat barang: 95.7 lbs (43.4 kg)
- Kapasitas beurat: 300 lbs (136 kg)
- Ukuran TV anu Disarankeun: Nepi ka 65 inci
- Fitur husus: Adjustable Shelf, Anti-Tipping Device, Rust Resistant Hardware, Sliding Barn Doors
- Majelis Diperlukeun: Sumuhun
- Parentah perawatan: Ngusap ku lawon garing

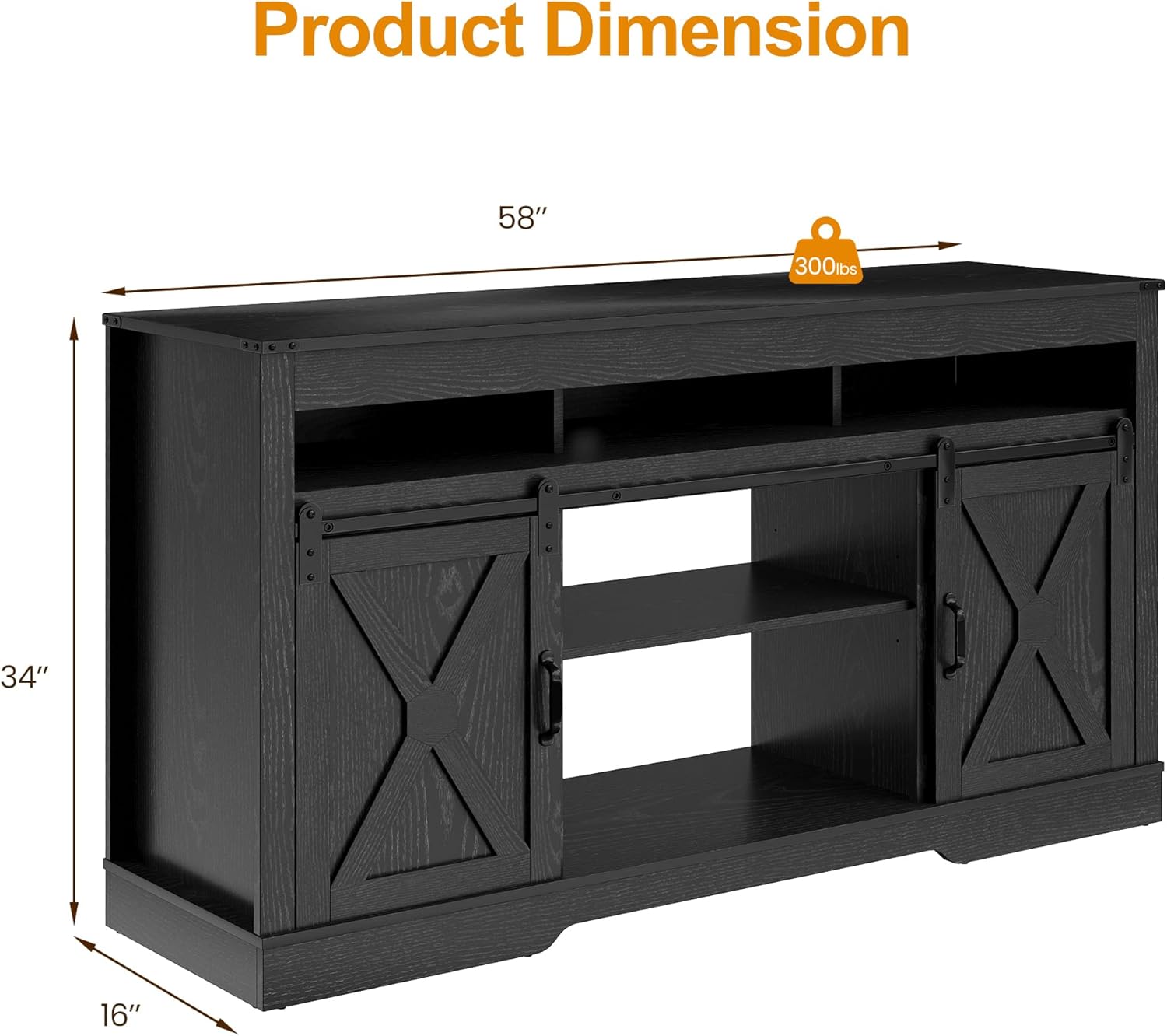

Image: A diagram illustrating the key dimensions of the RoyalCraft Farmhouse TV Stand, including width, depth, and height, along with its weight capacity.
Garansi sareng Rojongan
This product is eligible for return or refund within 30 days of receipt. For any questions, suggestions, or issues regarding your RoyalCraft Farmhouse TV Stand, please contact our professional customer support team directly. We are committed to providing assistance and ensuring your satisfaction.
For further assistance, please refer to the contact information provided with your purchase or visit the RoyalCraft official websitus.
