JBL StagBuku Panduan Subwoofer anu Didukung e 2 200P

1. Bubuka

JBL Stage 2 200P is a 300W powered subwoofer designed to enhance the low-frequency performance of your home audio system. Engineered at JBL's Acoustic Engineering Center of Excellence in Northridge, California, this subwoofer is part of the Stage series, delivering deep and powerful bass. It features a front-firing 10-inch (250mm) Polycellulose low-frequency woofer and dual rear-firing tuned ports for optimal bass response. A comprehensive set of controls allows for seamless integration into various audio setups.

2. Fitur konci

• 10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer: Delivers robust and accurate bass.
• 150W RMS (300W Dinamis) Amppanguat: Nyadiakeun ample power for dynamic low-frequency reproduction.
• Dual Rear-Firing Tuned Ports: Enhances bass output and extension.
• Crossover, Level, and Phase Control: Allows for precise adjustment and integration with main speakers.

3. Eusi Paket

Pastikeun sadaya item aya nalika unboxing:

• JBL Stage 2 200P Powered Subwoofer
• Kabel listrik
• Manual pangguna (dokumén ieu)

4. Setélan

4.1. Panempatan

The placement of your subwoofer significantly impacts its performance. Experiment with different locations to find the best bass response in your listening area. Generally, placing the subwoofer in a corner can enhance bass output, while placing it along a wall can provide a more balanced sound. Avoid placing it directly against a wall or in a cabinet without proper ventilation.

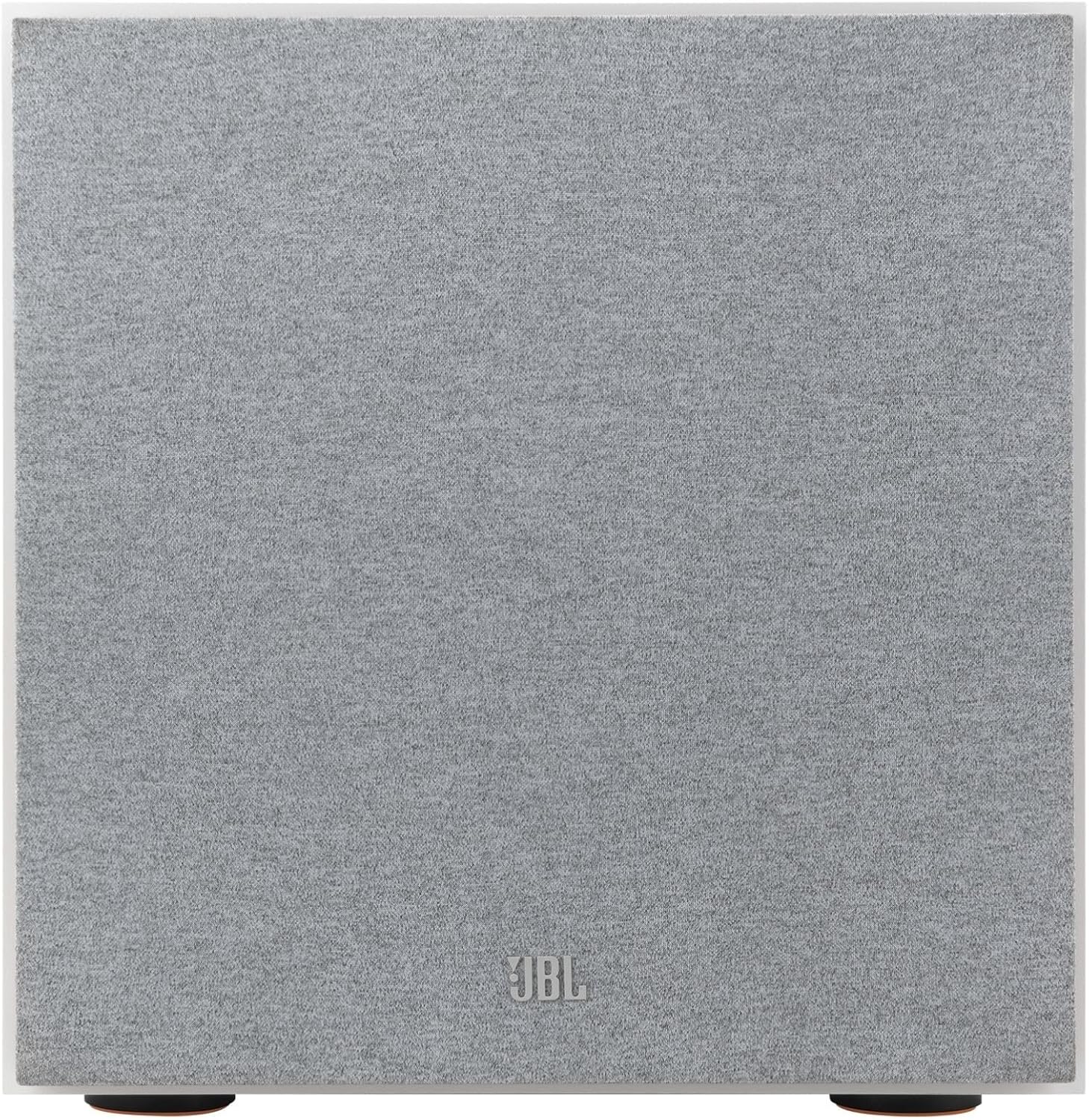

Gambar 1: Hareupeun view tina JBL Stage 2 200P Subwoofer. This image shows the subwoofer's front grille, which can be removed to reveal the woofer cone.

Gambar 2: Hareupeun view tina JBL Stage 2 200P Subwoofer with the grille removed, highlighting the 10-inch Polycellulose ribbed cone woofer.

4.2. Panyambungan

Connect the subwoofer to your audio receiver or amplifier using an LFE (Low-Frequency Effects) output or stereo RCA outputs. For optimal performance, use a dedicated subwoofer output from your receiver.

1. Input LFE: If your receiver has an LFE output, connect a single RCA cable from the receiver's LFE output to the subwoofer's LFE input.
2. Input Tingkat Jalur: If your receiver does not have an LFE output, connect RCA cables from the receiver's stereo pre-out (left and right) to the subwoofer's Line-Level inputs.

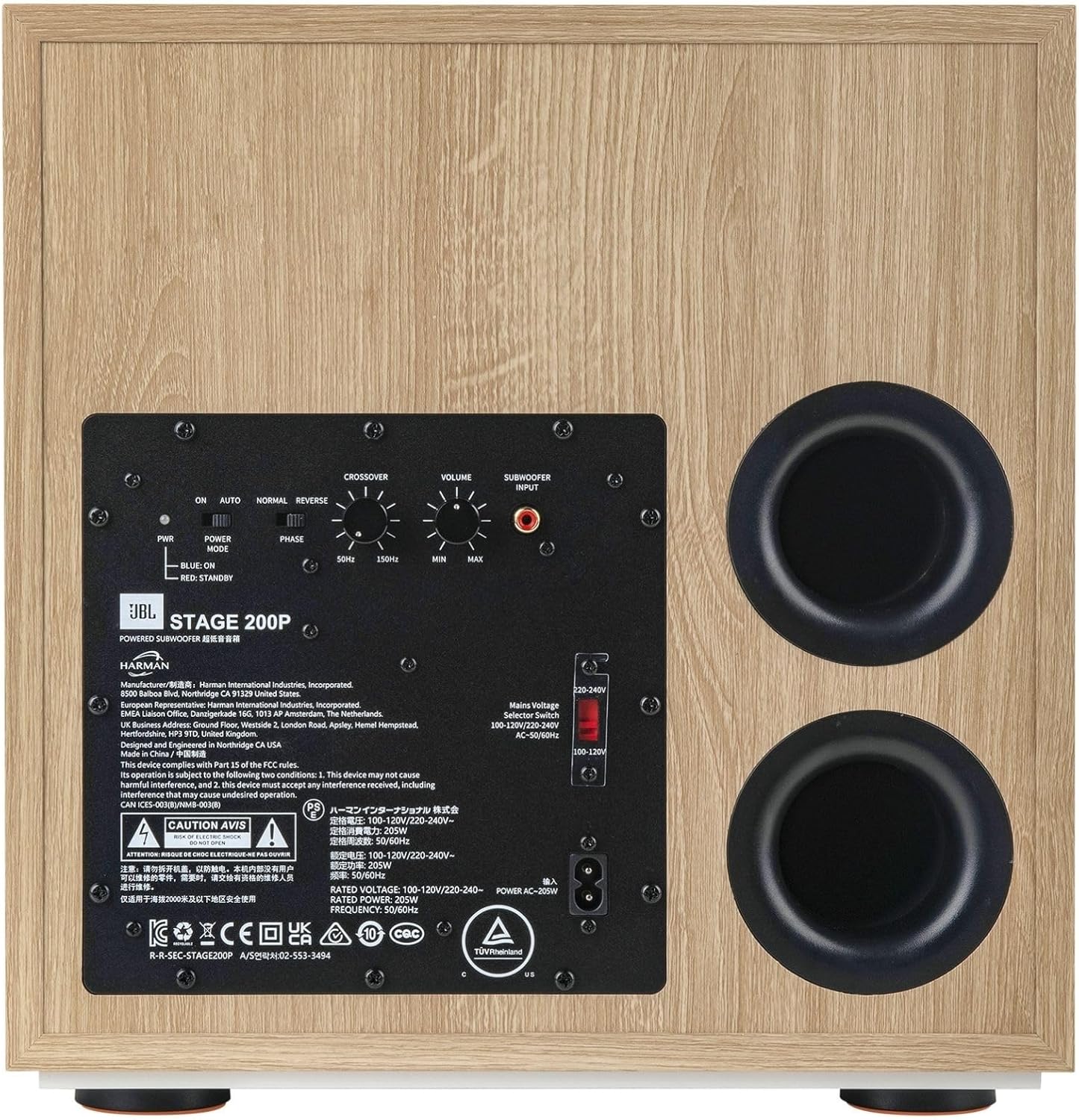

Gambar 3: Tukangeun view tina JBL Stage 2 200P Subwoofer, displaying the control panel, input/output connections, and dual rear-firing tuned ports.

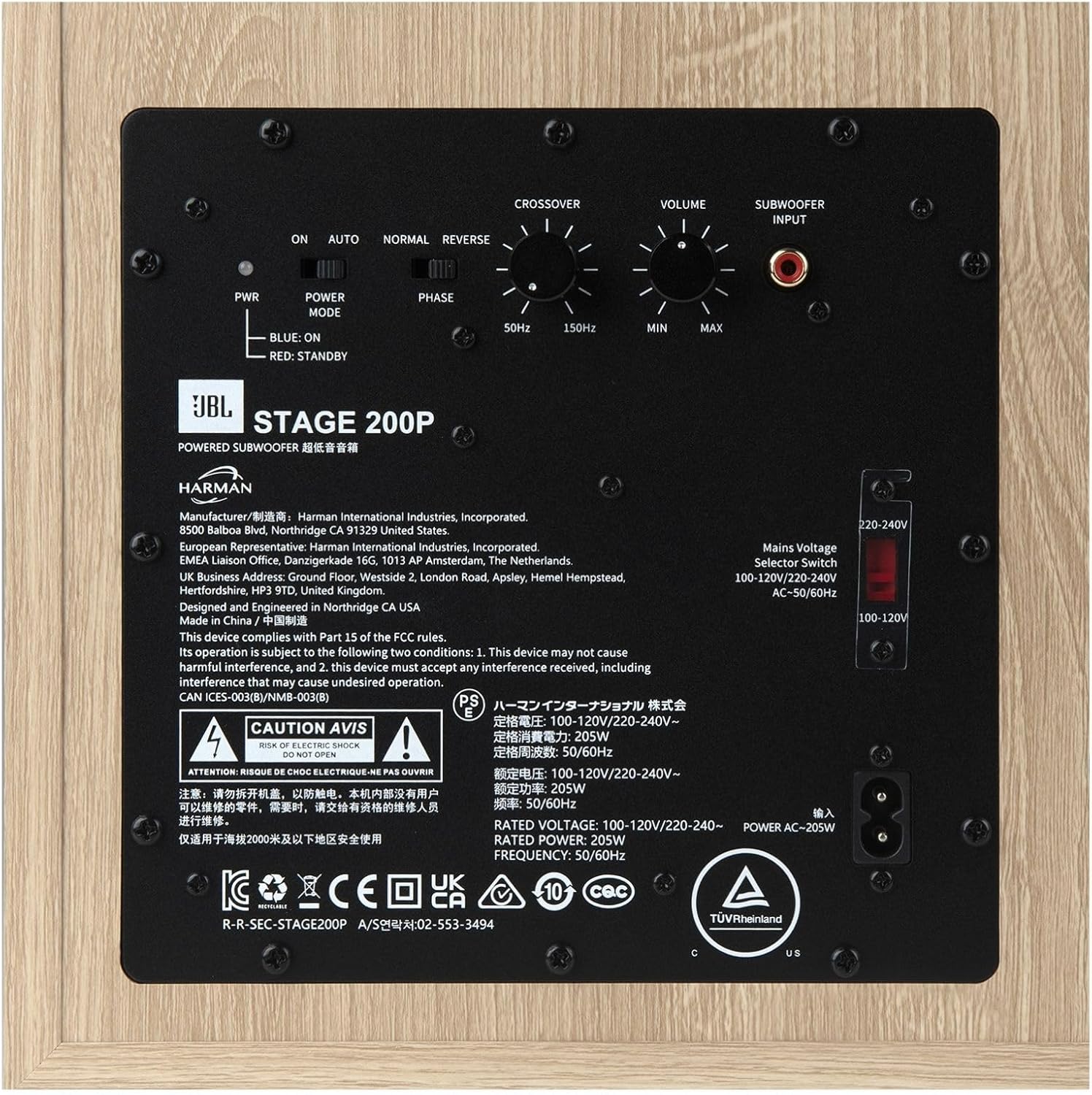

Gambar 4: Detil view of the rear control panel, illustrating the Crossover, Volume, Phase, and Power Mode settings for system integration.

4.3. Sambungan Daya

Once audio connections are made, connect the supplied power cord to the subwoofer's power input and then to a suitable AC wall outlet. The subwoofer features a power mode switch (On/Auto/Normal/Reverse) for convenient operation.

5. Operasi

5.1. Kontrol Leuwihview

The rear panel of the JBL Stage 2 200P subwoofer provides several controls for fine-tuning its performance:

• Volume (Level) Control: Saluyukeun tingkat kaluaran sakabéh subwoofer nu. Mimitian ku setting anu handap sareng laun-laun ningkat dugi ka bass nyampur mulus sareng speaker utama anjeun.
• Kontrol Crossover: Sets the upper frequency limit for the subwoofer. Frequencies above this setting will be sent to your main speakers. Adjust this to match the low-frequency capabilities of your main speakers. A common starting point is 80 Hz.
• Kontrol Fase (0°/180°): Nyaluyukeun fase kaluaran subwoofer relatif kana spiker utama anjeun. Coba dua setélan pikeun mendakan anu nyayogikeun bass anu paling efektif sareng koheren.
• Power Mode Switch (On/Auto/Normal/Reverse):
  • Dina: Subwoofer tetep hurung terus.
  • Otomatis: The subwoofer automatically turns on when an audio signal is detected and enters standby mode after a period of inactivity.
  • Normal/Reverse: These settings might refer to specific phase adjustments or power-saving modes. Refer to the detailed manual for specific model functionality.

5.2. Initial Adjustment

1. Nyetél Jilid control to its minimum position.
2. Nyetél Palanglang control to approximately 80 Hz, or as recommended by your main speaker manufacturer.
3. Nyetél Fase switch to 0°.
4. Nyetél Modeu kakuatan to "Auto" for convenience.
5. Maénkeun sababaraha audio kalayan eusi bass anu signifikan.
6. Saeutik demi saeutik ningkatkeun Jilid control until the bass output is balanced with your main speakers.
7. Ékspérimén jeung Fase switch (0° vs. 180°) to determine which setting provides the most natural and impactful bass in your listening position.
8. Further fine-tune the Palanglang jeung Jilid controls to achieve optimal integration and desired bass response.

6. Pangropéa

• beberesih: Use a soft, dry cloth to clean the subwoofer cabinet. Avoid using abrasive cleaners, waxes, or solvents.
• Ventilasi: Ensure adequate ventilation around the subwoofer to prevent overheating. Do not block the rear ports or place the unit in an enclosed space without airflow.
• Penanganan: When moving the subwoofer, lift it carefully from the base. Avoid dropping or subjecting it to strong impacts.

7. Cara ngungkulan

8. Spésifikasi

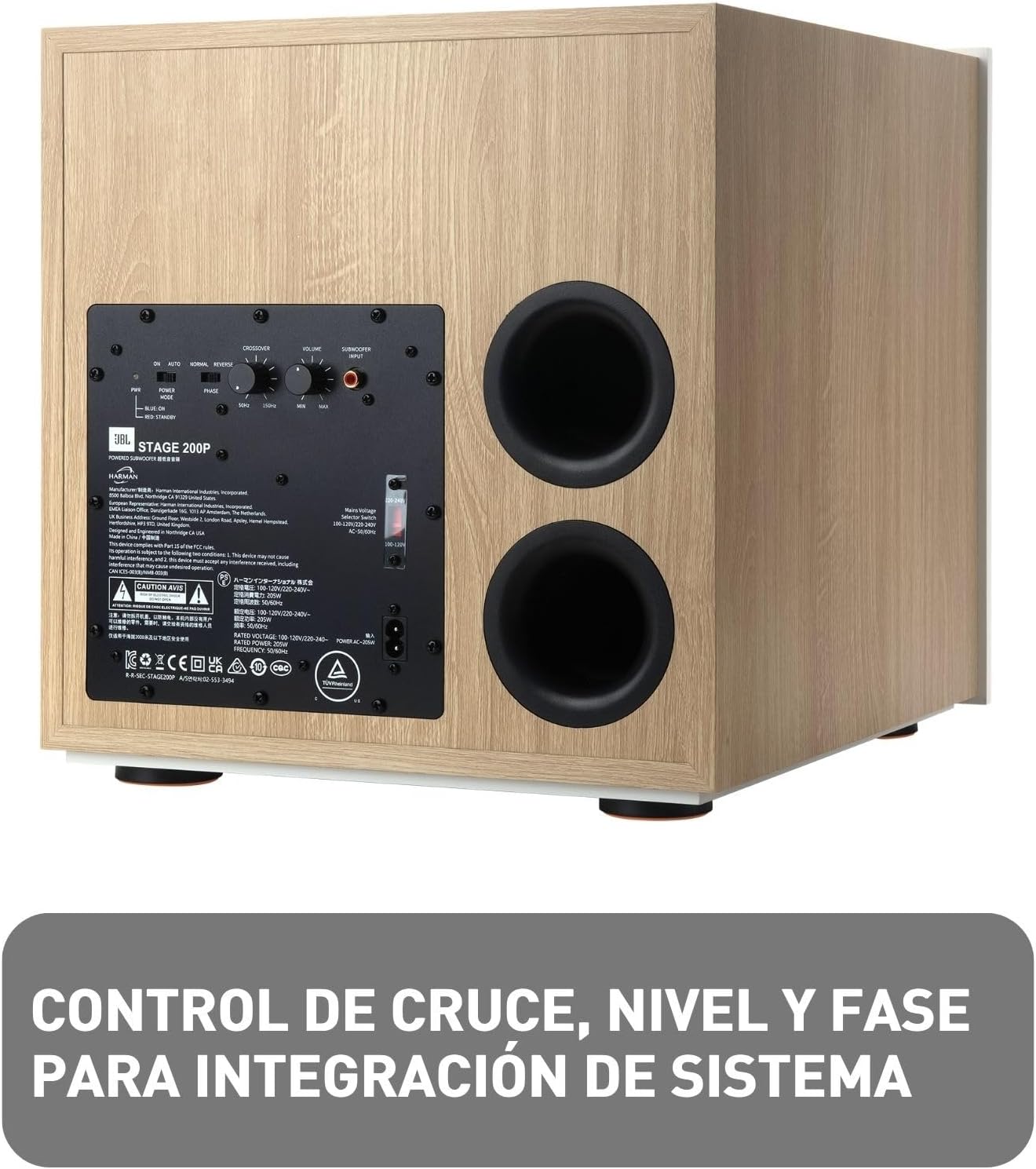

Gambar 5: Sisi view of the subwoofer illustrating its physical dimensions.

9. Jaminan & Dukungan

JBL Stage 2 200P Powered Subwoofer comes with a limited warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official JBL websitus. Pikeun rojongan teknis, bantuan ngungkulan, atawa inquiries jasa, mangga ngahubungan rojongan customer JBL ngaliwatan saluran resmi maranéhanana.

You can visit the official JBL Store for more information: JBL Store on Amazon
