Buku Panduan Pangguna Senter KLARUS G15

Bubuka

The KLARUS G15 is a high-performance, compact EDC (Everyday Carry) flashlight designed for various applications including camping, hiking, inspection, patrol, and emergency use. It features a powerful XHP70 second-generation LED, USB-C fast charging, and a long-lasting 5000mAh battery, offering exceptional brightness and extended runtime in a portable form factor.

Fitur produk

• High Lumen Flood Light: Equipped with a high-performance XHP70 second-generation LED, providing a maximum output of 4200 lumens with a 6500K color temperature for a wide viewsudut ing.
• Desain EDC Kompak: Measuring only 4.7 inches in length, it includes a convenient pocket clip and a magnetic tailcap for hands-free operation on metal surfaces.
• Batré Awét: Features a large 5000mAh battery, offering up to 200 hours of runtime on the lowest setting. The flashlight can also function as a power bank to charge other devices via its USB-C port.
• Quick Charge & Safe Lock: Supports 2A USB-C fast charging with a smart battery indicator (Green: 70-100%, Orange: 30-70%, Red: below 30%). A lock function prevents accidental activation.
• Sababaraha Modeu Pencahayaan: Offers 5 brightness levels (Turbo, High, Mid, Low, Moonlight) and 3 emergency modes (Strobe, Beacon, SOS) with a convenient memory function to recall the last used setting.
• Konstruksi awét: Made from superior space aluminum material with IPX8 waterproof rating, ensuring durability and reliability in various conditions.
• Perlindungan canggih: Includes an Intelligent Thermal Protection System (ITS) to regulate temperature and Reverse-Polarity Protection for battery safety.

Eusi pakét

The KLARUS G15 package typically includes the following items:

• KLARUS G15 Flashlight
• Batré Litium Ion 5000mAh
• Kabel Ngecas USB-C
• Kantong
• Lanyard
• O-cingcin cadang
• 18650 Battery Adapter
• Manual pamaké

Disetél

1. Pamasangan batré

Unscrew the tail cap of the flashlight. Insert the included 5000mAh Lithium Ion battery with the positive (+) end facing towards the head of the flashlight. Screw the tail cap back on securely.

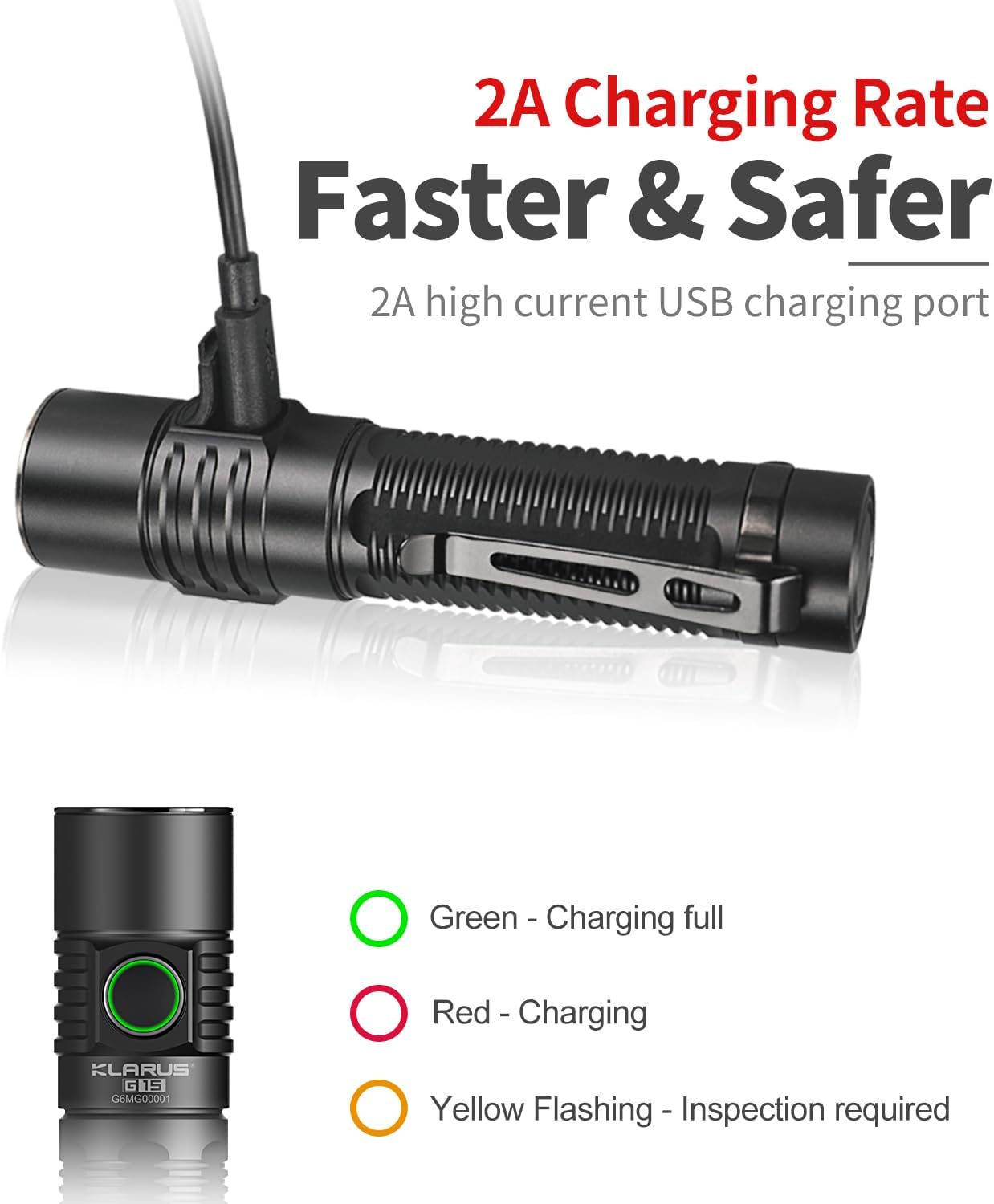

2. Ngecas senter

The KLARUS G15 features a USB-C charging port for convenient and fast recharging. Locate the USB-C port on the side of the flashlight, typically protected by a rubber cover. Open the cover and insert the provided USB-C charging cable. Connect the other end of the cable to a compatible USB power source (e.g., wall adapter, computer USB port).

The smart battery indicator will show the charging status:

• héjo: 70% -100% dieusian
• Oranyeu: 30% -70% dieusian
• Beureum: Below 30% charged

A full charge typically takes approximately 4 hours with a 2A charger. The flashlight can also be used to charge other mobile devices (phones, headphones) using the appropriate adapters (not included but mentioned in A+ content).

Parentah Operasi

1. Daya Hurung / Pareum

Press the side switch once to turn the flashlight on. Press it again to turn it off.

2. Brightness Levels (5 Modes)

When the flashlight is on, press and hold the side switch to cycle through the 5 brightness levels: Moonlight (10LM) → Low (100LM) → Medium (500LM) → High (2000LM) → Turbo (4200LM). Release the switch to select the desired brightness. The flashlight has a memory function and will turn on in the last used brightness mode (excluding emergency modes).

3. Emergency Modes (3 Functions)

From the OFF state, quickly double-press the side switch to activate the Turbo mode. From any state (ON or OFF), quickly triple-press the side switch to activate Strobe mode. While in Strobe, press and hold to cycle through Strobe → Beacon → SOS. Release to select. Press once to turn off.

4. Lockout Function

To prevent accidental activation, especially during transport, the G15 features a lockout function. From the OFF state, press and hold the side switch for 5 seconds until the light blinks twice. The flashlight is now locked. To unlock, quickly triple-press the side switch. The light will blink once to confirm unlock.

5. Candle Mode

The G15 can stand upright on its tail cap. When combined with a diffuser (not included but often available separately), it can function as a convenient area light or "candle" for ambient illumination.

6. Skenario Panggunaan Umum

The KLARUS G15 is versatile for various activities:

• Petualangan Luar: Cocog pikeun camping, hiking, and exploring, providing powerful illumination for wide areas.
• Everyday Carry (EDC): Its compact size and clip make it easy to carry in a pocket for daily tasks.
• Situasi Darurat: SOS and Beacon modes are useful for signaling, and the power bank feature can charge essential devices.
• Pamakéan profésional: Suitable for inspection, patrol, and other tasks requiring reliable and bright light.

Pangropéa

• beberesih: Wipe the flashlight body with a clean, soft cloth. For the lens, use a lens cleaning cloth.
• Lubrication: Larapkeun périodik gajih silikon kana O-cingcin sareng benang pikeun ngajaga résistansi cai sareng operasi lancar.
• Perawatan batré: Recharge the battery regularly, especially if not used for extended periods, to prolong its lifespan. Store the flashlight with a partially charged battery if storing long-term.
• Tahan cai: The G15 is IPX8 waterproof. Ensure the USB-C port cover is securely closed before exposing the flashlight to water.

Pamérésan masalah

spésifikasi

Garansi sareng Rojongan

KLARUS provides a warranty for its products. For specific warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official KLARUS website. In case of any issues or for technical support, please contact the seller, Klarus® Direct, or the KLARUS customer service team.

Anjeun tiasa mendakan langkung seueur inpormasi sareng sumber dukungan dina KLARUS Brand Store on Amazon.
