TouchWo 21.5-inch Capacitive Multi-Touch Industrial PC Monitor (DM215NFWB) User Manual

1. Bubuka

This manual provides essential information for the proper installation, operation, and maintenance of your TouchWo 21.5-inch Capacitive Multi-Touch Industrial PC Monitor, model DM215NFWB. This industrial-grade monitor features a 10-point capacitive touchscreen, runs on Windows 10, and is designed for embedded applications requiring robust performance and durability.

Figure 1: TouchWo 21.5-inch Industrial PC Monitor highlighting key features.

2. Naon dina Box

Pastikeun yén sadaya barang aya dina bungkusan:

• 1 x Touchscreen Tablet
• 1 x Power Adapter, Power Line 1.5m
• 1 x Manual Produk
• 4 x Embedded snap

3. Setup jeung Instalasi

The TouchWo industrial PC monitor is designed for embedded installation. Follow these steps to securely install the unit:

1. Nyiapkeun Alat: You will need a screwdriver for installation. The accessory pack includes clamp plates, long screws, and short screws.
2. Insert Monitor: Gently push the monitor from the outside into the designated cabinet opening.
3. Aman Clamp Plates (Short Screws): Place a short screw into the hole of a clamp plate (the side without threads). Use the screwdriver to screw this short screw into an installation hole on the machine, ensuring it is secure.
4. Aman Clamp Plates (Long Screws): Place a long screw into another hole on the clamp plate. Fix its position and then tighten it with the screwdriver.
5. Repeat for all holes: Apply the same installation method to the other three holes to ensure the monitor is firmly secured.
6. Cék ahir: After installation, verify that all screws are secure and the monitor is stable within the cabinet.

Kanggo pituduh visual, mangga tingali pidéo pamasangan di handap ieu:

The monitor features rich extensible interfaces for various industrial applications:

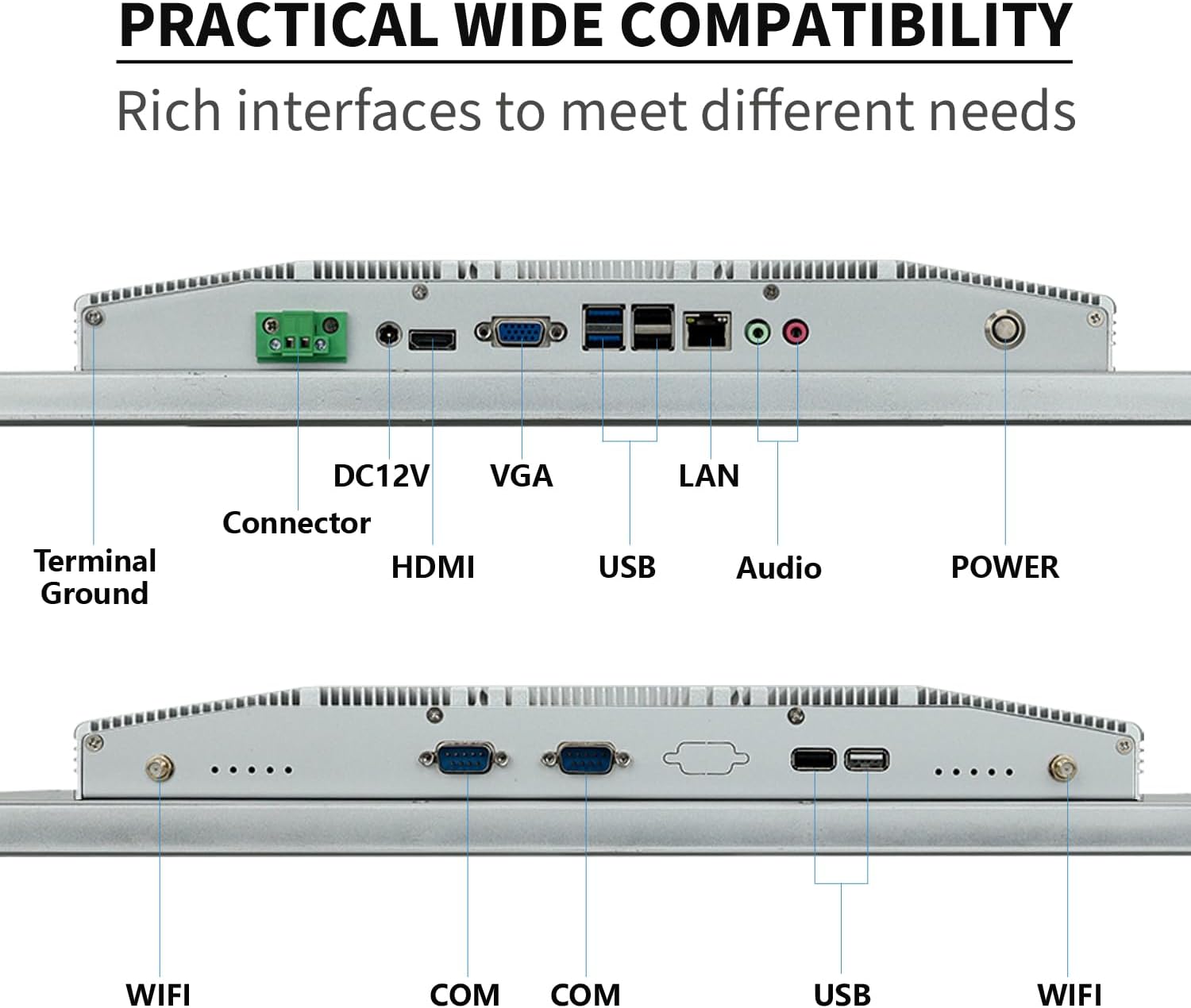

Gambar 2: Tukangeun view of the monitor displaying available ports.

Connect the power adapter to the DC12V port and other necessary peripherals (USB devices, HDMI-Out, LAN) as required by your application.

4. Operasi

Your TouchWo industrial PC monitor comes pre-installed with Windows 10, providing a familiar operating environment. The capacitive multi-touch screen supports 10 points of touch, allowing for intuitive interaction.

4.1 Fungsi Layar Toél

The 10-point touch display allows for various gestures without requiring additional drivers. You can use multiple fingers to zoom in and out of images, navigate interfaces, and perform other touch-based operations. The screen also supports operation with gloves, enhancing usability in industrial settings.

Gambar 3: Kelamples of 10-point touch gestures.

4.2 Spiker Terpasang

The monitor includes built-in speakers for audio output. Adjust volume settings through the Windows 10 operating system.

5. Pangropéa sarta durability

The TouchWo industrial PC monitor is engineered for demanding environments, featuring robust construction and specialized design elements for durability and ease of maintenance.

5.1 IP65/IP67 Water and Dust Resistance

The front screen of the monitor boasts an IP65 rating, providing protection against dust ingress and low-pressure water jets from any direction. For enhanced protection, the front screen can also achieve IP67 water and dust resistance, making it suitable for environments where it may be exposed to more significant moisture or dust. The backshell may require customization for specific IP ratings.

Figure 4: Durability features including IP65 rating, explosion-proof glass, and operating temperature.

5.2 Fanless and Silent Design

The monitor features a fanless design, ensuring silent operation and eliminating the need for additional cooling devices. This design contributes to ultra-energy-efficient performance. The back shell is constructed from aluminum alloy to maximize heat dissipation, maintaining stable performance even in high-traffic work environments.

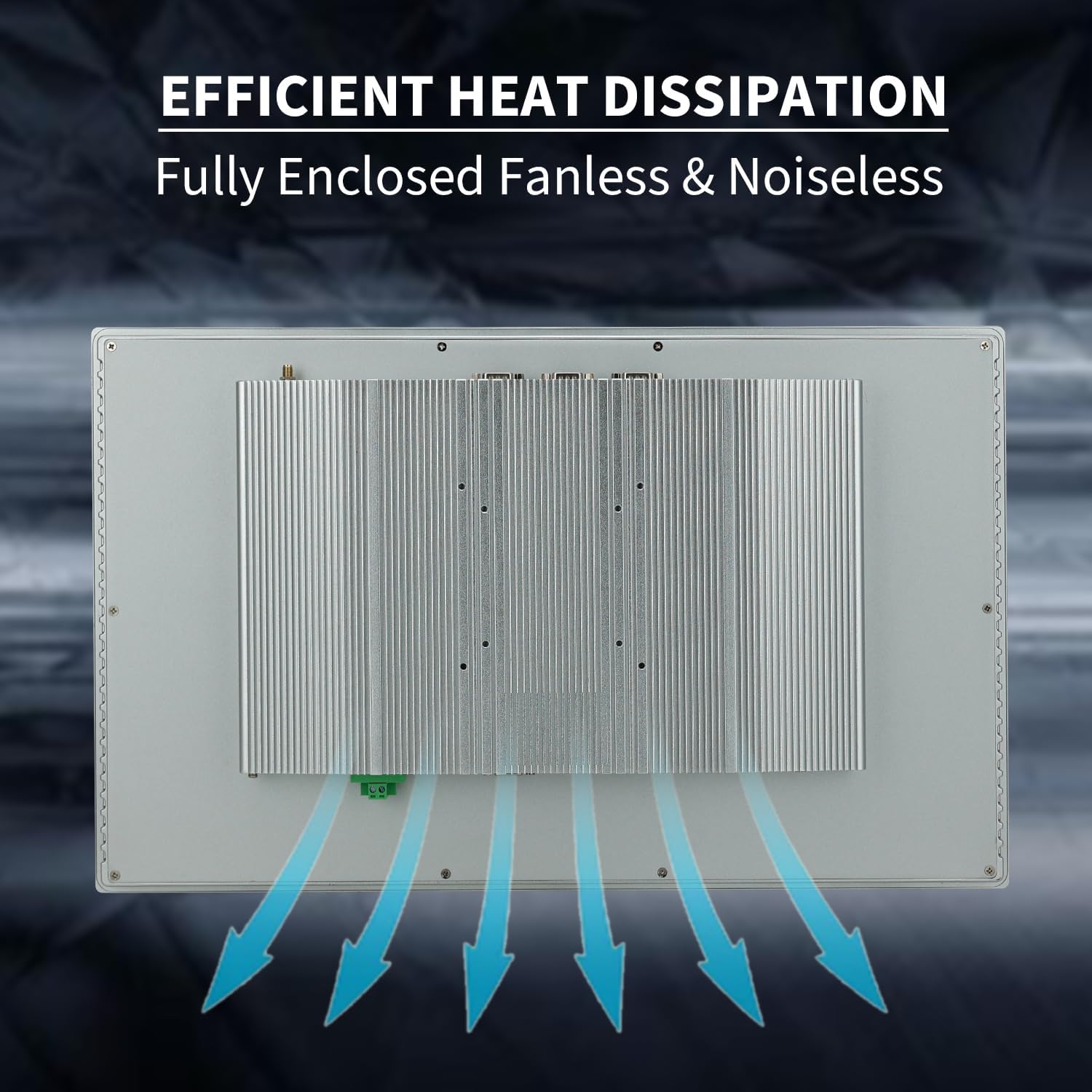

Figure 5: Efficient heat dissipation design of the monitor's back panel.

5.3 Parentah beberesih

Due to its waterproof and dustproof design, the monitor's screen is easy to clean. Use a soft, damp cloth to wipe the screen surface. Avoid abrasive cleaners or harsh chemicals that could damage the display.

6. Cara ngungkulan

If you encounter any issues with your TouchWo industrial PC monitor, please consider the following basic troubleshooting steps:

• Henteu aya kakuatan: Ensure the power adapter is securely connected to both the monitor and a working power outlet. Verify the power line is not damaged.
• Henteu aya tampilan: Check the HDMI-Out connection to any external display. If using the integrated display, ensure the system is powered on and has booted correctly.
• Layar rampa teu ngaréspon: Restart the monitor. Ensure no foreign objects are on the screen surface. If the issue persists, contact customer support.
• Masalah periferal: Verify all USB and LAN connections are secure. Test peripherals on another device if possible to rule out device-specific issues.

Pikeun masalah anu langkung rumit atanapi masalah anu terus-terusan, mangga tingali bagian Garansi sareng Dukungan kanggo inpormasi kontak.

7. Spésifikasi Téknis

Below are the detailed technical specifications for the TouchWo 21.5-inch Capacitive Multi-Touch Industrial PC Monitor (DM215NFWB):

Figure 6: Monitor dimensions and VESA mounting details.

8. Garansi jeung Rojongan

This TouchWo touchscreen monitor is FCC, CE, and RoHS certified, and the manufacturing facility holds ISO9001 quality management certification. We offer 24/7 online customer support for any inquiries or assistance you may need.

For support, please visit the official TouchWo website or contact our customer service team directly. Please have your model number (DM215NFWB) and purchase details ready when contacting support.
