Globo Lighting BOSTON Outdoor Pedestal Light

1. Bubuka

Thank you for choosing the Globo Lighting BOSTON Outdoor Pedestal Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

Image 1.1: The BOSTON outdoor pedestal light providing illumination along a pathway.

2. Parentah Kasalametan

• Kasalametan listrik: Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng sadaya kode listrik lokal sareng nasional. Salawasna pegatkeun sambungan kakuatan di circuit breaker utama saméméh instalasi, perawatan, atawa ngagantian bohlam.
• Pamakéan outdoor: This fixture is designed for outdoor use. Ensure all connections are waterproof and sealed appropriately to prevent water ingress.
• Jenis bohlam: Anggo ngan ukur bohlam E27 kalayan daya anu ditangtukeuntage. Ulah ngaleuwihan wat maksimumtage dituduhkeun dina fixture nu.
• Penanganan: Ati-ati dina ngurus perlengkapan ieu. Ulah nepi ka muragkeun atawa kakeunaan dampak anu kuat.
• beberesih: Do not use abrasive cleaners or solvents. Clean with a soft, damp lawon.
• Panas: Allow the bulb to cool completely before attempting to replace it.

3. Eusi Paket

Punten parios yén sadaya komponén aya sareng henteu ruksak sateuacan ngamimitian pamasangan:

• 1x BOSTON Outdoor Pedestal Light Fixture (Model 105701)
• 1 x Pamasangan Base
• 1x Set of Mounting Hardware (screws, anchors)
• 1 x Manual Pamaké

Note: E27 bulb is not typically included and must be purchased separately.

4. Spésifikasi

5. Setup jeung Instalasi

penting: Ensure the main power supply is switched off at the circuit breaker before commencing installation.

1. Pilih Lokasi: Select a suitable outdoor location for the pedestal light, ensuring it is on a stable, level surface and has access to the necessary electrical wiring.
2. Nyiapkeun Wiring: If not already present, run appropriate outdoor-rated electrical cable to the installation point. Consult a qualified electrician for this step.
3. Pasang pangkalan: Position the mounting base on the desired surface. Mark the drilling points through the holes in the base. Drill pilot holes and secure the base using the provided mounting hardware (screws and anchors). Ensure the base is firmly attached.
4. Nyambungkeun Kawat Listrik: Carefully connect the electrical wires from your power supply to the terminals inside the fixture. Follow the standard wiring color codes (e.g., Live, Neutral, Earth). Ensure all connections are secure and properly insulated.
5. Pasang Bulb: Insert a suitable E27 bulb (not included) into the lamp panyekel. Ulah overighten.
6. Perlengkapan Aman: Attach the main body of the pedestal light to the mounted base, ensuring it is securely fastened and sealed against moisture.
7. Mulangkeun Daya: Saatos pamasangan réngsé sareng sadaya sambungan parantos aman, balikkeun deui daya dina pemutus sirkuit utama.

Image 5.1: The pedestal light installed on a patio, demonstrating a typical mounting scenario.

6. Parentah Operasi

The BOSTON Pedestal Light features an integrated motion sensor for automatic operation.

• Daya Hurung: Once installed and power is restored, the light will enter a warm-up period (typically a few seconds) before the motion sensor becomes active.
• Sénsor gerak: The integrated motion sensor detects movement within its detection range. When motion is detected, the light will illuminate.
• Pareuman otomatis: After a period of no detected motion, the light will automatically turn off. The duration of illumination is typically pre-set or adjustable via controls on the sensor (if available). Refer to the sensor's specific markings for adjustment options.
• Sénsor Siang/Peuting: The motion sensor also includes a photocell that prevents the light from activating during daylight hours, conserving energy. The light will only activate due to motion when ambient light levels are low enough.

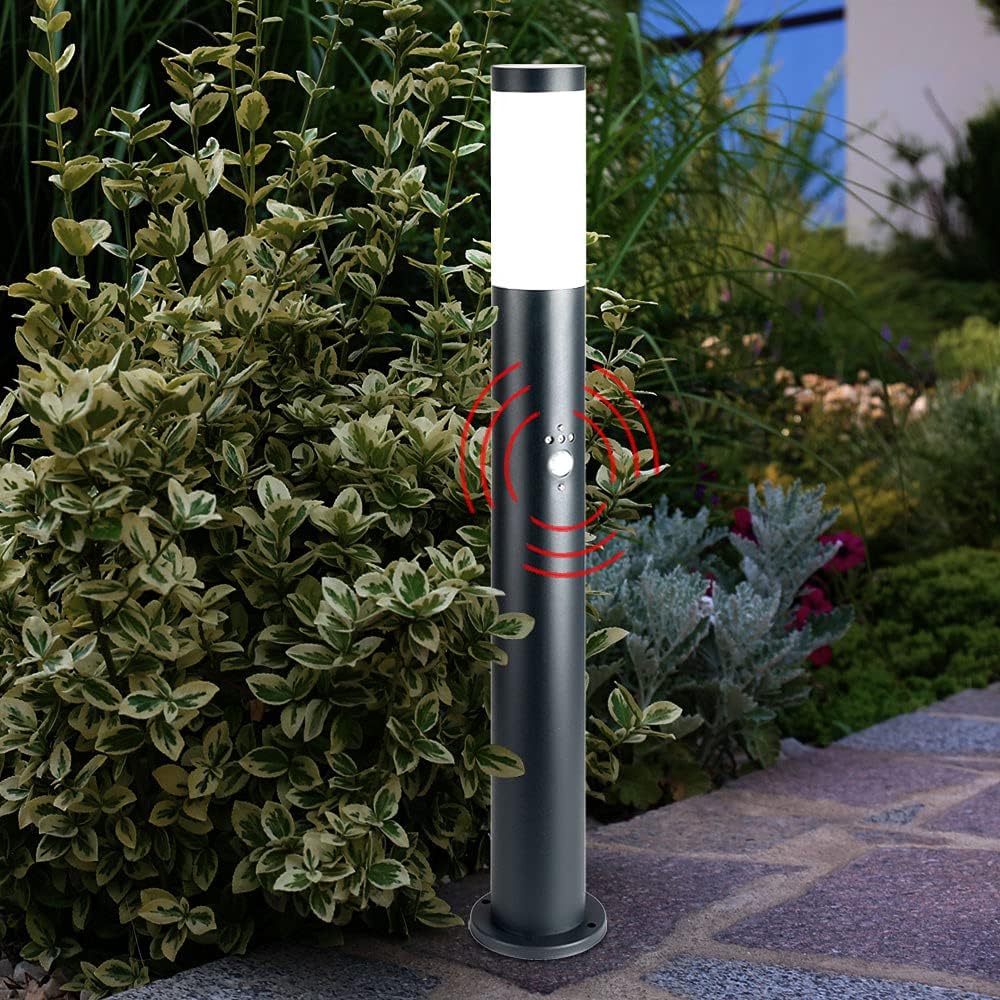

Image 6.1: Detail of the motion sensor on the pedestal light, highlighting its detection area.

Image 6.2: The pedestal light operating at night, with the motion sensor detecting movement.

7. Pangropéa

• beberesih: Rutin ngabersihkeun fixture kalawan lemes, damp cloth to remove dirt and debris. Do not use harsh chemicals or abrasive materials, as these can damage the finish or plastic components.
• Ngagantian bohlam:
  1. Ensure the power supply to the fixture is turned off at the circuit breaker.
  2. Keun bohlam anu lami tiis sagemblengna sateuacan dirampa.
  3. Carefully unscrew the top cover or access panel to reach the E27 bulb.
  4. Unscrew the old bulb and replace it with a new E27 bulb of the correct wattage.
  5. Securely reattach the cover or access panel, ensuring a watertight seal.
  6. Mulangkeun kakuatan.
• Pamariksaan: Periodically inspect the fixture for any signs of wear, damage, or loose connections. Address any issues promptly to ensure continued safe operation.

8. Cara ngungkulan

If you experience persistent issues not covered here, please contact a qualified electrician or the product supplier.

9. Garansi jeung Rojongan

This product is covered by the standard warranty provided by the manufacturer. Please retain your proof of purchase for any warranty claims. For technical support or further assistance, please contact your retailer or the Globo Lighting customer service department.

Inpormasi kontak biasana tiasa dipendakan dina bungkus produk atanapi dina alamat resmi produsén. websitus.
