Oster 3-in-1 Kitchen System 700 Watt Blender with Blend-N-Go Cup

Oster 3-in-1 Kitchen System 700 Watt Blender Instruction Manual

Bubuka

Thank you for choosing the Oster 3-in-1 Kitchen System 700 Watt Blender. This appliance is designed to provide versatile blending, chopping, and personal blending capabilities for your kitchen needs. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and retain it for future reference.

Safeguards penting

Nalika nganggo alat-alat listrik, pancegahan kaamanan dasar kedah diturutan pikeun ngirangan résiko kahuruan, kejutan listrik, sareng/atawa tatu pikeun jalma, kalebet ieu:

  1. Baca sadaya pitunjuk sateuacan ngaoperasikeun alat.
  2. Pikeun ngajaga tina shock listrik, ulah neuleumkeun kabel, colokan, atawa alat dina cai atawa cairan séjén.
  3. Pengawasan anu ketat diperyogikeun nalika alat naon waé dianggo ku atanapi caket barudak.
  4. Cabut colokan tina stop kontak nalika henteu dianggo, sateuacan dipasang atanapi nyabut bagian, sareng sateuacan beberesih.
  5. Hindarkeun kontak sareng bagian anu gerak.
  6. Entong ngoperasikeun alat naon waé anu nganggo kabel atanapi colokan anu ruksak atanapi saatos alatna gagal atanapi parantos turun atanapi ruksak dina cara naon waé. Balikkeun alat ka fasilitas layanan otorisasi anu pangcaketna pikeun pamariksaan, perbaikan, atanapi panyesuaian listrik atanapi mékanis.
  7. Pamakéan kantétan anu henteu disarankeun atanapi dijual ku produsén tiasa nyababkeun kahuruan, kejutan listrik, atanapi tatu.
  8. Ulah make di luar.
  9. Entong ngantepkeun kabel ngagantung di tepi méja atanapi konter atanapi ngarampa permukaan anu panas.
  10. Jaga leungeun sareng parabot dapur tetep teu asup kana wadah nalika ngablender pikeun nyegah kamungkinan cilaka parah ka jalma atanapi karusakan kana blender. Scraper tiasa dianggo tapi kedah dianggo ngan ukur nalika blender teu jalan.
  11. Sabeulah seukeut. Nanganan taliti.
  12. Salawasna beroperasi Blénder kalawan tutup di tempat.
  13. When blending hot liquids, use caution as steam can build up and cause burns.
  14. Ulah make alat pikeun lian ti pamakéan dimaksudkeun.

Bagian sarta Fitur

Familiarize yourself with the components of your Oster 3-in-1 Kitchen System:

  • Dasar Blénder: Ngandung motor sareng panel kontrol.
  • Glass Blending Jar: 1.25-liter capacity for larger blending tasks.
  • Blender Blade Assembly: Detachable blade for the glass jar.
  • Tutup Blénder Jar: With removable filler cap.
  • Blend-N-Go Cup: Personal blending cup for single servings.
  • Blend-N-Go Blade Assembly: Specific blade for the Blend-N-Go cup.
  • Kantétan prosésor dahareun: Bowl, lid, and chopping blade for food processing tasks.
  • Panél kontrol: Buttons for OFF, MIX, BLEND, CHOP, ICE CRUSH, and PULSE.

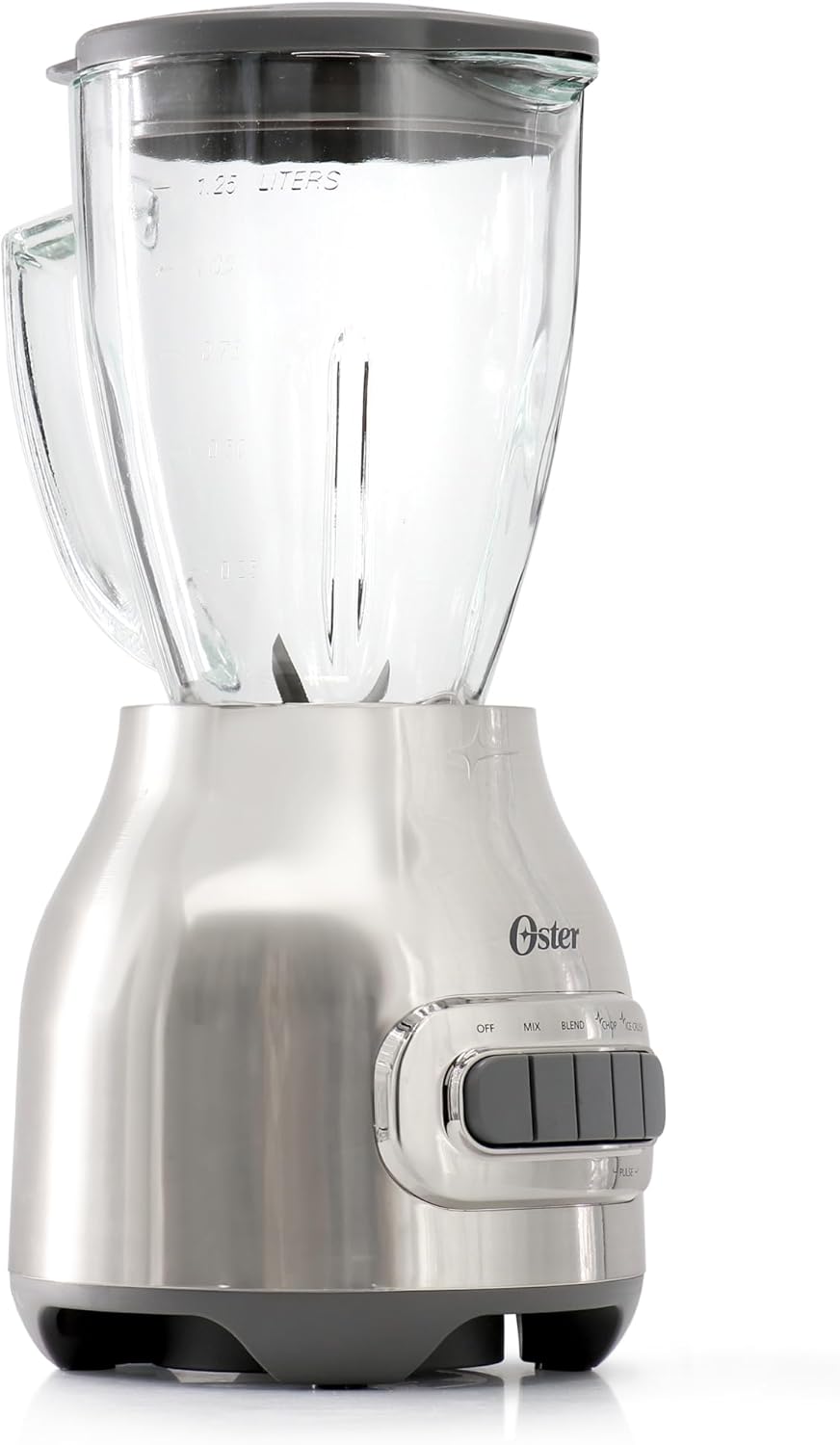

Oster Blender Base with Glass Jar
Image: The Oster blender base with the glass blending jar attached. The jar has measurement markings and a lid. The base features the Oster logo and control buttons.
Oster Blender Base with Blend-N-Go Cup
Image: The Oster blender base with the Blend-N-Go personal cup attached. The cup is tall and clear, designed for single servings.
Oster Food Processor Attachment
Image: The food processor attachment, consisting of a clear bowl with a central spindle and a chopping blade at the bottom.
Oster Blender Control Panel
Gambar: A close-up view of the blender's control panel, showing buttons labeled 'OFF', 'MIX', 'BLEND', 'CHOP', 'ICE CRUSH', and 'PULSE'.

Disetél

Sateuacan Paké Kahiji

  1. Buka bungkus sadaya komponén sareng cabut bahan bungkusan.
  2. Wash the glass blending jar, blender blade assembly, jar lid, Blend-N-Go cup, Blend-N-Go blade assembly, food processor bowl, lid, and chopping blade in warm, soapy water. Rinse thoroughly and dry.
  3. Ngusap dasar Blénder sareng iklanamp lawon. Ulah neuleumkeun dasar dina cai.

Assembling the Blender Jar

  1. Place the sealing ring onto the blender blade assembly.
  2. Selapkeun rakitan bilah kana liang handap toples kaca.
  3. Screw the threaded base onto the bottom of the jar until secure.
  4. Simpen toples anu parantos dirakit kana dasar blender, pastikeun éta dipasang pageuh.
  5. Teundeun tutup kana toples.

Assembling the Blend-N-Go Cup

  1. Fill the Blend-N-Go cup with ingredients. Do not overfill past the MAX line.
  2. Screw the Blend-N-Go blade assembly onto the open end of the cup until secure.
  3. Invert the cup and place it onto the blender base, aligning the tabs.

Assembling the Food Processor Attachment

  1. Place the food processor bowl onto the blender base, aligning the tabs and twisting to lock.
  2. Carefully place the chopping blade onto the central spindle inside the bowl.
  3. Tambahkeun bahan kana mangkok.
  4. Place the food processor lid onto the bowl, aligning and twisting to lock.

Parentah Operasi

Always ensure the appliance is unplugged before assembling or disassembling parts.

General Blending Tips

  • For best results, always add liquids first, then soft ingredients, then hard ingredients, and finally ice.
  • Do not overfill the blending jar or cup.
  • If ingredients are not circulating, turn off the blender, remove the lid, and use a spatula to push ingredients towards the blades. Replace lid and continue blending.

Ngagunakeun Blénder Jar

  1. Ensure the blender jar is properly assembled and seated on the base.
  2. Add ingredients to the jar. Do not exceed the maximum fill line.
  3. Secure the lid firmly onto the jar.
  4. Colokkeun blender kana stop kontak listrik standar.
  5. Select the desired speed setting (MIX, BLEND, CHOP, ICE CRUSH) by pressing the corresponding button. For short bursts of power, press and hold the PULSE button. Release to stop.
  6. To stop blending, press the OFF button.
  7. Unplug the blender before removing the jar.

Using the Blend-N-Go Cup

  1. Prepare the Blend-N-Go cup with ingredients and attach the blade assembly as described in the Setup section.
  2. Invert the cup and place it onto the blender base, ensuring it locks into place.
  3. Colokkeun Blénder kana stop kontak listrik.
  4. Press the BLEND or PULSE button to start blending.
  5. Once blending is complete, press the OFF button.
  6. Unplug the blender, then remove the Blend-N-Go cup from the base.
  7. Carefully unscrew the blade assembly and replace it with the travel lid (if included).

Using the Food Processor Attachment

  1. Assemble the food processor attachment on the blender base as described in the Setup section.
  2. Add ingredients to the food processor bowl.
  3. Amankeun tutupna.
  4. Colokkeun Blénder kana stop kontak listrik.
  5. Use the CHOP or PULSE setting for processing. Do not continuously run the food processor for extended periods; use short pulses for better control.
  6. To stop, press the OFF button.
  7. Unplug the blender before removing the food processor lid and bowl.
Oster 3-in-1 Kitchen System in use
Image: The Oster 3-in-1 Kitchen System set up on a counter. The main blender with its glass jar is on the left, and the Blend-N-Go cup filled with fruit and ice is on the right, ready for use.

Perawatan sareng Ngabersihan

Pembersih anu leres mastikeun umur panjang sareng kabersihan alat anjeun.

Ngabersihan Dasar Blénder

  • Salawasna cabut adaptor sateuacan beberesih.
  • Ngusap dasar Blénder sareng iklanamp lawon. Ulah neuleumkeun basa dina cai atawa cairan séjén.
  • Ulah nganggo pembersih anu abrasif atanapi bantalan penggosok, sabab éta tiasa ngagores permukaanana.

Cleaning the Blending Jar, Blend-N-Go Cup, and Food Processor Parts

  • Disassemble all removable parts: glass jar, blade assembly, lid, Blend-N-Go cup, Blend-N-Go blade assembly, food processor bowl, lid, and chopping blade.
  • Wash these parts in warm, soapy water. Rinse thoroughly and dry.
  • The glass blending jar, Blend-N-Go cup, and food processor bowl are generally dishwasher-safe (top rack recommended). Refer to the product packaging or manufacturer's website for specific dishwasher compatibility.
  • Exercise caution when handling the blades, as they are sharp.

Pamérésan masalah

Upami anjeun mendakan masalah sareng Blénder anjeun, tingali masalah sareng solusi umum ieu:

MasalahMungkin Cukang lantarananaSolusi
Blénder teu hurung.Not plugged in; power outlet not working; appliance not assembled correctly.Ensure the power cord is securely plugged into a working outlet. Check if the jar/cup/food processor is correctly seated and locked onto the base.
Motor hésé atawa eureun.Too many ingredients; ingredients are too thick; motor overheating.Reduce the amount of ingredients. Add more liquid. Use the PULSE function or a lower speed. If overheated, unplug and let cool for 15-20 minutes before restarting.
Contents leak from bottom of jar/cup.Blade assembly not tightened; sealing ring missing or improperly placed.Ensure the blade assembly is securely tightened onto the jar/cup. Check that the sealing ring is correctly positioned on the blade assembly.
Bahan-bahanna henteu adun lancar.Not enough liquid; ingredients stuck; incorrect speed setting.Add more liquid. Turn off the blender, remove the lid, and use a spatula to redistribute ingredients. Select a higher speed or use the PULSE function.

spésifikasi

  • merek: Oster
  • model: 3-in-1 Kitchen System 700 Watt Blender
  • kakuatan: 700 Watt
  • Kapasitas Stoples Blender: 1.25 liter
  • Ukuran produk: 7.2 "D x 6.5" W x 6.5" H
  • Beurat barang: 7 pon
  • Tipe Kontrol: Tombol Push Manual
  • Bahan wadahna: Glass (Blender Jar), Plastic (Blend-N-Go Cup, Food Processor)
  • Bahan sabeulah: Plastic (likely referring to the blade housing, actual blades are metal)
  • Fitur husus: 3-in-1 Kitchen System (Blender, Blend-N-Go, Food Processor)

Garansi

This Oster appliance comes with a limited warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Oster websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

Rojongan Palanggan

If you have any questions, require assistance, or need to report an issue with your Oster 3-in-1 Kitchen System, please contact Oster customer service. You can typically find contact information on the manufacturer's websitus atanapi dina bungkusan produk.
