Kendal 2L Ultrasonic Cleaner User Manual

Bubuka

This manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your Kendal Commercial Grade 2L Ultrasonic Cleaner. Please read this manual thoroughly before using the appliance to ensure optimal performance and longevity.

Image: The Kendal 2L Ultrasonic Cleaner, showcasing its stainless steel body, blue digital control panel, included cleaning basket, and power cord.

Émbaran Kasalametan

Patuh kana pedoman kaamanan ieu penting pisan pikeun nyegah karusakan unit sareng mastikeun kasalametan pangguna.

• Awas: Do not plug in the power source before filling or emptying the tank. Ensure the tank is adequately filled with liquid before operation.
• Awas: Do not operate the heating function without water in the tank. Always supervise the unit when heating.
• Always power off the machine and allow the water to reach a normal temperature before draining the tank.
• Avoid using strong corrosive solutions to clean articles, as this may damage the tank or the items.
• Operate the unit within the recommended temperature range of 20°C to 80°C (68°F to 176°F).
• Awas: Never start the machine with an empty tank.
• Prolonged operation with insufficient water can lead to overheating, potentially damaging the unit or the items being cleaned. If long operation is required, periodically turn off and unplug the machine to allow it to cool.
• Turn off the heating function immediately after use.
• If the overheating protection activates, the cleaner will stop. Unplug the machine and wait for 15 minutes before attempting to restart it.

Produk Leuwihview

Fitur konci

• Daya beberesih jero: Equipped with 2 strengthened transducers for powerful 42 KHz ultrasonic cleaning, effectively removing oils, dirt, and grime. Ultrasonic power: 120 Watts.
• Kapasitas Tangki Berehan: 2-liter tank suitable for various items. Tank dimensions: 6" (L) x 5.5" (W) x 4" (H).
• Integrated Heater: A 150-watt heater quickly reaches preset temperatures, enhancing cleaning for oil and wax.
• Kontrol Digital: Features digital program cleaning cycles from 1 to 99 minutes and temperature control from 20°C to 80°C (68°F to 176°F).
• Konstruksi awét: Made entirely of 304 stainless steel (body, tank, cover, and mesh basket) for anti-acid and alkaline resistance, ensuring long-term durability.
• Desain anu ramah-pamaké: Includes comfortable plastic handles for easy movement and a mesh basket to safely hold items during cleaning.
• Ngurangan Noise: Built-in sound-absorbing cotton and an integrated sealed shell design contribute to noise reduction.

Komponén

Gambar: Detil views of the ultrasonic cleaner, showing the intuitive digital controls on the front panel and the power switch, fuse, and power socket on the back. Air inlets and outlets for heat dissipation are also visible.

• Ultrasonic Cleaner Body (Stainless Steel)
• Tutup Stainless Steel
• Stainless Steel Mesh Basket
• Kabel listrik
• Digital Control Panel (Timer and Temperature)
• Power Switch (Rear)
• Fuse (Rear)
• Power Socket (Rear)

spésifikasi

Image: A visual representation of the ultrasonic cleaner's dimensions (6.89in, 6.3in, 8.27in) and key specifications including 120W Ultrasonic Power, 100W Heat Power, 40 KHz Frequency, and 2L/0.52 gal Capacity.

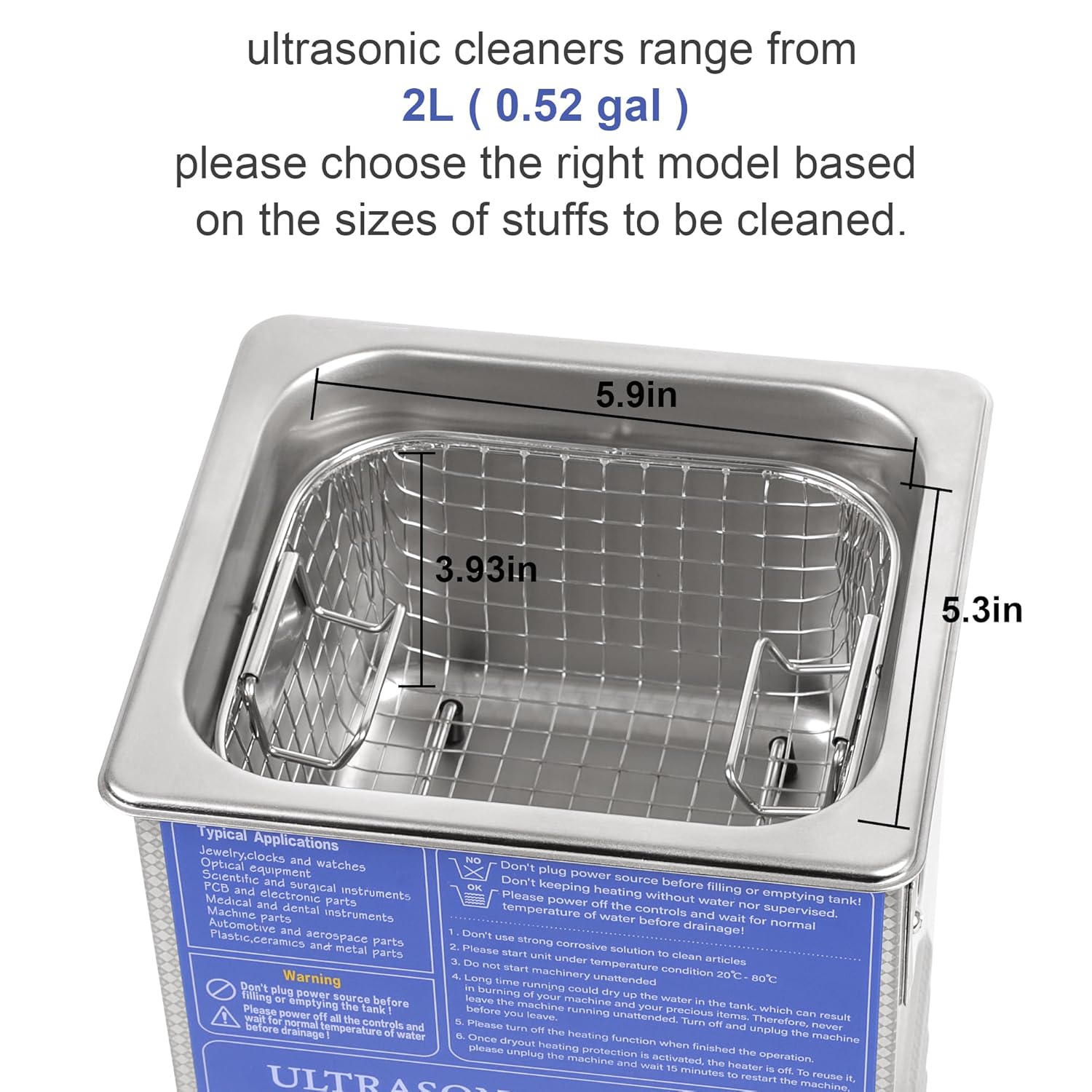

Gambar: A close-up view of the ultrasonic cleaner's internal tank, illustrating its dimensions: 5.9 inches in length, 3.93 inches in width, and 5.3 inches in height. This helps users choose the right model based on item size.

Disetél

1. Ngabongkar bungkusan: Taliti miceun cleaner ultrasonik sareng sadaya asesoris tina bungkusan. Mariksa karusakan naon waé.
2. panempatan: Place the unit on a stable, level, and dry surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
3. Tangki ngeusian: Open the lid and fill the stainless steel tank with an appropriate cleaning solution or water. Do not exceed the maximum fill line. Ensure the tank is filled before plugging in the unit.
4. Sambungkeun Kakuatan: Plug the power cord into the power socket on the back of the unit, then plug the other end into a grounded electrical outlet (AC 100-120V 40 HZ).
5. Daya mimiti Hurung: Flip the main power switch located on the back of the unit to the "ON" position. The digital display should illuminate.

Parentah Operasi

Operasi Umum

1. Nyiapkeun Item: Place the items to be cleaned into the mesh basket. Ensure items are fully submerged in the cleaning solution without overcrowding.
2. Setel Suhu (Opsional): If heating is desired, use the temperature control buttons on the digital panel to set the desired temperature (20°C - 80°C). The heater will begin to warm the solution.
3. Atur Timer: Use the timer control buttons on the digital panel to set the desired cleaning cycle duration (1 - 99 minutes).
4. Mimitian beberesih: Press the "ON/OFF" or "Start" button (refer to your specific model's button labels if different) to begin the ultrasonic cleaning process. The unit will emit a humming sound.
5. Prosés Monitor: Allow the cleaning cycle to complete. The unit will automatically stop when the timer reaches zero.
6. Hapus Item: Once the cycle is complete, turn off the unit and carefully remove the mesh basket with the cleaned items. Rinse items thoroughly with clean water if necessary.
7. Pareum listrik: Turn off the main power switch on the back of the unit when not in use.

Aplikasi beberesih

The Kendal Ultrasonic Cleaner is suitable for a wide range of applications, including:

Image: A visual guide to typical usage scenarios for the ultrasonic cleaner, depicting items such as jewelry, watches, handguns, tool knives, glasses, circuit boards, metal parts, and ceramic items.

• Jewelry & Watches: Rings, necklaces, earrings, bracelets, waterproof watches.
• Optical Equipment: Glasses, sunglasses, contact lens accessories.
• Scientific & Medical Instruments: Lab instruments, dental tools, surgical instruments.
• Éléktronik: PCBs, electronic components.
• Automotive & Industrial Parts: Small engine parts, carburetors, gun parts, bearings.
• Household Items: Razors, dentures, mouth guards, coins, CDs/DVDs.

Note: A certain amount of detergent is necessary to improve cleaning effect, especially for degreasing and dewaxing. The best cleaning temperature for degreasing and dewaxing is typically between 20°C and 80°C (68°F and 176°F).

Image: An illustration demonstrating the degreasing and dewaxing function, indicating that the heating function can be used for these purposes. The optimal temperature range is shown as 20°C to 80°C (68°F to 176°F).

Pangropéa

Ngabersihkeun Unit

1. Tangki solokan: After each use, especially with cleaning solutions, turn off the unit and unplug it. Allow the solution to cool to a safe temperature before draining.
2. Ngusap handap: Use a soft cloth to wipe the inside of the tank and the exterior of the unit. Avoid abrasive cleaners or harsh chemicals.
3. Keringkeun sacara saksama: Ensure the tank and exterior are completely dry before storing the unit.

Panyimpenan

Store the ultrasonic cleaner in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the lid closed to prevent dust accumulation.

Pamérésan masalah

Garansi sareng Rojongan

The Kendal Commercial Grade Ultrasonic Cleaner comes with a jaminan hiji taun jeung lifetime parts support.

For any questions, technical assistance, or warranty claims, please contact customer support through Amazon Buyer-Seller Messaging. We aim to provide a quick reply within 24 hours.

Image: An illustration depicting customer support, emphasizing the one-year warranty and lifetime parts support, with a note about quick replies within 24 hours via Amazon Buyer-Seller Messaging.
