1. Bubuka
Thank you for choosing the Bella Depot 52 Inch Crystal Ceiling Fan. This modern fandelier combines the functionality of a ceiling fan with the elegance of a chandelier, designed to enhance the comfort and style of your bedroom, living room, or dining room. Featuring reversible wood blades, a quiet motor, and convenient remote control, this fan provides year-round comfort and sophisticated illumination.
Image 1.1: The Bella Depot 52 Inch Crystal Ceiling Fan, showcasing its elegant design with wood blades and a crystal light fixture.
2. Parentah Kasalametan
Please read all instructions carefully before beginning installation. Failure to follow these instructions could result in electric shock, fire, or personal injury.
- Pastikeun daya dina pemutus sirkuit dipareuman sateuacan dipasang atanapi diropéa.
- All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- The mounting structure must be capable of supporting the weight of the fan (approximately 15-20 lbs).
- Do not connect the fan to a dimmer switch. It must be operated with the provided remote control.
- Jaga leungeun, pakakas, sareng barang-barang sanésna tetep bersih tina bilah kipas nalika kipas nuju dioperasikeun.
- Kipas angin ieu dirarancang pikeun panggunaan jero rohangan wungkul.
3. Eusi Paket
Carefully unpack all components and ensure all items are present and undamaged. If any parts are missing or damaged, contact Bella Depot customer support immediately.
- Siling Fan Motor Perumahan
- Kipas Angin (5)
- Kurung sabeulah
- Crystal Light Kit Assembly
- Kadali jauh
- Downrod (5 inci sareng 10 inci)
- Kanopi sareng Mounting Bracket
- Paket Hardware (screws, washers, mur kawat)
- Instruksi Manual

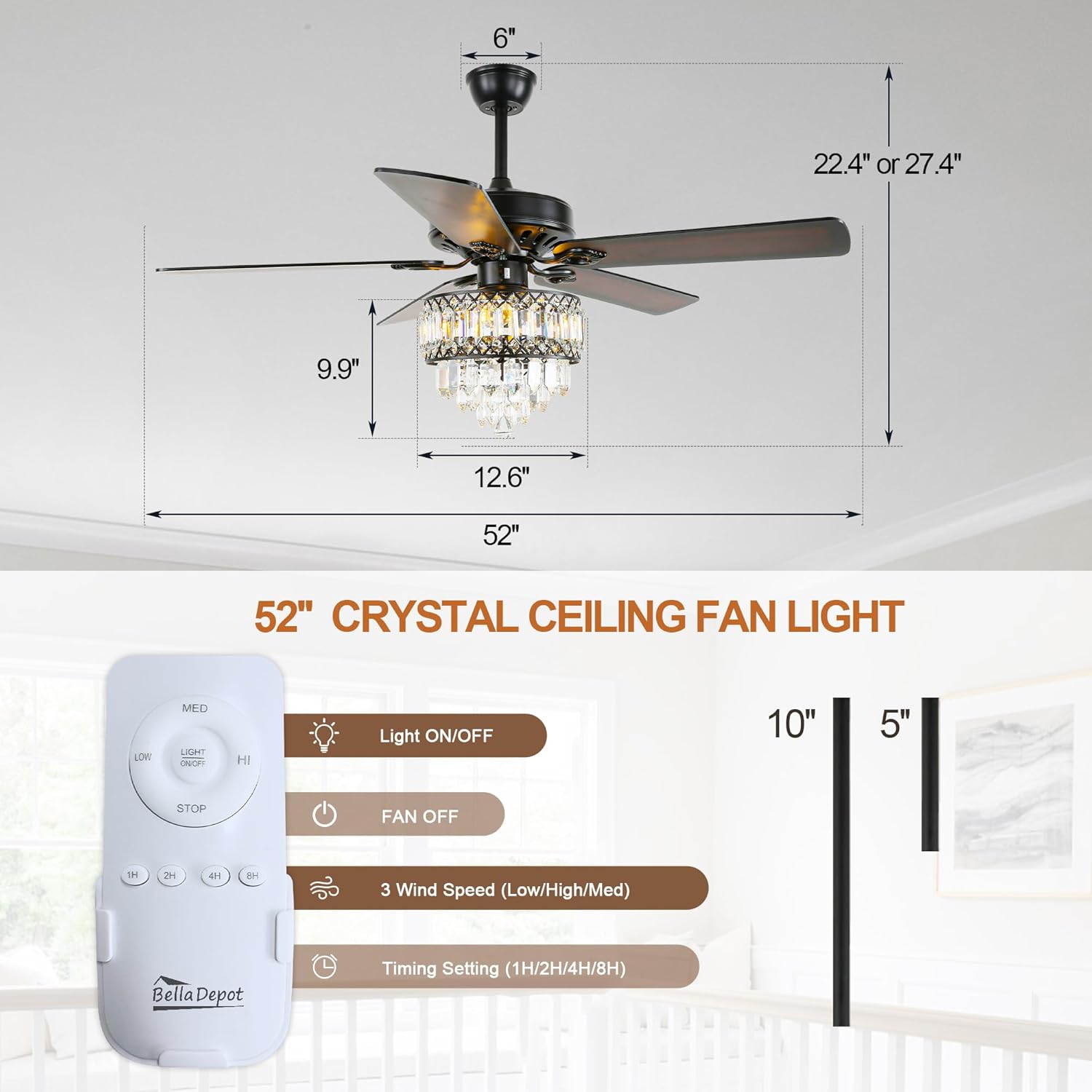

Gambar 3.1: Leuwihview of fan dimensions, included remote control, and two downrod sizes (5-inch and 10-inch).
4. Spésifikasi produk
| Fitur | Spésifikasi |
|---|---|
| merek | Bella Depot |
| Ngaran modél | SJ224403 |
| Nomer Modél Item | SJ2244 |
| Warna | Hideung |
| Bahan | Crystal, Metal, Wood |
| Dimensi produk | 52 "L x 51.99" W x 7.5" H |
| Voltage | 120 Volt (AC) |
| Dasar Bulb | E12 |
| Métode kontrol | Jauh |
| Fitur husus | LED Light, Reversible Motor, Timer |
| Pamakéan jero rohangan / outdoor | jero rohangan |
5. Pitunjuk Instalasi
Installation of the Bella Depot ceiling fan typically takes around 30 minutes, though crystal attachment may require additional time. It is recommended to have two people for installation. Ensure all safety instructions are followed.
5.1 Léngkah-léngkah Pra-Pamasangan
- Pareuman kakuatan dina pemutus sirkuit utama.
- Tangtukeun balok plafon atanapi struktur pangrojong anu cocog pikeun dipasang.
- Assemble the fan blades to the blade brackets.
5.2 Masang kipas
- Secure the mounting bracket to the ceiling electrical box using appropriate screws. Ensure the box is rated for fan support.
- Attach the selected downrod (5-inch or 10-inch) to the fan motor housing.
- Taliti angkat unit kipas sareng gantungkeun tina bracket pamasangan.
5.3 Sambungan Listrik
- Connect the fan's electrical wires to the household wiring according to the wiring diagram in your detailed manual. Typically, this involves connecting live, neutral, and ground wires.
- Ensure all connections are secure with wire nuts.
- Lebetkeun sadayana kabel kalayan rapih kana kotak listrik.
5.4 Attaching the Light Kit and Crystals
- Attach the crystal light kit assembly to the bottom of the fan motor housing.
- Install E12 base bulbs (not included) into the light sockets.
- Carefully attach the individual K9 crystals to the light kit frame. This step can be time-consuming but is crucial for the aesthetic appeal.
Image 5.1: The fan installation process, highlighting the ease of setup.
Gambar 5.2: Detil view of the K9 crystals, emphasizing the elegant design.
6. Parentah Operasi
Your Bella Depot ceiling fan is controlled by the included remote control, offering convenient operation of fan speed, light, and timer functions.
6.1 Fungsi Remote Control
- Lampu ON/OFF: Toggles the light fixture on or off.
- kipas pareum: Pareum kipas.
- Fan Speed (Low/Medium/High): Nyaluyukeun kecepatan puteran kipas.
- Timing Setting (1H/2H/4H/8H): Nyetél kipas pikeun otomatis pareum saatos durasi anu dipilih.
The remote control operates on a 12V-23A battery (not included).
6.2 Fungsi Motor malik
The fan features a reversible motor for year-round comfort. A switch on the fan motor housing allows you to change the direction of the blades.
- Modeu Usum Panas (Aliran Udara Ka Handap): Set the switch to the "forward" position. Blades rotate counter-clockwise, creating a cooling breeze.
- Modeu Usum Tiris (Aliran Udara Ka Luhur): Set the switch to the "reverse" position. Blades rotate clockwise, circulating warm air trapped near the ceiling.
Image 6.1: The reversible motor feature, showing airflow direction for summer cooling and winter air circulation.
Image 6.2: The fan operates quietly (below 35dB) and includes a timer function for 1, 2, 4, or 8 hours, ideal for undisturbed sleep.
7. Perawatan sareng Pangropéa
Regular maintenance will ensure the longevity and optimal performance of your Bella Depot ceiling fan.
- beberesih: Pikeun ngabersihkeun kipas, usap ku lembut, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or crystals.
- Perawatan Blade: Periodically check and tighten blade screws to prevent wobbling.
- Perawatan Kristal: Gently wipe crystals with a soft, lint-free cloth to maintain their sparkle.
- Ngagantian bohlam: Ensure power is off before replacing E12 base bulbs. Allow bulbs to cool before handling.
No lubrication is necessary for the motor; it is permanently lubricated.
8. Cara ngungkulan
Upami anjeun ngalaman masalah sareng kipas siling anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | No power to the fan; Loose wire connections; Remote control battery low or dead. | Check circuit breaker. Ensure all wire connections are secure. Replace remote control battery (12V-23A). |
| Kipas angin ngagelebug | screws sabeulah leupas; wilah henteu saimbang; bracket dipasang leupas. | Tighten all blade screws. Ensure blades are balanced (use balancing kit if necessary). Verify mounting bracket is securely fastened to the ceiling. |
| Lampu teu jalan | Bulb faulty or loose; Loose wire connection in light kit; Light kit switch off. | Check and replace bulbs (E12 base). Verify light kit wiring. Ensure light is turned on via remote. |
| Fan speed is too low | Reversible switch set incorrectly; Remote setting. | Ensure the reversible switch on the fan unit is set to the desired direction (e.g., "forward" for stronger downward airflow). Use the remote to select "High" speed. |
Upami masalahna teras-terasan saatos nyobian solusi ieu, mangga ngahubungi dukungan palanggan Bella Depot.
9. Garansi sarta Rojongan Palanggan
Bella Depot stands behind the quality of its products.
9.1 Émbaran jaminan
This Bella Depot 52 Inch Crystal Ceiling Fan comes with a 1-taun jaminan produsén urang from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, or natural disasters.
9.2 Rojongan Palanggan
For technical assistance, warranty claims, or replacement parts, please contact Bella Depot customer service. You can typically find contact information on the product packaging or by visiting the official Bella Depot store on Amazon:
Nganjang ka Toko Bella Depot di Amazon
Please have your model number (SJ2244) and proof of purchase ready when contacting support.
