Bubuka
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Jectse 80mm Thermal Receipt Printer. Please read this manual carefully before using the device to ensure proper functionality and longevity.
Eusi pakét
Pastikeun yén sadaya item aya dina bungkusan:
- Jectse 80mm Thermal Receipt Printer
- Kabel USB
- Thermal Paper Roll (may be pre-installed or separate)
- Manual pangguna (dokumén ieu)
Image: The Jectse 80mm Thermal Receipt Printer (Orange White) shown alongside its included USB charging cable.
Disetél
1. Ngamuat Thermal Paper
- Open the printer cover by gently lifting the orange transparent lid.
- Insert the thermal paper roll with the printing surface facing upwards. Ensure the roll is seated correctly in the paper compartment.
- Pull a small amount of paper out past the toothed blade.
- Tutup panutup printer pageuh nepi ka ngaklik kana tempatna.
Gambar: Top view of the Jectse 80mm Thermal Receipt Printer with the orange transparent lid closed, indicating paper is loaded.
2. Powering On sareng Ngecas
- Connect the USB cable to the printer's charging port and the other end to a suitable USB power adapter or computer.
- Press and hold the power button (marked with a circle and vertical line) to turn the printer on. The power indicator light will illuminate.
- The battery indicator lights will show the current charge level. Charge the printer fully before first use.

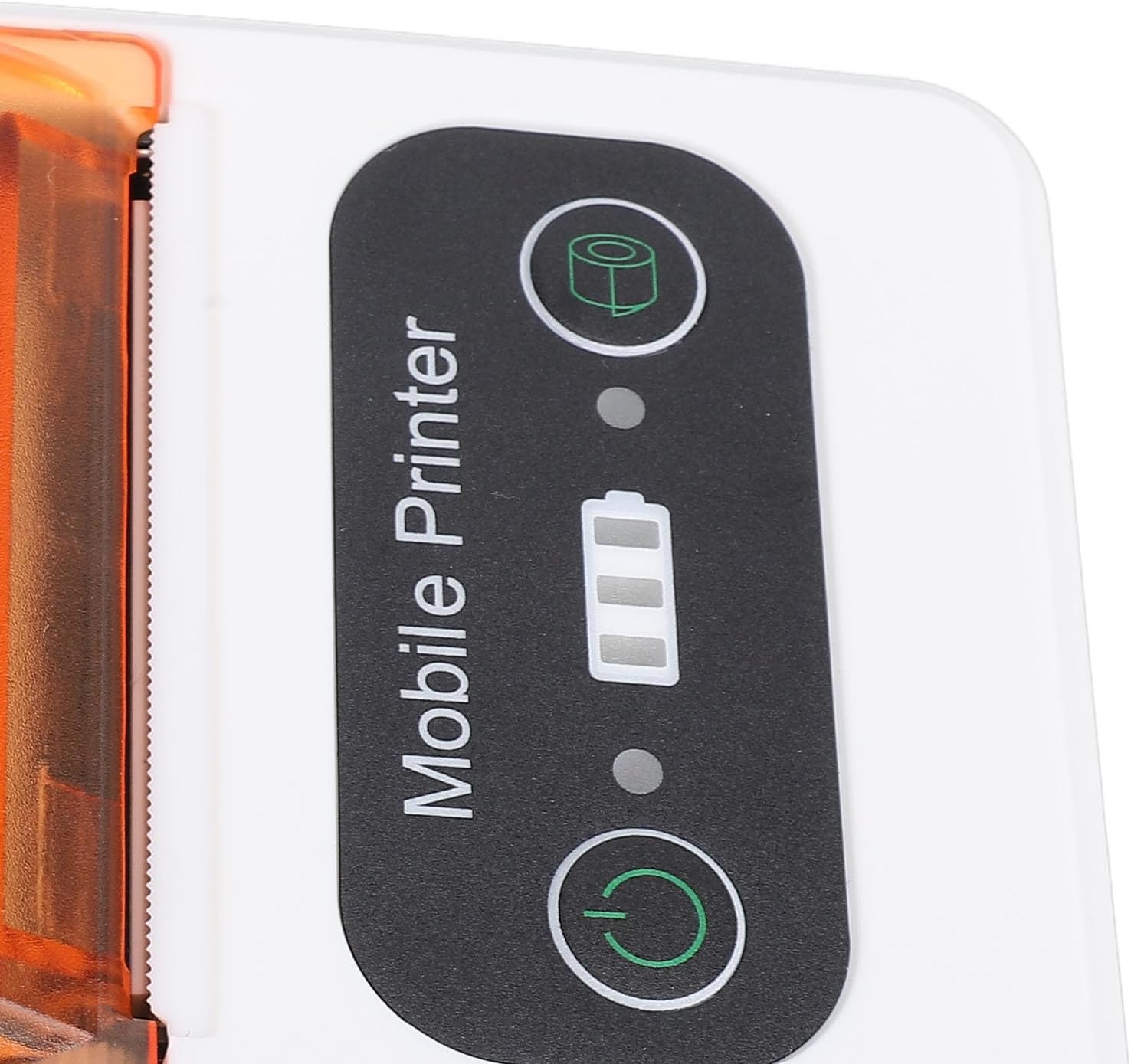

Image: A close-up of the printer's control panel, showing the power button, battery indicator, and paper feed button.
3. Konektipitas
The printer supports Ethernet connectivity. For mobile use, it is designed to connect wirelessly to devices such as smartphones.
- Sambungan Ethernet: Connect an Ethernet cable to the printer's Ethernet port and to your network router or switch.
- Wireless Connection (e.g., Bluetooth): Refer to your device's operating system or application instructions for pairing with a mobile printer. Typically, this involves enabling Bluetooth on your mobile device, searching for the printer, and pairing.
Image: The Jectse 80mm Thermal Receipt Printer shown next to a smartphone with a wireless signal icon, illustrating mobile connectivity.
Parentah Operasi
Printing a Receipt/Label
- Ensure the printer is powered on and connected to your device (via Ethernet or wirelessly).
- Open the application or software from which you wish to print.
- Select the print option within your application. Choose the Jectse 80mm Thermal Receipt Printer from the list of available printers.
- Pastikeun setélan citak (contona, ukuran kertas, orientasi) upami dipenta.
- Initiate the print job. The printer will begin printing.
- Once printing is complete, use the integrated toothed blade to cleanly tear off the receipt or label.
Gambar: Hiji sudut view of the printer, highlighting its compact design and the paper output slot with the toothed blade.
Pangropéa
Ngabersihan Printer
- Ensure the printer is powered off and disconnected from power before cleaning.
- Anggo kaén anu lemes sareng teu aya serat anu hampang dampened with isopropyl alcohol to clean the print head and the paper path.
- Do not use abrasive cleaners or spray liquids directly into the printer.
- Allow all components to dry completely before powering on the printer.
Replacing Thermal Paper
Follow the steps outlined in the "Loading Thermal Paper" section under Setup when the paper roll is depleted.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Printer teu hurung. | Masalah batré lemah atanapi sambungan listrik. | Charge the printer using the provided USB cable. Ensure the power adapter is working. |
| Teu aya kaluaran citak. | Paper loaded incorrectly, out of paper, or connectivity issue. | Check paper loading and ensure paper is not depleted. Verify network/wireless connection. Restart printer and device. |
| Kualitas cetak goréng. | Dirty print head or low battery. | Clean the print head as described in the Maintenance section. Ensure the printer is fully charged. |
| Teu tiasa nyambung sacara nirkabel. | Bluetooth/network not enabled or printer not discoverable. | Ensure Bluetooth is enabled on your mobile device. Check printer's network settings. Try restarting both devices. |
spésifikasi
- model: Jectsega4vnm10yk-12
- Ukuran produk: 5.91 x 3.94 x 2.36 inci (15.01 x 10.01 x 5.99 cm)
- Beurat barang: 9.1 ons (257.98 gram)
- Téknologi konektipitas: Ethernet (and implied wireless for mobile use)
- Téknologi Percetakan: Langsung Thermal
- Kaluaran printer: Monokrom
- Max Print Speed Monokrom: 80mm per detik
- Fitur husus: Adjustable (likely referring to paper width or settings)
- warna: Oranyeu Bodas
- Pabrikan: Jectse
- Titimangsa munggaran sadia: Pébruari 18, 2025
Garansi sareng Rojongan
For warranty information and technical support, please refer to the official Jectse websitus atanapi ngahubungan layanan palanggan maranéhanana langsung. Simpen resi pameseran anjeun pikeun klaim jaminan.
