Bubuka
Hatur nuhun parantos milih YeeSite 120W 18LED RGBW Stage Wash Light Bar. This manual provides essential information for the safe and efficient operation of your new lighting fixture. Please read it thoroughly before use and retain it for future reference.
Émbaran Kasalametan
- Pastikeun catu daya cocog sareng voltagsarat anu ditangtukeun dina alat éta.
- Sambungkeun alat ka sirkuit anu di-groundkeun pikeun nyingkahan résiko sengatan listrik.
- Ulah muka wadahna; teu aya bagian anu tiasa diservis ku pangguna di jerona. Serahkan sadaya perawatan ka tanaga anu mumpuni.
- Hindarkeun paparan panon langsung kana sumber cahaya, sabab tiasa nyababkeun karusakan panon.
- Jauhkeun alat tina cai, beueus, sareng suhu anu ekstrim.
- Pastikeun ventilasi nyukupan sabudeureun fixture pikeun nyegah overheating.
Eusi pakét
Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun:
- 1 x 120W RGBW Stage Nyeuseuh Lampu Bar
- 1 x Kabel Listrik
- 1 x Manual Pamaké
- Pamasangan kurung sareng asesoris

Image: The YeeSite 120W 18LEDs RGBW Stage Wash Light Bar with its power cord, user manual, and mounting brackets.
Fitur produk
- Bright and Smooth Color Mixing Effects: Features 18pcs RGBW 4IN1 LEDs for vibrant, smooth color mixing.
- Individually Control: Each LED can be individually controlled, allowing for diverse 'eye candy' effects and variable brightness from 0-100%.
- DMX & RDM Control: Offers 4 DMX modes (4, 8, 26, and 72 channels) and Remote Device Management (RDM) for flexible control.
- Kakuatan Ranté Daisy: Built-in IEC power In/Out allows daisy-chaining up to 6 units from a single outlet.
- Konstruksi logam awét: Features aluminum housing for excellent heat dissipation and a noiseless design.
Disetél
Pamasangan
The light bar includes adjustable brackets for versatile mounting options, such as floor mount or wall mount. Ensure the mounting surface is stable and can support the weight of the fixture.

Image: The light bar's adjustable brackets allow for flexible positioning.
Sambungan Daya
Connect the provided power cord to the 'Power IN' port on the fixture and then to a suitable power outlet (AC 110-240V, 50/60Hz).
Modeu Operasi
The YeeSite Stage Wash Light Bar offers multiple operating modes, selectable via the 4-button LED menu on the rear of the unit:
- Modeu Otomatis: The fixture runs through a series of pre-programmed light shows automatically.
- Modeu Aktipkeun Sora: The lights react to ambient sound or music, creating dynamic effects.
- Mode Master-Budak: Connect multiple units where one acts as the master, controlling the others (slaves) for synchronized effects.
- Modeu DMX512: For professional control using a DMX controller, allowing precise manipulation of colors, effects, and intensity.
- Modeu Strobe: Produces rapid flashes of light.

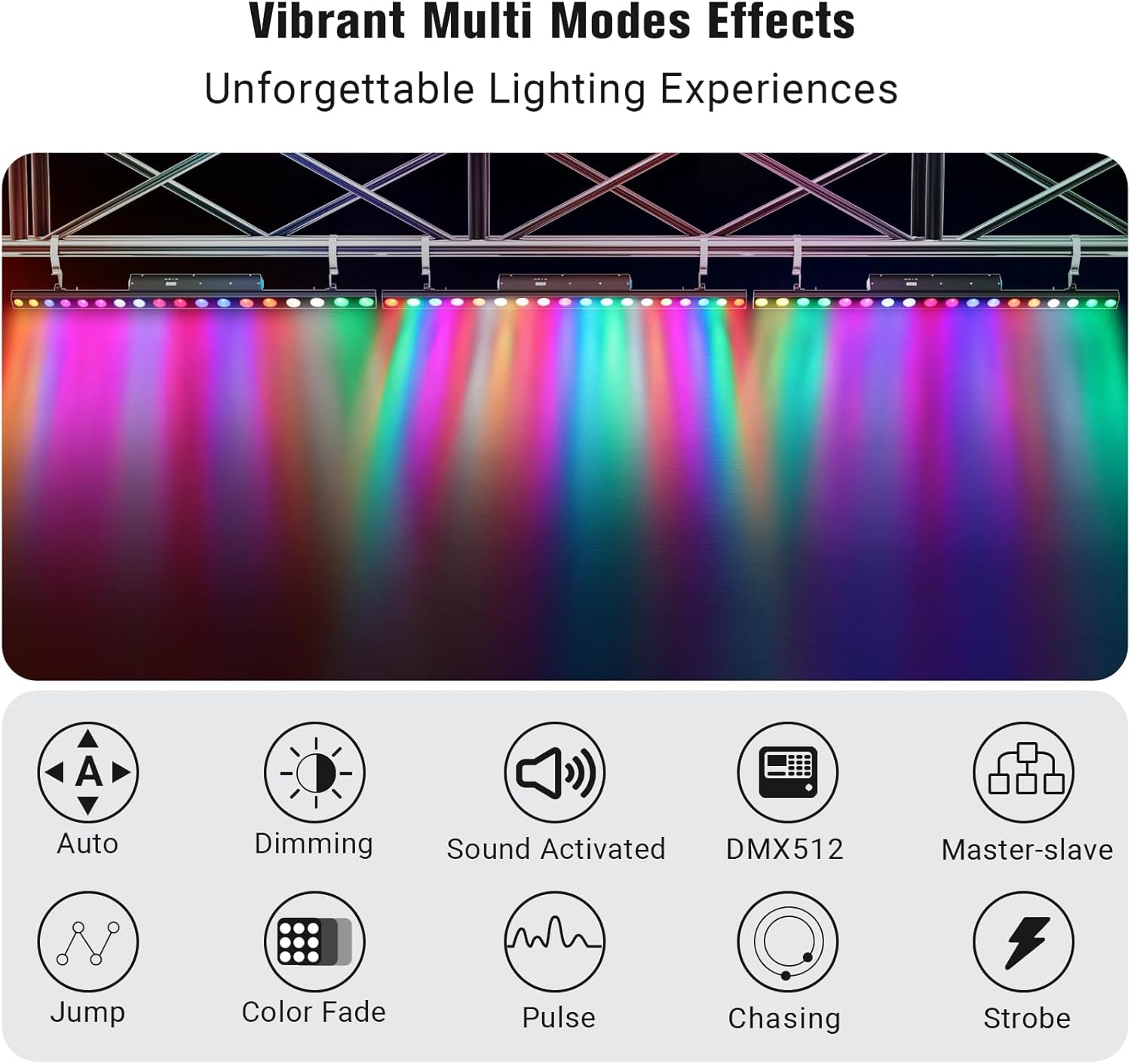

Image: Visual representation of the various operating modes and effects.
DMX Kontrol
The light bar supports DMX512 protocol, offering advanced control options:
- Modeu DMX: Choose from 4, 8, 26, or 72 channel modes for varying levels of control complexity. The 72-channel mode allows individual control of each of the 18 LED beads.
- RDM (Manajemén Alat Jauh): This enhancement to DMX512 allows for remote configuration of fixture settings.
- Alamat DMX: Use the 4-button LED menu on the rear to set the DMX address and configure the desired DMX mode.

Image: The light bar integrated with DMX controllers for advanced lighting setups.
Daisy Chain Power
Multiple YeeSite light bars can be connected in a daisy chain configuration to simplify power distribution. Use the built-in IEC power In/Out ports to link up to 6 units from a single power outlet.

Image: Daisy chain connection setup for multiple light bars.
Pangropéa
- Regularly clean the lens and housing with a soft, lint-free cloth to maintain optimal light output.
- Ulah make cleaners abrasive atawa pangleyur.
- Inspect power and DMX cables periodically for any signs of damage. Replace damaged cables immediately.
- Ensure the device is unplugged from the power source before performing any cleaning or maintenance.
Pamérésan masalah
- Henteu aya kakuatan: Check the power cable connection and the power outlet. Ensure the device is switched on.
- Teu aya Kaluaran Cahaya: Verify the selected operating mode and brightness settings. If using DMX, check DMX connections and controller settings.
- Warna/Efek Anu Salah: In DMX mode, ensure the correct DMX address and channel mode are selected. In auto modes, cycle through programs to find the desired effect.
- Operasi intermittent: Check all cable connections for looseness or damage. Ensure the device is not overheating.
spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | YS-072-18WLIC |
| Tipe Sumber Cahaya | 18 x RGBW 4IN1 LEDs |
| Sumber cahaya Wattage | 120 Watt |
| Voltage | 110-240 Volt |
| Bahan | alumunium |
| Warna | Hideung |
| Dimensi produk | 42 "L x 4" W x 3" H |
| Item Beurat | 6 pon |
| Modeu DMX | 4, 8, 26, 72 Channels |
| Modeu Operasi | Auto, Sound Activated, Master-Slave, DMX512, Strobe |
| Sudut Beam | 20 darajat |
| Daisy Chain Capacity | Nepi ka 6 unit |
Garansi sareng Rojongan
For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official YeeSite websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
