GOBOULT Bassbox X180 2.1ch Bluetooth Soundbar User Manual

1. Parentah Kasalametan penting

• Baca petunjuk ieu sacara saksama sateuacan nganggo produk.
• Tetep parentah ieu pikeun rujukan hareup.
• Do not expose this appliance to dripping or splashing liquids.
• Ulah meungpeuk sagala bukaan ventilasi. Pasang saluyu sareng parentah produsén.
• Entong dipasang di deukeut sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
• Ngajaga kabel listrik tina leumpang atanapi diciwit, khususna dina colokan, wadah genah, sareng titik dimana aranjeunna kaluar tina alat.
• Ngan anggo kantétan/aksésori anu ditunjuk ku produsén.
• Cabut colokan alat ieu nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.
• Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni. Pelayanan diperyogikeun nalika aparat parantos rusak sagala cara.

2. Eusi Paket

Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun:

• Soundbar
• Subwoofer
• Kadali jauh
• Kabel Daya
• Manual pamaké
• Kartu Garansi

3. Produk Langkungview

3.1 Soundbar and Subwoofer Features

The GOBOULT Bassbox X180 features a 2.1 channel system with a dedicated wired subwoofer, delivering 180W RMS output for immersive audio. It includes an integrated Digital Signal Processor (DSP) for optimized sound across various content types.

Gambar: Leuwihview of the GOBOULT Bassbox X180 Soundbar and Subwoofer, showcasing its 180W output, 2.1 channel configuration, dedicated DSP, LED panel, various EQ modes, master remote control, and multi-compatibility.

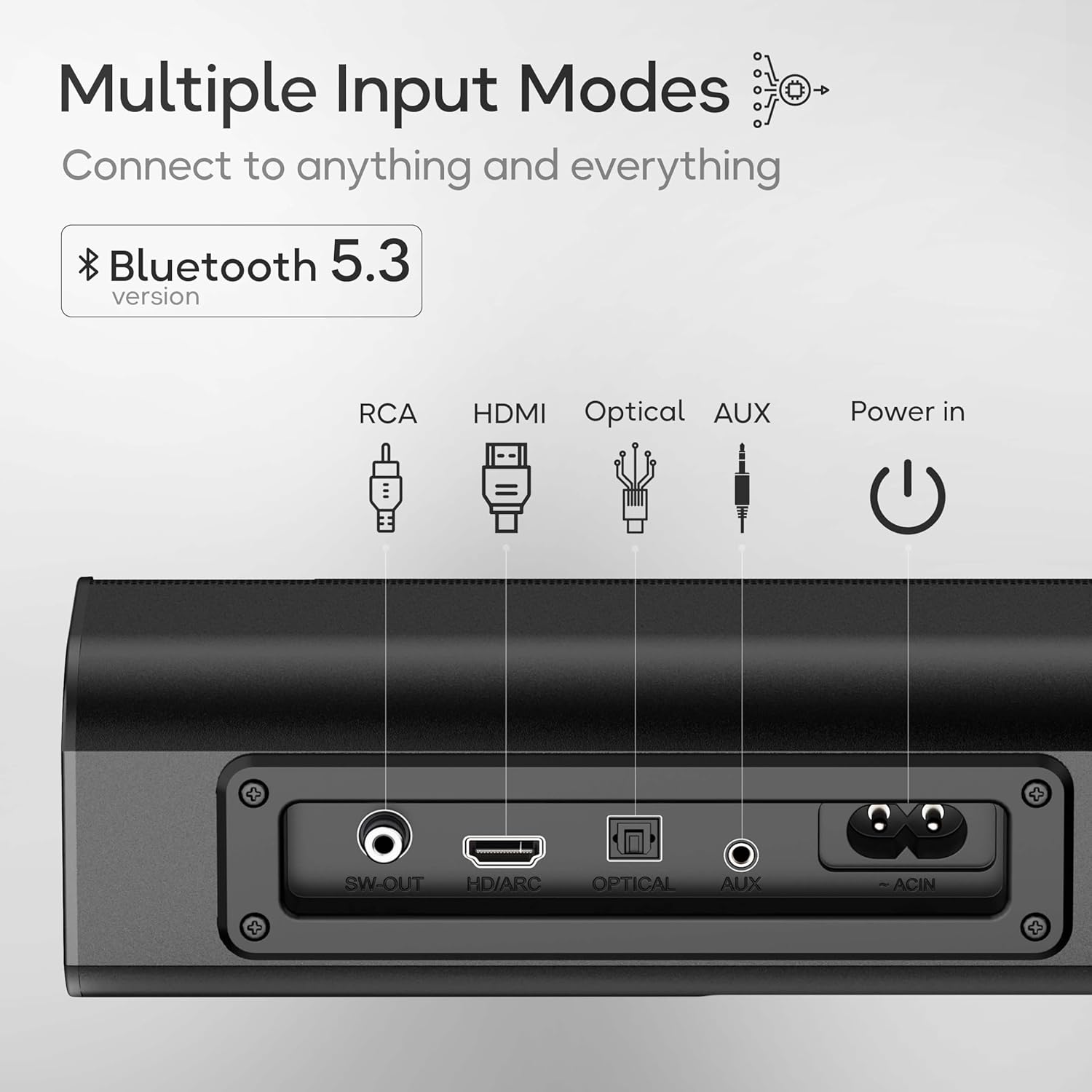

3.2 Sambungan Panel Rear

The rear panel of the soundbar provides various input options for connecting to different devices.

Gambar: Detil view of the soundbar's rear panel, illustrating the RCA, HDMI (ARC), Optical, AUX, and Power input ports for versatile connectivity.

3.3 Jauh Jauh

The included remote control allows for convenient operation of the soundbar from a distance.

Image: The ergonomic master remote control for the GOBOULT Bassbox X180, showing buttons for power, volume adjustment, input mode selection, EQ presets (Movie, Music, News), Bluetooth pairing, and bass control.

4. Setélan

4.1 Nempatkeun

• Place the soundbar on a stable, flat surface in front of your TV, ensuring it does not obstruct the TV's remote sensor.
• Position the wired subwoofer on the floor, ideally near the soundbar, for optimal bass performance.

4.2 Connecting the Wired Subwoofer

Connect the subwoofer to the soundbar using the provided wired connection. Ensure the cable is securely inserted into the 'SW-OUT' port on the soundbar and the corresponding input on the subwoofer.

4.3 Sambungan Daya

1. Connect the power cable to the 'AC IN' port on the soundbar.
2. Colokkeun tungtung kabel daya anu sanés ka stop kontak témbok.
3. Ensure the subwoofer is also connected to a power source if it has a separate power input.

5. Parentah Operasi

5.1 Daya Hurung/Pareuman

Pencét tombol Daya dina bar sora atanapi kadali jauh pikeun ngaktipkeun atanapi mareuman unit.

5.2 Pamilihan Sumber

Press the 'MODE' button on the soundbar or remote control to cycle through available input sources: Bluetooth, HDMI (ARC), Optical, AUX, and USB.

5.3 Volume Control

Use the 'VOL+' and 'VOL-' buttons on the soundbar or remote control to adjust the volume level.

5.4 Modeu EQ

The soundbar features three equalizer (EQ) modes to optimize audio for different content types:

• Modeu Pilem: Enhances dialogue and sound effects for cinematic experiences.
• Modeu Musik: Nyayogikeun audio anu saimbang pikeun muterkeun musik.
• Modeu Warta: Optimizes vocal clarity for news and spoken content.

Press the 'MOVIE', 'MUSIC', or 'NEWS' button on the remote control to select the desired EQ mode.

Image: The remote control highlighting the dedicated buttons for Movie, Music, and News EQ modes, allowing for a curated listening experience.

5.5 Nyapasangkeun Bluetooth

1. Turn on the soundbar and select Bluetooth mode using the 'MODE' button. The LED display will indicate 'BT'.
2. Dina alat sélulér anjeun, aktipkeun Bluetooth sareng milarian alat anu sayogi.
3. Select 'GOBOULT Bassbox X180' from the list to pair.
4. Once paired, the soundbar will confirm the connection, and you can begin playing audio wirelessly.

6. Pilihan Konéktipitas

The GOBOULT Bassbox X180 offers multiple connectivity options to suit various audio sources.

• Bluetooth V5.3: For wireless streaming from smartphones, tablets, and laptops.
• HDMI (ARC): Connect to your TV's HDMI ARC port for high-quality audio and control via TV remote.
• Optik: For digital audio connection from TVs, gaming consoles, or other devices.
• AUX: For analog audio connection using a 3.5mm audio cable.
• USB: Pikeun muter audio files langsung ti USB drive.

7. Pamasangan Tembok

The soundbar is designed to be wall-mountable. Use the provided mounting brackets and hardware to securely attach the soundbar to a wall. Ensure the wall material can support the weight of the soundbar and follow all safety guidelines during installation.

8. Pangropéa

• beberesih: Use a soft, dry cloth to clean the surface of the soundbar and subwoofer. Do not use liquid cleaners or abrasive materials.
• Ventilasi: Pastikeun yén bukaan ventilasi teu diblokir pikeun nyegah overheating.
• Panyimpenan: Upami nyimpen unit kanggo waktos anu lami, cabut colokan tina stop kontak listrik teras simpen di tempat anu tiis sareng garing.

9. Cara ngungkulan

10. Spésifikasi

11. Garansi jeung Rojongan

The GOBOULT Bassbox X180 is backed by a 1-taun jaminan produsén urang, ensuring reliable performance and peace of mind. For any technical assistance, troubleshooting, or warranty claims, please refer to the contact information provided on the Warranty Card included in your package.

Punten nahan resi pameseran anjeun salaku bukti pameseran kanggo tujuan garansi.
