alpina 1000-2000W Wall-Mounted Electric Fan Heater User Manual

1. bubuka & Émbaran Kasalametan

Hatur nuhun pikeun meuliasing the alpina Wall-Mounted Electric Fan Heater. This manual provides important information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.

Pitunjuk Kasalametan Penting:

• Salawasna pastikeun alat parantos dicabut tina catu daya sateuacan diberesihan atanapi diropéa.
• Ulah nutupan pemanasna. Panas teuing tiasa kajantenan upami pemanasna ditutupan.
• Entong nganggo pamanas ieu di caket tempat mandi, pancuran, atanapi kolam renang.
• Keep flammable materials such as furniture, curtains, and other combustibles at least 1 meter (3 feet) from the front and sides of the heater.
• Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
• Barudak kedah diawaskeun pikeun mastikeun yén aranjeunna henteu maén sareng alatna.
• Upami kabel suplai rusak, éta kedah digentos ku produsén, agén palayanan, atanapi jalma anu mumpuni anu sami pikeun ngahindarkeun bahaya.
• The heater must be installed so that the switches and other controls cannot be touched by a person in a bath or shower.
• Pastikeun voltage dituduhkeun dina labél rating pakait jeung vol mainstage di imah anjeun.

2. Produk Langkungview

Fitur konci:

• PTC Ceramic Heating Element: Provides fast and even heat distribution without drying out the air.
• Dua Setélan Panas: Choose between 1000W and 2000W for optimal comfort and energy efficiency.
• Thermostat adjustable: Set desired temperature from 18°C to 45°C.
• Fungsi Timer: Programmable timer for 1 to 12 hours of operation.
• Kadali jauh: Operasi merenah ti kajauhan.
• Perlindungan overheat: Pareum otomatis pikeun kaamanan anu langkung saé.
• Deteksi Jandela Buka: Automatically turns off the heater if a sudden temperature drop is detected.
• Desain Dipasang Tembok Kompak: Space-saving and suitable for rooms up to 20m².

Komponén produk:

The alpina wall-mounted electric fan heater includes the main heating unit and a remote control.

Gambar: Leuwihview of the alpina wall-mounted electric fan heater highlighting its 2-in-1 fan function, compact design (42 x 17.5 x 10.5 cm), timer function (up to 12 hours), adjustable temperature (18 to 45 degrees Celsius), and room coverage (up to 20m²).

Kadali jauh:

The remote control allows for convenient adjustment of all heater functions.

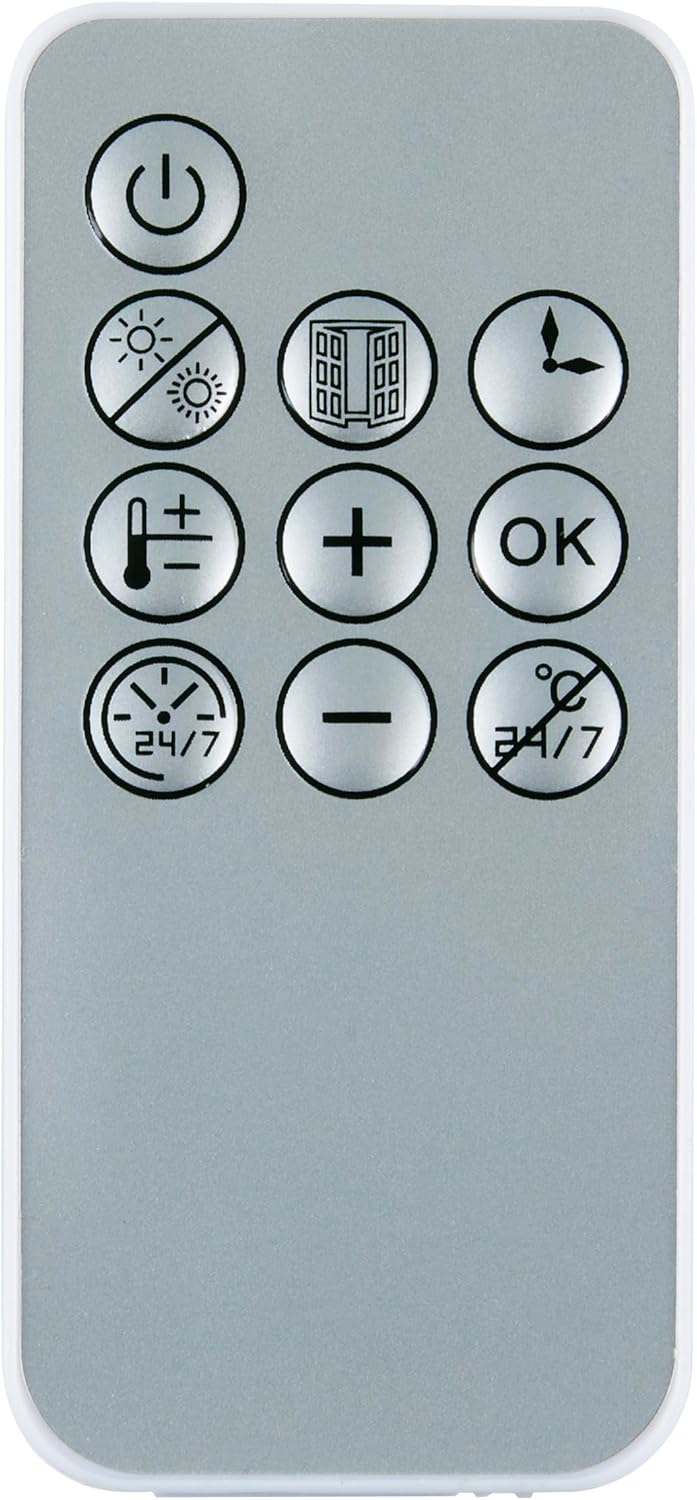

Gambar: Detil view of the remote control for the alpina heater, showing buttons for power, mode selection, temperature adjustment, timer, and confirmation.

3. Pamasangan

Parentah Pasang:

1. Choose a suitable wall location, ensuring it is away from flammable materials and out of reach of children and pets. Maintain a minimum distance of 1 meter (3 feet) from any objects.
2. Mark the positions for drilling holes on the wall using the heater's mounting points as a template.
3. Drill the holes and insert appropriate wall plugs (not included, choose based on wall material).
4. Secure the mounting bracket (if separate) or the heater itself to the wall using screws. Ensure it is firmly attached.
5. The heater dimensions are approximately 41.8 cm (length) x 12 cm (width) x 17.5 cm (height).

Image: The alpina wall-mounted heater shown with its dimensions: 42 cm length, 17.5 cm height, and 10.5 cm depth. A 1.5-meter power cord is also visible.

Image: A diagram illustrating the simple mounting mechanism on the back of the heater, the digital LED display, and the physical on/off switch located on the side of the unit.

Sambungan listrik:

Plug the power cord into a standard 220V AC electrical outlet. Ensure the outlet is properly grounded and can handle the heater's power consumption (up to 2000W).

4. Operasi

Hurungkeun/Pareuman:

• To turn on the heater, press the power button on the unit or the remote control. The LED display will illuminate.
• Pikeun mareuman, pencét deui tombol daya.

Setélan Suhu:

• Use the '+' and '-' buttons on the remote control or the control panel to adjust the desired temperature.
• Suhu tiasa diatur antara 18 ° C sareng 45 ° C.
• The heater will automatically maintain the set temperature.

Setélan panas:

• The heater offers two power settings: 1000W (low heat) and 2000W (high heat).
• Select the desired heat setting using the mode button on the remote control or unit.

Image: A user operating the alpina wall-mounted heater with its remote control, demonstrating the convenience of its smart operation and clear LED display.

Fungsi Timer:

• Press the timer button on the remote control to activate the timer function.
• Adjust the desired operating time from 1 to 12 hours using the '+' and '-' buttons.
• The heater will automatically turn off after the set time has elapsed.

Image: The alpina heater displaying its timer function, which can be set for durations between 1 and 12 hours, or a weekly schedule.

Deteksi Jandela Buka:

• This feature automatically detects a sudden drop in room temperature, indicating an open window or door.
• If an open window is detected, the heater will automatically switch off to conserve energy.
• To resume heating, close the window/door and manually restart the heater.

Image: The alpina heater illustrating its open window detection feature, which automatically switches off the appliance when a significant temperature drop is detected.

Warm and Cold Air Function:

The heater can circulate both warm and cool air. The cool air function operates as a fan, providing air circulation without heating. Note: This product is not an air conditioner and does not actively cool the air below ambient temperature.

Image: An illustration showing the alpina heater emitting both warm (red arrows) and cool (blue arrows) air, with a note clarifying that it is not an air conditioner. The adjustable temperature range is 18 to 45 degrees Celsius.

5. Pangropéa

beberesih:

• Salawasna cabut pamanas sarta ngidinan pikeun niiskeun sagemblengna saméméh beberesih.
• Ngusap permukaan luar kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Pastikeun teu aya cai anu asup ka jero pemanas.
• Periodically clean the air inlet and outlet grilles with a vacuum cleaner or a soft brush to remove dust and debris.

Panyimpenan:

If the heater is not in use for an extended period, store it in a cool, dry place, preferably in its original packaging, away from direct sunlight and moisture.

6. Cara ngungkulan

7. Spésifikasi Téknis

8. Garansi jeung Rojongan

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, spare parts, or any questions regarding your alpina heater, please contact your retailer or the alpina customer service department.

Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
