Linkifly XT1 Cordless Stick Vacuum Cleaner User Manual

Bubuka

Thank you for choosing the Linkifly XT1 Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Designed for unparalleled cleaning performance, the XT1 features a powerful 48 kPa suction and a 550 W brushless motor, effortlessly lifting dirt, dust, and debris from various surfaces. Please read this manual thoroughly before first use and keep it for future reference.

Parentah Kasalametan penting

Pikeun ngirangan résiko kahuruan, sengatan listrik, atanapi tatu, salawasna turutan tindakan pencegahan kaamanan dasar nalika nganggo alat listrik. Baca sadaya pitunjuk sateuacan nganggo vacuum cleaner ieu.

• Ulah make di luar atawa dina surfaces baseuh.
• Ulah ngantep dipaké salaku cocooan. Perhatian caket diperyogikeun nalika dianggo ku atanapi caket barudak.
• Anggo ngan sakumaha anu dijelaskeun dina manual ieu. Paké ngan kantétan dianjurkeun produsén urang.
• Entong dianggo nganggo kabel atanapi colokan anu rusak. Upami alat henteu jalan sakumaha sakuduna, parantos turun, ruksak, ditinggalkeun di luar, atanapi turun kana cai, balikkeun deui ka pusat layanan.
• Ulah narik atawa mawa ku ari, make ari salaku cecekelan, nutup panto dina ari, atawa narik ari sabudeureun ujung seukeut atawa juru. Ulah ngajalankeun alat ngaliwatan kabel. Tetep ari jauh ti surfaces dipanaskeun.
• Ulah cabut colokan ku cara narik kana kabel. Pikeun cabut colokan, keupeul colokan, teu ari.
• Ulah nanganan colokan atawa alat ku leungeun baseuh.
• Ulah nempatkeun obyék nanaon kana bukaan. Entong nganggo sareng bukaan anu diblokir; tetep bébas tina lebu, serat, rambut, sareng naon waé anu tiasa ngirangan aliran hawa.
• Jauhkeun buuk, pakean longgar, ramo, sareng sadaya bagian awak tina bukaan sareng bagian anu obah.
• Pareuman sadaya kadali sateuacan cabut colokan.
• Paké perawatan tambahan nalika meresihan dina tangga.
• Entong dianggo pikeun nyandak cairan anu gampang kaduruk atanapi kaduruk, sapertos béngsin, atanapi dianggo di daérah anu aya.
• Ulah nyokot naon bae anu kaduruk atawa ngaroko, kayaning roko, korek api, atawa lebu panas.
• Ulah make tanpa cangkir lebu jeung/atawa saringan di tempat.
• Nyegah ngamimitian teu dihaja. Pastikeun saklar dina posisi pareum samemeh nyambung ka pak batre, nyokot atawa mawa alat.

Eusi pakét

Mangga parios eusi pakét pikeun mastikeun yén sadaya barang aya sareng dina kaayaan anu saé:

• Unit Motor Utama
• Batré anu tiasa dicabut
• Electronic Floor Brush
• Extension Tube
• 2-in-1 Sikat
• Long Flat Crevice Tool
• Tembok Gunung
• Adaptor kakuatan
• Saringan HEPA (x2)
• Manual pamaké

A visual representation of all items included in the Linkifly XT1 package, such as the main unit, various brush heads, extension tube, wall mount, charger, and user manual.

Produk Leuwihview

The Linkifly XT1 is a versatile cordless stick vacuum designed for comprehensive home cleaning. Its modular design allows for easy conversion between a stick vacuum and a handheld unit, adapting to various cleaning needs.

This image displays the Linkifly XT1 cordless stick vacuum cleaner along with its various attachments, including the main floor brush, crevice tool, and 2-in-1 brush, demonstrating its versatility.

Komponén konci:

• Unit Utama: Houses the motor, dustbin, and battery. Features an intuitive LED display for real-time status.
• Extension tube: Connects the main unit to the floor brush for upright cleaning, adjustable for different heights.
• Electronic Floor Brush: Equipped with an anti-tangle rotating brush for effective cleaning on various floor types and preventing hair entanglement.
• Sikat 2-in-1: Ideal for cleaning upholstery, keyboards, and delicate surfaces.
• Alat Celah Datar Panjang: Perfect for reaching narrow gaps, corners, and car interiors.

Setup sareng Majelis

Follow these steps to assemble your Linkifly XT1 vacuum cleaner:

1. Ngeusi batre: Before first use, fully charge the removable battery. Connect the power adapter to the charging port on the battery or the main unit. A full charge takes approximately 4 hours.
2. Ngagantelkeun Tabung Extension: Align the extension tube with the main motor unit and push until it clicks securely into place.
3. Pasang Sikat Lantai: Connect the electronic floor brush to the other end of the extension tube, ensuring it clicks firmly.
4. Pasang Asesoris: For handheld cleaning, detach the extension tube and directly attach the 2-in-1 brush or crevice tool to the main unit.

Ngeusi batre:

The Linkifly XT1 features a removable high-capacity battery. To charge, simply plug the power adapter into a wall outlet and connect it to the charging port on the battery or the main unit. The LED display will indicate charging status. A full charge provides up to 70 minutes of continuous cleaning, depending on the power mode used.

Parentah Operasi

Ngahurungkeun/Pareuman sareng Modeu Nyeuseup:

Press the power button to turn the vacuum on or off. The intuitive LED screen provides real-time control over your cleaning experience. Easily switch between suction modes (Low, Medium, High) with a simple touch of the mode button to adapt to different cleaning needs.

• Low Mode (Level I): Provides 50-70 minutes of runtime, ideal for light cleaning and extended use.
• Medium Mode (Level II): Offers 25-30 minutes of runtime for everyday cleaning tasks.
• High Mode (Level III): Delivers maximum suction power for 15-20 minutes, perfect for deep cleaning and stubborn dirt.

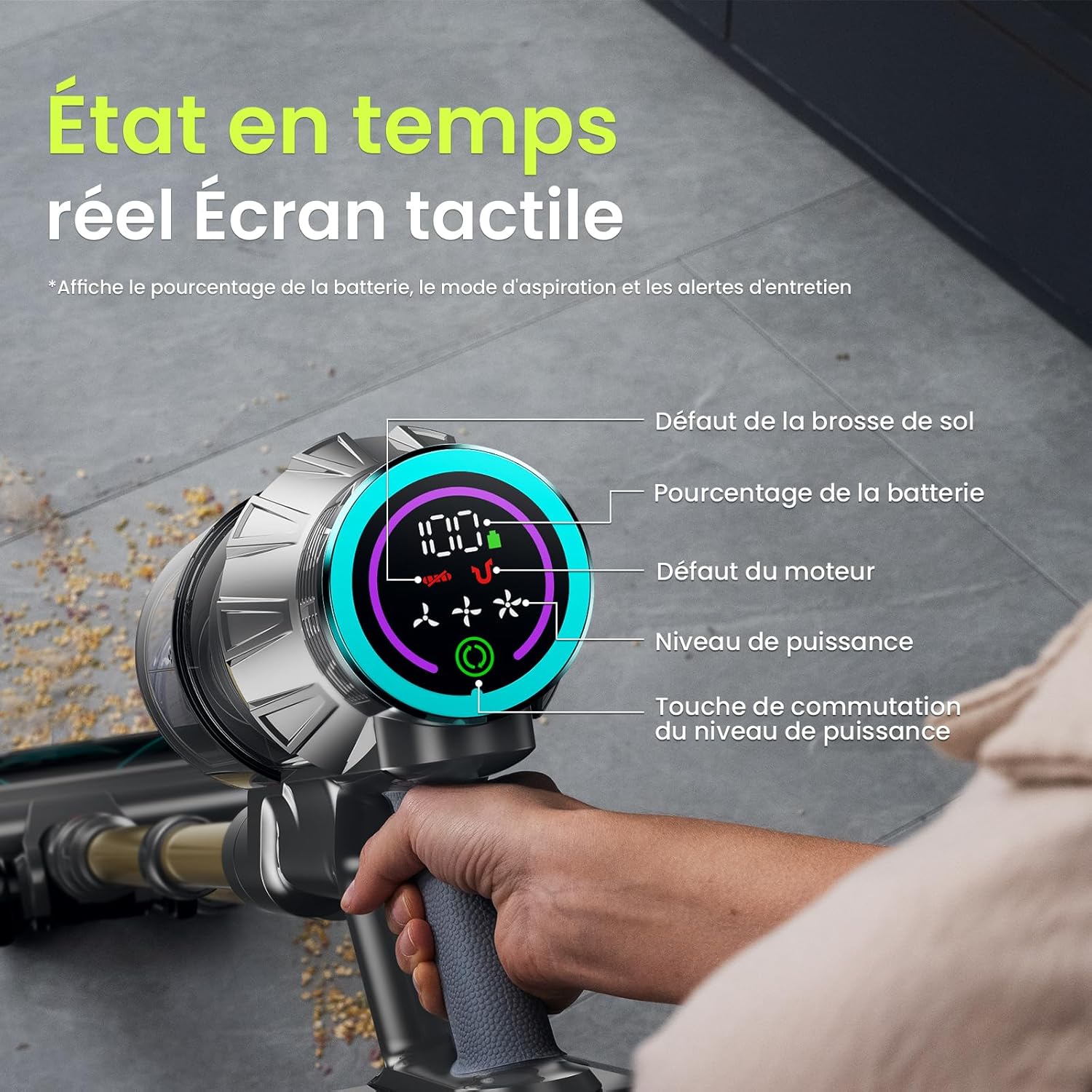

A lengkep view of the Linkifly XT1's intuitive LED display, which provides real-time information such as battery percentage, current suction mode (Low, Medium, High), and alerts for brush or motor issues. It also shows the power level switch button.

This image illustrates the different battery runtimes of the Linkifly XT1 vacuum cleaner across its three power modes: 50-70 minutes on low, 25-30 minutes on medium, and 15-20 minutes on high, highlighting its long fade-free power.

Kinerja beberesih:

The Linkifly XT1 delivers powerful 48 kPa suction, making it highly effective on various surfaces. Its advanced multi-cone cyclonic filtration system ensures consistent suction and captures 99.9% of dust and allergens, promoting a healthier living environment.

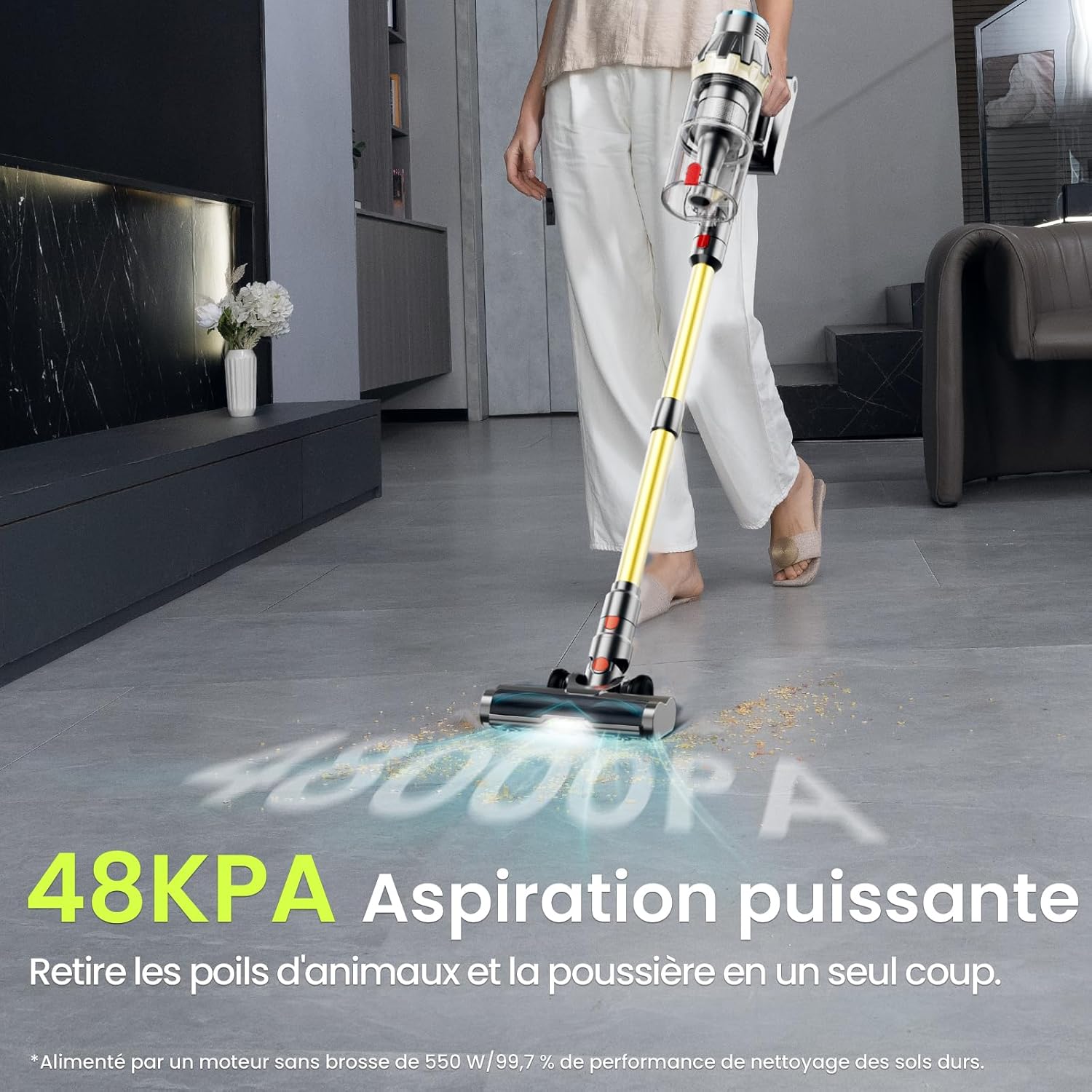

A user operates the Linkifly XT1 vacuum on a hard floor, illustrating its powerful 48KPA suction effectively cleaning debris. The text overlay highlights its strong suction and ability to remove pet hair and dust.

Téknologi Anti Tangle:

Equipped with an innovative anti-tangle rotating brush, the XT1 significantly reduces the accumulation of pet hair and human hair on the roller, ensuring consistent performance and less maintenance.

Gambar ieu nyadiakeun close-up view of the Linkifly XT1's anti-tangle brush roll, designed to prevent hair from wrapping around it. A comparison shows a clean Linkifly brush next to a conventional brush heavily entangled with hair, emphasizing the anti-tangle feature.

Self-Standing Design and Versatility:

The XT1 features a convenient self-standing design, allowing you to pause cleaning or store the vacuum upright without needing to lean it against a wall. Its lightweight and flexible design, combined with various attachments, enables easy access to spaces under furniture, narrow corners, and elevated surfaces.

The Linkifly XT1 vacuum is shown standing upright on its own, demonstrating its convenient self-standing design for easy pauses during cleaning or compact storage. An inset image shows it mounted on a wall bracket for optional storage.

This composite image demonstrates the versatility of the Linkifly XT1 vacuum, showing it being used with different attachments to clean high ceilings, upholstery like sofas, and tight spaces in a car, highlighting its adaptability for various cleaning tasks.

Pangropéa

Regular maintenance ensures optimal performance and extends the lifespan of your Linkifly XT1 vacuum cleaner.

Ngosongkeun tong sampah:

The dustbin should be emptied regularly, especially when the 'MAX' line is reached. The transparent dustbin allows for visible dust capture, so you can see when it needs emptying. Simply detach the dustbin from the main unit and press the release button to empty its contents into a trash can. The dustbin and its components are removable and washable.

This image shows a user easily emptying the dustbin of the Linkifly XT1 vacuum into a trash can, and another image shows the removable components being washed under a faucet, highlighting the easy maintenance and washable parts.

Saringan beberesih:

The Linkifly XT1 uses a multi-layer HEPA filtration system. The filters are washable and should be cleaned periodically to maintain suction power and air quality. Remove the filters from the dustbin, rinse them under cold water until the water runs clear, and allow them to air dry completely for at least 24 hours before reinserting. Do not use a dryer or heat to dry the filters.

An exploded diagram showing the multi-layer HEPA filtration system within the Linkifly XT1 vacuum, detailing how cyclonic, mesh, and HEPA filters work together to capture 99.9% of dust and allergens for cleaner air.

Ngabersihan Sikat Roll:

Although the XT1 features anti-tangle technology, it is recommended to periodically check the brush roll for any accumulated hair or debris. Remove the brush roll from the floor brush head and carefully cut away any tangled hair with scissors. Rinse if necessary and ensure it is completely dry before reinserting.

Pamérésan masalah

If you encounter issues with your Linkifly XT1, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Linkifly customer support.

spésifikasi

Garansi sareng Rojongan

Linkifly is committed to providing excellent customer service and product support.

• Bantosan Téknis: Enjoy 12 months of dedicated technical support from the date of purchase.
• Kawijakan ngabalikeun duit: We offer a 30-day refund policy for your peace of mind.
• Bantuan Pelanggan: Our customer assistance team is available 24/7 to help with any queries or issues you may have.
• Jaminan kapuasan: We strive for 100% customer satisfaction.

For any assistance, please contact us at: support@linkiflyofficial.com
