RODEDIO V519 OBD2 Scanner User Manual

1. Bubuka

The RODEDIO V519 OBD2 Scanner is a powerful diagnostic tool designed to help you understand and resolve issues with your vehicle's engine and emissions systems. This manual provides detailed instructions on how to set up, operate, and maintain your scanner to ensure optimal performance and accurate diagnostics.

Fitur konci:

• Modeu OBD2 lengkep: Supports all OBD2 modes for comprehensive vehicle diagnostics.
• Batré Voltage Tes: Integrated feature allows checking battery voltage to diagnose charging system issues.
• Aliran Data Langsung: Real-time data streaming capability provides insights into vehicle's operating parameters.
• Kesiapan I / M: Checks readiness status for emissions testing to ensure compliance.
• DTC Functions: Read, erase, and lookup diagnostic trouble codes for efficient repairs.

2. Eusi Paket

Punten parios pakét sacara saksama pikeun mastikeun yén sadaya barang aya sareng dina kaayaan anu saé:

• RODEDIO V519 OBD2 Scanner (fuselage)
• Manual pamaké

3. Produk Langkungview

The RODEDIO V519 OBD2 Scanner features a user-friendly design with a clear color screen and intuitive button layout for easy navigation and operation.

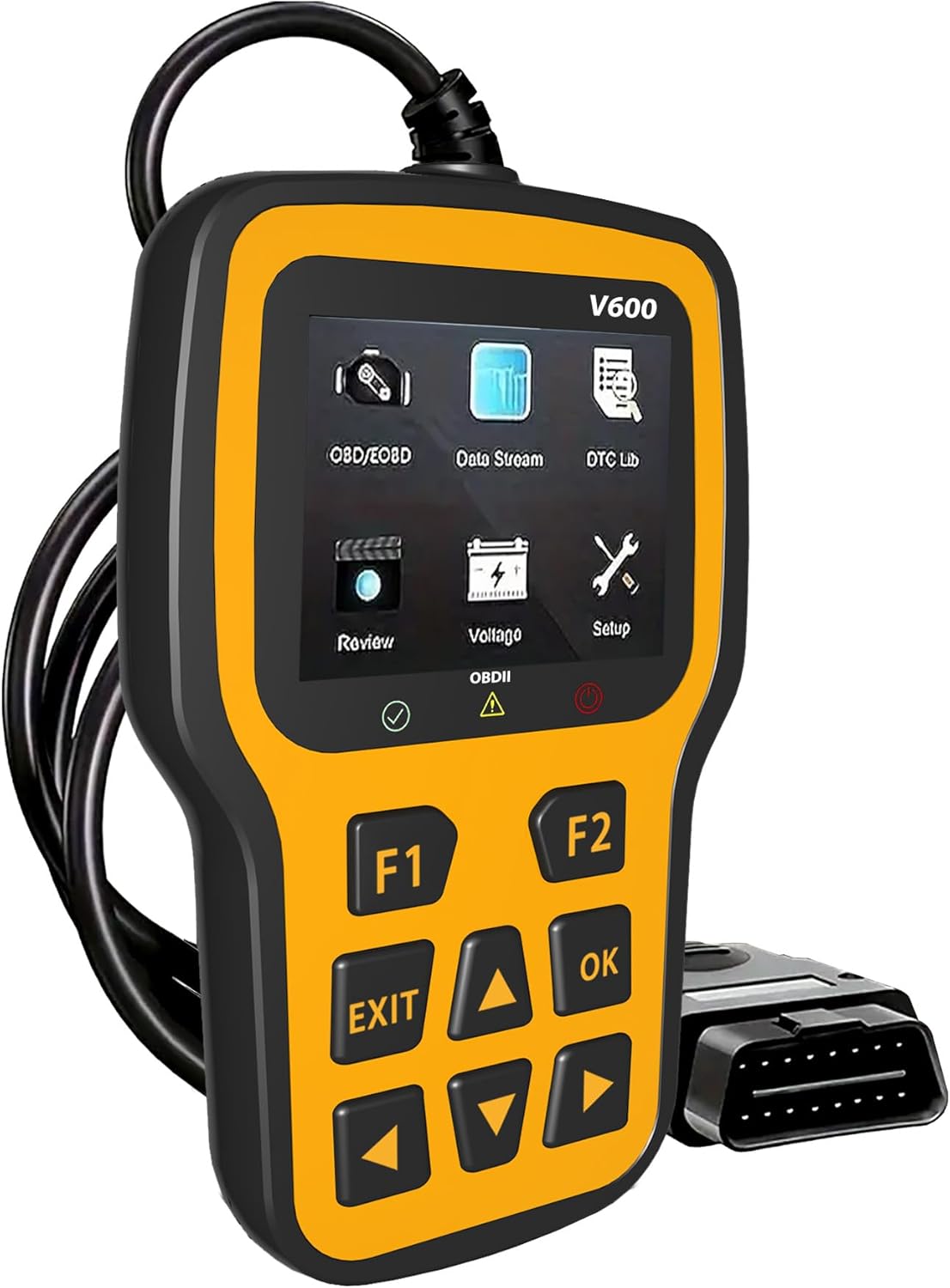

Hareupeun view of the RODEDIO V519 OBD2 Scanner, showing the display screen and control buttons.

Idéntifikasi komponén:

• Layar Warna 2.4 inci: Displays diagnostic information, menus, and results.
• Function Buttons (F1, F2): Used for specific functions as indicated on the screen.
• Tombol Navigasi (Luhur, Handap, Kénca, Katuhu): For menu navigation and data scrolling.
• Tombol OK: Konfirmasi pilihan atawa asupkeun sub-menu.
• Tombol EXIT: Returns to the previous screen or exits a function.
• OBDII Connector (16-pin): Nyambungkeun pamindai ka port OBDII kendaraan.

Diwincik view of the RODEDIO V519 scanner highlighting the 2.4-inch color screen and the 16-pin OBDII interface, along with connection status indicators (Red for fault, Yellow for failed, Green for successful).

ukuran:

The scanner measures approximately 5.1 inches (13 cm) in length, 1.5 inches (3.8 cm) in width, and 7.8 inches (19.8 cm) in height, making it compact and easy to handle.

Image showing the physical dimensions of the RODEDIO V519 OBD2 Scanner, approximately 9.6 cm (3.7 inches) in height and 15.8 cm (6.2 inches) in width.

4. Setup jeung Pamakéan Awal

Follow these steps to set up your RODEDIO V519 OBD2 Scanner and begin diagnostics:

1. Manggihan Port OBDII: The 16-pin OBDII Data Link Connector (DLC) is usually located under the dashboard on the driver's side of the vehicle. Refer to your vehicle's service manual for the exact location if needed.
2. Sambungkeun scanner: With the vehicle's ignition off, firmly plug the scanner's OBDII connector into the vehicle's DLC.
3. Hurungkeun Ignition: Turn the vehicle's ignition to the 'ON' position (do not start the engine). The scanner will automatically power on and establish communication with the vehicle.
4. Pariksa sambungan: The scanner's screen will display a connection status. A green indicator typically signifies a successful connection. If the connection fails (yellow or red indicator), ensure the cable is securely connected and the ignition is on.

5. Ngoperasikeun Scanner

The RODEDIO V519 offers a range of diagnostic functions accessible through its main menu. Use the navigation buttons to scroll through options and the OK button to select.

Leuwihview of the various OBDII functions available on the RODEDIO V519 scanner, including Read Codes, Erase Codes, Live Data, I/M Readiness, Freeze Frame, O2 Sensor Test, On-board Monitor Test, Vehicle Information, and Evap System.

5.1. Full OBD2 Modes

The scanner supports all 10 OBD2 diagnostic modes:

• Baca Konci: Retrieves Diagnostic Trouble Codes (DTCs) from the vehicle's computer. These codes indicate specific issues detected by the system.


Visual representation of the 'Read Codes' function, typically used to retrieve diagnostic trouble codes from the vehicle.

• Hapus Code: Ngahapus DTC tina mémori kandaraan sareng mareuman Indikator Malfungsi Lamp (MIL) or Check Engine Light. Catetan: Euhasing codes does not fix the underlying problem. Address the root cause before clearing codes.


Visual representation of the 'Erase Codes' function, used to clear diagnostic trouble codes and turn off the check engine light.

• Aliran Data Langsung: Displays real-time data parameters from the vehicle's sensors and modules. This can include engine RPM, vehicle speed, oxygen sensor readings, coolant temperature, and more.

The scanner screen showing live data parameters and freeze frame information, providing real-time insights into vehicle performance and conditions at the time a fault occurred.
• Kesiapan I / M: Checks the status of the vehicle's emission-related monitors. This is crucial for preparing for emissions tests.


Visual representation of the 'I/M Readiness' function, which indicates whether the vehicle's emission monitoring systems have completed their diagnostic cycles.

• Batré Voltage Tes: Mantau vol batré kendaraantage in real-time, helping to diagnose potential issues with the battery or charging system.


The scanner displaying the battery voltage test results, indicating the current voltage of the vehicle's battery.

• Pilarian DTC: Provides definitions for generic (P0, P2, P3, B0, C0, U0) and manufacturer-specific (P1, P3, B1, C1, U1) codes.

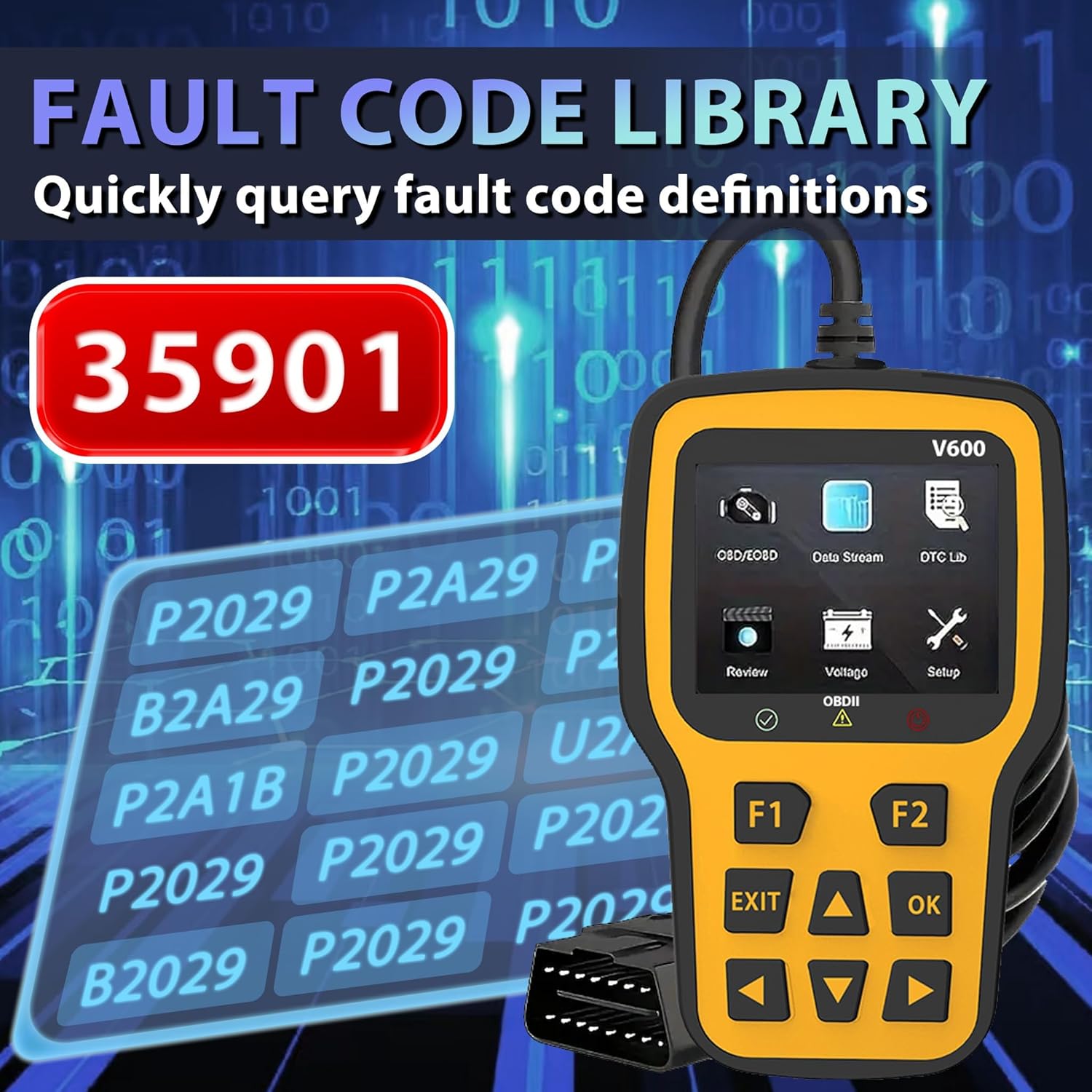

The scanner screen showing the fault code library, allowing users to quickly query definitions for diagnostic trouble codes.
• Freeze Data Frame: Captures a snapshot of critical vehicle operating conditions at the moment a DTC is set. This data helps in diagnosing intermittent problems.


A close-up of the scanner screen displaying Freeze Frame data, including parameters like DTCFRZE, FUELSYS1, FUELSYS2, LOAD_PCT(%), ETC(°C), and SHRFT1(%).

• Tés Sénsor O2: Retrieves oxygen sensor monitor test results for the most recently completed tests from the vehicle's on-board computer.
• Tes Monitor Onboard: Retrieves hasil tés pikeun komponén powertrain patali émisi jeung sistem nu teu terus diawaskeun.
• Émbaran Kandaraan: Retrieves nu Vehicle Identification Number (VIN), Calibration ID (CALID), jeung Calibration Verification Number (CVN) of the vehicle.
• Uji Sistem Evap: Ngamimitian tés Sistem Kontrol Émisi Évaporatif (EVAP) pikeun bocor.

5.2. Engine Fault Diagnosis

The scanner can quickly read and clear engine fault codes, helping to diagnose and turn off the engine failure light.

The RODEDIO V519 scanner positioned next to a car dashboard, illustrating its use in quickly reading current engine faults and clearing the engine failure light.

6. Pangropéa

Proper maintenance ensures the longevity and reliability of your RODEDIO V519 OBD2 Scanner:

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun c scannerasing jeung layar. Ulah make cleaners abrasive atawa pangleyur.
• Panyimpenan: Store the scanner in a clean, dry environment away from extreme temperatures, direct sunlight, and excessive dust.
• Perawatan kabel: Do not pull on the cable to disconnect the scanner. Always grasp the connector firmly. Avoid bending or kinking the cable excessively.
• Apdet parangkat lunak: périodik pariksa produsén urang website for available software updates to ensure your scanner has the latest vehicle compatibility and features. (Specific update instructions are not provided in this manual; refer to the manufacturer's websitus pikeun detil).

7. Cara ngungkulan

If you encounter issues while using your RODEDIO V519 OBD2 Scanner, refer to the following common problems and solutions:

8. Spésifikasi

9. Garansi jeung Rojongan

RODEDIO products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official RODEDIO website. If you require technical assistance, have questions about product operation, or need to report an issue, please contact RODEDIO customer support through the contact information provided on the official websitus atanapi platform pameseran Anjeun.
