This manual provides essential instructions for the safe operation, maintenance, and care of your YASHE Electric Slicer, Model SL-5230D23C. Please read this manual thoroughly before first use and keep it for future reference.
The YASHE Electric Slicer is designed for home use to slice various foods such as meat, cheese, bread, and vegetables. It features a 200W DC motor, dual 19CM stainless steel blades (serrated and smooth), and an adjustable slicing thickness from 0 to 15mm.
Parentah Kasalametan penting
- Salawasna cabut colokan alat tina stop kontak samemeh beberesih, assembling, atawa ngabongkar bagian.
- Keep hands clear of the blade during operation. The blade is extremely sharp.
- Pastikeun alat disimpen dina permukaan anu stabil, datar, sareng garing sateuacan dianggo.
- Do not operate the slicer without all parts properly assembled.
- Use the food pusher to guide food. Never use your hands directly.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma anu kakurangan kamampuan fisik, indrawi, atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
- Keep out of reach of children. The slicer includes a child safety lock.
- Ulah neuleumkeun unit motor dina cai atawa cairan séjén.
- Regularly inspect the power cord for damage. If damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
Komponén produk
Familiarize yourself with the parts of your YASHE Electric Slicer.
- Slicer Unit: Main body containing the motor and controls.
- 19CM Serrated Blade: Ideal for slicing bread and tougher meats.
- 19CM Smooth Blade: Suitable for cheese, deli meats, and vegetables.
- Angkot dahareun: Nyepeng dahareun aman nalika nyiksikan.
- Pendorong dahareun: Keeps hands away from the blade and applies pressure to food.
- Kenop adjustment ketebalan: Controls slice thickness from 0-15mm.
- On/Off Switch with Safety Lock: Activates and deactivates the slicer.
- Food Collection Tray: Catches sliced food.
- Non-slip Suction Feet: Nyadiakeun stabilitas salila operasi.
Disetél
- Ngabongkar bungkusan: Sacara saksama miceun sadaya komponén tina bungkusan. Simpen bungkusan pikeun neundeun atanapi transportasi ka hareup.
- Bersihan awal: Before first use, clean all removable parts (blades, food carriage, food pusher, food tray) with warm soapy water. Wipe the main unit with a damp lawon. Pastikeun sadaya bagian tos rengse garing saméméh assembly.
- Pamasangan Blade:
- Pastikeun slicer geus unplugged.
- Select the desired blade (smooth for cheese/meat, serrated for bread/tougher items).
- Align the blade with the motor shaft and gently press it into place. Turn the central locking mechanism clockwise until it clicks securely.
- Food Carriage and Pusher Assembly:
- Slide the food carriage onto its rail until it locks into position.
- Place the food pusher onto the food carriage.
- Posisi: Place the slicer on a clean, dry, and stable countertop. The non-slip suction feet will help secure the unit.
Parentah Operasi
The YASHE Electric Slicer features a powerful yet quiet 200W DC motor for efficient slicing.
- Nyiapkeun dahareun: Ensure food items are appropriately sized to fit on the food carriage. For best results, chill meats and cheeses before slicing.
- Saluyukeun Ketebalan: Use the thickness adjustment knob to select your desired slice thickness, ranging from 0mm (paper-thin) to 15mm (thick).
Gambar 3: The thickness adjustment knob allows precise control over slice thickness from 0-15mm, suitable for various food types. - Tempat dahareun: Place the food item firmly against the food carriage and the food pusher.
- Daya Hurung: Plug the slicer into a grounded electrical outlet. Simultaneously press the safety lock and the power button to activate the slicer.
Gambar 4: Safety features include the food pusher to protect hands, the safety lock switch for activation, and non-slip suction feet for stability. - Nyiksikan: While the blade is rotating, gently push the food carriage forward and backward, guiding the food against the rotating blade with the food pusher. Collect sliced food in the food tray.
- Pilihan Bilah:
Gambar 5: The slicer comes with two 19CM stainless steel blades: a serrated blade for frozen or fresh meat, and a smooth blade for cheese, bread, vegetables, and fruit. - Serrated Blade: Best for slicing bread, tougher meats, or items with a crust.
- Smooth Blade: Ideal for precise, thin slices of deli meats, cheeses, and softer vegetables.
- Pareum listrik: After slicing, release the power button and unplug the appliance.
Pangropéa jeung beberesih
Beberesih rutin mastikeun kinerja anu optimal sareng manjangkeun umur slicer anjeun. Salawasna cabut kabel alat sateuacan beberesih.
- Pembongkaran:
- Pastikeun slicer geus unplugged.
- Turn the thickness adjustment knob to 0mm to ensure the blade guard is fully retracted.
- Carefully unlock and remove the blade by turning the central locking mechanism counter-clockwise. Handle the blade by its center to avoid direct contact with the sharp edge.
- Remove the food carriage and food pusher.
- Remove the sliding bar if necessary for thorough cleaning.
- Cleaning Parts:
- Wash the blades, food carriage, food pusher, and food tray with warm, soapy water. Rinse thoroughly and dry immediately to prevent rust.
- Ngusap unit utama sareng iklanamp lawon. Ulah neuleumkeun unit motor dina cai.
- Use a small brush to clean any food particles from crevices around the blade area.
- Reassembly and Storage:
- Once all parts are dry, reassemble the slicer in reverse order of disassembly.
- Store the slicer in a clean, dry place, away from children.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Slicer teu hurung. | Not plugged in; power button/safety lock not pressed correctly; power outage. | Ensure the power cord is securely plugged into a working outlet. Press the safety lock and power button simultaneously. Check household circuit breaker. |
| Irisan anu teu rata. | Food not firm enough; blade not clean; incorrect thickness setting. | Chill food before slicing. Clean the blade and ensure it's free of debris. Adjust thickness setting. Ensure food is pressed firmly against the food carriage. |
| Sora motor téh tarik atawa eureun. | Overloaded with food; food too hard; blade dull or obstructed. | Reduce pressure on food. Ensure food is not excessively hard or frozen solid. Clean the blade. If the blade is dull, consider replacement. |
| Slicer moves during operation. | Not on a stable surface; non-slip feet not engaged. | Place the slicer on a flat, dry, and stable surface. Ensure the non-slip suction feet are clean and properly adhered to the countertop. |
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | YASHE |
| Nomer modél | SL-5230D23C |
| Daya Motor | 200W DC Motor |
| Bahan Sabeulah | Beusi sténless |
| Diaméter sabeulah | 19 CM |
| Jenis sabeulah | Serrated, Smooth (Interchangeable) |
| Ketebalan adjustable | 0-15 mm |

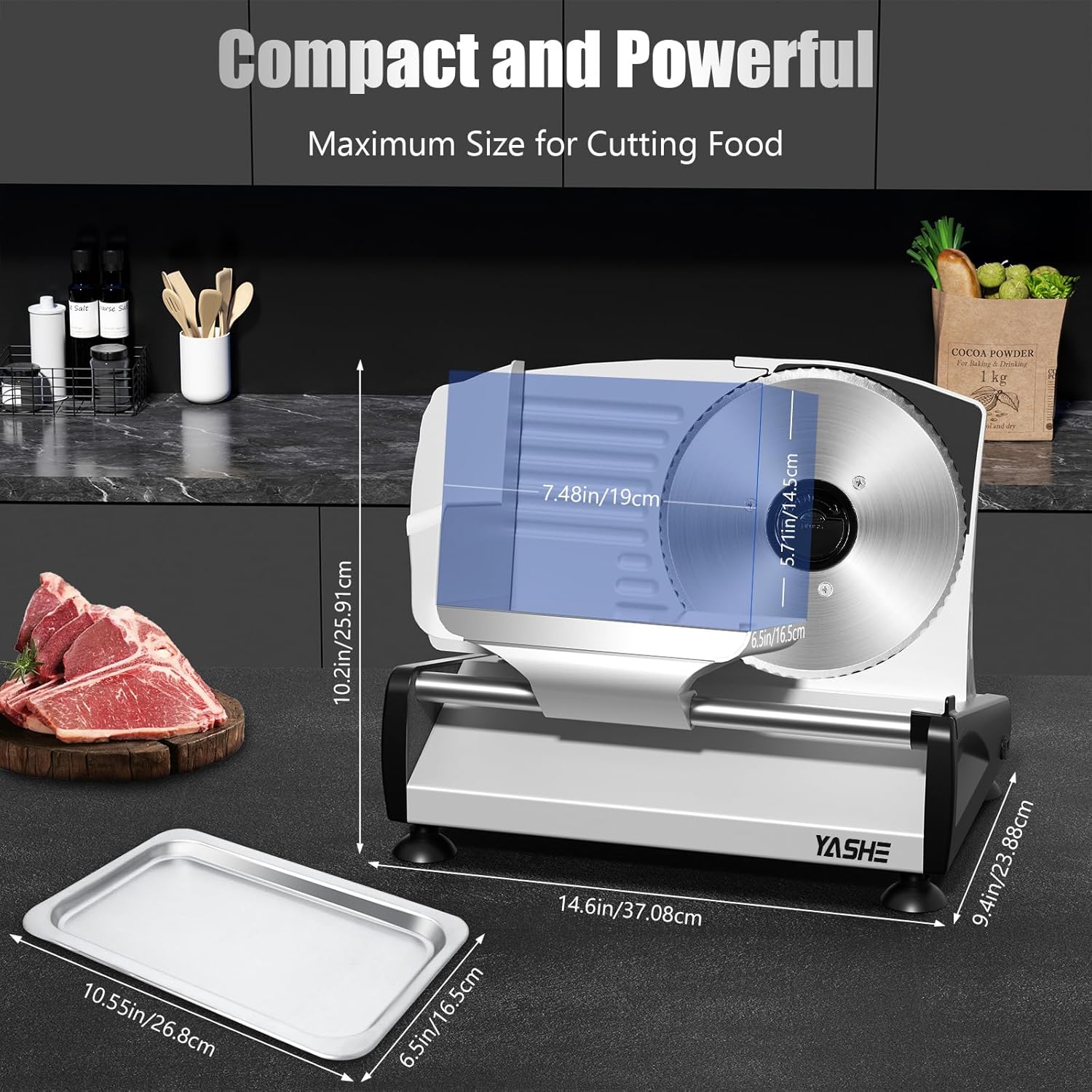

| Ukuran produk (L x W x H) | 37.08 x 23.88 x 25.91 cm |
| Item Beurat | 3.9 kg |
| Fitur Kasalametan | Child Safety Lock, Non-slip Suction Feet, Food Pusher |
| Dianjurkeun Mangpaat | Meat, Cheese, Bread, Fruits, Vegetables |
Garansi sareng Rojongan
Specific warranty details are not provided in this manual. For warranty information, please refer to the product packaging or contact YASHE customer support directly.
For technical support, replacement parts, or any questions regarding your YASHE Electric Slicer, please visit the official YASHE websitus atanapi ngahubungan departemén layanan palanggan maranéhna. Inpormasi kontak biasana tiasa dipendakan dina bungkusan produk atanapi produsén websitus.
