PowMr 3600W Solar Inverter (POW-LVM3.6M-24V) User Manual

1. Langkungview

The PowMr 3600W Solar Inverter (POW-LVM3.6M-24V) is an all-in-one solar inverter charger designed to integrate both solar and AC power sources for battery charging and load powering. It features a pure sine wave AC output and supports selectable frequencies of 50Hz or 60Hz. This inverter is compatible with various 24V battery types, including lead-acid (sealed, AGM, gel, flooded) and lithium batteries.

Fitur konci:

• Kaluaran kakuatan: 3.6KW (3600W) pure sine wave output, 24V DC to 120V AC.
• MPPT Controller: Built-in 120A MPPT charge controller.
• Input PV: Maximum PV input of 4200W, 500V (VOC), 18A. PV starting voltage > 60V.
• Charger AC: 80A AC charger with hybrid charging up to 120A (AC charger + PV charger).
• Kasaluyuan batré: Suitable for 24V lead-acid (sealed, AGM, gel, flooded) and lithium batteries. Recommended battery cable size: 2AWG.
• tampilan: Real-time LCD display for system data and operating status, allowing user configuration of input voltage range, charging current, and AC/solar charging priority.
• Operasi Multi-Mode: Offers 3 battery charging modes (solar first, solar and utility, only solar) and 3 load output working modes (utility first, solar first, SBU priority).
• Perlindungan: Features 360° protections including short circuit, over current, over voltage, handapeun voltage, overload, backfill, over-temperature, and overcharge protection.

Figure 1: PowMr 3600W Hybrid Solar Inverter highlighting its key features and dimensions.

Figure 2: The inverter is suitable for diverse applications such as residential, commercial, agricultural, and emergency backup power.

2. Unboxing

Upon opening the package, you will find the PowMr 3600W Solar Inverter and its accompanying user manual. Please inspect all components for any signs of damage during transit. If any items are missing or damaged, contact customer support immediately.

Naon anu aya dina Kotak:

• 1 x PowMr 3600W Solar Inverter
• 1 x Manual Instruksi

3. Émbaran Kasalametan

Read all instructions and warnings carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or severe injury. Keep this manual for future reference.

• Pamasangan kedah dilakukeun ku tanaga anu mumpuni.
• Ensure all wiring is correctly polarized to avoid reverse connection.
• Do not connect the battery after the utility is turned on.
• Pariksa batré voltage is within the acceptable range for the inverter before connection.
• Install a suitably rated DC circuit breaker between the battery and the inverter.
• Mastikeun ventilasi ditangtoskeun sabudeureun inverter pikeun nyegah overheating.
• Do not expose the inverter to rain, snow, spray, or excessive dust.

Figure 3: The inverter is equipped with comprehensive 360° protection mechanisms for safe operation.

4. Pamasangan

This section provides step-by-step instructions for installing the PowMr 3600W Solar Inverter. Ensure all safety precautions are followed.

4.1. Pamasangan Inverter

1. Determine the specific installation location, ensuring it is a dry, well-ventilated area away from direct sunlight and flammable materials.
2. Secure the inverter to the wall using two screws through the mounting holes at the top of the inverter.

4.2. Sambungan batré

1. Connect the positive (red) and negative (black) cables from the battery to a suitably rated DC circuit breaker.
2. Pariksa yén batré voltage is within the acceptable range for the inverter (24V nominal) using a multimeter.
3. Unscrew the four screws on the port cover at the bottom of the inverter and remove the cover.
4. Connect the battery positive and negative lines from the DC circuit breaker to the corresponding battery terminals on the inverter, ensuring correct polarity to avoid reverse connection.

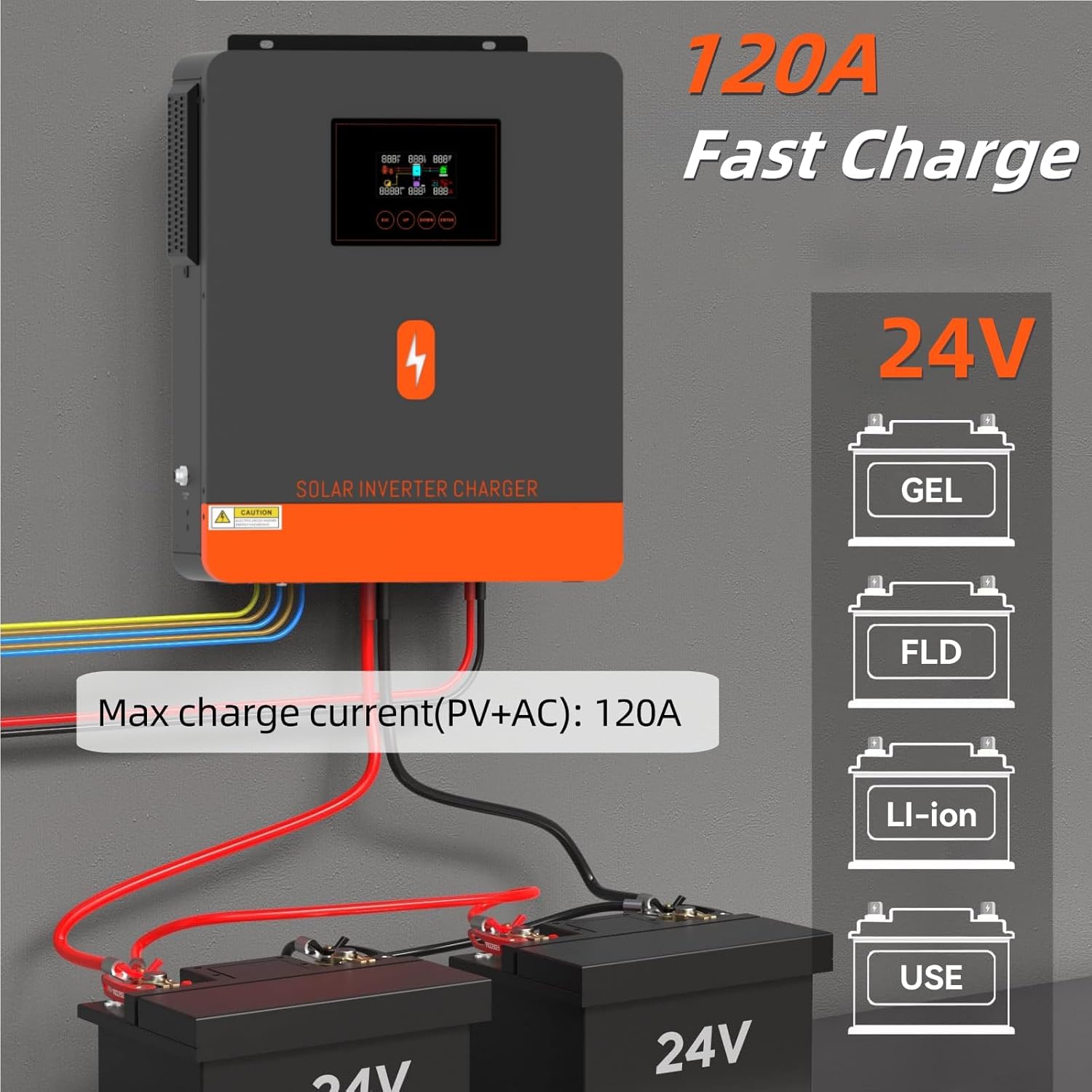

Figure 4: The inverter supports 120A fast charging and is compatible with multiple 24V battery types.

4.3. PV Array Connection

1. Connect the PV array to the positive and negative PV input ports of the inverter. Ensure the PV input voltage and current are within the inverter's specifications (Max PV Input: 4200W, 500V VOC, 18A).

4.4. AC Input (Utility/Generator) Connection

1. Connect the inverter to the utility power or generator via the AC input port.

4.5. AC Output (Loads) Connection

1. Connect the loads to the main AC output port and the secondary AC output port. You can choose to enable the dual output smart management feature to coordinate the main output switch, ensuring stable power supply to the secondary output line.

4.6. Power On Sequence

1. After completing all AC output wiring, replace the port cover and secure it with the four screws.
2. Tutup pemutus sirkuit batré.
3. Power on the inverter using the power switch.
4. If the inverter shows no abnormalities, sequentially activate the PV input, AC input, and AC output lines.

5. Operasi

The inverter features an intuitive LCD display and control buttons for easy operation and configuration.

5.1. LCD Display and Settings

The LCD display provides real-time system data and operating status. Use the control buttons (ESC, UP, DOWN, ENTER) to navigate the menu and adjust settings.

• Masukan Voltage Rentang: Saluyukeun input voltage range for home appliances or personal computers.
• Batré Ngecas Ayeuna: Configure the battery charging current based on your specific application and battery type.
• AC/Solar Charging Priority: Set the priority between AC and solar charging sources.

Figure 5: The inverter's LCD display allows for easy configuration of various operational parameters.

5.2. Charging and Output Modes

The inverter offers flexible charging and output modes to suit different energy management needs.

• Modeu ngeusi batre:
  • Surya munggaran
  • Surya jeung Utiliti
  • Ngan Solar
• Load Output Working Modes:
  • Utiliti Kahiji
  • Surya munggaran
  • SBU Priority

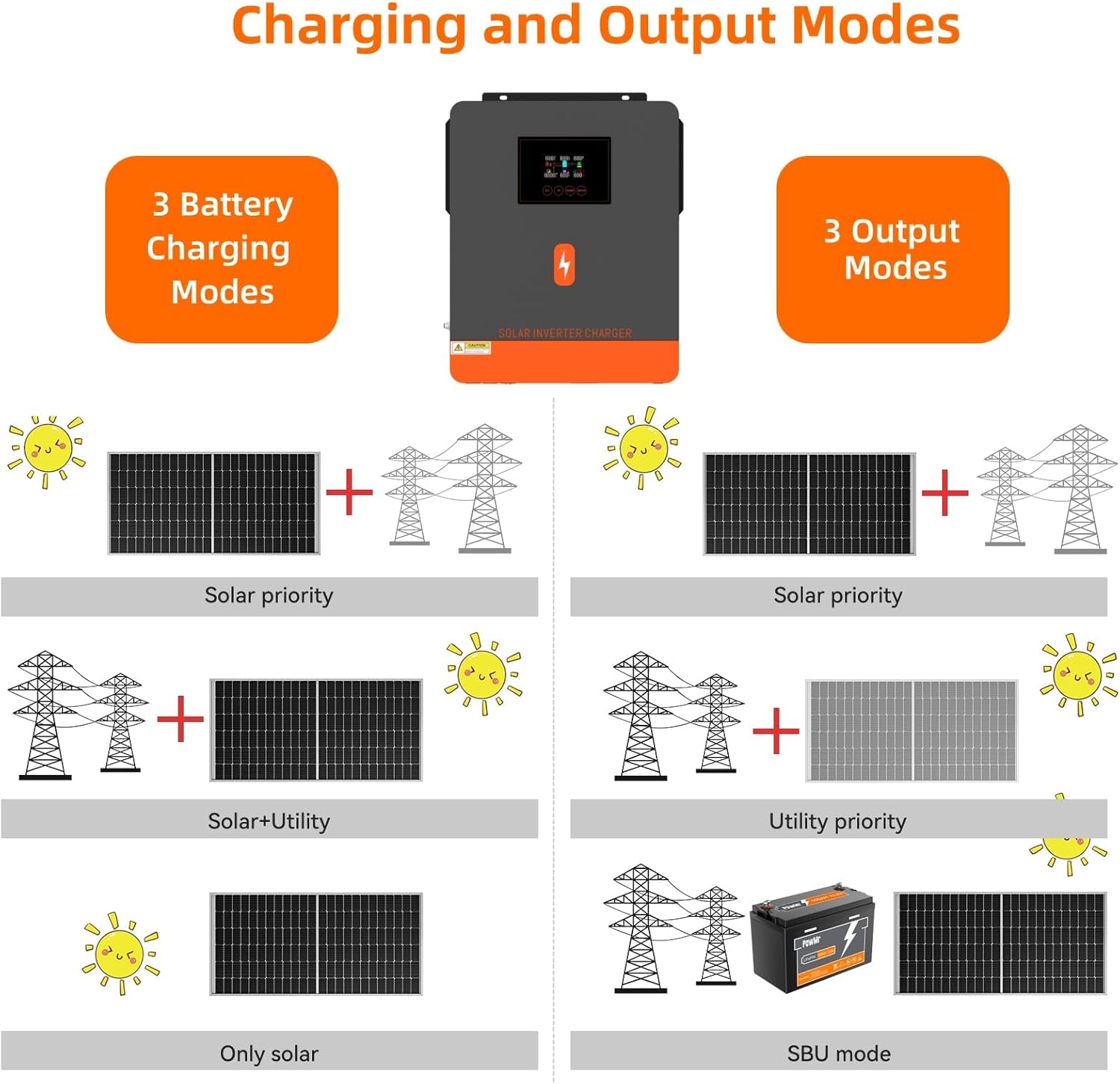

Figure 6: Visual representation of the available charging and output modes for optimized energy usage.

6. Pangropéa

Regular maintenance ensures optimal performance and longevity of your PowMr Solar Inverter.

• beberesih: Bersihkeun bagian luar inverter sacara berkala nganggo lawon garing. Pastikeun liang ventilasi bébas tina lebu sareng runtah.
• Sambungan: Regularly check all electrical connections for tightness and signs of corrosion.
• Lingkungan: Pastikeun lingkungan pamasangan tetep dina kisaran suhu sareng kalembaban anu ditangtukeun.
• Kaséhatan batré: Monitor battery health and ensure proper charging cycles to extend battery life.

7. Cara ngungkulan

This section provides solutions to common issues you might encounter with your inverter. For more complex problems, contact customer support.

• Taya Kaluaran Daya: Check battery connections, DC circuit breaker, and AC output connections. Ensure the inverter is powered on.
• Batré Rendah Voltage alarem: Verify battery charge level. Check PV input and AC input for proper power supply.
• Overload Alarm: Reduce the connected load. Ensure the total load does not exceed the inverter's rated capacity.
• Alarm suhu-langkung: Ensure adequate ventilation around the inverter. Clean any dust from the cooling vents.
• PV Input Not Detected: Check PV array connections and ensure sufficient sunlight. Verify PV input voltage.

8. Spésifikasi

Detailed technical specifications for the PowMr 3600W Solar Inverter (POW-LVM3.6M-24V).

Figure 7: Product label displaying detailed technical specifications. Product ID: 920372408010198.

9. Garansi jeung Rojongan

For warranty information, technical support, or service inquiries, please refer to the contact details provided in your product packaging or visit the official PowMr websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
