Bubuka
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your AquaMiracle All-in-One Pond Filter and Fountain Kit. Please read these instructions thoroughly before use and retain them for future reference.
The AquaMiracle All-in-One Pond Filter and Fountain Kit is designed to provide both filtration and decorative water features for outdoor ponds ranging from 500 to 750 gallons. It includes a powerful 850GPH water pump, a multi-stage filtration system, and three interchangeable spray patterns to enhance your pond's aesthetics and water quality.
Image: Before and after views of a pond demonstrating the effectiveness of the filtration system in achieving crystal-clear water.
Émbaran Kasalametan
- Always disconnect the power supply before performing any maintenance, cleaning, or assembly.
- Ensure the power cord and plug are in good condition and free from damage.
- Do not operate the pump if it or the power cord is damaged.
- This product is intended for outdoor pond use only.
- Keep children and pets away from the pond area during installation and operation.
- Ensure the pump is fully submerged in water during operation to prevent overheating.
- Install the unit on a stable, level surface within the pond.
Eusi pakét
Pastikeun yén sadaya komponén aya sareng henteu ruksak nalika muka bungkusan:
- Pond Filter Unit with Integrated Pump
- Telescopic Spray Rod
- 3 Interchangeable Spray Nozzles (Bell, Volcano, Daisy)
- Coarse Filter Sponge
- Fine Filter Sponge
- Cingcin Filter keramik
- Bio-Bola
- Kabel listrik
- Instruksi Manual
Gambar: Leuwihview of all included components: the main filter unit, submersible pump, telescopic spray rod, three spray nozzles, coarse and fine sponges, ceramic rings, and bio-balls.
Parentah Setup
Follow these steps to set up your pond filter and fountain kit:
- Prepare the Filter Unit:
Open the filter unit by unlatching the blue clips. Insert the coarse sponge (blue) and fine sponge (yellow) into their designated slots. Place the ceramic rings and bio-balls into the remaining compartments. Ensure the pump is securely positioned inside the unit. - Kumpulkeun Air Mancur:
Attach the telescopic spray rod to the pump outlet. Select your desired spray nozzle (Bell, Volcano, or Daisy) and securely fasten it to the top of the telescopic rod. Adjust the rod's height as needed for your pond depth. - Optional Secondary Water Output:
If you wish to power an additional water feature (e.g., a waterfall), connect appropriate tubing to the secondary water outlet on the filter unit. Catetan: Avoid using the Bell fountain jet when the secondary outlet is in use, as this may distort the bell shape. - Placement in Pond:
Carefully place the assembled filter unit into your pond, ensuring it is fully submerged and resting on a stable surface. Position it where the fountain effect is desired and where the power cord can safely reach an outdoor-rated electrical outlet. - Sambungkeun Kakuatan:
Once the unit is properly placed and submerged, connect the power cord to a GFCI-protected (Ground Fault Circuit Interrupter) outdoor electrical outlet.
Image: Visual guide for assembling the filter media and pump within the main unit.
Image: Illustration of the telescopic spray rod and the three available fountain spray patterns.
Image: Visual representation of the different ways the kit can be used, including connecting to external water features.
Parentah Operasi
After successful setup, operating your AquaMiracle pond filter is straightforward:
- Daya Hurung: Plug the unit into a suitable electrical outlet. The pump will immediately begin circulating water and creating the chosen fountain pattern.
- Adjusting Fountain Height: The telescopic spray rod allows for height adjustment. Loosen the locking mechanism on the rod, adjust to the desired height, and then re-tighten.
- Changing Spray Patterns: To change the spray pattern, disconnect power, remove the current nozzle, and attach a different one. Reconnect power.
- Prosés filtrasi: Water is drawn into the unit and passes through four layers of filtration:
- Coarse Sponge: Traps larger debris such as leaves and sediment.
- Fine Sponge: Captures smaller particles, improving water clarity.
- Cincin keramik: Provide a large surface area for beneficial bacteria to colonize, breaking down ammonia and nitrites.
- Bio-Balls: Further enhance biological filtration and improve dissolved oxygen levels.

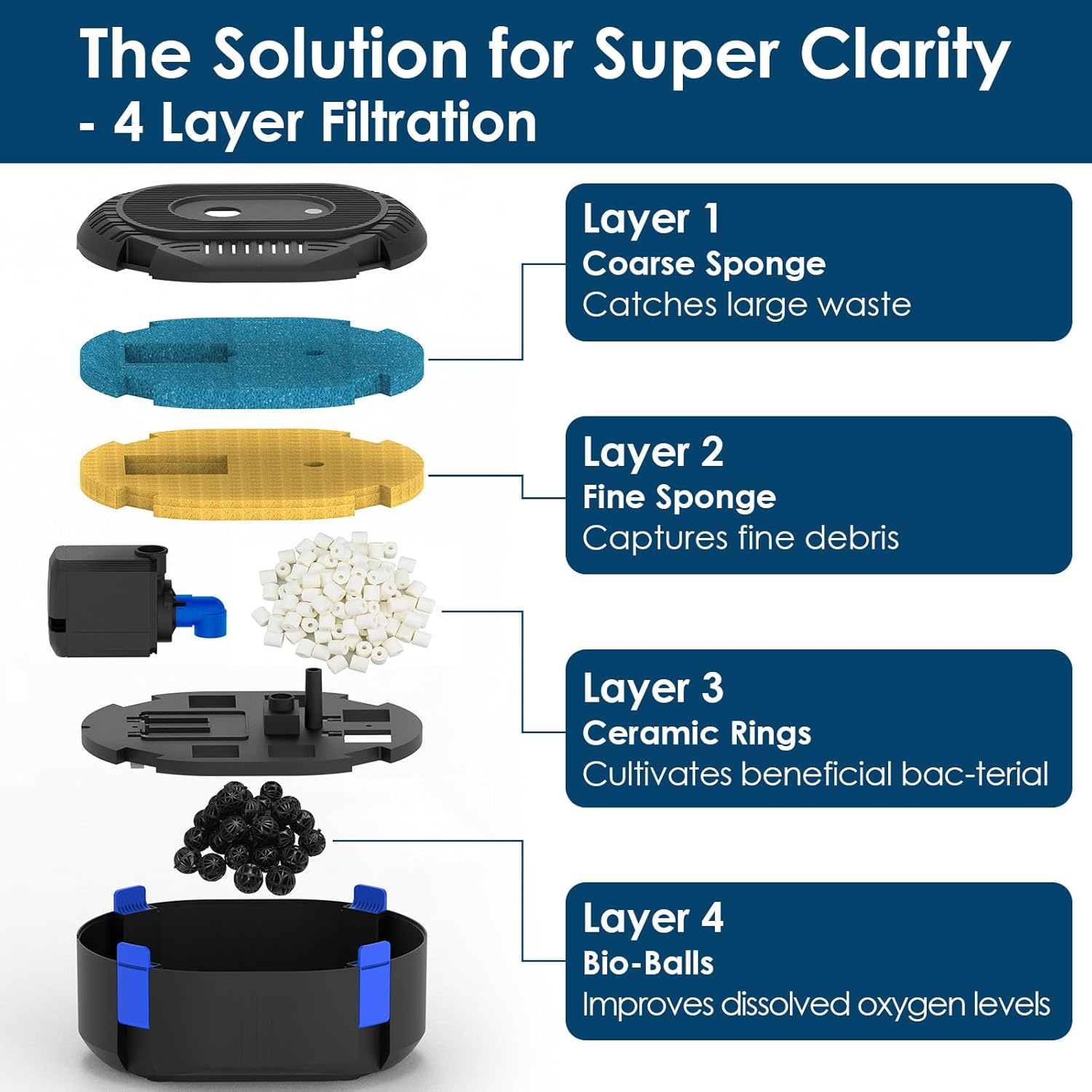

Image: Detailed breakdown of the 4-layer filtration system and its components.
Pangropéa
Regular maintenance ensures optimal performance and longevity of your pond filter. Always disconnect power before maintenance.
- Filter Media Cleaning:
The coarse and fine sponges should be rinsed regularly, typically every 1-2 weeks, depending on pond debris levels. Remove the sponges and rinse them thoroughly with pond water (not tap water, to preserve beneficial bacteria) until clean. - Ceramic Rings and Bio-Balls:
These biological media should be gently rinsed with pond water only when they appear heavily clogged. Avoid aggressive cleaning, as this can remove beneficial bacteria. - Pompa beberesih:
Periodically inspect the pump impeller for blockages from debris. Remove the pump from the housing and clean any accumulated sludge or foreign objects. - Bersihan Perumahan:
Clean the main filter housing as needed to remove any accumulated sludge or algae.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Pompa teu beroperasi | No power; Impeller blocked; Pump damaged | Check power connection and GFCI; Disconnect power and clean impeller; Contact customer support if damaged. |
| Weak or no fountain spray | Nozzle clogged; Filter media clogged; Low water level; Pump partially blocked | Clean nozzle; Clean filter media; Ensure pump is fully submerged; Disconnect power and clean pump impeller. |
| Pond water remains cloudy | Filter media dirty; Insufficient biological filtration; Pond size exceeds capacity | Clean filter media regularly; Allow time for beneficial bacteria to establish; Ensure product is suitable for your pond volume. |
| Bell fountain shape distorted | Secondary outlet in use; Incorrect trumpet part height | Avoid using Bell jet with secondary outlet; Adjust trumpet part height as per instructions. |
spésifikasi
- model: MF-3000
- kakuatan: 40 Watt
- Voltage: 120 volt
- Laju Aliran Maksimum: 850 GPH (Gallons Per Hour) / 53.6 Liters Per Minute
- Jangkungna Angkat Maksimum: 9 suku
- Recommended Pond Size: 500-750 galon
- Ukuran produk: 11.8 "L x 9.2" W x 5.5" H (30cm L x 23.5cm W x 14cm H)
- Beurat barang: 6.38 pon (2.9 Kilogram)
- Bahan: Copper, Steel, Rubber, Plastic
- Komponén Kaasup: Pond Filter Kit (Pump, Nozzles, Filter Media, Hardware)
Image: Product specifications including pump details and physical dimensions.
Émbaran jaminan
For detailed warranty terms and conditions, please refer to the product packaging or visit the official AquaMiracle websitus. Simpen bukti pameseran anjeun pikeun klaim garansi naon waé.
Ngarojong
If you encounter any issues not covered in this manual or require further assistance, please contact AquaMiracle customer service. Contact information can typically be found on the product packaging or the AquaMiracle official websitus.
