iBELL 1130NM Electric Idiyappam, Pasta, and Noodle Maker User Manual

1. Bubuka

Thank you for choosing the iBELL 1130NM Electric Idiyappam, Pasta, and Noodle Maker. This versatile cordless appliance is designed to simplify the process of making various types of pasta, noodles, and idiyappam at home. With its powerful 2000 mAh battery and six interchangeable molds, you can enjoy freshly made culinary delights with ease. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Parentah Kasalametan penting

Pikeun ngurangan résiko seuneu, shock listrik, atawa tatu, salawasna turutan pancegahan kaamanan dasar ieu:

• Baca sadaya parentah sateuacan nganggo alat.
• Ulah neuleumkeun unit utama dina cai atawa cairan séjén.
• Jauhkeun alat tina jangkauan barudak.
• Ensure the charging cable is not damaged and use only the provided USB cable for charging.
• Ulah ngajalankeun alat lamun geus ruksak sagala cara. Kontak rojongan customer pikeun pitulung.
• Cabut colokan alat sateuacan beberesih sareng nalika henteu dianggo.
• Paké ngan kantétan jeung asesoris dianjurkeun produsén.
• Hindarkeun kontak sareng bagian anu gerak.

3. Naon dina Box

Carefully unpack your iBELL Electric Noodle Maker and check for the following components:

• Electric Noodle Maker (Main Unit)
• 6 Molds (various shapes)
• Gelas ukur
• Spatula
• Kabel Ngecas USB

4. Komponén produk

Familiarize yourself with the different parts of your iBELL Electric Noodle Maker:

Gambar: Ngabeledug view of the iBELL Electric Noodle Maker, highlighting the Loading Tube, Noodle Mold, Pushing Rod, and Noodle Press Lid.

• Unit Utama: Contains the motor and battery.
• Loading Tube: Where the dough is placed.
• Noodle Mold: Interchangeable discs that shape the pasta/noodles.
• Noodle Press Lid: Secures the mold to the loading tube.
• Pushing Rod: Internal mechanism that pushes dough through the mold.
• Panél kontrol: Buttons for Forward, Cease, and Retreat operations.

5. Setup jeung Majelis

Follow these steps to assemble your noodle maker before use:

1. Ensure the appliance is fully charged (refer to Section 7: Charging).
2. Select the desired noodle mold and attach it to the loading tube.
3. Prepare your dough according to your recipe. The dough should be firm but pliable.
4. Stuff the prepared dough into the loading tube. Do not overfill.
5. Attach the loading tube assembly to the main unit of the machine. Ensure it is securely locked in place.

Image: Step-by-step guide for assembling the noodle maker and initiating operation.

6. Operasi

6.1. Selecting Molds

The iBELL 1130NM comes with 6 essential molds to create various pasta and noodle types:

Image: Visual guide to the six included molds and the types of noodles/pasta they create.

• Thin Noodles / Idiyappam: For delicate, fine strands.
• Spaghetti Noodles: Classic round spaghetti.
• Lamian Noodles: Wider, flat noodles.
• Plate Noodles: Broad, flat pasta sheets.
• Thicker / Wide Noodles: Robust, thicker noodle strands.
• Special Noodles: Unique shape for various dishes.

6.2. Making Pasta/Noodles

1. After assembly and dough loading (as per Section 5), place a bowl or plate beneath the noodle mold.
2. Pencét éta MAJU button on the control panel. The pushing rod will begin to extrude the dough through the selected mold.
3. Once the desired length of pasta/noodles is extruded, press the CEASE button to stop the extrusion.
4. Use the spatula to cut the noodles to your preferred length.
5. To retract the pushing rod for cleaning or reloading, press the MUNDUR kancing.

Image: The noodle maker in operation, extruding pasta, with key battery specifications highlighted.

7. Ngecas

The iBELL 1130NM features a powerful 2000 mAh battery for cordless operation.

• Connect the provided USB charging cable to the charging port on the appliance and to a suitable USB power adapter (not included) or a computer USB port.
• Ngeusi batre pinuh biasana nyandak kirang langkung 4 jam.
• Once fully charged, the appliance can be used approximately 50 times, depending on the dough consistency and usage duration.
• The display on the control panel will indicate the battery level.

8. beberesih sarta Pangropéa

Regular cleaning ensures the longevity and hygienic operation of your noodle maker.

1. Salawasna cabut colokan alat tina sumber listrik sateuacan diberesihan.
2. Disassemble the loading tube, noodle mold, and noodle press lid from the main unit.
3. Wash the loading tube, molds, and press lid with warm, soapy water. Use a brush to remove any dough residue from the molds.
4. Rinse thoroughly and dry all parts completely before reassembly or storage.
5. Ngusap unit utama sareng iklanamp lawon. Ulah neuleumkeun unit utama dina cai.
6. Pastikeun sadaya bagian garing sateuacan nyimpen alat.

9. Cara ngungkulan

10. Spésifikasi

• model: 1130NM
• merek: IBELL
• Fitur husus: Cordless Design, Multiple Molds, Long Battery Life
• Warna: Biru
• Bahan: palastik
• Beurat barang: 1.1 Kilogram (1 kg 100 g)
• Kapasitas batré: 2000 mAh
• Waktu Ngecas: Kurang leuwih 4 jam
• Uses per Charge: Nepi ka 50 kali
• Number of Molds: 6

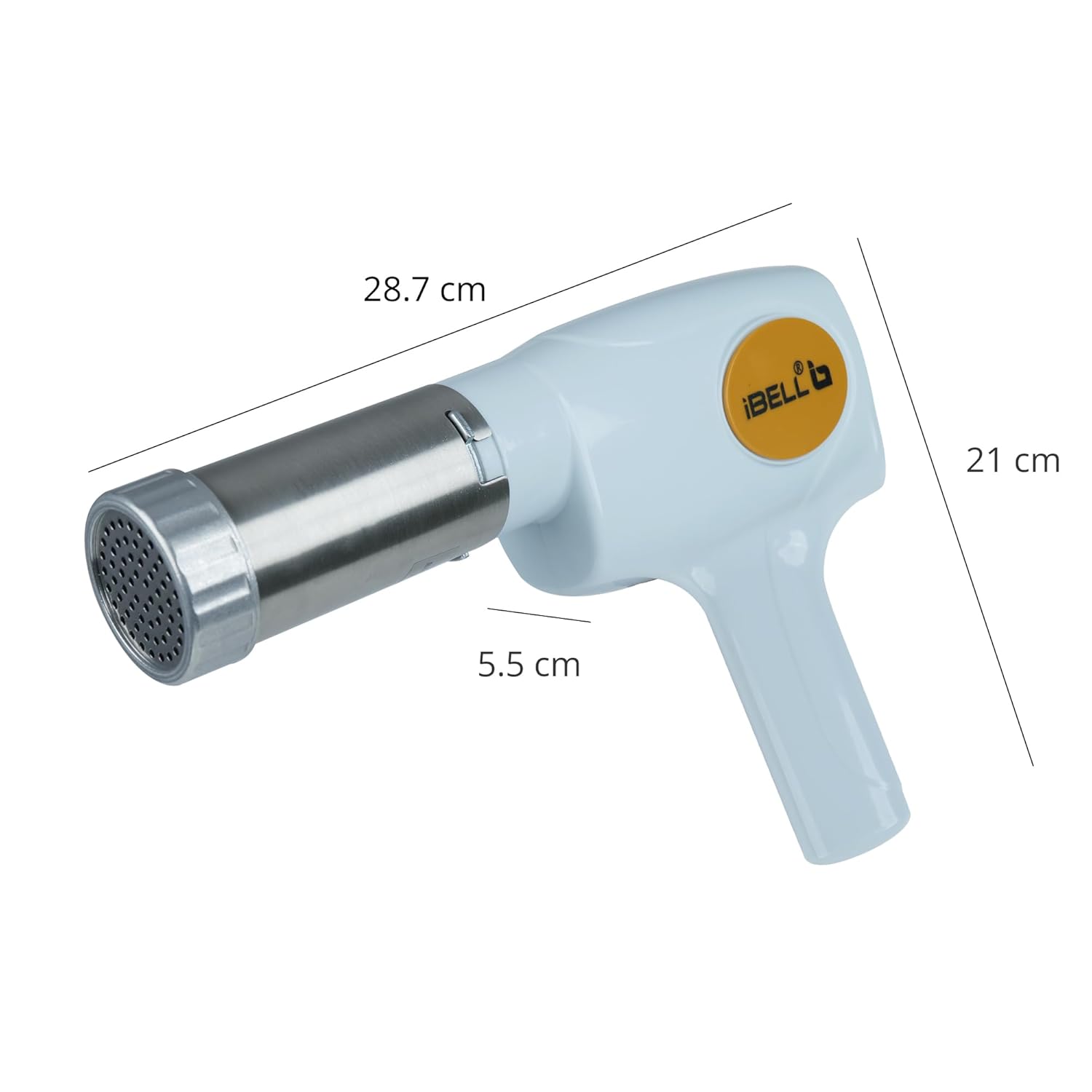

• Item Ukuran (L x W x H): 28.7 x 5.5 x 21 cm

11. Garansi jeung Rojongan

Your iBELL 1130NM Electric Idiyappam, Pasta, and Noodle Maker comes with a comprehensive warranty:

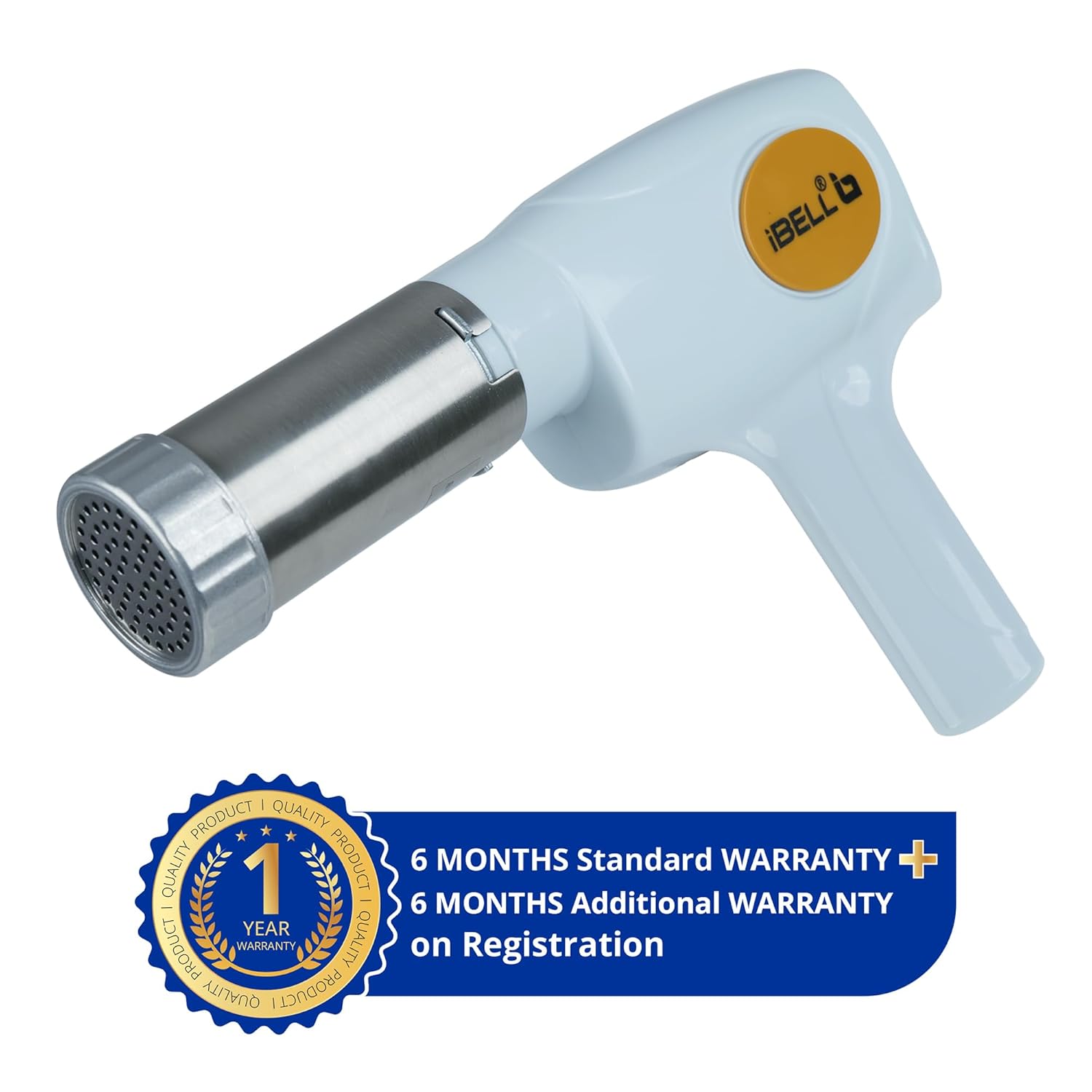

Image: The iBELL Noodle Maker highlighting its warranty details.

• Garansi standar: 6 Bulan
• Jaminan tambahan: 6 Months upon product registration.
• Syarat Pendaptaran: Registration must be completed within 30 days from the date of purchase to avail the additional warranty.
• Jenis Garansi: Garansi diperpanjang.

For warranty claims, technical support, or any inquiries, please contact:

• Pabrikan / Importer: Innovative Technologies, Fida's Building, Thottumugham P.O, Aluva, Kerala - 683105
• Telepon: 1800 2020 260
• Surélék: connect@ibellstore.com
